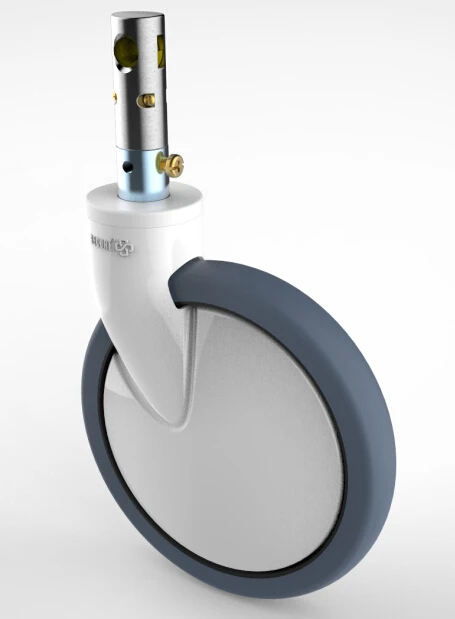

Растягивающее колесо, 6 дюймов, больничные колеса, сверхмощные

Share on (60699785098):


Price:

Quantity:


Product Overview

Description



Product Description


-1.Single wheel central locking castor with total brake or free, directional lock .


-2.Body swivel axis and wheel apply precision ball bearing.


-3.Castor size: 150mm


-4.Fitting type: 28*96 or 32*50


-5.Used on beds, medical trolley,medical equipment,etc


-6.Data








    A150C-WG-D32X50-2D45°





      3D-3 central locking caster Caster with directional lock,total lock and free Functions.


Wheel with double ball bearing, it assures of stable rolling.A 3mm thick steel plate is


embedded in the inner wheel, which makes the  wheel strong and more durable.Caster


housing is made of aluminium alloy material in high density, which enhance the load


capacity very well.Wear-resisting TPU wheel tread assures of quiet  and stable rolling.



































































Wheel Diameter150mm
Tread Width32mm
Caster Width64mm
Stem diameter32mm
Stem length50mm
Offset40mm
Swivel Radius115mm
Swivel interference230mm
Overall height185mm
Temperature -30/+80℃
StandardEN12531
Weight1.2KG
Dynamic load capacity180KG
Static load capacity200KG

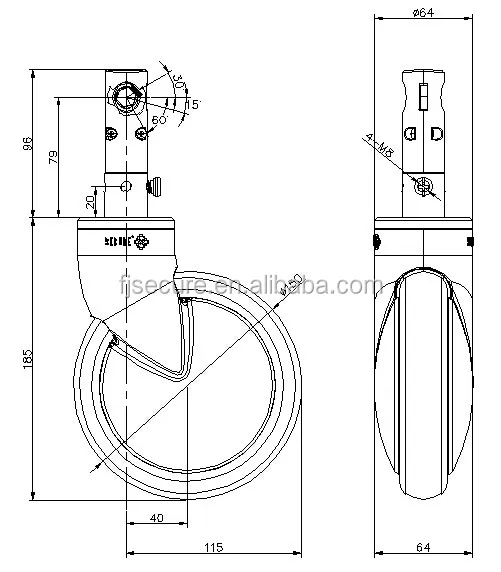

 A150C 28X96 D.jpg
