Product Description

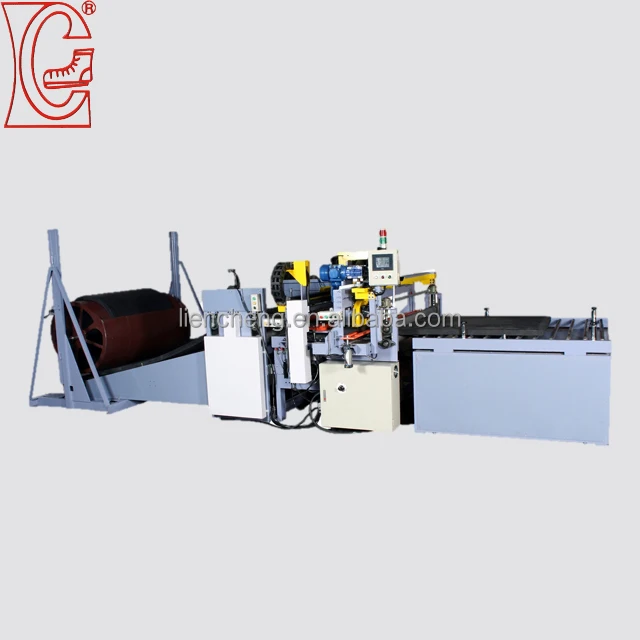

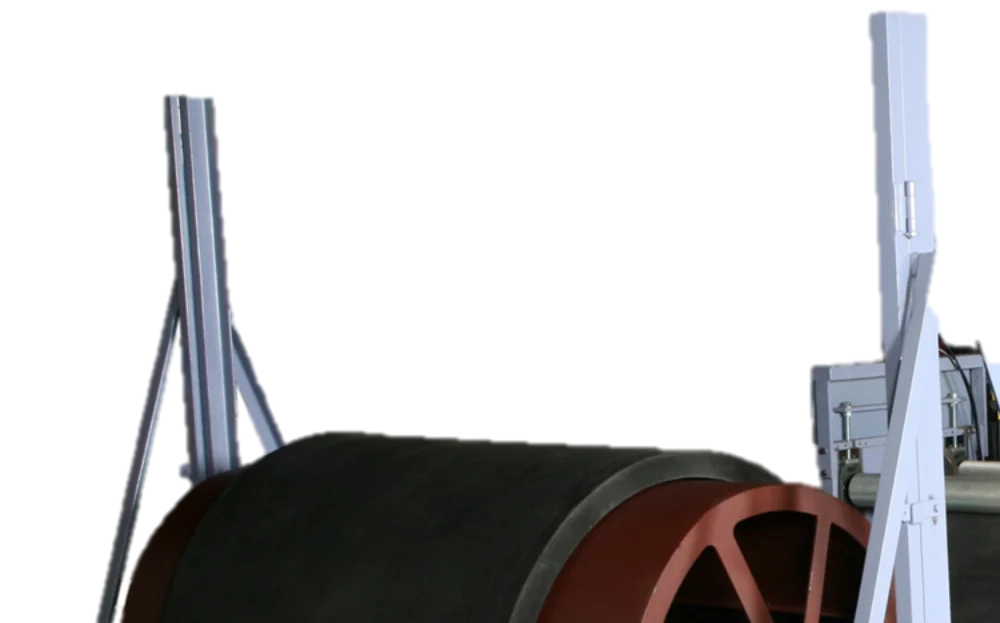

LC-305 EVA Sheet Welding Machine
Function:
Using electrothermal way to melt and weld EVA, PE sheets into a roll.
Features:
1. Without glue or adhesive, this machine melts and welds EVA, PE boards into a roll by electro thermal way. Moreover, it keeps raw materials clean.
2. (1) After putting into the first raw material, it will go forward automatically and the machine will cut the head (front) of material, and then the material will go forward again and the machine will cut the tail (back) of material.
(2) After putting into the second raw material, the machine will cut the head of the second material, and then will melt and bond the head of the second material with the tail of the first material.
(3) Furthermore, it will cut the edge of materials automatically.
(4) By this process, from feeding materials, cutting the head of materials, cutting the tail of materials, cutting the edge of materials to rolling materials, it just takes 10-30 seconds (according to whether operators are practiced or not) to bond one piece of material. Every step just needs one person. It saves time and labor.
3. (1) The working width can be 1650 mm.
(2) The thickness of raw material can be 30-60 mm.
(3) The diameter of material roll can be 2.5 M-3 M.
Model
LC-305
Total Power
8-1/2HP
Working Width
1650mm
Working Thickness
30-70mm
Machine Size(L*W*H)
6300*2600*2100mm
Weight
3500kgs
Company Information
Company profile
As a pioneer in shoes making machinery, UNITED CHEN INDUSTRIAL CO., LTD.
The company was founded in Taiwan in 1980.
In 1993, we set up new company in China. We already have 12,000m2 of land.
We have been dedicating to developing, designing and manufacturing various types of machinery for shoes roughing, hydraulic pressing and shoe forming.
We also research and develop high precision equipment, such as CNC Engraving Machine, Screen Printer, and etc.
By sticking to the corporate tenet of "Quality First, and Service First"
R & D
To provide various products to customers, United Chen owns strong R & D team.
Our products are used to many different kinds of industries. Such as: Woodworking, Shoe making, Aluminum machine, CNC machine, Screen printer.
Most important of all, we focus on R & D which is based on customized production in order to enhance the competitive ability.
