The Johnson screens/wedge wire screens/ LCG water well screens

Product Overview

Description

 Johnson screens/Wedge wire screens/ LCG water well screens





Wedge wire screens(Johnson Type Screens) are manufactured by a v or wedge shaped wire around an internal array of these longitudinal support rods. The word advanced all-weld technology is used with each intersecting point of these wire fusion welded, which creates robust construction and excellent mechanical performance. The v or wedge shaped profile wire wraps around the support rods over the full length of the screen creating a continuous slot opening, hence screen allows water (oil) to enter your well freely in ample quantities, while at the same time keeps the majority of sand and gravel out of the well.Slots can be changed according to different strata.

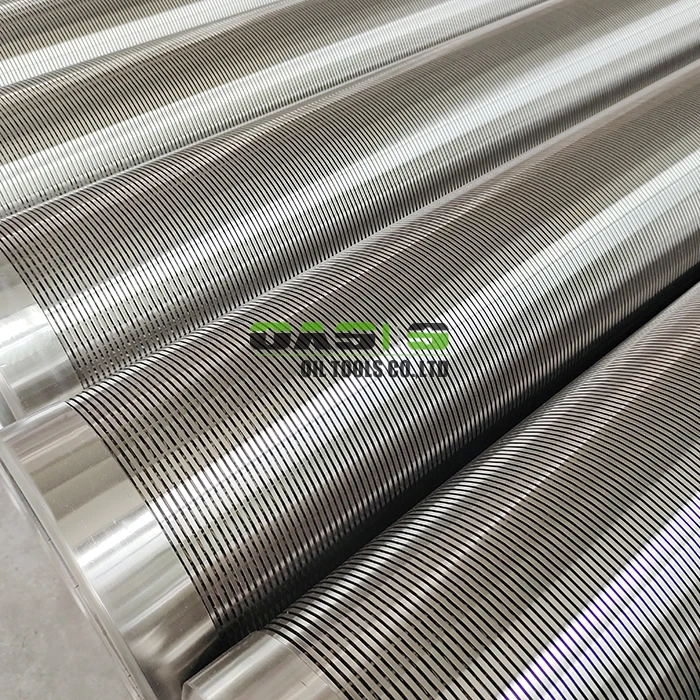

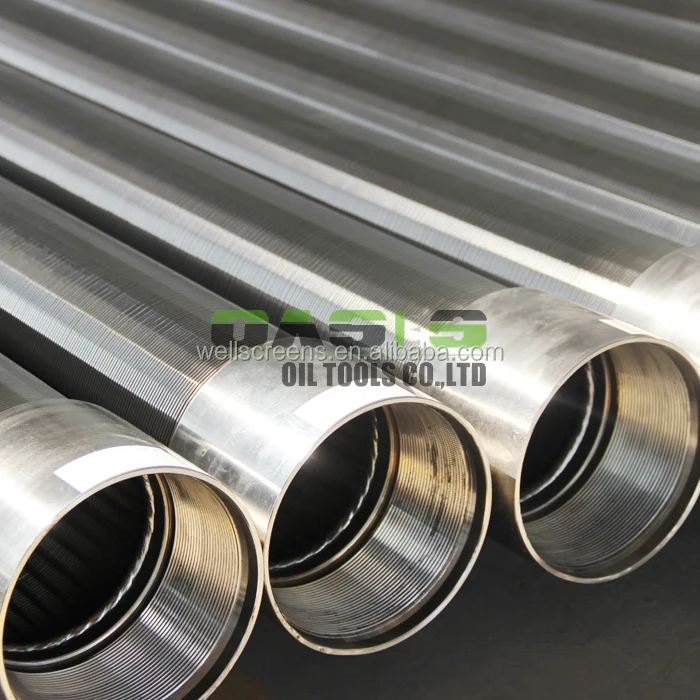

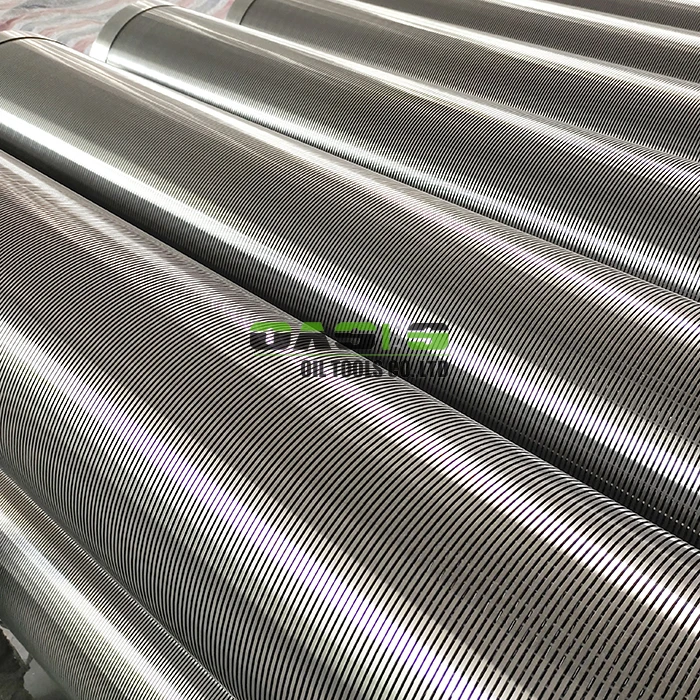

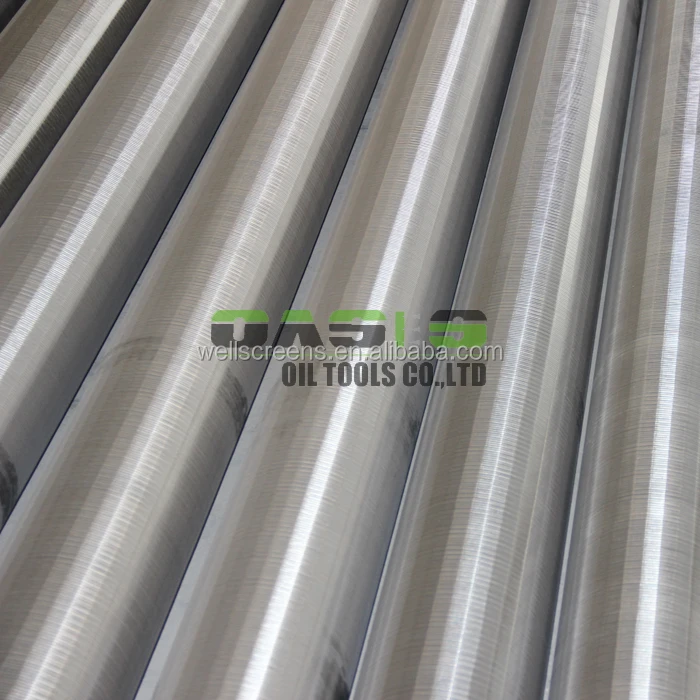

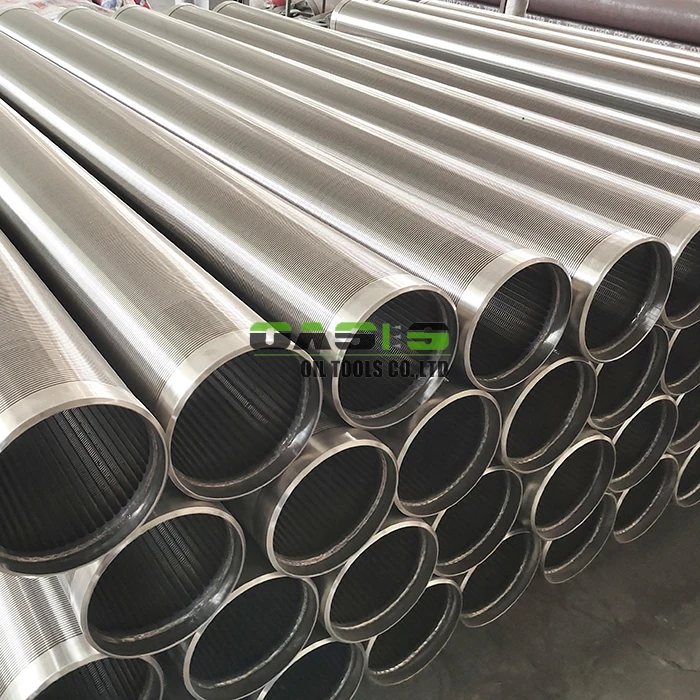

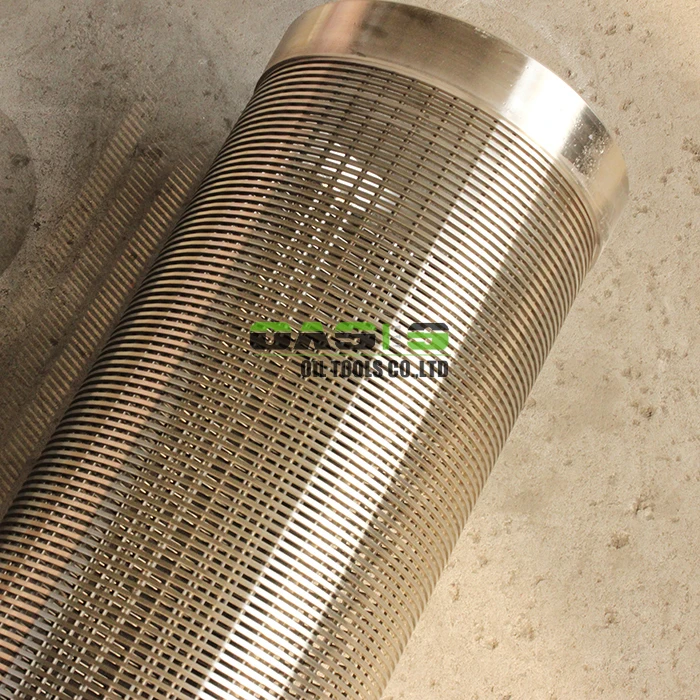

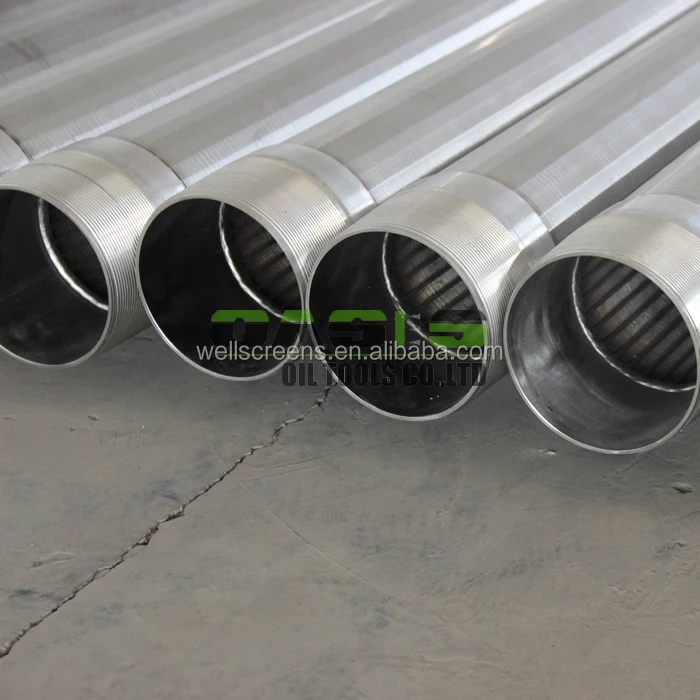

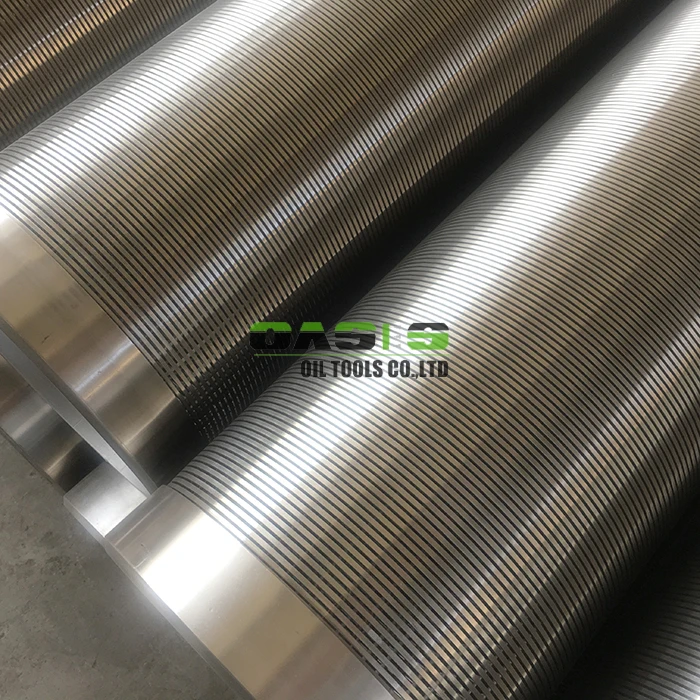

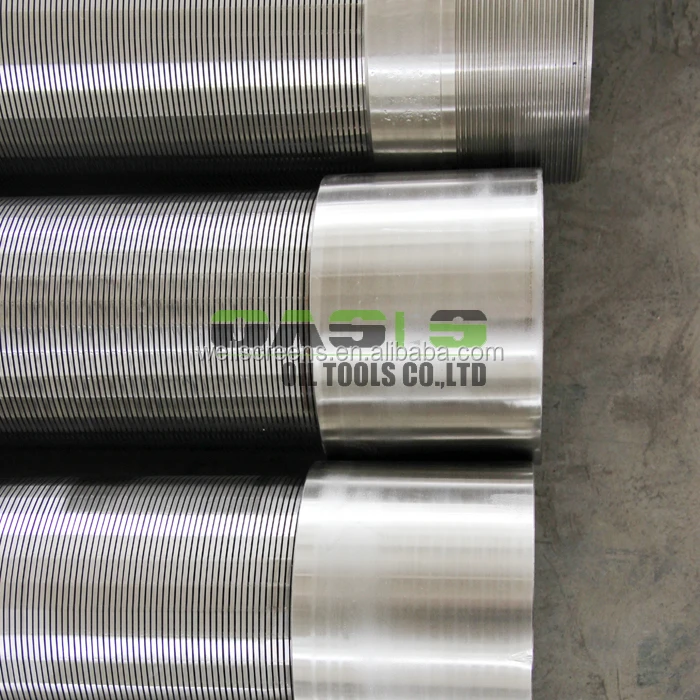

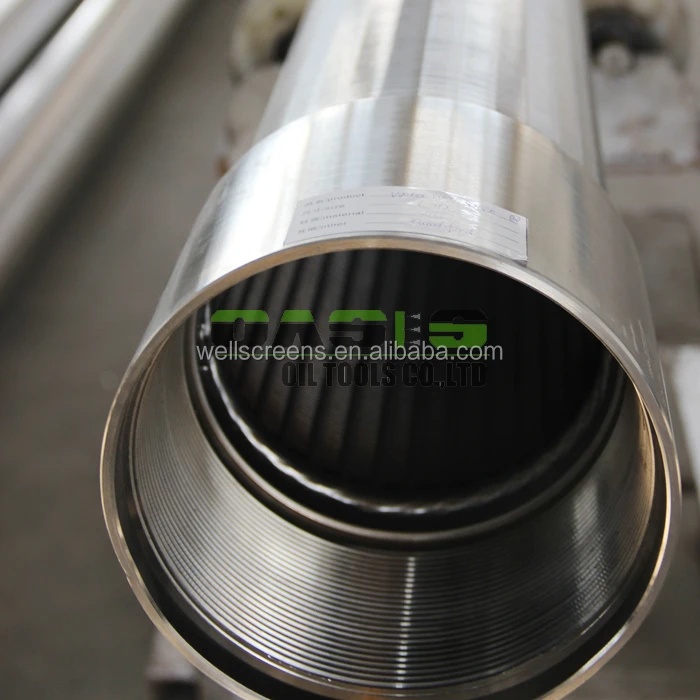

                                  detailed images of water well screens





specifications of water well screens
Thickness	1,    1.2,   1.5,   2.0mm
Length	300,   500mm
Width	30,   35,   50,   60mm,
Opening rate	45%,   60%,   85%
Material	stainless steel , iron, galvanized , aluminum, pvc coated
Hole shape	round, rectangular, square, triangle, diamond, hexagonal
Surface treatment	electric galvanized, hot dipped galvanized, oxidation treatment
Usage	screening, decoration, sifting, filtration, drying, cooling, cleaning,etc
Note	wires, rods and slot sizes can be customized







1. Non-clogging construction

The Hot-selling and high-quality water well screens made in China creates continuous slot, which can avoid blockage and make sure of unimpeded water

2. Large filtering area

The Hot-selling and high-quality water well screens made in China  have wider open  area, and it can reduce the speed of the water entering to avoid the sand entering the screen under the great pressure, so it can control sand better, which can increase the water yield and prolong service time of the well

3. Long service life

The Hot-selling and high-quality water well screens made in China  have longer and more robust service time

4. Excellent construction strength

The Hot-selling and high-quality water well screens made in China have more excellent pressure-resistant performance

5. According to customers’ requirements

Specifications and end connections of wedge wire screens (Johnson type screens) can be fabricated according to customers’ requirements





1.All dimensions of water well sand filter will be checked by our quality inspector, and they also can be inspected by Third Pary Inspection or representative appointed by buyer.



2. Wall thickness of coupling material is inspected by Ultrasonic inspection method, and they also be made the Ultrasonic flaw detection



3. Do Destructive Collapse Test and collaspe Strength Test before shipment.



4. If required, the screens will be made pickling and passivation.



5. The whole manufacturing process can be monitored by Third Party Inspection Company (BV, SGS, Intertek )and representative appointed by buyer.



6. The screens will be arranged the Pre-shipment Inspection if required.bubble bags woven bags container wooden case

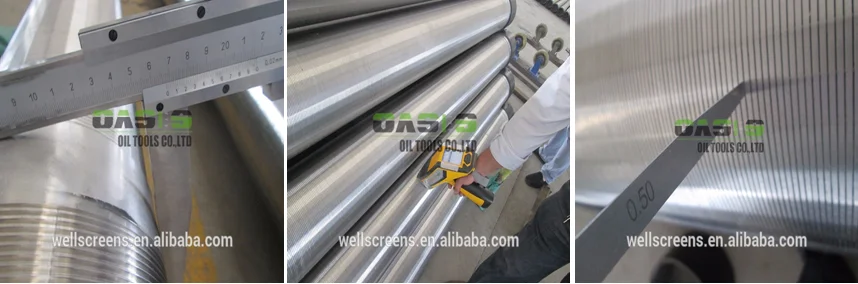

           check of OD                                     check of material                     check of slot







Packing Details:  packed with bubble bag/ woven bag/ according to clients' requirements



Delivery Time: within 30 days after receiving your payment

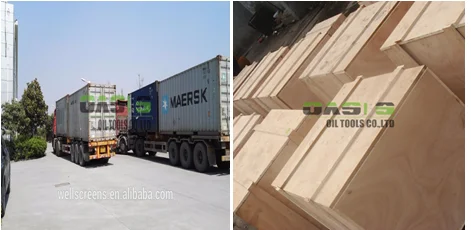

                                        bubble bags                                           woven bags

                                       container                                             wooden case





With these imported fully automated computer numerical control equipment, the Germany technological and advanced inspection mehtods, Oasis has developed more than 20 kinds of filtering products, the appearance and accuracy of which have a leading level at home and abroad. Our main products include Johnson well screens, perforated pipe, the slotted pipe, bridge slotted well screens, sand control well screens, the  gravel pre-packed well screens, industrial filters, screen plate, passive water intake screens, water cap, the resin trapper.



Besides, the surface of OASIS well screens can be galvanized abnd power coated. The pipe products have stainless steel pipe, carbon steel pipe, API/ISO oil well casing and related parts. Well screens are widely applied in water well, oil well and gas well to aontrol sand, filtering, paper making and chemical industry.





                   our company                                    our trip                                    warehouse









If you have any problems, please do not hesitate to contact me!
