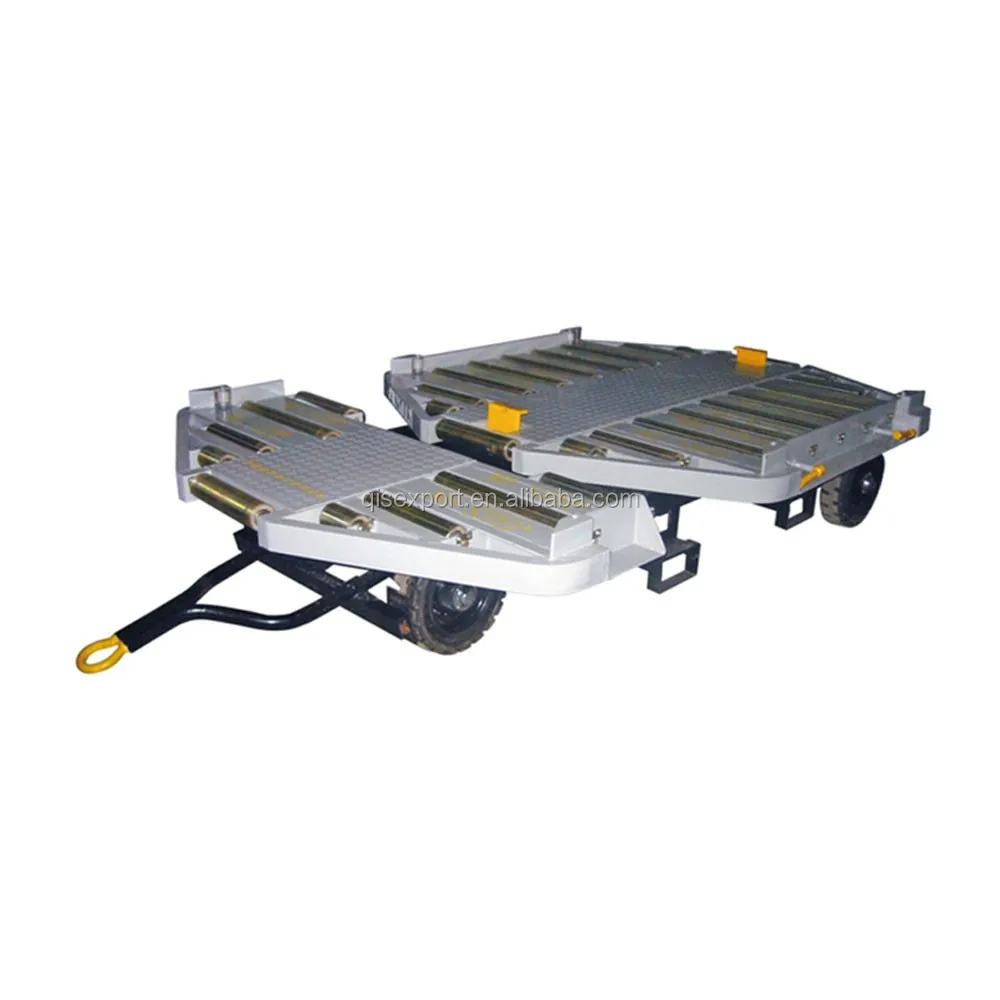

GSE Aviation aircraft airplane LD2 LD3 ake Container Dolly
GSE Aviation aircraft airplane LD2 LD3 ake Container Dolly

GSE Aviation aircraft airplane LD2 LD3 ake Container Dolly

Share on (60699843555):


Price:

Quantity:


Product Overview

Description


Product Description

Main function

For transportation of LD1/LD2/LD3 with payload of 1.6 Ton.

\t
SPECIFICATION OF PALLET DOLLY
\t
Load
\t
Rear
\t
Max Payload(kg)
\t
1600
\t
Tare(Kg)
\t
90
\t
Wheel base(mm)
\t
1280
\t
Overall dim(mm)
\t
3641(L)*1800(W)*565(H)
\t
Platform Height(mm)
\t
508-518
\t
Towbar height dropped position(mm)
\t
565
\t
Length Between Tyres(mm)
\t
1960-2484
\t
Rear wheels(mm)
\t
360*100
\t
Front Wheels(mm)
\t
360*100
\t
Roller dia(mm)
\t
76
\t
Max speed(Km/h)
\t
25
\t
Min turn radius(mm)
\t
<=3000
\t
\t

Feature

1.Tyre:solid cushion for long life;
2.Turntable with lock device at both ends;
3.Inner container restraints for positive locking;
4.24 Galvanized rollers chequered plate walkways;
5.Tow bar for multi-dolly linkage & brake functions;
6.Powered brush or blast & user's optional finish paints

Our Company

Our company covers an area of 40,000 square meters, with more than 20,000 square meters of production workshops and more than 4,000 square meters of office buildings. Currently, the company has employed about 70 workers, including 5 engineering technicians, and 2 professor-level senior engineers. Since its establishment, the company has developed for more than 20 years along with the development of China's civil aviation, and has formed the airport ground equipment, airport logistics equipment and air containers three series, covering a total of more than 50 varieties of products. All air containers have been available to TSO or PMA airworthiness certification by Civil Aviation Administration of China (CAAC) and part of the air containers have been adopted the TSO design approval of the United States Federal Aviation Administration (FAA) at home.

Other Type Dolly
FAQ

Why choose us

1. We supply high quality products with reasonable price.
2. We are the professional manufacturer
3. Advanced Production machine;
4. Strict quality control system;
5. Ten people research&develop team;
6. We have professional sales team;
7. Experienced exporting for all over the world;
8. We supply one-step solution service.
