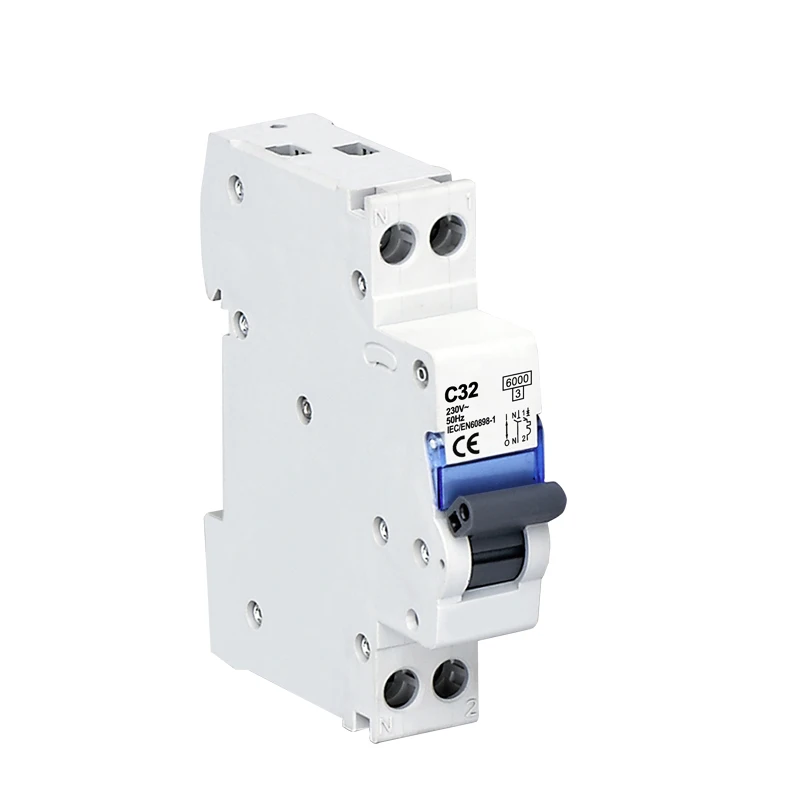

Brand new original miniature circuit breaker HONI Brand High Quality 6KA MCB 1P N 32A MCB contacteur chint

Product Overview

Description





Specification:

MCB miniature circuit breaker is mainly used for protection against overload and short circuit under the AC 50Hz/60Hz,
reted voltage 230V/400V and rated current from 1A to 63A.
It also can be used for non-frequent on-and-off switch operation under normal circumstance.
1. In complicance with IEC/EN60898-1
2.With indicator function in the contact position.
3.Transparent cover designed to carry label.
4.Bilateral busbar wiring capabilities to adapt to the wider use of premises.
5.Maximum connecting ability of 25mm2, wiring torque 3N*m, applicable to a variety of installing equipments, wiring stronger
6.Protection calss: IP20

Poles description	1P+N
[In] Rated current	1A~40A  (MSN8Q≤20A)
Curve code	B C
Breaking capacity	lcn=lcs=4500A  lcn=lcs= 6000A
Network frequency	50/60Hz
[Ue] Rated operational voltage	230V
Sandards	IEC/EN 60898-1
[Ui] Rated insulation voltage	[Uimp] Rated impulse withstand voltage
Mechanical/Electrical durability	10000/4000 cycles
Ambient air temperature for operation	-25~+40℃
Tightening torque	2.0 Nm top or bottom
Upper/Lower wiring	1-16mm²
