G100 Tungsten Carbide Injection Valve Ball and Seat for Oil Seal Pump

Share on (60700088594):


Price:

Quantity:


Product Overview

Description


Products Show
\t
Product Name
\t
G100 Tungsten Carbide Injection Valve Ball and Seat for Oil Seal Pump
\t
Material
\t
Advance quality alloy
\t
Grade
\t
YG6X/YG6/YG8/YG11C/YG15 etc.
\t
Element Content
\t
Typical Material composition is
5~8% Cobalt (Co)
92~95% Tungsten Carbide (WC)
While other compositions are available with cobalt up to 15% . Hardness reduces and toughness increases when cobalt content increases.
\t
Application
\t
Valves, Pumps, Ball Screws, Gauging,Calibration, ball and seat for oil pump/field,ball sizing/broaching/ballizing,indenter head
Products Application

G100 Tungsten Carbide Injection Valve Ball and Seat for Oil Seal Pump excellent for highly corrosive and abrasive well conditions. Tungsten Carbide is a heavy, magnetic material that is extremely hard and works well where weight is needed.

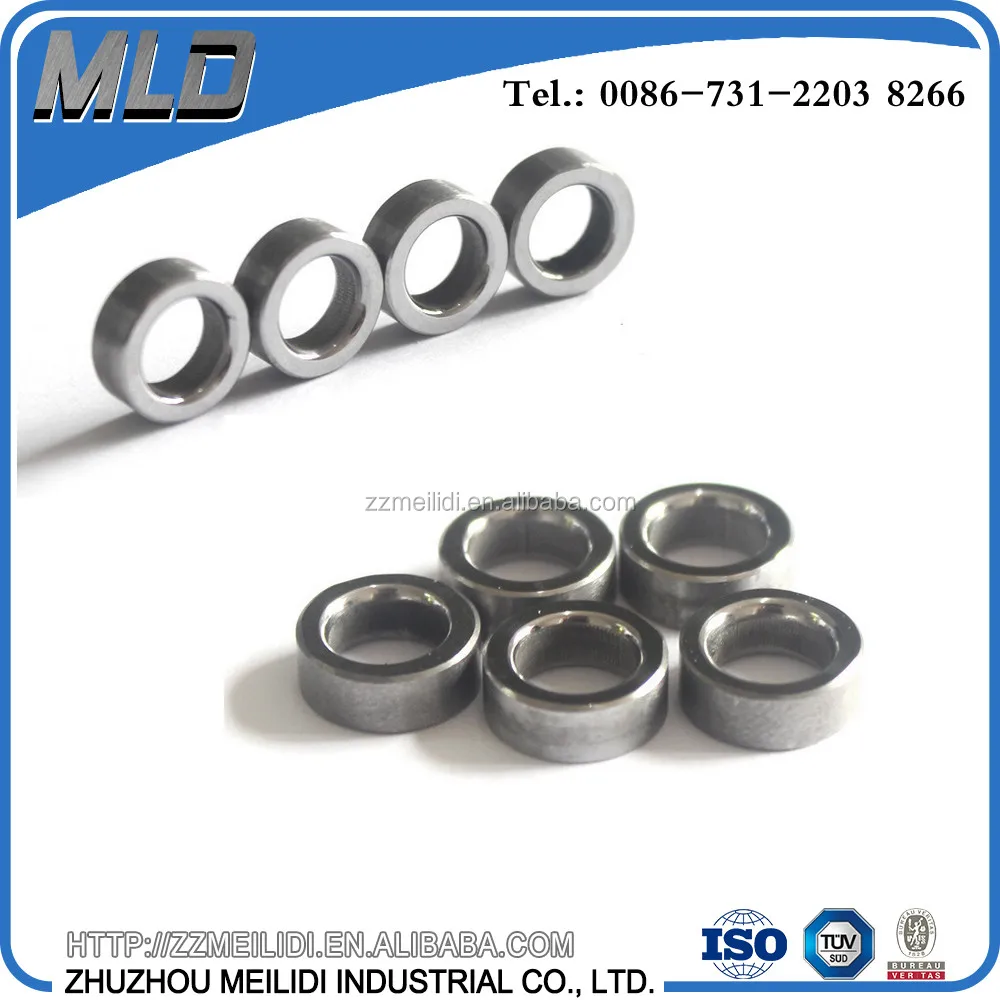

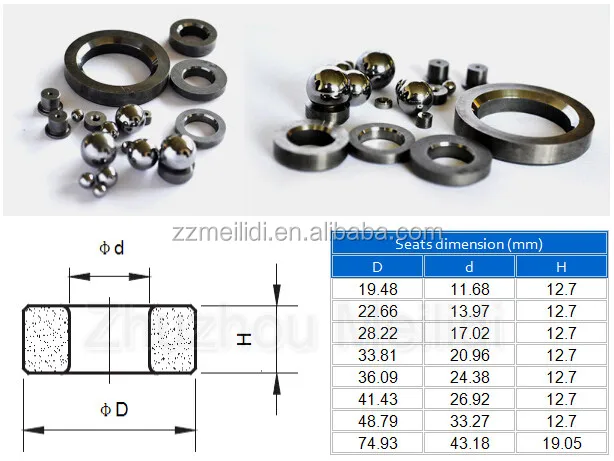

The seats are made from hard-wearing tungsten carbide and are available in different dimensions for standard 1" Valves in port sizes from 1/8” upto 3/8” and standard 1 1/2” in port sizes from 1/8” upto 1/2”.


We also manufacture custom made seats as per your specific drawings and material specifications.

More Products

We provide various carbide products widely used for cutting cast iron, non-ferrous metal, plastic, chemical fiber, graphite, glass, stone and ordinary steel, can also be used for cutting heat resistant steel, stainless steel, high manganese steel, tool steel and other hard processing material.

Carbide Rods, Carbide Bars, Carbide Strips, Carbide Plates,

Carbide Disc Cutters,

Carbide Inserts, Carbide Mining Bits, Carbide Drilling Bits,

Carbide Cutting Tools for Wood and Bamboos, Carbide Cutting Tools for stone, Carbide Cutting Tools for Metal,

Customized Carbide Products, etc.


OEM Service

Customized Products are available.

We produce not only the standard items, but also the customized terms according to drawing.

We have gathered rich experience and professional team in tungsten carbide industry. Our many products are from our clients' designs.

We can provide the technical support, like how to select the right grade of carbide to match target using. It is simple and efficient to do business with us.


Packing & Delivery


Packing:
A. Standard packing
1).Plastic boxes with foam inside and carton outside.
2).Paper boxes with foam inside and carton outside.
B. Customized packing available: We can do special packing based on clients' requirements..

Delivery: Within 25 days after advanced payment.


Our Company


Zhuzhou Meilidi Industrial Co., Ltd was founded in 2003 with registered capital of 8 million RMB. Our company covering an area of 32,292 sq.ft, located in the Auto Parts Industrial Park of Zhuzhou city.

Products of Meilidi are applied in many different fields, including construction, mining, metal machining, wood working, shipbuilding, automobiles, locomotive, aviation, etc.

The goal of Meilidi people is to make our clients to do business with us in a simple and easy way, to save the clients' time, cost and energy. We provide professional service and all product from us will be in good and stable quality.

Meilidi people are strictly complying with the principles of "honest, quality first" and "create the value for clients".

Our company has passed ISO9001 (Quality Management System, QMS of 2008).

We expect long term relationship with you!


FAQ

Q:When Can I get the offer after sending inquiry?

A: We quote within 24 hours once receive inquiry. If your inquiry is in urgent need, please feel free to give us a call or contact us by emails

Q: What is your delivery time?

A: For standard terms, we have safety stock, it takes 5-10 days; For non standard items, it takes 15-25days after deposit.

Q: What is your sample policy?

A: Yes, sample is avalilable. We could produce sample by drawing, but customer cover sample cost and courier.

Q: What is your terms of payment ?

A: 30% deposit before production, 70% downpayment before delivery.
