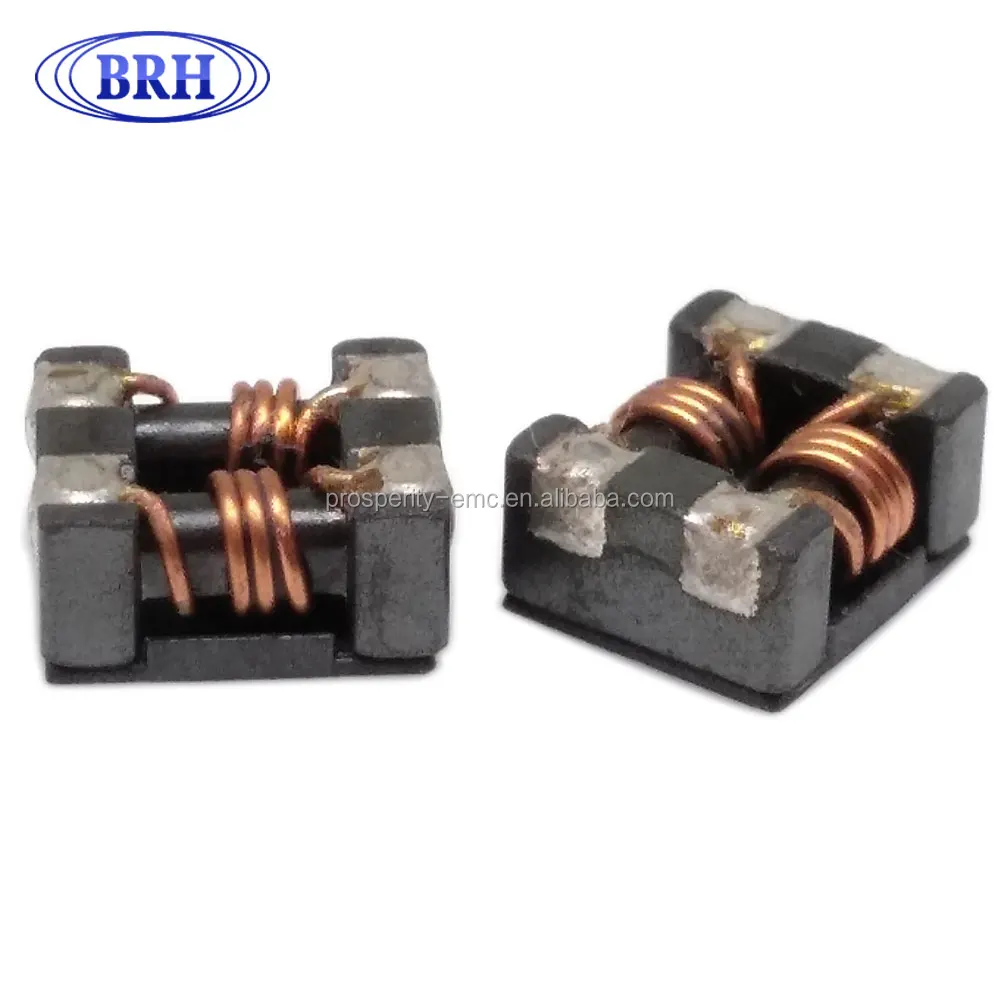

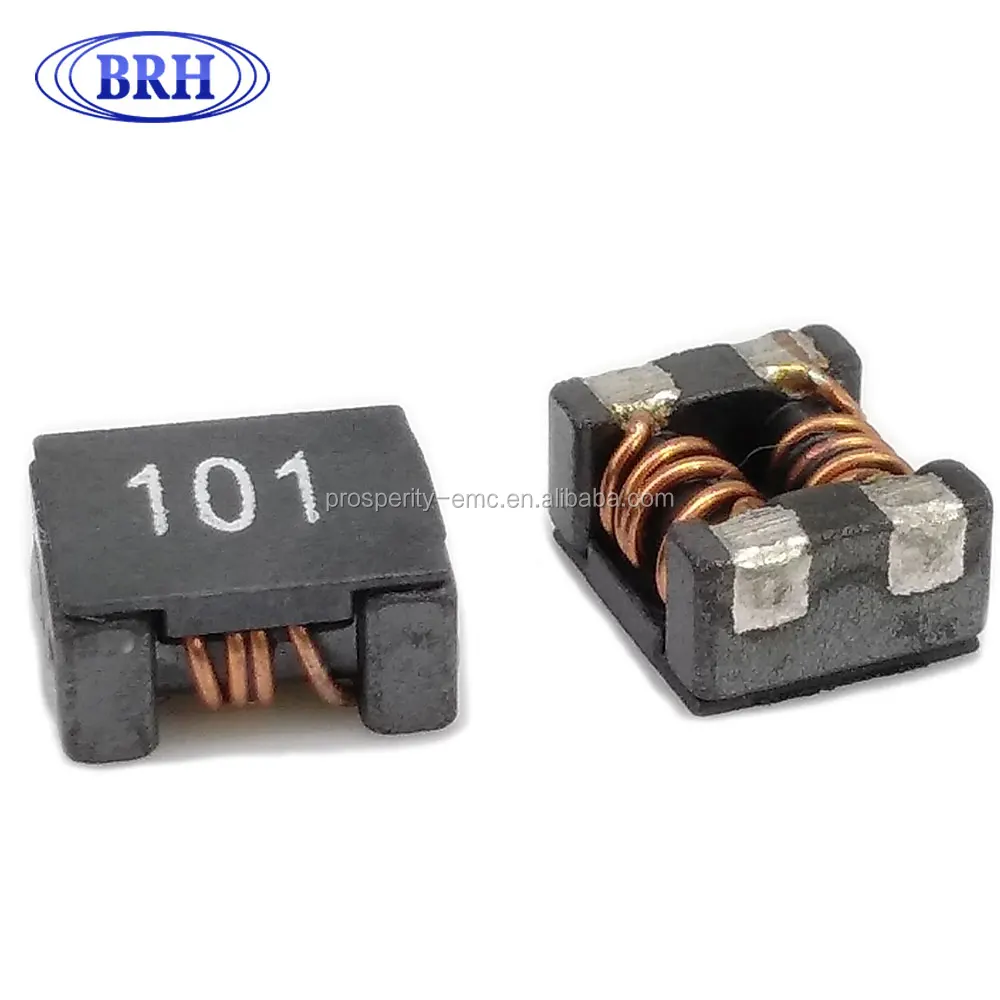

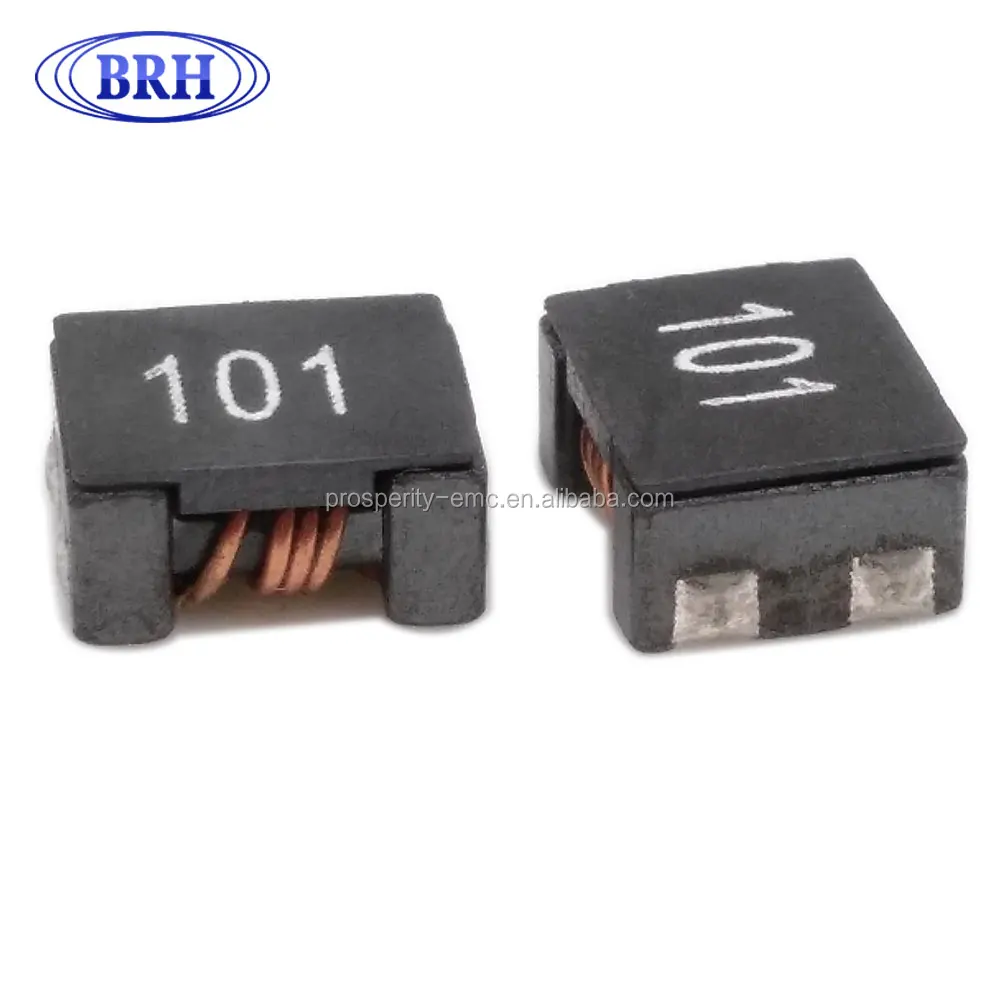

Best price Large current ferrite smd choke filter inductor coil for EMI
Best price Large current ferrite smd choke filter inductor coil for EMI
Best price Large current ferrite smd choke filter inductor coil for EMI
Best price Large current ferrite smd choke filter inductor coil for EMI
Best price Large current ferrite smd choke filter inductor coil for EMI

Best price Large current ferrite smd choke filter inductor coil for EMI

Share on (60700120800):


Price:

Quantity:


Product Overview

Description


Description
\t

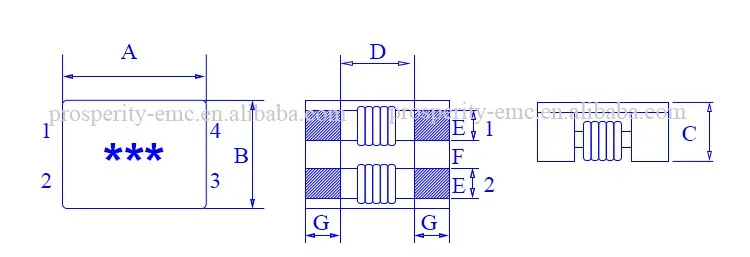

MODEL
\t
PRODUCT DIMENSIONS
\t
A
\t
B
\t
C
\t
D
\t
E
\t
F
\t
G
\t
BOK6E
\t
7.0±0.5
\t
6.0±0.5
\t
3.8 MAX
\t
3.5 Typ
\t
1.5±0.2
\t
1.5±0.2
\t
1.75±0.2
\t
BOK7A
\t
9.0±0.5
\t
7.0±0.5
\t
4.8 MAX
\t
5.7 Typ
\t
1.5 Typ
\t
2.0 Typ
\t
1.7 Typ
\t


SIZE CODE
(inch)
\t
RECOMMENDED PATTERN
(mm)
\t

A
\t

B
\t

C
\t

D
\t

BOK6E
\t

4.50 Typ
\t

4.00 Typ
\t

9.0 Typ
\t

1.5 Typ
\t

BOK7A
\t

5.0 Typ
\t

5.0 Typ
\t

11.0 Typ
\t

1.5 Typ
Parameter
\t
Detailed specifications and parameters are introduced
\t

ORDERING CORE
\t
Impedance(Ω)
AT 100MHZ
\t
DC Resistance
\t
Rated Voltage
\t
Insulation Resistance
\t
Rated Current
\t
Min
\t
Typ
\t
(Ω)MAX /1LINE
\t
(V)MAX
\t
(Ω)MIN
\t
(mA)MAX
\t
BOK6E-1A90T
\t
100
\t
140
\t
0.010
\t
80
\t
0.01
\t
9000
\t
BOK6E-3A50T
\t
225
\t
300
\t
0.010
\t
80
\t
0.01
\t
5000
\t
BOK6E-5A50T
\t
275
\t
350
\t
0.010
\t
80
\t
0.01
\t
5000
\t
BOK6E-7A40T
\t
500
\t
700
\t
0.015
\t
80
\t
0.01
\t
4000
\t
BOK6E-10A30T
\t
800
\t
1020
\t
0.017
\t
80
\t
0.01
\t
3000
\t
BOK6E-13A25T
\t
910
\t
1300
\t
0.021
\t
80
\t
0.01
\t
2500
