Product Overview
Description
What is iBeacon?
iBeacon enables mobile devices to "talk" to each other and other BLE devices in their signal-covered areas. They can relate their locations in real time without the need for Wi-Fi or GPS. Beacon also gives access to consumers to pull-on-demand location-specific product and offers information triggered by the physical BLE sensors, e.g. broadcast information and advertisement.
Product Description
Product details:
iBeacon can work as an independent system, and lithium batteries supply power for thesemodels. It has 3 different working modes, sleep mode, connectable mode andnon-connectable mode.
For developers, we provide the Android and IOS SDK, and allthe interface developed completely by us, all of the parameters can be reconfigured,including Proximity UUID, Major, Minor and Power. In order to meet different customers’needs, interval rate can also be configured, which ranges from 0-1600. Besides,hardware TX power can be configured, and configurable range is 4 dBm to -23 dBm. Lowcost customizing housing would be provided to potential customers.
Product outline
Tiny and delicate appearance, powerful functions, will be your indispensable fellow in your life.
Product detail
Every detail is in perfect status

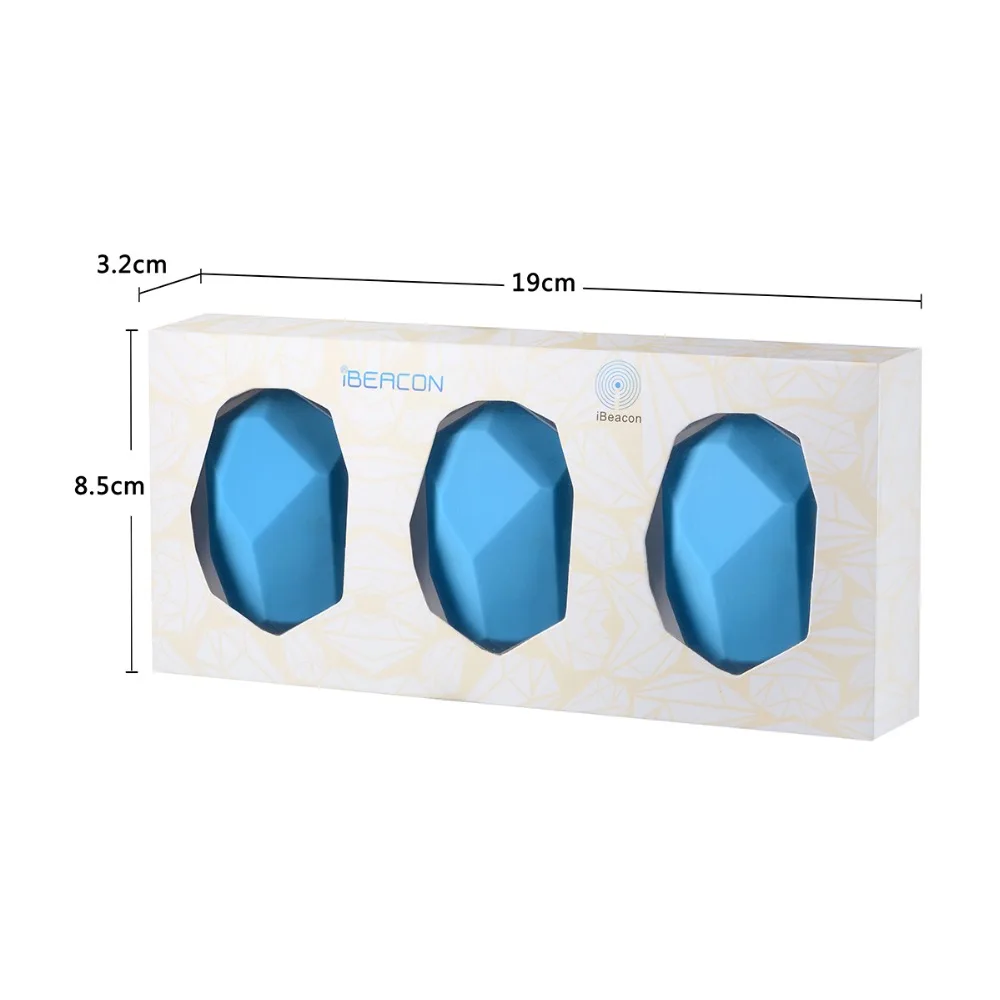

Packaging can be customized if required.
Prototyping the case and mold tool design and injection service.
Product Specification

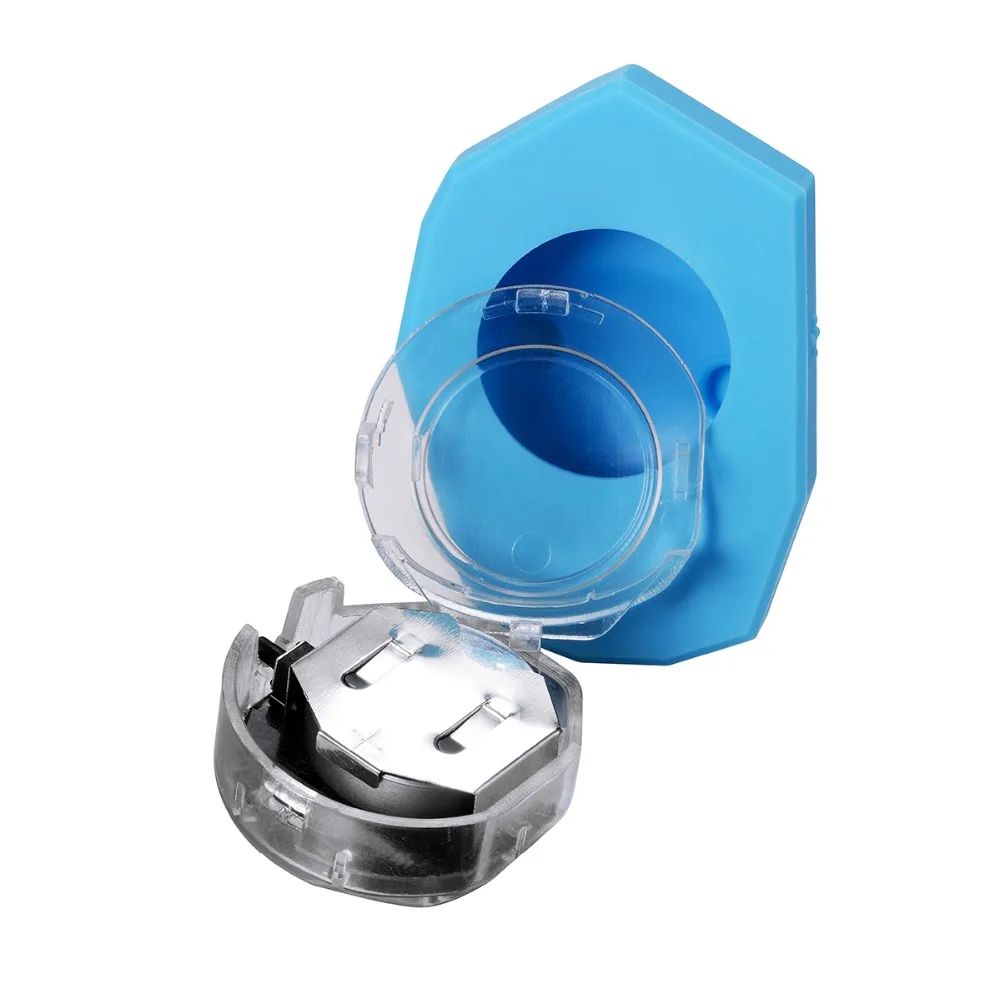

1. The iBeacon module Betag is builtin a battery holder with a coin battery and housing, it can work as a lone system.
2. It has 3 different working modes, sleep mode, connectable mode and nonconnectable mode. It makes the best use of the battery power. For example, it can standby over 5 years when work in sleeping mode, much longer than the life of the battery.
3. SDK is available to help customers' build their own APP or use our APP.
4. All the interface developed completely by us, all of the parameters can be reconfigured, including Proximity UUID, Major, Minor and Power.
5. Support both IOS 7 or above and Android 4.3 or above, and provide IOS SDK, Android SDK and Android Source Code.
6. The housing development service at low cost will be provided to potential customers.
7. Internal push button switch.
8. Weather resistance and dust resistance casing
Function optional
1. Precision Relative Humidity Sensor
± 3% RH (max), 0–80% RH
2. High Accuracy Temperature Sensor
±0.4 °C (max), –10 to 85 °C
3. Accelerometer chip: LIS331DLH
iBeacon parameter default setting
- UUID: 0x98B5BF3E-F473-A390-DE68-602ED238551B
- Major and minor identifier: 0xFF82, 0xFF83
- Default pairing password: 0xFF89
- Power Value: 0xCB
- Broadcast Interval: 0xFF84
- It can be rang when starting or wake-up
- The default mode is sleep
> UUID, Major, Minor, Device name, Password etc. can be changed by our own configure app
> Long Battery (2 years) life time, Low battery noticed
Red LED will be flashing every 10s when battery low
Easy to get the real-time battery level notification
> 4 adjustable levels, transmission power range from -23dBm to +4dBM
> The max. Range up to 100 meters, in open space
> Reboot the device by press the button for 3s.
> 6 characters password (Lock/Unlock parameters)
Application: iOS7.0 above & Android 4.3 above with tool APP&SDK
Function: Broadcast information, indoor location
Color: white,black,pink, blue, yellow, or colors could be customized
battery life: 2 years based on broadcasting rate 1second
Accessories: 1* waterproof case
1* 3M sticker,
1* CR2477 battery
Certificate: CE and ROHS
Configuration app: SKYBEACON
Configuration App
After the sample arrived, we will provide you the SDK (iOS and Android) to help you to complete your own APP development quick to market.
What's more, we will provide the configuration APP (iOS) and instruction to you for the configuration beacons. Here below are the reference sceenshots of configuration APP.
How to Use
Step 1: Download the latest version "skybeacon" software from app store.
Step 2: Press the Beacon 3 – 5 times, it connected when buzzing.
Step 3: Click on the Beacon software which need to be configured, and input password
888888 to connect.
Step 4: Open Beacon State to configure, then it will enter into non-connectable mode.
Screenshot for IOS
Screenshot for Android
FAQ
1 Q: Can I get SDK for Android and iOS?
A: Yes, we can give you SDK for both Android 4.3 and iOS 6.0.
2 Q: Can I have our own logo and in what kind of way?
A: Sure. We can have your logo engraved or printed on your case and also we can put customized sticker on
it. Besides, we can customize case based on your requirement if you send us your detailed requirement of
your case.
3. Q: Would you also be able to make custom housing for the circuits?
A: Yes, we do custom housing for the circuits as well as the custom iBeacon with logo on the pcb.
4 Q: Are the products compatible with Andriod apps too?
A: It compatible with Android 4.3 or above. The phone must support Ble 4.0 Smart Ready.
5.Q: do you have any R&D team to support ?
A: yes, we have our R&D team to provide you technology support for your late configuring.
