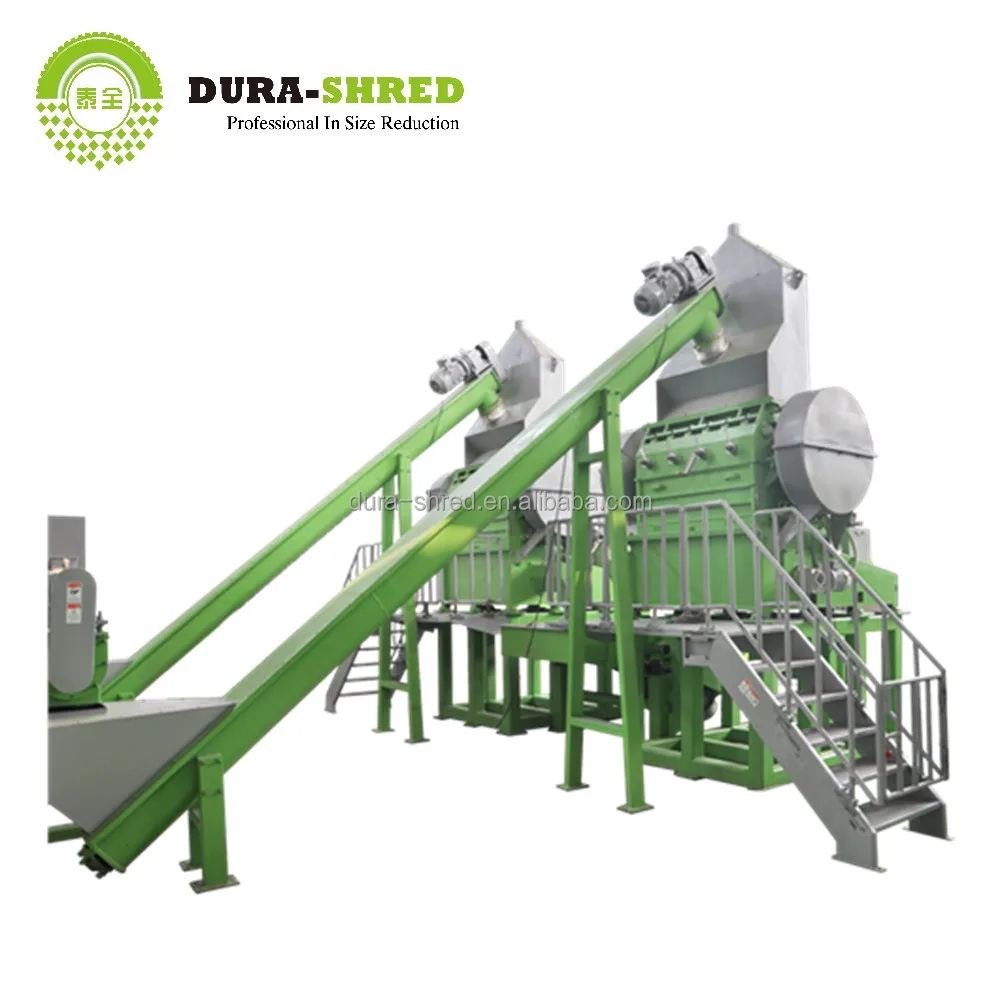

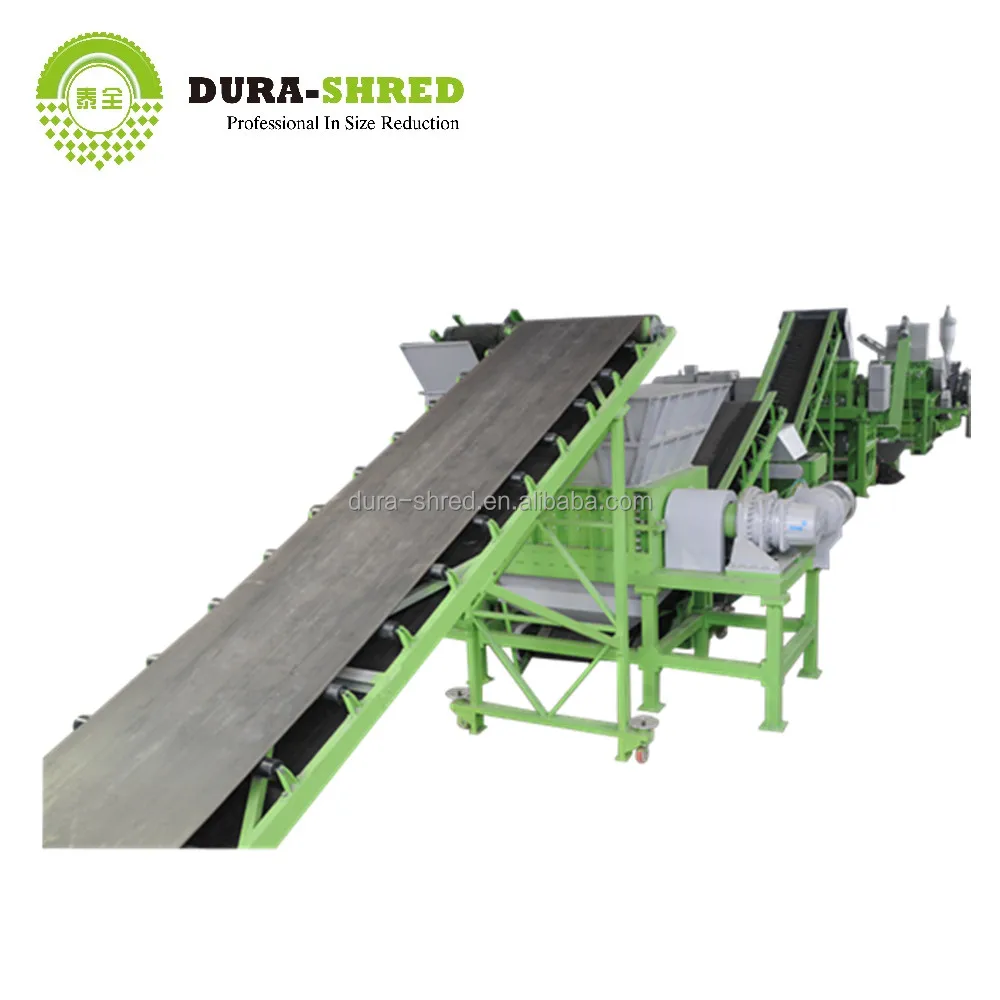

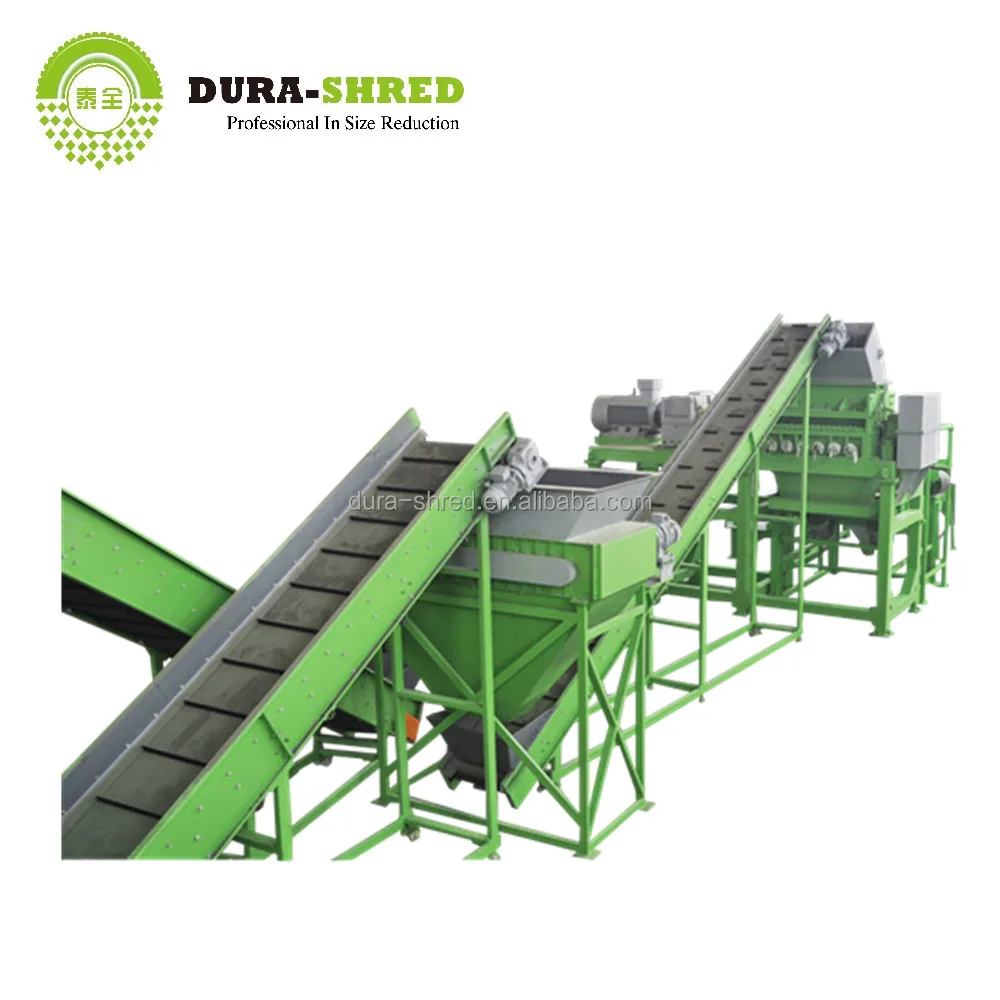

tire granulator machinery for recycling industry for sale

[tire granulator machinery for recycling industry for sale]

Advantages of the System

Exclusive Control System - Controls and operates the entire plant from its centrally located position and provides instant visibility to what each machine is doing in real time.

Advanced Bearing Housing - Isolates bearings from cutting chamber containmination and protects against bearing failure.

Unique Stop/Auto Reversal Feature – Protects against overfeeding and damage by non-processable items.

Premier Full Turn Key Systems – Plant is manufactured, shipped, installed and ready to start recycling.

Warranty – one of the best warrantees in the industry.

=============================================================================

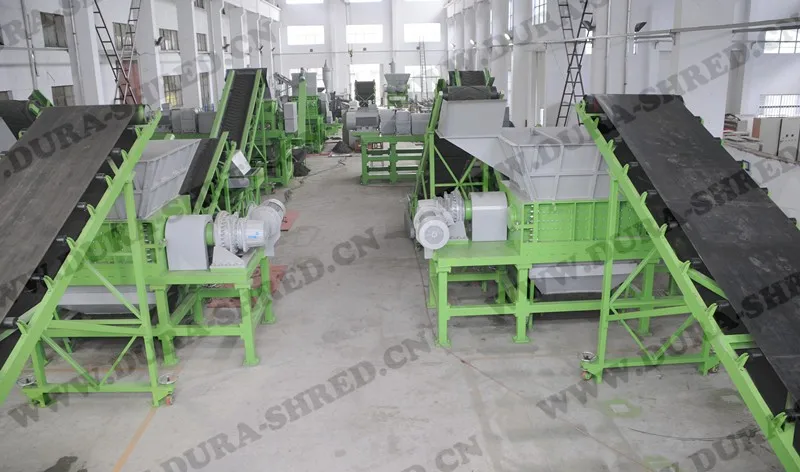

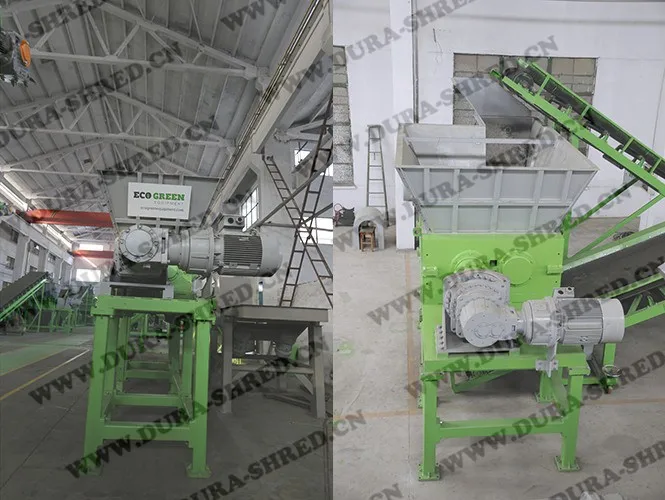

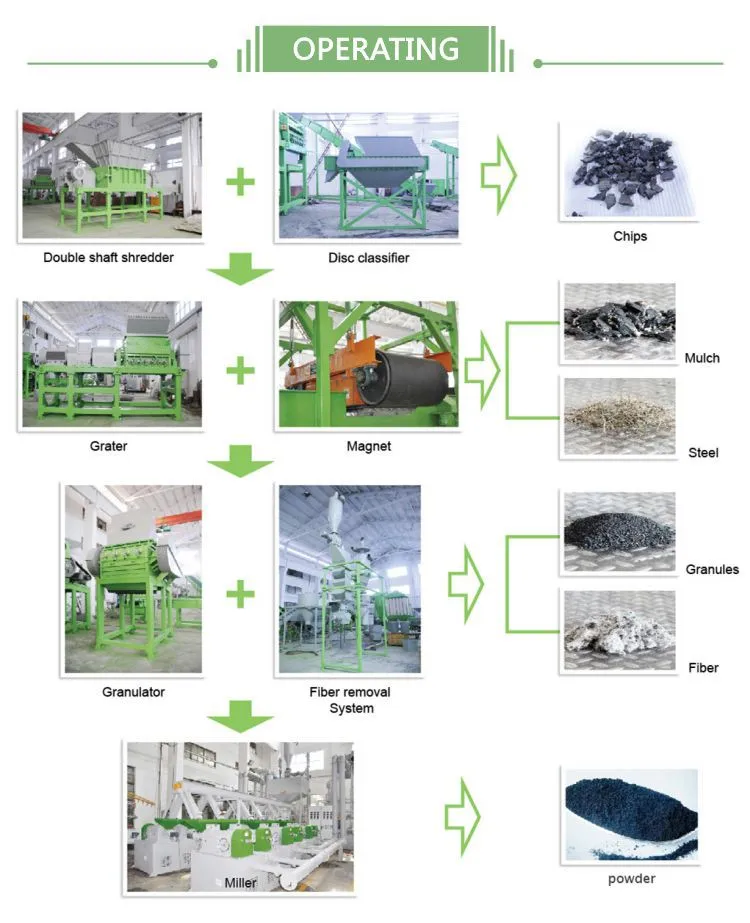

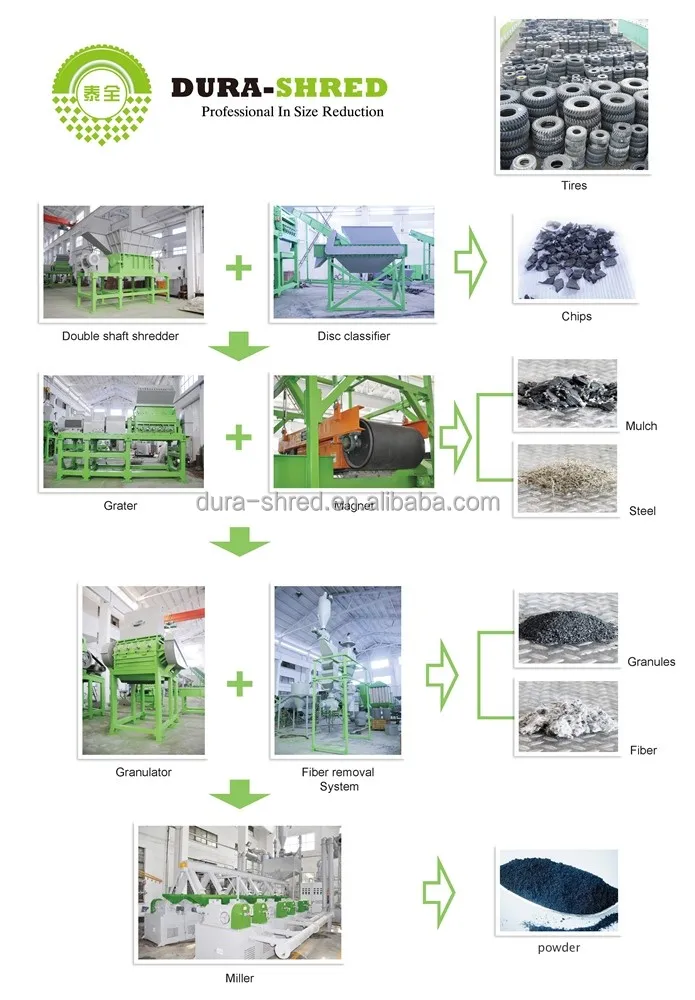

Two Shaft Shredders

Input:  OTR tires, large truck tires, car tires etc.
End product: TDF chips [25mm-152mm (1’’-6’’)]
Capacity: up to 20 tons per hour
Feature:
1.Be designed with an aggressive low RPM, high torque shredding technology.
2.All of our blades are made from exotic steel and heat treated to an average 56-60 on the Rockwell Scale.
3.Each shaft is driven by its own Siemens motor, giving it plenty of power to drive through tires and thick steel beads.
Application:
TDF is the largest market for processed scrap tires, such as coal additive for industrial boilers etc.



=============================================================================

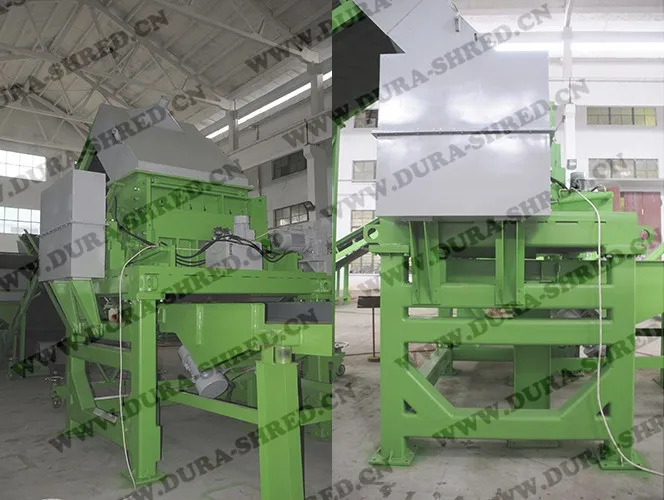

Grater

Input: TDF chips [25mm-152mm (1’’-6’’)] from Two Shaft Shredders
End product: Steel free rubber Mulch [12mm-25mm (1’’-0.5’’)]
Capacity: up to 6 tons per hour
Feature:
1.Steel separation.
2.Adjustable screen.
3.The main rotor housing is equipped with replaceable wear plates to increase the durability and longevity of the cutting chamber.
4.The ability to turn the knives once before having to sent them to be sharpened or replaced, minimizing operation costs.
Application:
The rubber mulch market is growing at more than 30% a year.
1.Rubber mulch: landscaping, gardens, playgrounds, arenas
2.Steel: sold to smelters



 =============================================================================

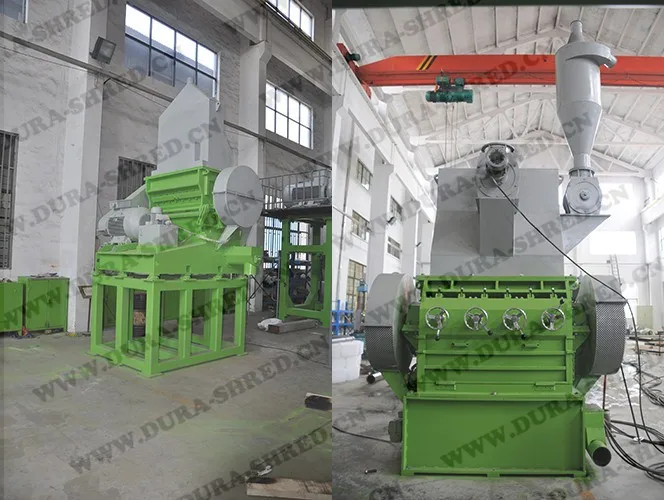

Granulator



Input: Steel free rubber Mulch [12mm-25mm (1’’-0.5’’)] from Grater

End product: Fiber free rubber crumb-1-6mm

Capacity: up to 1.5 tons per hour

Feature:

1.99% fiber removed.

2.Adjustable screen.

3.Due to the design of the Granulator and precise alignment of the blades, the

   Granulator produces a very uniform cut and high quality granules.

Application:

Remanufactured rubber, floor mats, mud flaps, sporting arenas, molded products, modified asphalt





=============================================================================

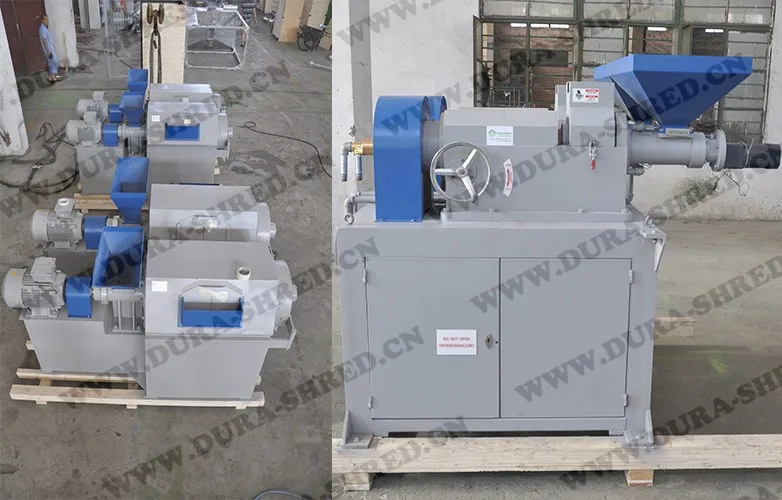

Miller



Input: Fiber free rubber crumb[1mm-6mm]from Granulator

End product: Rubber powder [30mesh-120mesh]

Capacity: up to 400kgs per hour

Feature:

1.The powders are screened by adjustable centrifugal screen until the desired size is reached.

2.The blade inside are made of Tungsten Steel and have a long life cycle.

Application:

Construction and Traffic - waterproofing materials, reclaimed rubber, Modified asphalt additives, rubber products, rubber asphalt pavement, color composite, rubber floor tile





=============================================================================

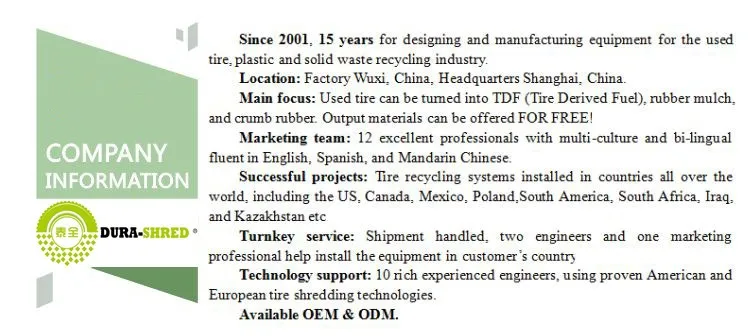

Company Information





A. Warranty: 1 year warranty for main parts, 20 years for the heavy duty machine.

B. After sale service: 2 or 3 engineers will be sent to help install the machines.

C. OEM & ODM are available by engineering team with 15 years experiences.

D. Turn-Key service, available to handle all the work including shipment, customs clearance, etc.

E. Various end product samples can be offered for free.

F. Regular return visit after sale.

G. Profits can be shared if client introduce new customer from their market.

Q1: How to choose the suitable machine?

A1: Please answer first:

            a: What material do you want to shred?

            b: What is the usage of the crushing material?

            c: How many tons per hour do you demand?

            After that, the suitable machine could been introduced to you.

Q2: What about the shipping and package?
A2: We arrange shipment according to your requirements. It is included in our TURNKEY service.

Q3: Can I visit your company or factory?

A3: Of course you can.

         Our headquarter is in Shanghai city.

         Our production plant is in Wuxi city, Jiangsu province.

         And when you fly to China, we could pick you up and afford your local transportation charges.

Q4: What's the relationships between tqwinner and dura-shred?

A4: They are 2 brands belonging to the same group.

         Dura-Shred is registered in Wuxi;

         Tqwinner in Shanghai.

         Our headoffice and marketing team are located in Shanghai.

=======================================================================================
