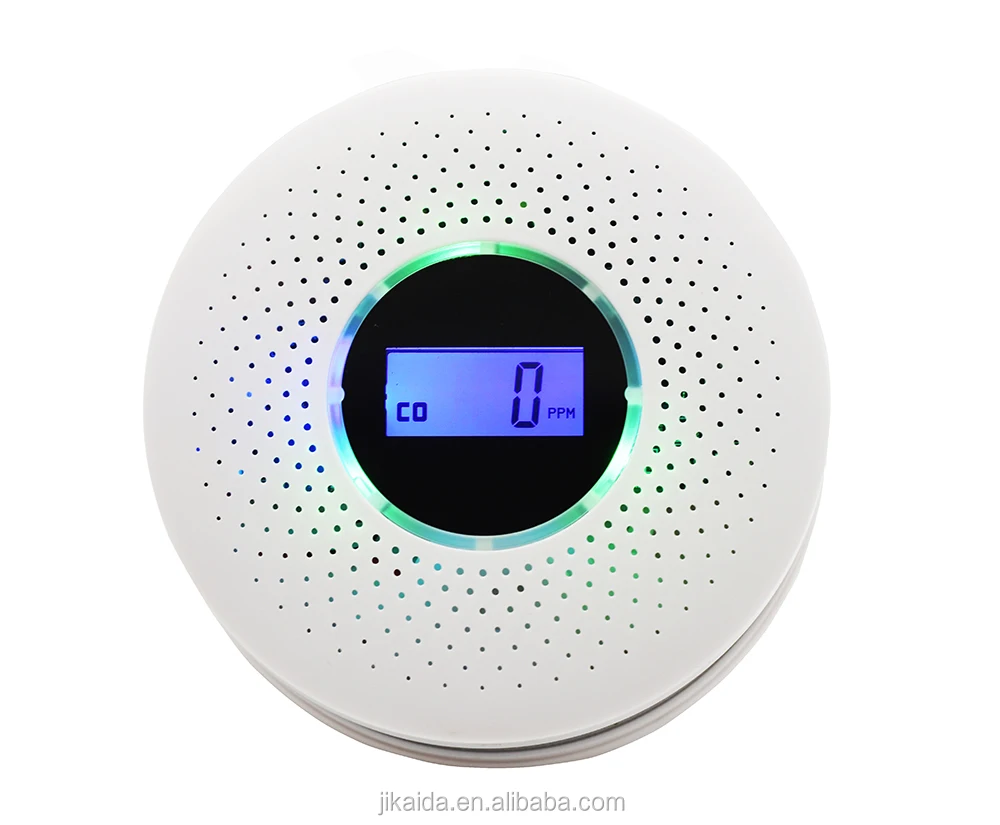

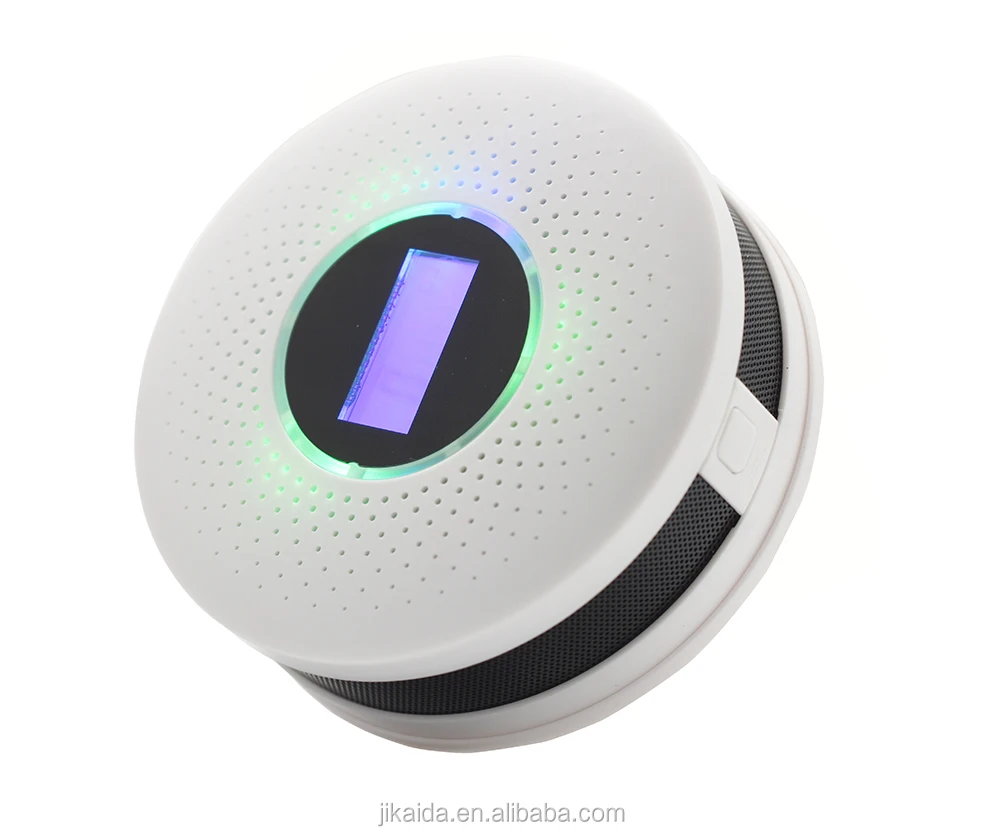

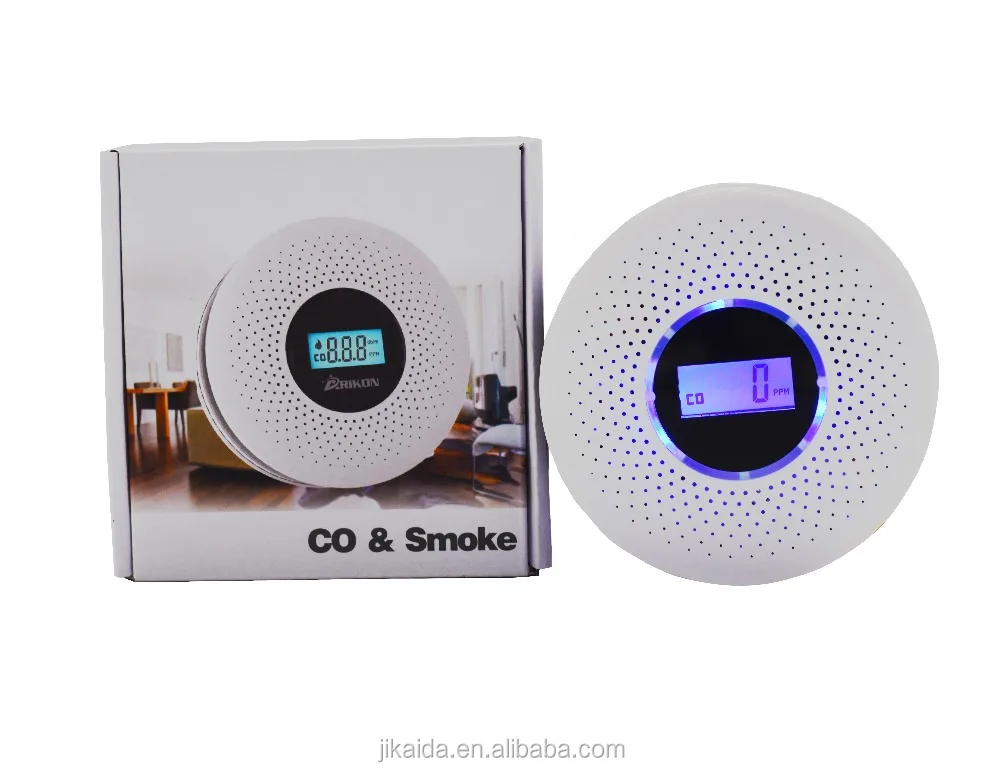

carbon monoxide&smoke detector,combo detectors both for CO&smoke

Product Overview

Description

Quick Details

· Place of Origin: China (Mainland)

· Brand Name: JiKaiDa

· Model Number: JKD-512COM

· Usage: Smoke

· Color: White

· Certificate: EN14604/EN50291

· Battery: 3x1.5V AA Battery

· Warranty: 1years

· Dimensions: 104*30mm

· Material: ABS/other plastic

· Language support: as customer's requirement

· static current: <10uA

· Alarm current: <35mA

· place: factories, shopping malls, hotels, libraries

Packaging & Delivery

Packaging Details	Each one in a box, then 50pcs in a carton, N.W/G.W: 8/9KGS
Delivery Time	5-15days

Product Description

   The product is a new smoke detector, hereinafter called detector. With a unique structure design and an intelligent MCU to process photoelectronic signals, it is provided with dust-proof, mothproof and anti-light interference etc. functions, ensuring the detector stability from design basis and suitable for all kinds of installation environments and also with the optional wireless interconnection function. It reacts very quick to visible smoke released by smoldering fire and flaming fire, and suitable for fire alarm in house, factories, shopping malls, hotels, restaurants, office buildings, teaching buildings, banks, libraries, warehouses, etc..





Model No.	JKD-512COM
Power Supply	3x1.5V AA  battery
Static current	<10uA
Alarm current	<35mA
Alarm voice	Smart human voice prompt(optional)
Sensor	electrochemical carbon monoxide sensor and Infrared photoelectric sensor
CO concentration	000-999 PPM
Smoke sensor sensitive	2.06ft ±1.3
Alarm indication	red LED flashing and siren alarm
Temperature	-10~50 ℃
Relative Humidity	10%- 95%RH
Dimensions	104*30mm
Battery capacity	low battery alarm









Feature

Product features:
* High accurate electrochemical sensor and infrared photoelectric sensor
* LCD display concentration PPM
* 3*1.5V AA battery supply
* Ultra-long standby time, low current consumption
* Low-battery warning
* Alarm memory function
* Alarming pause (hush mode)
* Sound & flash alarm & LED indicating alarm
* SMT manufacture technology, reliable stability





Technical parameter
Power supply: 3*1.5v AA battery
Static current: <80uA
Alarm current: <30mA
Alarm voice: smart human voice prompt
Sensor: electrochemical carbon monoxide sensor and infrared photoelectric sensor
Temperature: 0℃-50℃
Relative humidity: 10-95%
Carbon monoxide sensor detect concentration: 000-999 PPM
Smoke sensor sensitive: 0.1%db/m-9.9%db/m
Alarm indication: LCD display, voice prompt
Battery capacity: low battery alarm
Dimensions: 104*39mm













Packaging & Shipping













Certifications







FAQ



FAQ:



1, Q: Is sample available? free?

    A: Sample order is welco and buyer need pay for it.



2, Q: Offer OEM/ODM?

     A:  OEM is offered over 1000pcs printing Logo on detector when over 500pcs.



3,  Q: How many is MOQ?

     A: no MOQ limited.



4,  Q: what's the price?

      A: Price depends on quantity, the more the cheaper.



5, Q: What's certificate detectors have?

     A: CE&RoHS, with EN



6, Q: Does the detector wireless?

     A: Smoke detector can be wireless, 315/433 mhz connect.



7, Q: Does the detector the same as other company?

    A: except JKD-510&602&812, others only produce by us.



8, Q: are the quoations all FOB price?

     A: No, all price in basic in EXW price.



9, Q: What's way do you shipping the goods?\\

      A: always by Express, such as: DHL, UPS,TNT...etc.
