Android EPC C1 GEN2/ ISO 18000 6C Long range UHF RFID Reader writer for assets tracking and personal management

GENERAL DESCRIPTION

WS-RU5107 is a high performance and portable ISO18000-6C (EPC C1G2) Protocol UHF tag reader. It is designed upon fully self-intellectual property and supports fast tag read/write operation with high identification rate. It can be widely applied in many RFID application systems such as stock management, traceability system, personnel identification, access control and anti-counterfeit system.

FEATURES

Fashion, thin and well portable design;

Ultra low power design, over 3 hours continuous reading tag and over 1 day in standby;

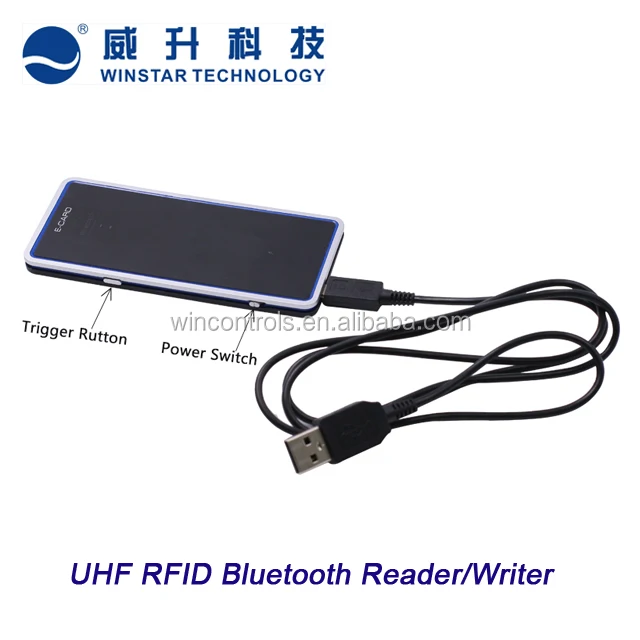

Support interactive and trigger-activating work mode;

Support ISO18000-6C (EPC C1G2) protocol tag;

902~928MHz or 865~868MHz frequency band(frequency customization optional);

FHSS or Fix Frequency transmission;

Built-in TX/RX antenna with up to 1000mm effective distance*;

RF output power from 0 to 26dbm (adjustable) with RSSI supported;

Multiple tag anti-collision>50pcs/s, multiple tag inventory speed>50pcs/s;

Tag buffer size: 370PCS Max.128bitsEPC or 120PCSMax.496bitsEPC;

Support 4.0. Built-in lithium battery and no external power supply needed;

USB1.1 interface. Provide DLL and demonstration software to facilitate development;

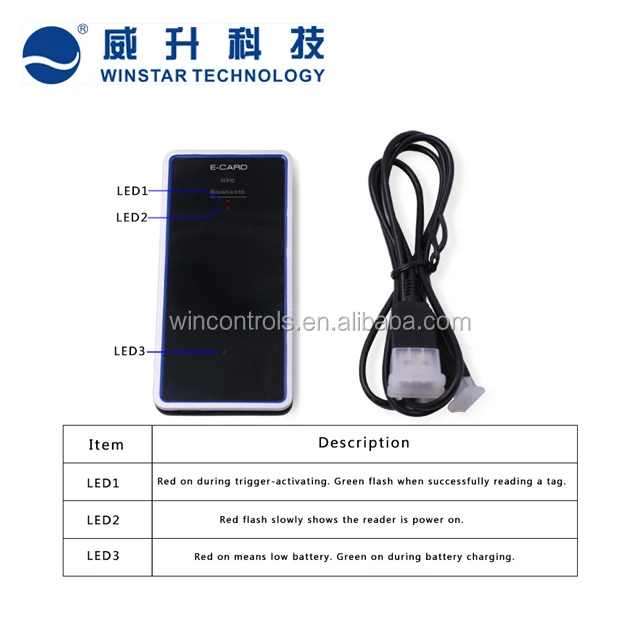

Support USB charging and also the charging indicator, the low battery indicator;

CHARACTERISTICS

 Absolute Maximum Rating

 Electrical Specification

* Effective distance depends on tag and working environment.

Interface
