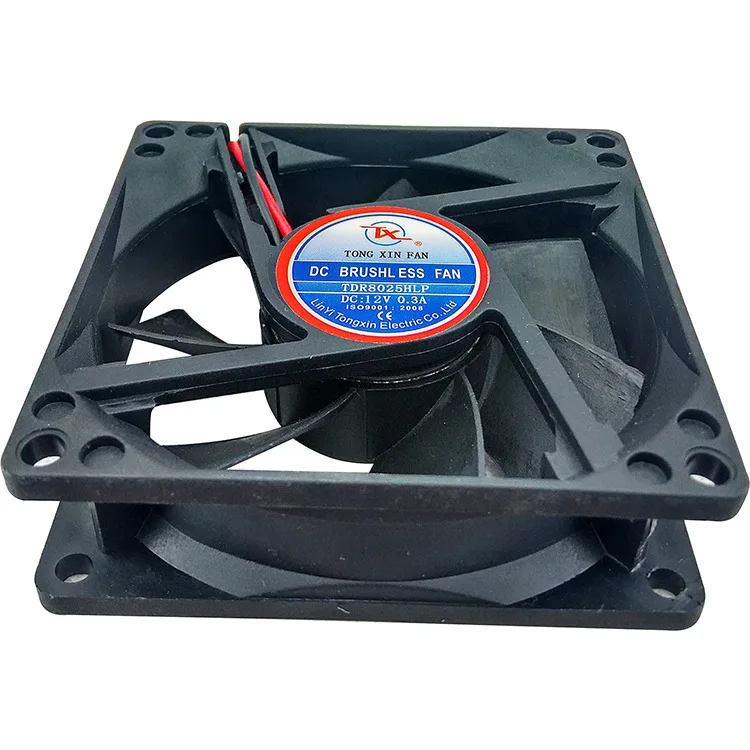

cheap price sleeve bearing 12v dc fan 8025 cpu cooling fan 2800rpm low niose
- Category: >>>
- Supplier: Linyi Tongxin Electric Co. Ltd.
Share on (60700369218):
Product Overview
Description

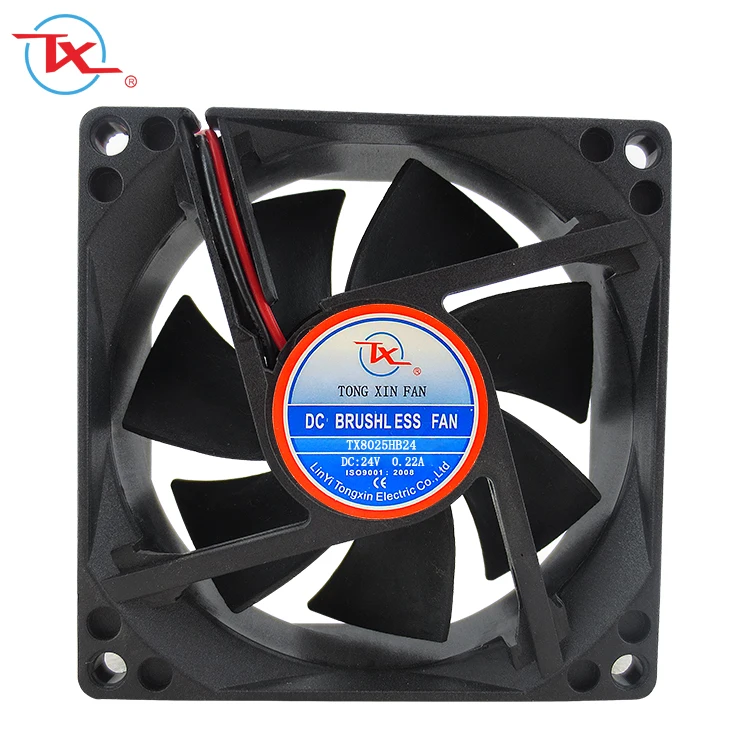

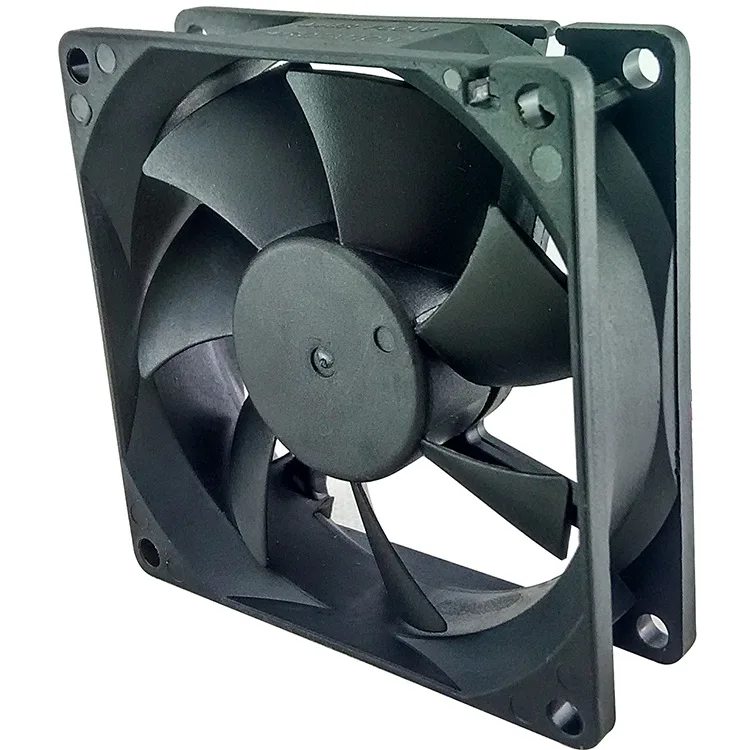

Factory Price Double Ball Bearing PC Computer Case Fan 8025 3 Pin Power DC 24V CPU Fan
1. | Category | Small Ventilation DC Brushless Axial Fan |

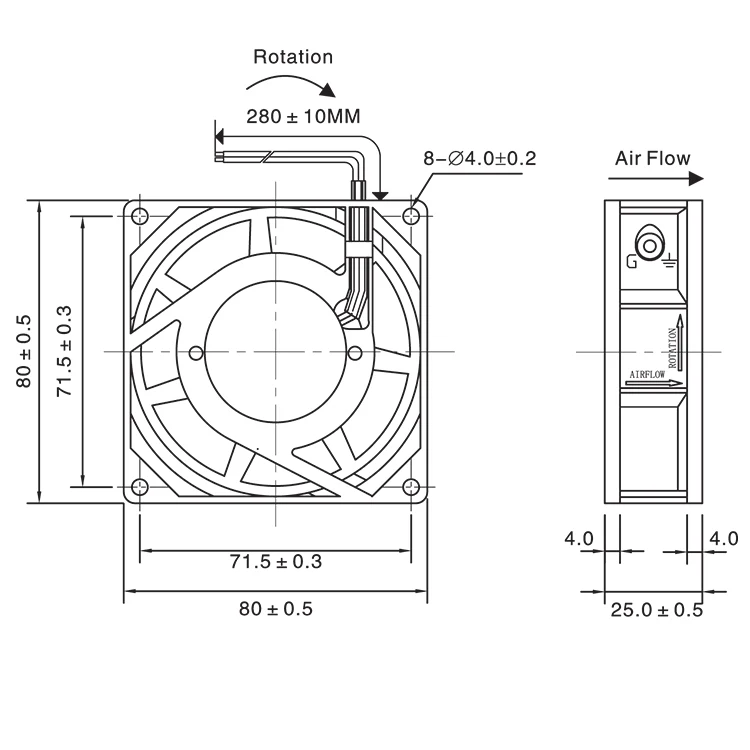

2. | Frame Size | 80x80x25mm,80mm,8cm,3 Inch,3" |
3. | Bearing Type | Dual-Ball Bearing/Sleeve Bearing |
4. | Frame Material | Plastic, UL94V-0 |
5. | Blade | 7 Blades, Plastic, UL94V-0 |
6. | Lead Wire | 280±10mm,AWG#26 UL1007 (+)Red (-)Black |
7. | Motor | 4 Poles Brushless DC Motor |
8. | Motor Protection | Impedance Protected,Reverse Polarity Protected,Thermal Protected (Auto Restart) |
9. | Weight | 82G |
10. | Insulation | Class A |
11. | Protection Grade | IP55~IP68 |
12. | Insulation Resistance | Above 100MΩ, DC500V (Between Lead Wire and Frame) |
13. | Operating Temperature | -10℃~70℃ (35%~85%RH) |
| 14. | Storage Temperature | -40℃~70℃ (35%~85%RH) |
15. | Life Expectancy(Dual Ball Bearing) | 50000hrs at 25 degree |
16. | Life Expectancy(Sleeve Bearing) | 30000hrs at 25 degree |
17. | Available Function | FG,RD,PWM,IP56,Thermal Control,Auto-Restart |
| 18. | Application | 1.Home appliance 2.Kitchen 3.Car industry 4.Telecom 5.Medical Equipment 6.UPS Power 7.LED Lighting 8.Computer Case 9.CPU 10.Safty Equipment 11.Office Electrics 12.SUP Power 13.Communication 14.Printing Equipment ... |
| 19. | OEM | Acceptable |
| 20. | Sample Service | Sample Can Be free,But You're Suggestsd Paying For Freight. |
| 21. | Quality Assurance | 24 Months |
| 22. | Item Condition | Brand New |
Our Services
1. Warranty: 1 year warranty for all products.
2. Products Quality: 100% products inspection before delivery.
3. Timely delivery.
4. Customized Service: As we have our own molding department,
customized service can be provided.
5. Prompt customers Services: E-mail will be replied in 24 hours.
FAQ
1.How about the lifetime about fan?
Life Expectancy:
Dual Ball Bearing:50000 hours
Sleeve Bearing:30000 hours
2.What effects the quoted price for the fan?
The specification(size),bearing type and voltage.
3.Deliveery time?
Sample lea time:3-5 days
Delivery lead time:2 weeks
4.Payment of terms?
Payment by T/T.
100% payment for sample orders.
30% depositand 70% balance before shipment.
5. Delivery ways?
FedEx,DHL,UPS,TNT Door to Door service,By Air,By Sea, etc.
