All in one Heat Pump Dehydrator/Dryer/Drying Machine for fruit and vegetable
- Category: >>>
- Supplier: Foshan Blueway Electric Appliances Co. Ltd.
Share on (60700551981):
Product Overview
Description
All in one Heat Pump Dehydrator/Dryer/Drying Machine for fruit and vegratble
Product Description
According to Inverse Theory Carnot Cycle(Refrigeration Inverse Principle), designed by our Blueway Energy with high temperature air source heat pump also called dehydrator machine collects heat from natural environment, and compress it by the compressor, move the heat to the drier room, the condenser(circulation fan coils) in the dryer room release the heat into the room, air in circulation in this way till the room air to be 85℃.
It consists of drying unit outdoor heat pump, temperature and humidity control system, dehumidify fans, indoor unit fan coil heat exchanger and circulation fans. Can be in insulated warehousing, greenhouse and chicken houses.
The new designed heat pump dryer can provide constant temperatures of a maximum of 85℃and controls moisture keeping original color, shape and taste. Products that are dried and dehumidified are rubbers,herbs,fruits,food, tobacco leaf, flower tea, mushrooms, plastic products, wood, grain etc.
working principle:
A heat pump dryer absord heat from ambient air by evaporator, or recovery the waste heat during the drying proceed, by compressor compress, move (transfer) heat energy to a dry cabinet or room, the hot air in the cabinet heating and circulating repeatedly to absord mositure water from materials, thereby vaporizes mositure from the materials surface, by hot wind dehumidifing or condensor removing water out till material dry.

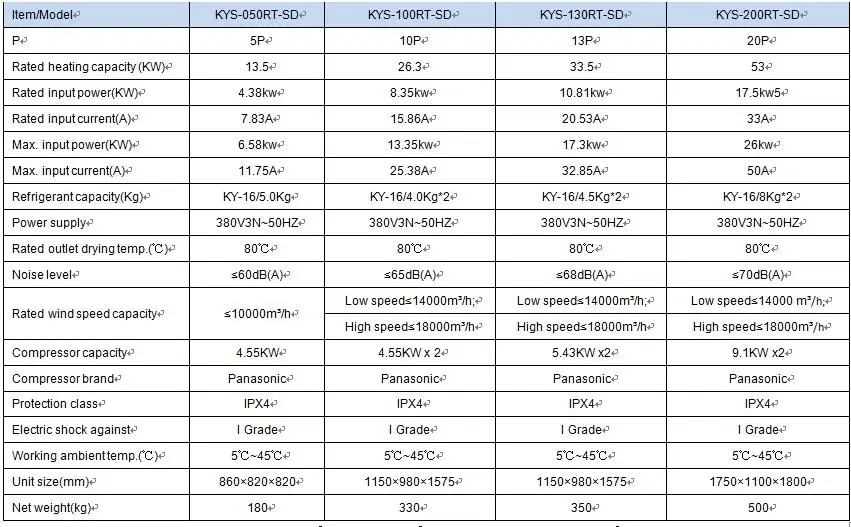

Specification
Test ambient temperature: Dry bulb 25℃,Wet bulb 20℃,initial room temprature 25℃, final room temprature 80℃.
dryer features:
Environmental protection
Adopt heat from natural as energy, no waste pollution, no Combustible Emissions, no poisonous discharge, very environmental friendly.
Safety
Air to air heat pump water heater use media for heat exchange , water and electricity isolated to eliminate shock hazard. It don’t use fuel to avoid inflammable , explosive, toxic phenomenon, absolutely safe.
Easily operation
Large Intelligent touch screenLCD integrated temperature,time,drying curve, humidity control,multi-protection ,checking running parameters, adjusting air pressure, alarming failure and auto power off protection are easily realized for users thanks to this technology to ensure the machine running stable, no need extra workers to operate to save your bill.
Efficient heat recovery
During the exchange between the fresh air and the exhaust air, waste heat from the drying room will be collected again. The absorbing rate can reach 60%.
Comparison:
Researches indicated that our heat pump drying machine (dehydrator machine) can save 20%-50% energy meanwhile ensuring good drying quality.
Various Drying Energy Machine Economy Comparison Table | |||||||
Heating Mode | Blueway Heat Pump Dryer | Electric Heating | Coal Boller | Oil Fired Boiler | Gas Boller | Biomass Stove | Regular Heat Pump Dryer |
Remove 1kg of water required heat energy | According to information provided by the relevant authority of the document, the average 1kg of water to remove heat energy required for 1.35 kw/kg, namely 4860kj/kg | ||||||
Fuel type | Electric | Electric | Coal | Diesel | Gas | Biomass | Electric |
Heat Value | 3600kj/kg | 3600kj/kg | 23027kj/kg | 33494kj/kg | 36006kj/kg | 17459kj/kg | 3600kj/kg |
Thermal efficiency | 400% | 95% | 30% | 85% | 85% | 90% | 350% |
Effective thermal value | 14400kj/kg | 3420kj/kg | 6906kj/kg | 28469kj/kg | 30605kj/kg | 15713kj/kg | 12600kj/kg |
Fuel Price | 0.1$/kwh | 0.1$/kwh | 0.1$/kg | 1.2$/L | 0.8$/m3 | 0.2$/kg | 0.1$/kwh |
Fuel consumption | 0.337kwh | 1.42kwh | 0.7kg | 0.17L | 0.159m3 | 0.375kg | 0.386kwh |
Fuel consumption($) | 0.33 | 1.42 | 0.7 | 1.26 | 0.795 | 0.37 | 0.39 |
Labor management, warehousing costs | Low | High | Higher | High | High | Low | Low |
Safety performance | Safe | Unsafe | Unsafe | Unsafe | Unsafe | Safe | Safe |
Environmental pollution | None | Very serious | More serious | More serious | Light pollution | None | None |
Life of equipment | 10-15 years | 5-8 years | 6-9 years | 6-9 years | 6-9 years | 8-12 years | 10-15 years |

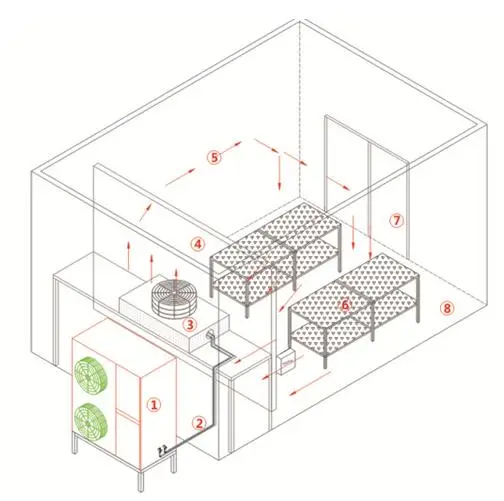

Install instruction:
Application:

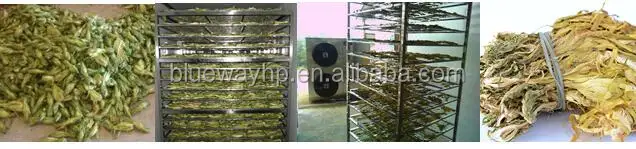

Drying Herbs:
pseudo-ginseng,aniseed,dendrobe,Chinese yam,glossy ganoderma,sea cucumber,honeysuckle flower,fructus momordicase(luo han guo), cassia,ginseng,ginger,maca etc.
Drying Agriculture products:
Dragon fruit flower,rose,mushroom,tobacoo leaf,white fungus,edible tree fungus,red chili,grain,rice, wheat,vegitable,bamboom shoot,cassava,starch etc.
Drying Fruit:
Longgan,litchi,banana,mango,waxberry,plum,lemon,raisin,artocarpus heterophyllus lam,kiwi fruit, dried persimm
Drying Herbs:
pseudo-ginseng,aniseed,dendrobe,Chinese yam,glossy ganoderma,sea cucumber,honeysuckle flower,fructus momordicase(luo han guo), cassia,ginseng,ginger,maca etc.
Drying Agriculture products:
Dragon fruit flower,rose,mushroom,tobacoo leaf,white fungus,edible tree fungus,red chili,grain,rice, wheat,vegitable,bamboom shoot,cassava,starch etc.

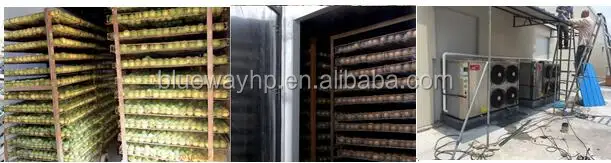

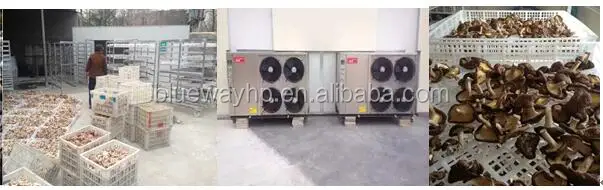

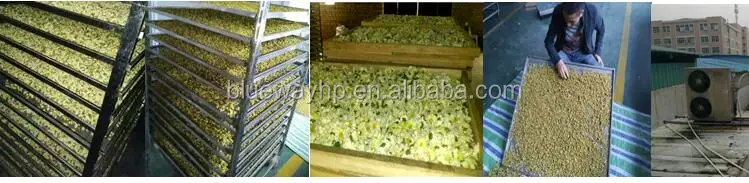

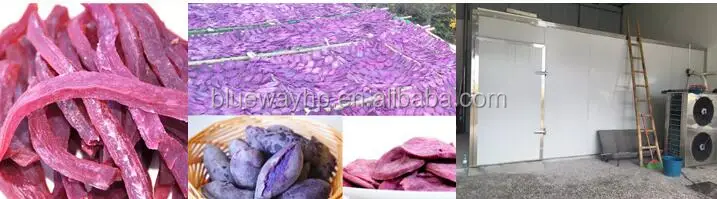

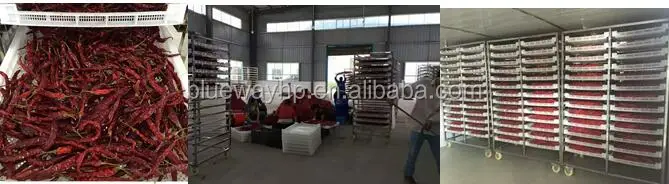

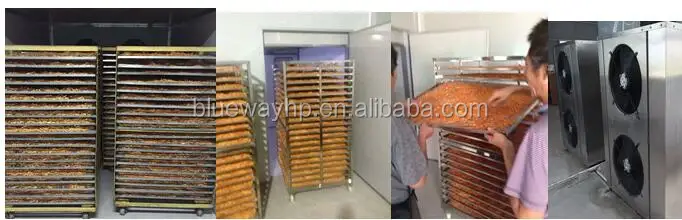

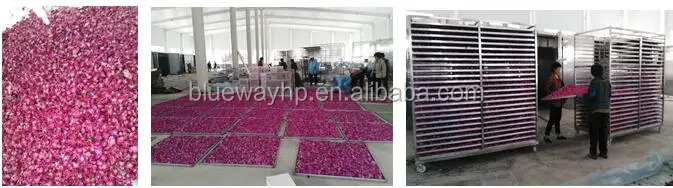

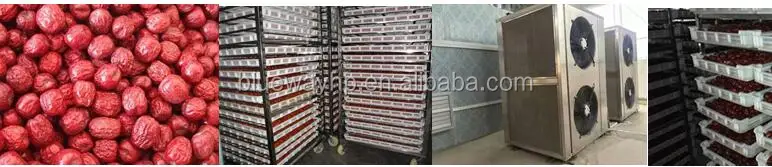

Projects:
FAQ
| FAQ |
Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral cartons and polywood. If you have legally registered patent,
we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take 30 to 40 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and
the courier cost.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
