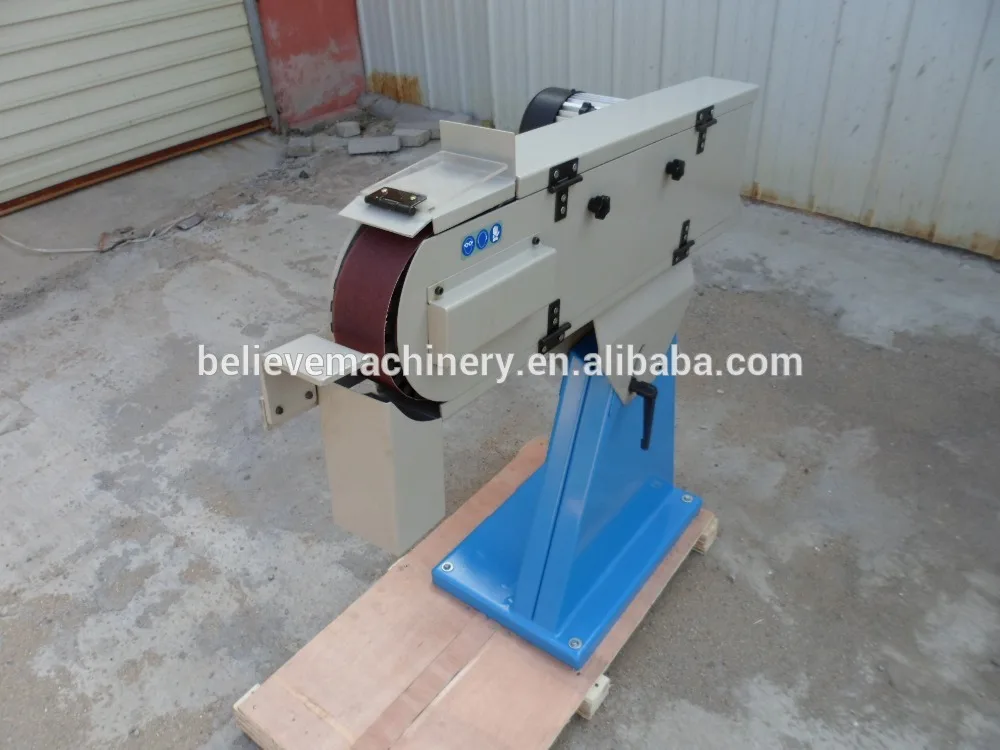

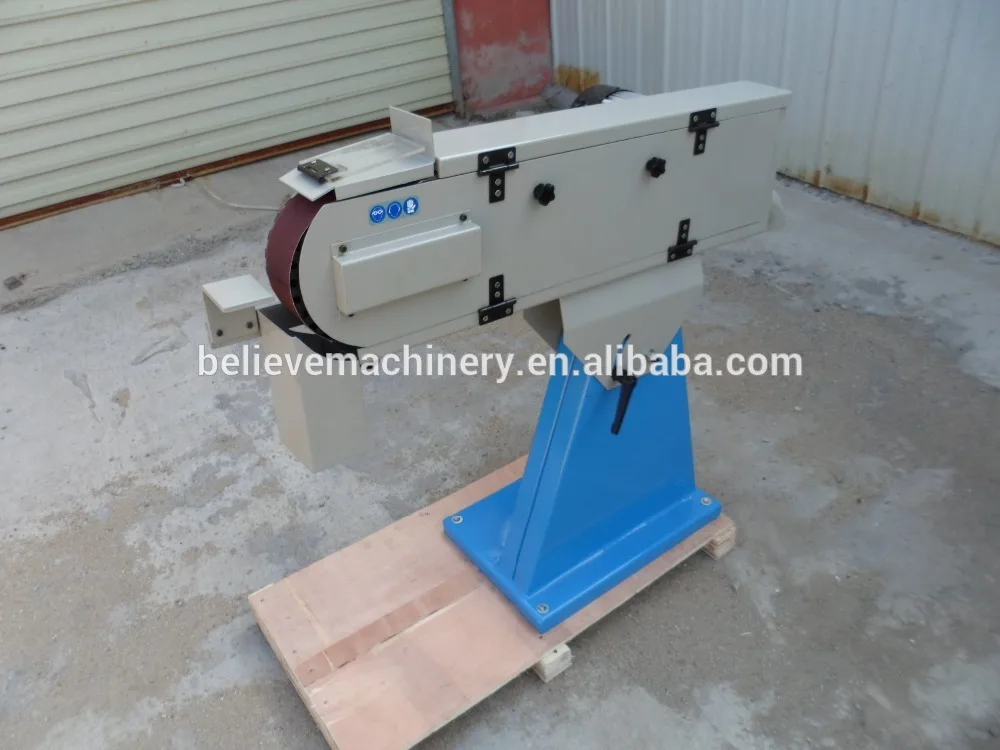

2000*75 Metal Belt Grinding Machine Grinder Polishing Machinery

Product Overview

Description

2000*75 Metal Belt Grinding Machine Grinder Polishing Machinery

The belt grinder has long lasting urethane drive and idle wheels. The drive wheel has a simple

tracking and tensioning system that increases belt and machine life. this one is made from heavy

steel that is folded and electro welded for further rigidity and less vibration.

The top guard opens up allowing for a large flat grinding surface, perfect for castings.  A triangular

steel base allows this abrasive belt grinder to pivot to the desired angle for the operation.



Features:

1. Adjustment of work angle and height

2. With a high belt speed

3. Large surface sand for work

4. Safety protection guard

5. Optional dust sack

6. CE approved



Specifications:



Item No	671001	671002

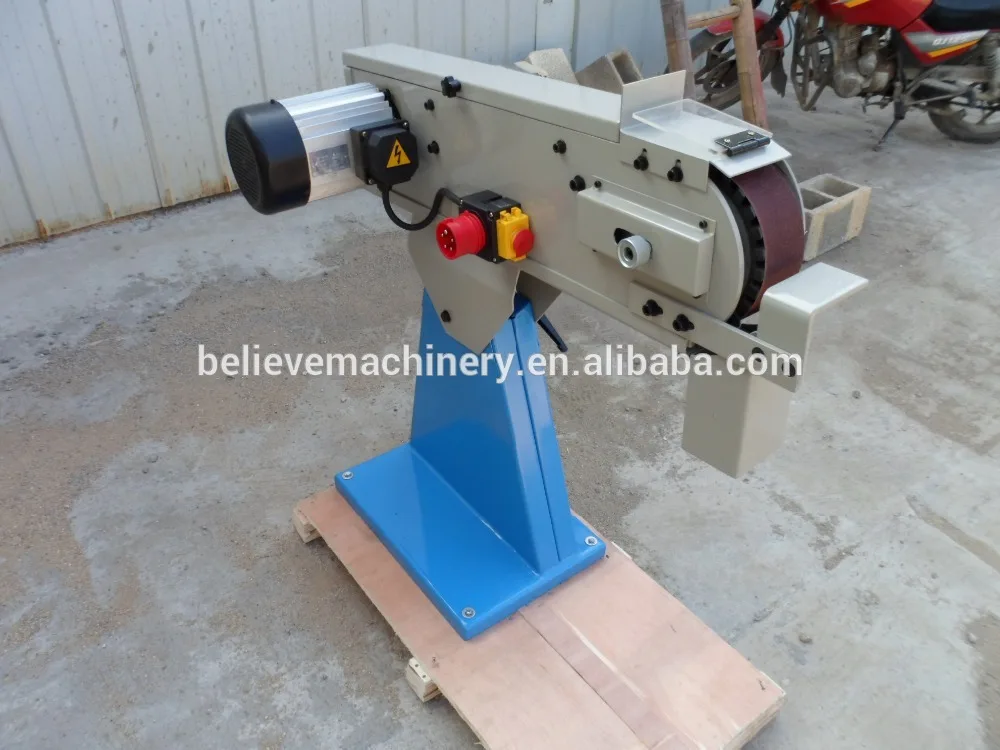

Model	SD-75	SD-150
Motor power	3KW	3KW
Contact wheel	200×75 mm	250×150mm
Belt size	2000×75mm	2000×150mm
Belt speed	34m/sec	34m/sec
Packing size	115×58×64 cm	115×68×68 cm
N.W/G.W	85/110 KG	105/130 KG
