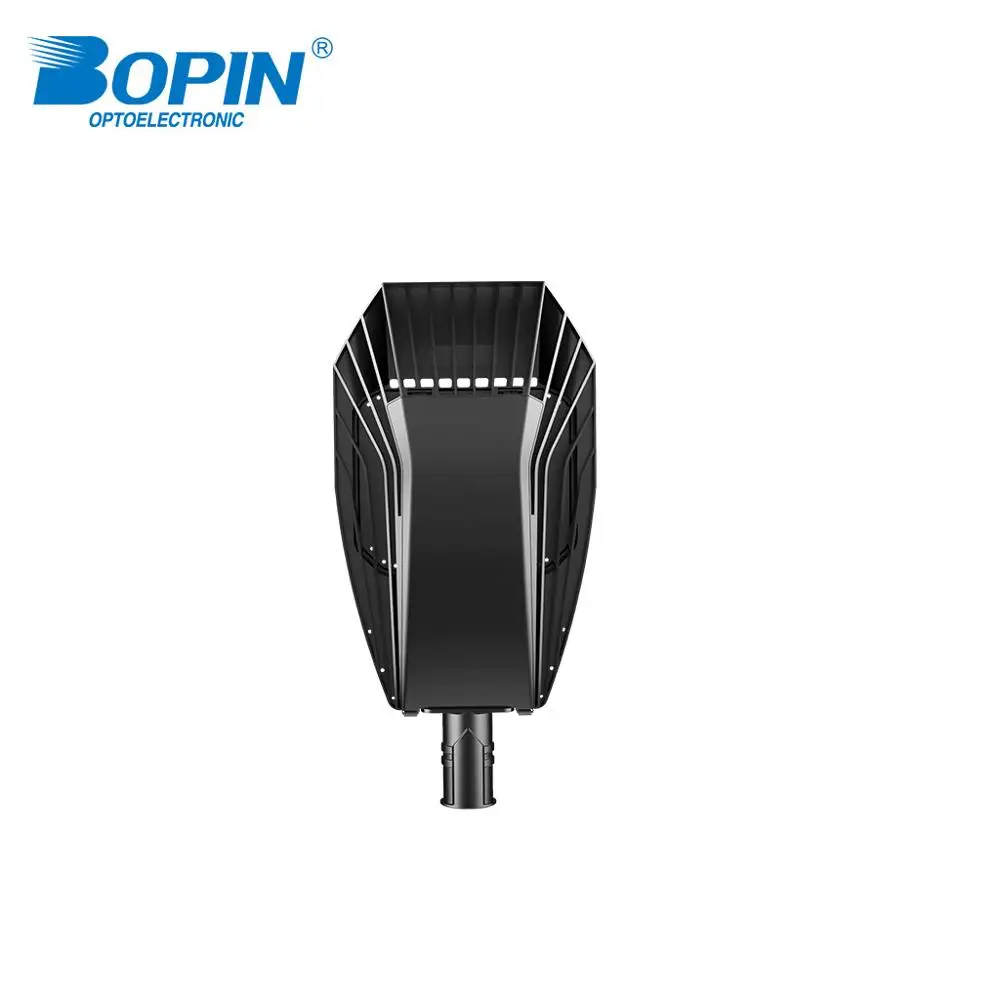

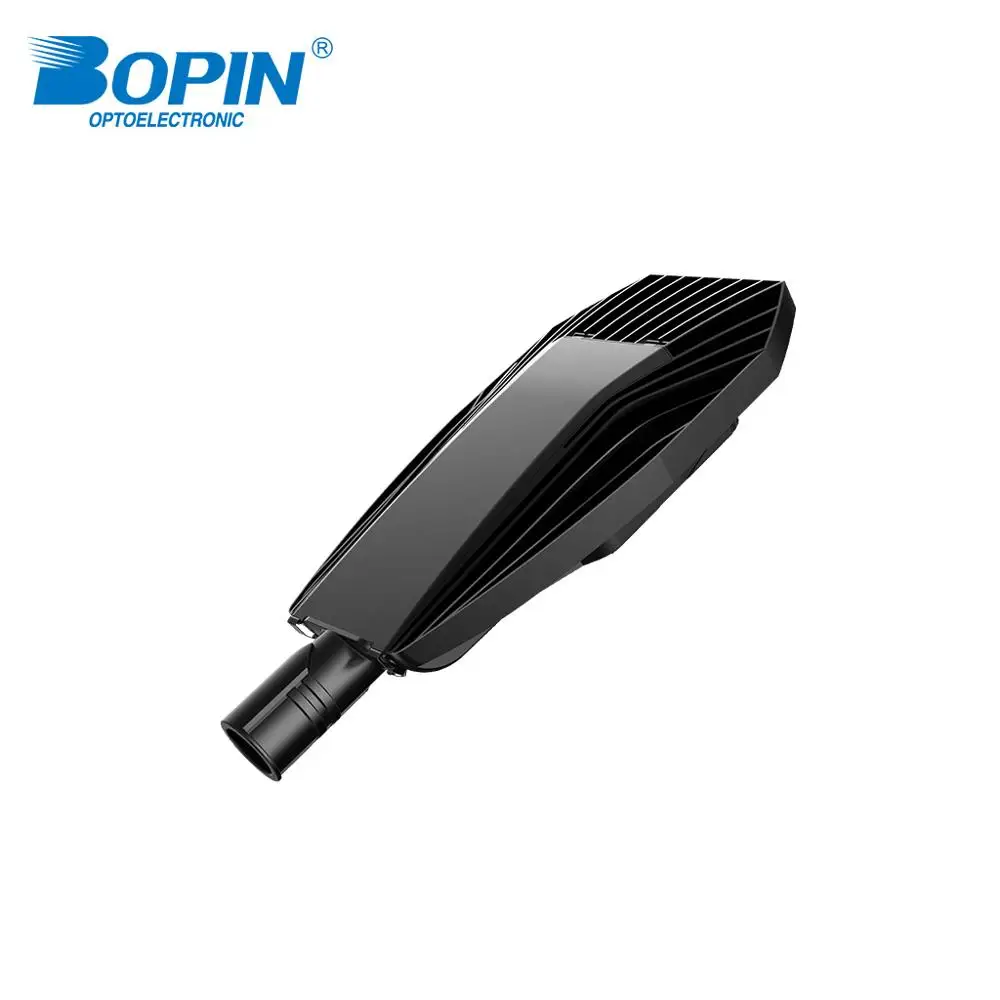

Highway/railway/city streets/bridges led lights,100w led street light
Bopin Led Street Lights, with rich revolutionary & creative ideas, is the perfect combination of technology, creativity and light. Design for road & street lighting, it is a total subversion of the traditional concept road & street lighting.
Functions& features:
Buckle Design
Buckle design, easy to open
and close.
Anti-dust Cover
Die-cast material anti-dust cover, page design, easy to maintenance & without bird dung.
Photocell Option
Photocell (turn on/off automatically by the sunset/sunrise).
Branded LED Driver
Can achieve intelligent lighting control and 6KV/10KV surge protection. Providing excellent performance and lifespan.
Optical Lens
Imported optical lens with high lighting transmittance, anti-UV materials, secondary light
dissipation technology.
Heat Dissipation
High quality die-casting aluminum housing, optimization design of heat dissipation structure, ensure LED luminous efficiency and lifetime.

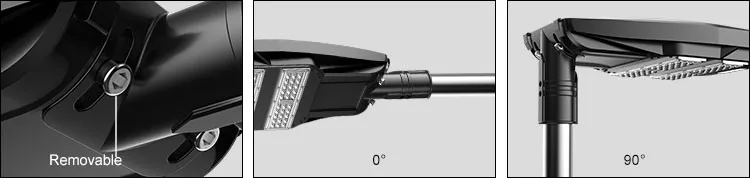

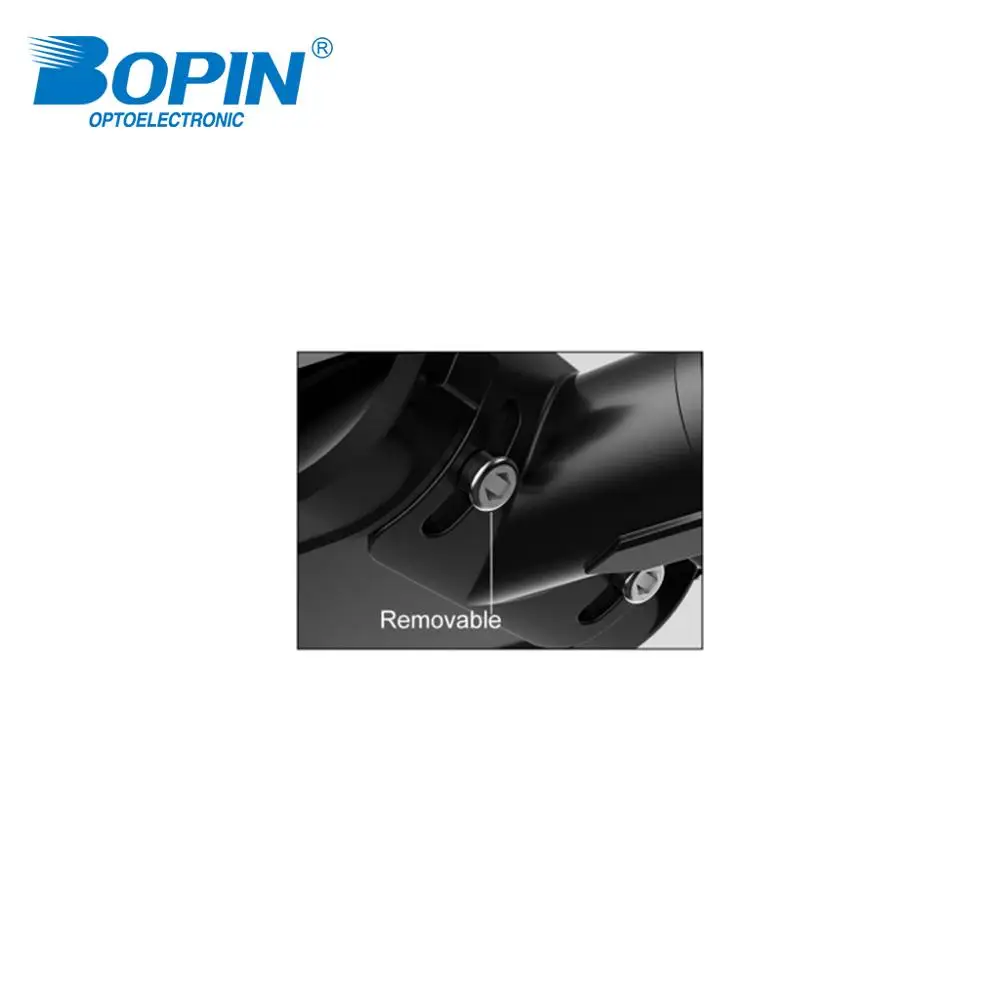

Adjustable Angle
Adjustable angle bolt casing, 0º and 90º, adapt different methods of installation requirements.
Technical Parameters
Model No.
Input Voltage
Watts
Installed Height
C.C.T
P.F.
Light Efficacy
IP Rating
BSL80Z-F14L
AC100-270V 50/60HZ
80W
6-8M
3000k/4000k/5000k/5700k/6000k
>0.95
100-150lm/W
IP66
BSL100Z-F14L
AC100-270V 50/60HZ
100W
7-10M
3000k/4000k/5000k/5700k/6000k
>0.95
100-150lm/W
IP66
BSL120Z-F14L
AC100-270V 50/60HZ
120W
8-12M
3000k/4000k/5000k/5700k/6000k
>0.95
100-150lm/W
IP66
BSL150Z-F14L
AC100-270V 50/60HZ
150W
10-12M
3000k/4000k/5000k/5700k/6000k
>0.95
100-150lm/W
IP66
BSL180Z-F14L
AC100-270V 50/60HZ
180W
12M
3000k/4000k/5000k/5700k/6000k
>0.95
100-150lm/W
IP66
Packaging & Shipping
Model No.
Lamp size
N.W.
Carton size
N.W.
BSLXXXZ-F14L series
627*306*110mm
5.5kgs
670*330*150mm
6.0kgs

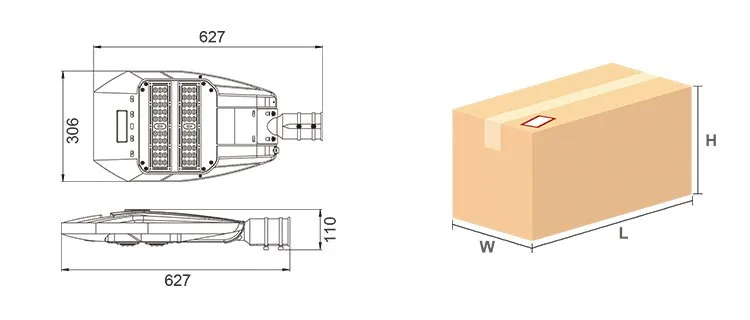

Product Size

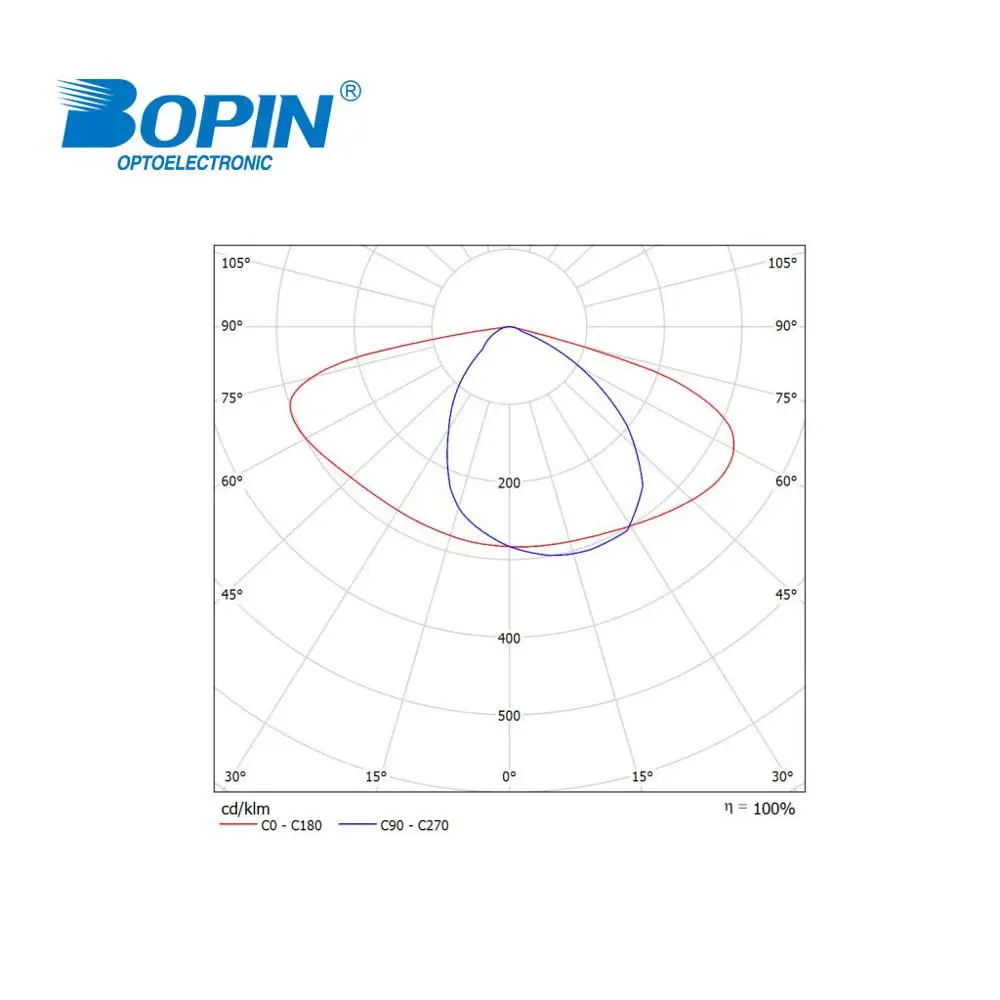

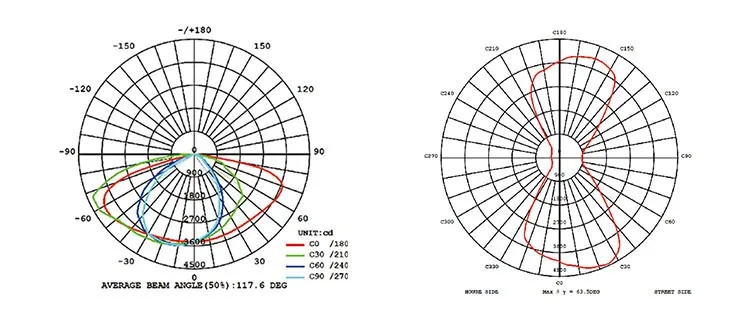

Distribution Curve
Distribution Mode

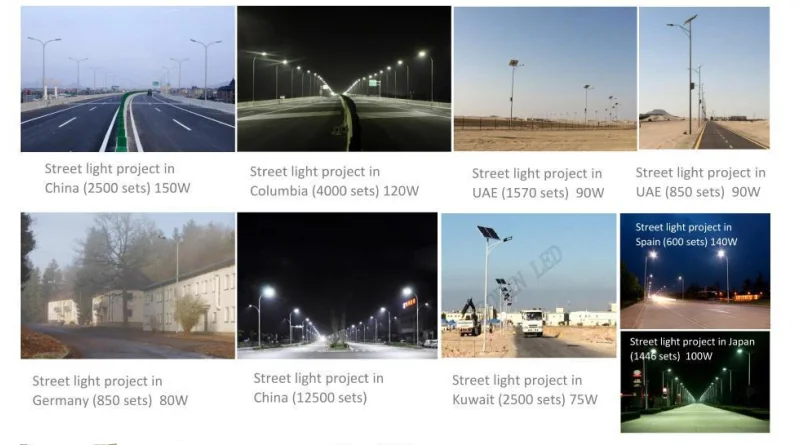

Our Projects:
Company Information
Our Company
FAQ
Q: What's the MOQ for my order? What's the lead time for my order? A: MOQ: 1 sample for checking& testing, we accept the small trial order. Standard lead time is 3-5 working days &a bit more for bulk order after order confirmation. For urgent job it can be negotiable.
Q: What else power of lamp do you have? I need 1 type of 60W power.
A: Yes, for No.F14L model, we have 60W, 80W, 100W, 120W, 150W, 180W for options.
Q: What's the warranty time of your products? A:5 years(from goods received), It depends on the different product.
Q: Would you please send me sample to Chinese warehouse? A:Yes, please kindly let me know the warehouse address& zipcode.
Q: Does it have a photocell to let lamp auto light up? A:We now offer two models: One with a Built-in Dusk to Dawn Photocell& a model without it.
Q: Could you add my LOGO to your lamp?
A: Yes, surely, please kindly send us for LOGO file by JPG/PDF.
