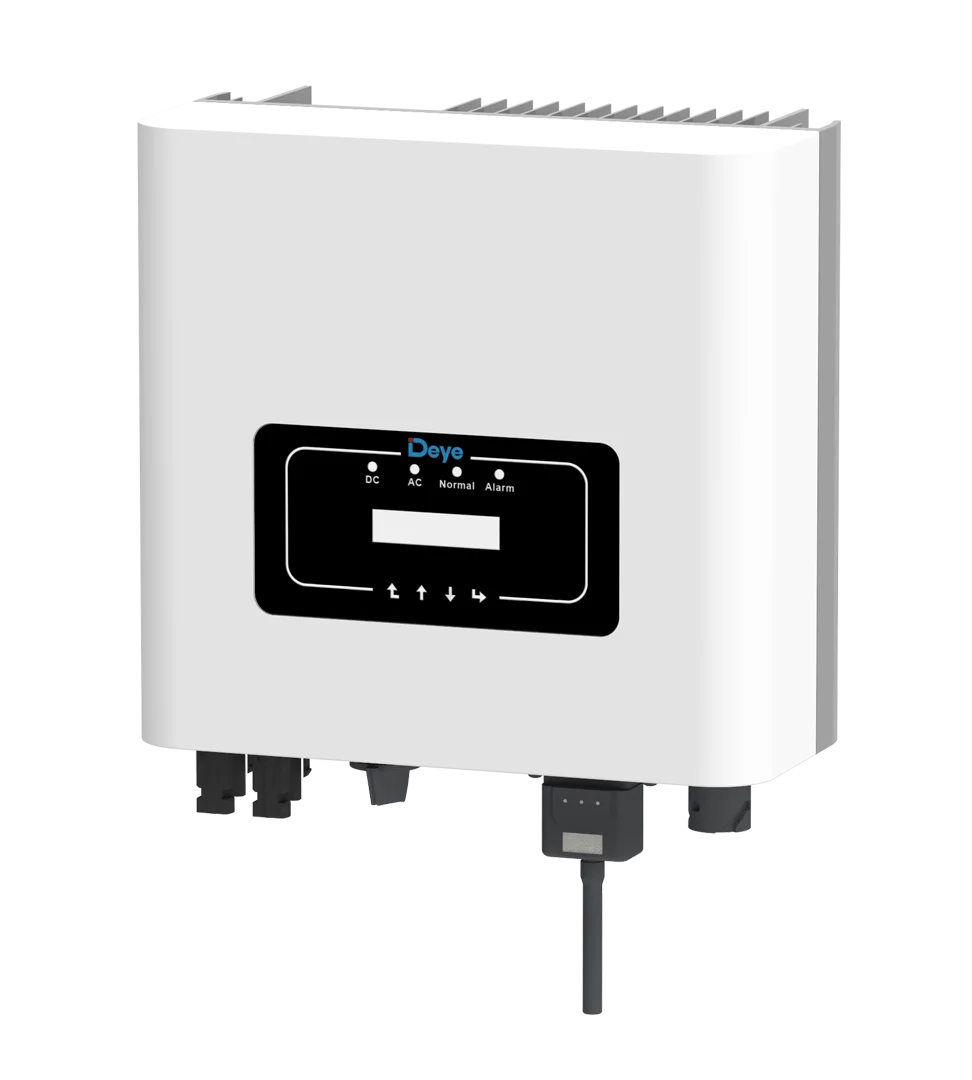

Best Price 4kw 5kw 6kw Grid Tied Solar Inverter SUN 5K G 5kw Solar Power Inverter Single Phase
Best Price 4kw 5kw 6kw Grid Tied Solar Inverter SUN-5K-G 5kw Solar Power Inverter Single Phase
Best Price 4kw 5kw 6kw Grid Tied Solar Inverter SUN-5K-G 5kw Solar Power Inverter Single Phase
Best Price 4kw 5kw 6kw Grid Tied Solar Inverter SUN-5K-G 5kw Solar Power Inverter Single Phase
Best Price 4kw 5kw 6kw Grid Tied Solar Inverter SUN-5K-G 5kw Solar Power Inverter Single Phase
Best Price 4kw 5kw 6kw Grid Tied Solar Inverter SUN-5K-G 5kw Solar Power Inverter Single Phase
Best Price 4kw 5kw 6kw Grid Tied Solar Inverter SUN-5K-G 5kw Solar Power Inverter Single Phase

Best Price 4kw 5kw 6kw Grid Tied Solar Inverter SUN 5K G 5kw Solar Power Inverter Single Phase

Share on (60700677465):


Price:$500.00 - $600.00

Quantity:


Product Overview

Description





Products Description


1. MPP tracker, Max. efficiency up to 97.5%
2. Zero export application,VSG application
3. String intelligent monitoring (optional)
4. Wide output voltage range
5. Anti-PID function(Optional)

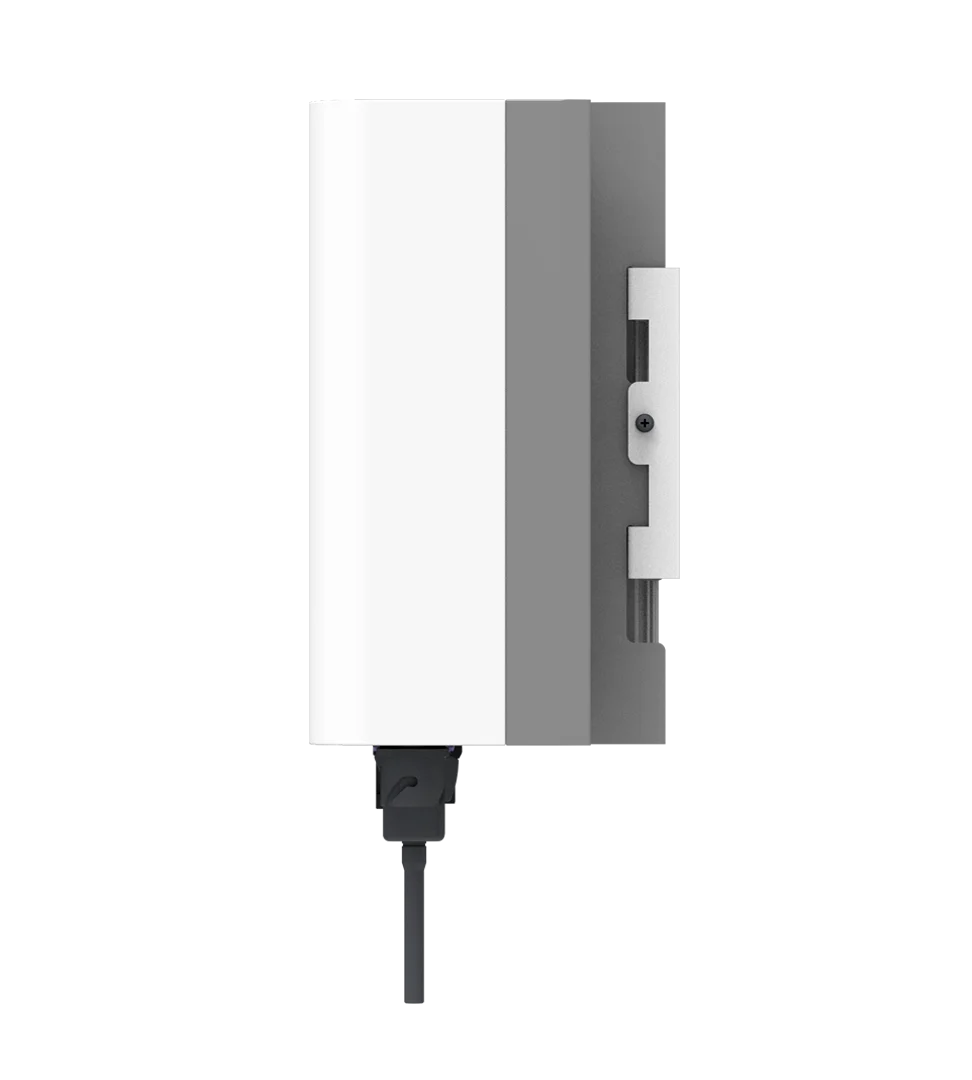

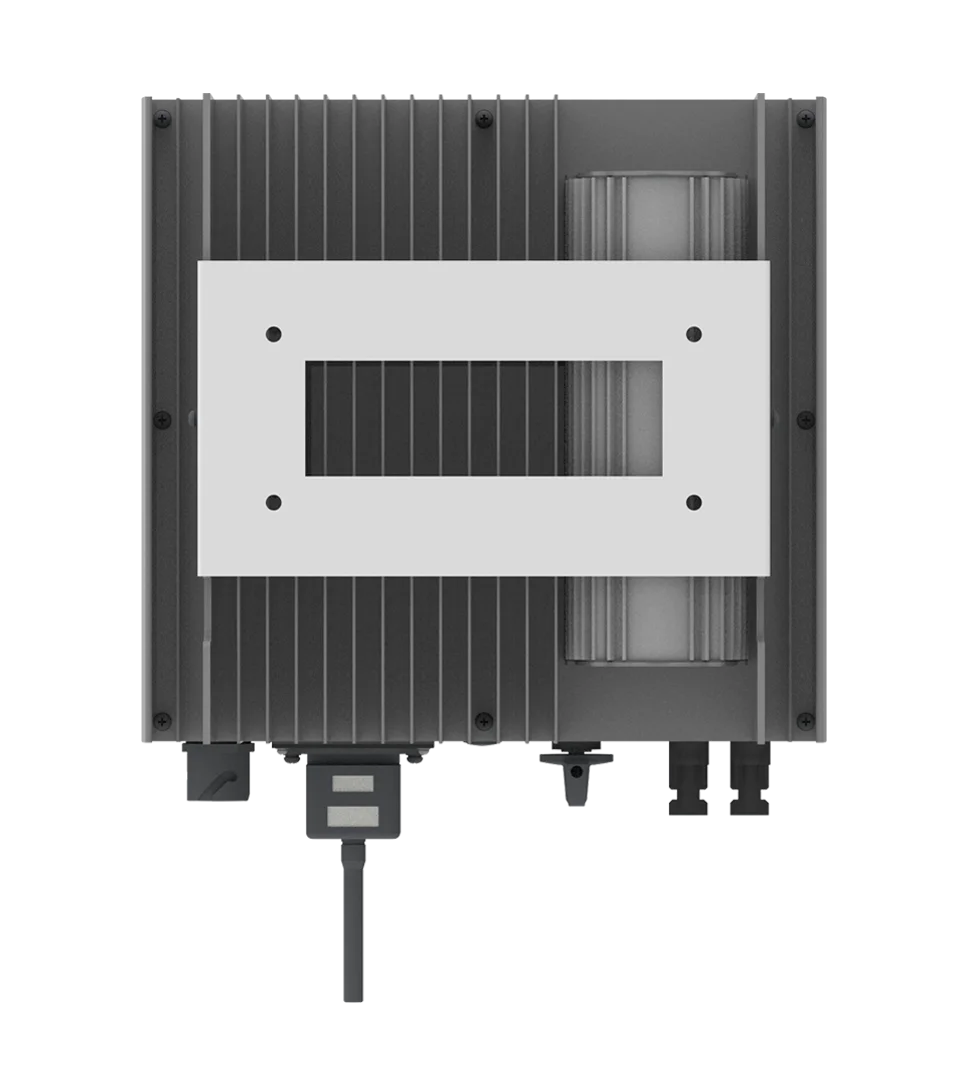

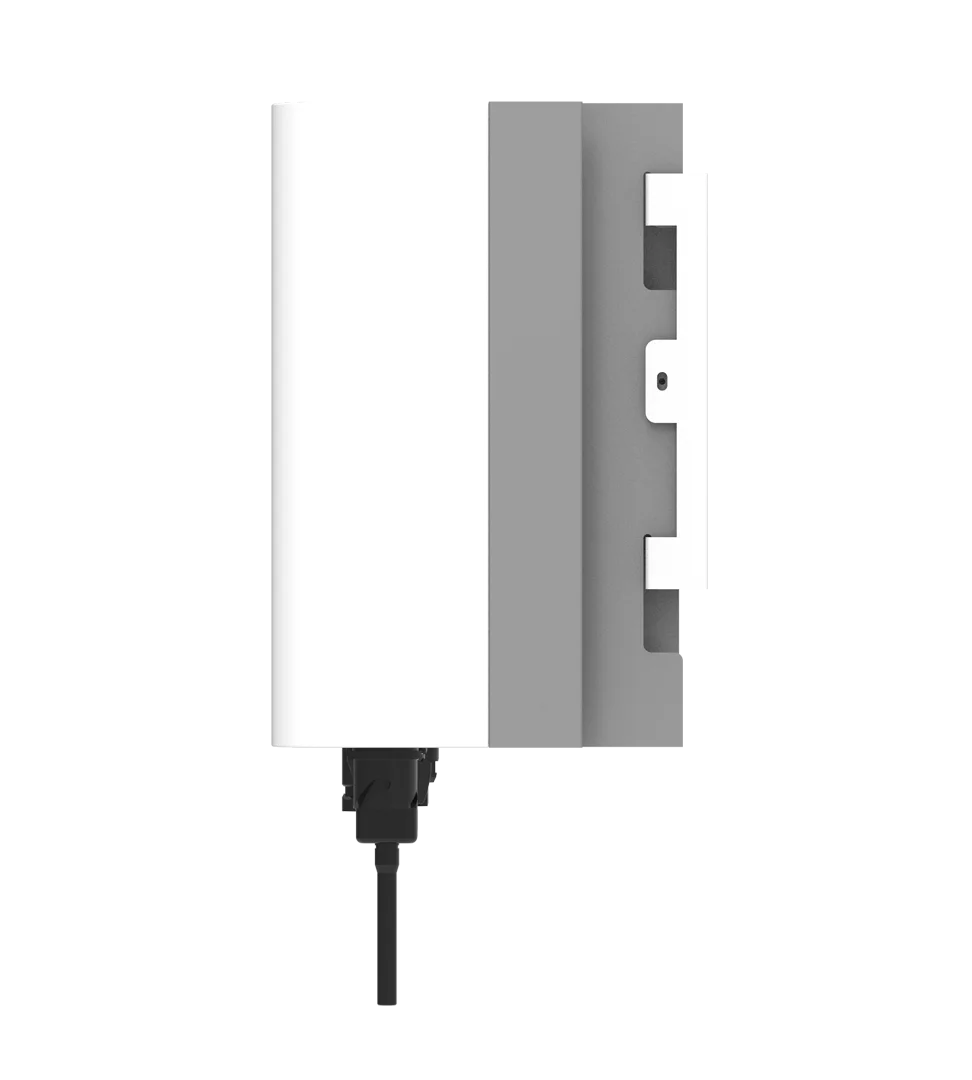

Details Images

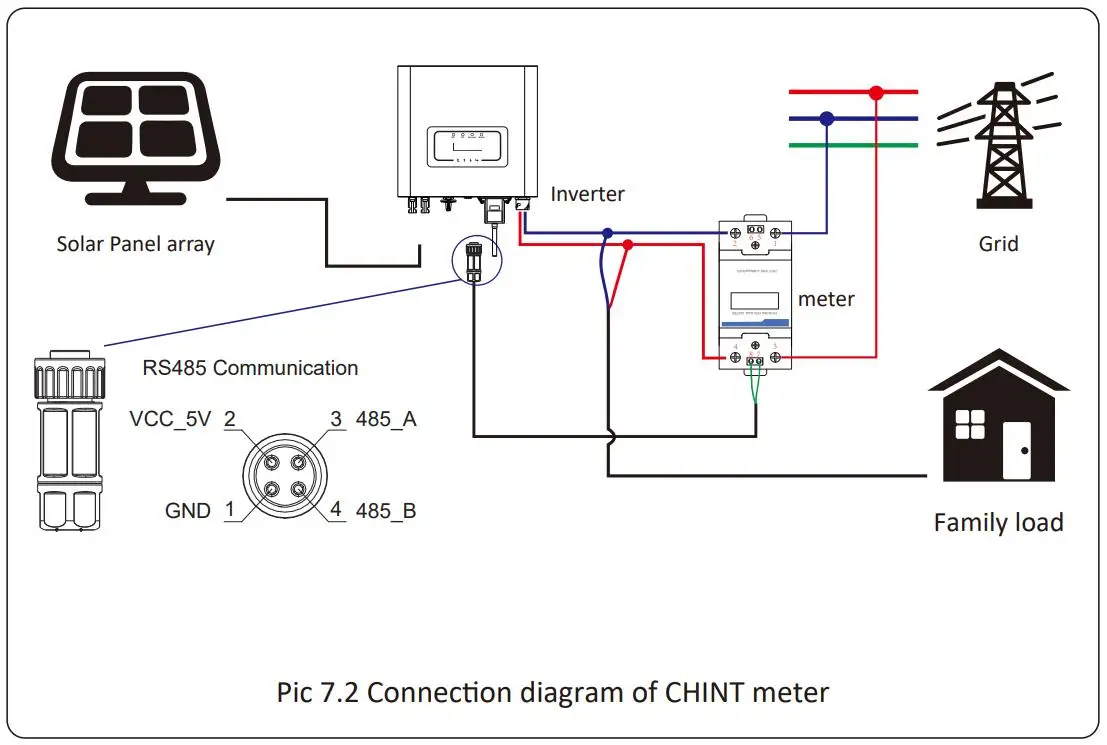

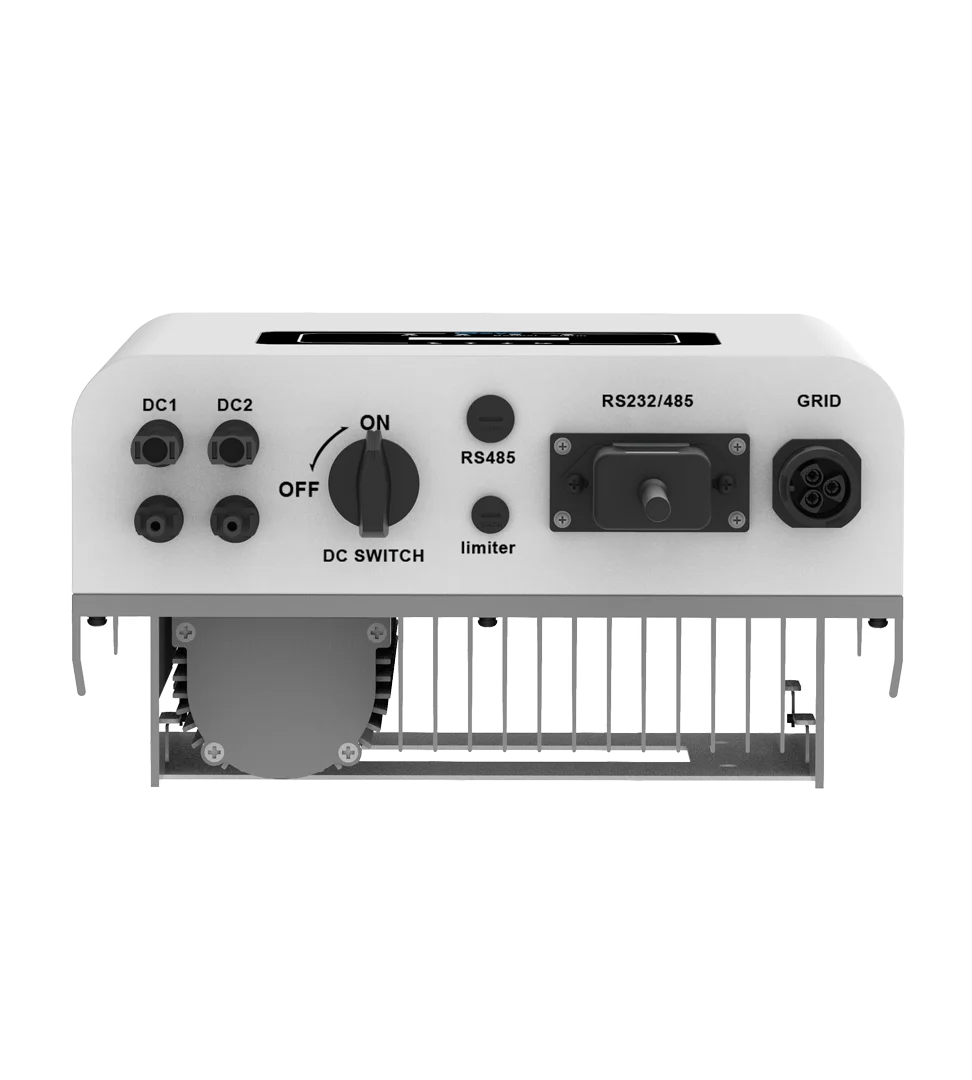

Wiring order & Accessories








Product Paramenters


Model
SUN-3.6K-G
SUN-4K-G
SUN-5K-G
SUN-6K-G
Input Side
Max. DC Input Power (kW)
4.7
5.2
6.5
6.6
Max. DC Input Voltage (V)
550
Start-up DC Input Voltage (V)
80
MPPT Operating Range (V)
70~550
Max. DC Input Current (A)
12.5+12.5
Number of MPPT / Strings per MPPT
2/1
Inverter output
Rated Output Power (kW)
3.6
4
5
6
Max. Active Power (kW)
4
4.4
5.5
6.6
Rated AC Grid Voltage (V)
220 / 230 (Optional)
AC Grid Voltage Range (V)
180Vac~300 Vac (this may vary with grid standards)
Rated Grid Frequency (Hz)
50 / 60 (Optional)
Operating Phase
Single phase
Rated AC Grid Output Current (A)
15.7
17.4
21.7
26.1
Max. AC Output Current (A)
17.4
19.1
23.9
28.7
Output Power Factor
0.8 leading to 0.8 lagging
Grid Current THD
<3%
DC Injection Current (mA)
<0.5%
Grid Frequency Range
47~52 or 57~62 (Optional)
Efficiency
Max. Efficiency
97.3%
97.5%
97.5%
97.5%
Euro Efficiency
97.1%
97.3%
97.3%
97.3%
MPPT Efficiency
>99%
Protection
DC Reverse-Polarity Protection
Yes
AC Short Circuit Protection
Yes
AC Output Overcurrent Protection
Yes
Output Overvoltage Protection
Yes
Insulation Resistance Protection
Yes
Ground Fault Monitoring
Yes
Anti-islanding Protection
Yes
Temperature Protection
Yes
Integrated DC Switch
Yes
Remote software upload
Yes
Remote change of operating parameters
Yes
Surge protection
DC Type II / AC Type II
General Data
Size (mm)
330W×310H×172D
Weight (kg)
11
Topology
Transformerless
Internal Consumption
<1W (Night)
Running Temperature
-25~65℃
Ingress Protection
IP65
Noise Emission (Typical)
<25 dB
Cooling Concept
Natural cooling
Max. Operating Altitude Without Derating
2000m
Designed Lifetime
>20 years
Grid Connection Standard
EN50549, IEC61727, VDE 0126-1-1, IEC62109-1-2
Operating Surroundings Humidity
0-100%
Safety EMC / Standard
IEC62109-1/-2, EN61000-6-1, EN61000-6-3
Features
DC Connection
MC-4 mateable
AC Connection
IP65 rated plug
Display
LCD1602
Interface

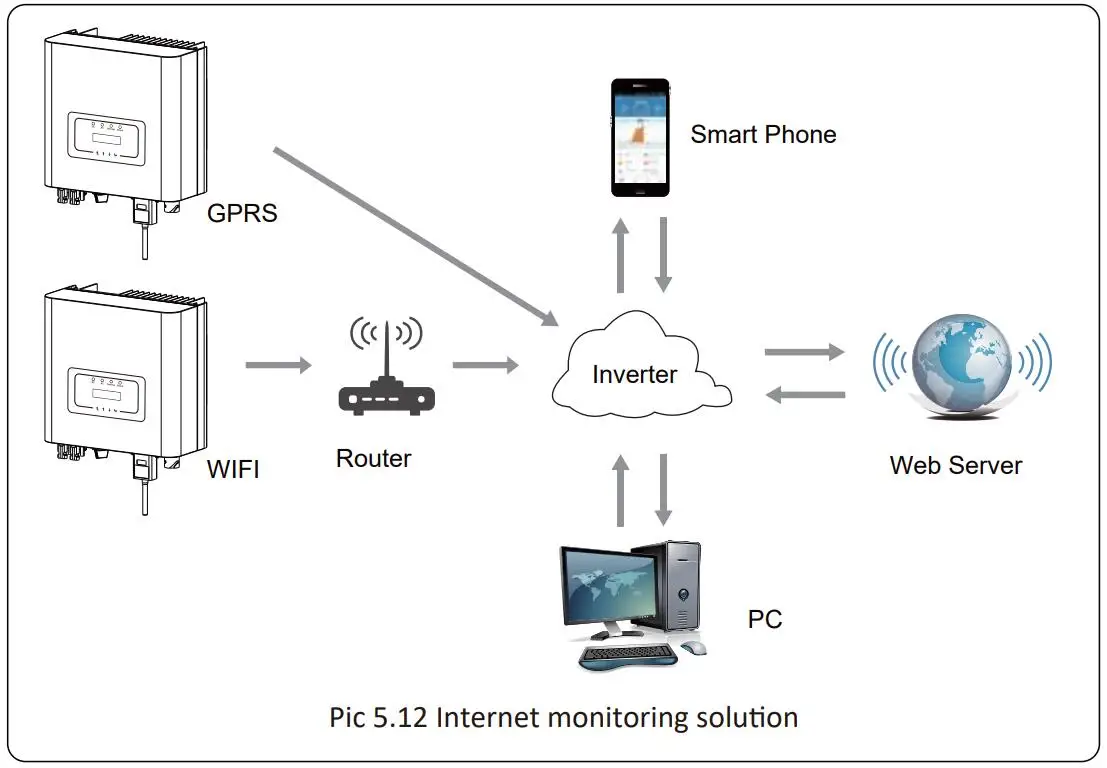

RS485/RS232/Wifi/LAN


Model
SUN-7.5K-G
SUN-8K-G
Input Side
Max. DC Input Power (kW)
9.8
10.4
Max. DC Input Voltage (V)
550
Start-up DC Input Voltage (V)
120
MPPT Operating Range (V)
70~550
Max. DC Input Current (A)
12.5+25
12.5+25
Number of MPPT / Strings per MPPT
2/1+2
2/1+2
Inverter output
Rated Output Power (kW)
7.5
8
Max. Active Power (kW)
8.3
8.8
Rated AC Grid Voltage (V)
220 / 230 (Optional)
AC Grid Voltage Range (V)
180Vac~300 Vac (this may vary with grid standards)
Rated Grid Frequency (Hz)
50 / 60 (Optional)
Operating Phase
Single phase
Rated AC Grid Output Current (A)
32.6
34.8
Max. AC Output Current (A)
35.9
38.3
Output Power Factor
0.8 leading to 0.8 lagging
Grid Current THD
<3%
DC Injection Current (mA)
<0.5%
Grid Frequency Range
47~52 or 57~62 (Optional)
Efficiency
Max. Efficiency
97.5%
Euro Efficiency
97.5%
MPPT Efficiency
>99%
Protection
DC Reverse-Polarity Protection
Yes
AC Short Circuit Protection
Yes
AC Output Overcurrent Protection
Yes
Output Overvoltage Protection
Yes
Insulation Resistance Protection
Yes
Ground Fault Monitoring
Yes
Anti-islanding Protection
Yes
Temperature Protection
Yes
Integrated DC Switch
Yes
Remote software upload
Yes
Remote change of operating parameters
Yes
Surge protection
DC Type II / AC Type II
General Data
Size (mm)
330W×310H×198.5D
Weight (kg)
11
Topology
Transformerless
Internal Consumption
<1W (Night)
Running Temperature
-25~65℃
Ingress Protection
IP65
Noise Emission (Typical)
<25 dB
Cooling Concept
Natural cooling
Max. Operating Altitude Without Derating
2000m
Designed Lifetime
>20 years
Grid Connection Standard
EN50549, IEC61727, VDE 0126-1-1, IEC62109-1-2
Operating Surroundings Humidity
0-100%
Safety EMC / Standard
IEC62109-1/-2, EN61000-6-1, EN61000-6-3
Features
DC Connection
MC-4 mateable
AC Connection
IP65 rated plug
Display
LCD1602
Interface
RS485/RS232/Wifi/LAN

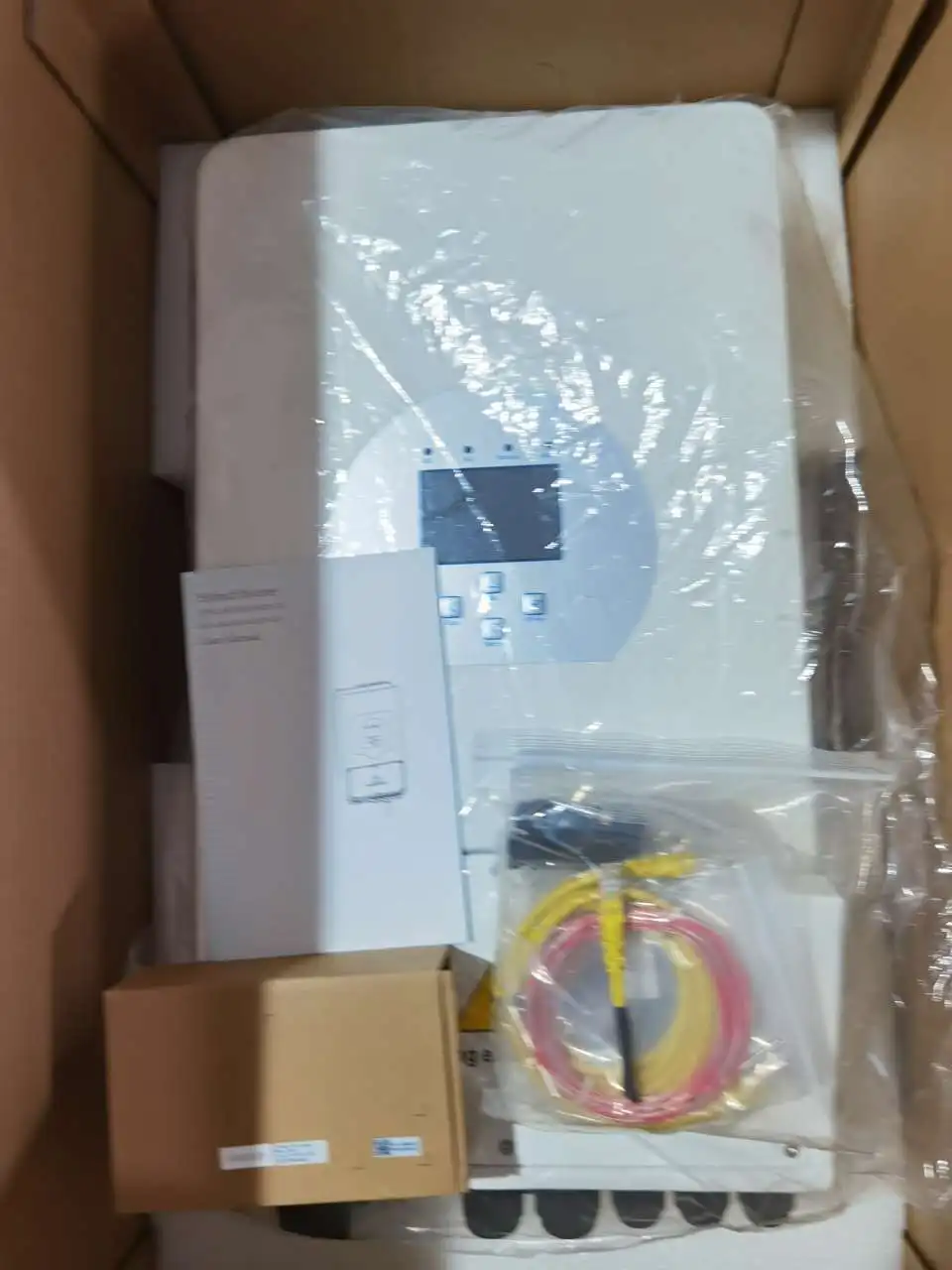

Product packaging

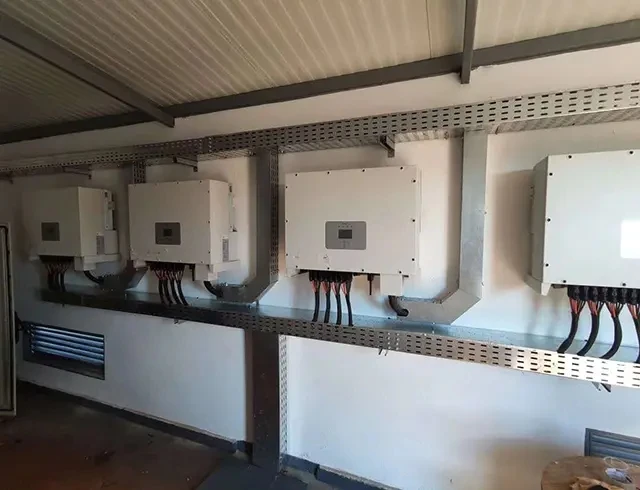

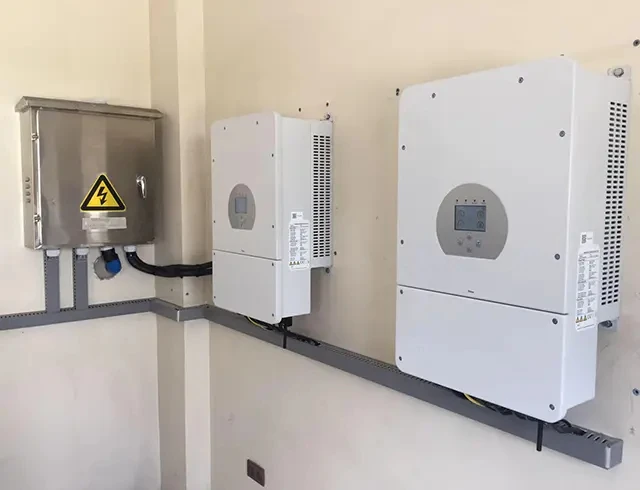

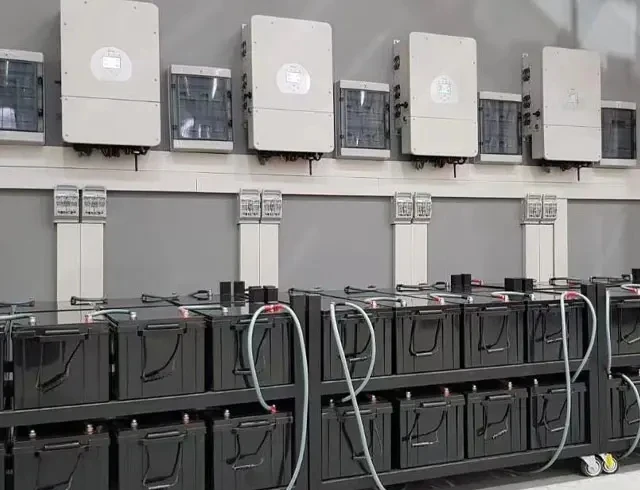

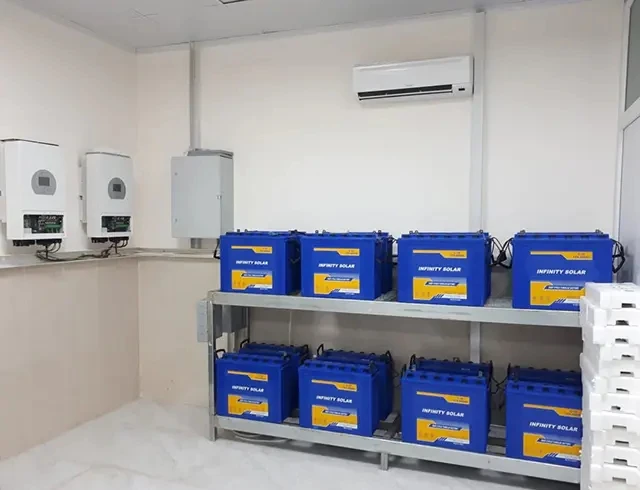

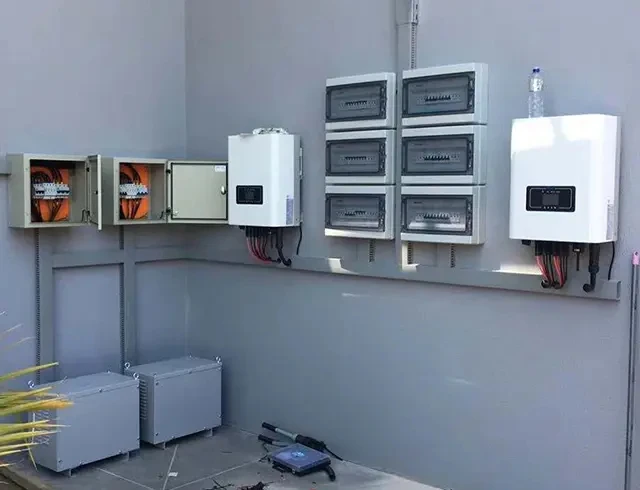

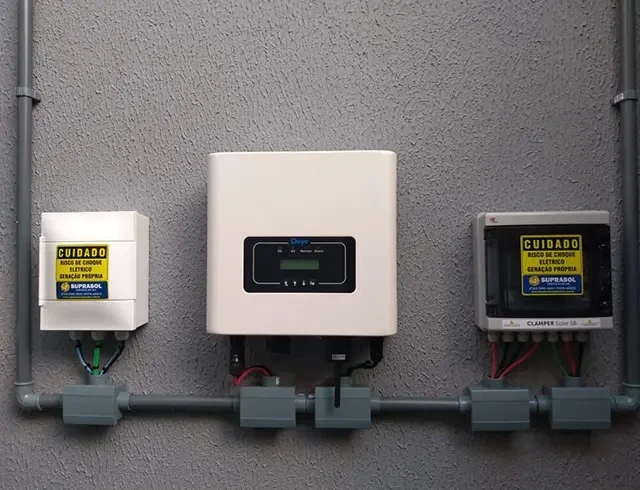

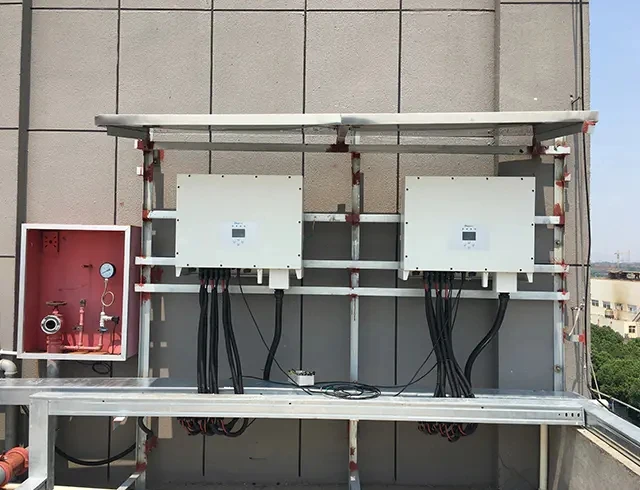

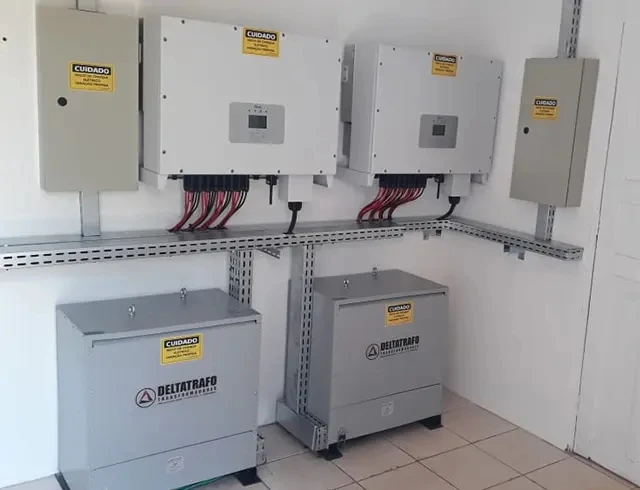

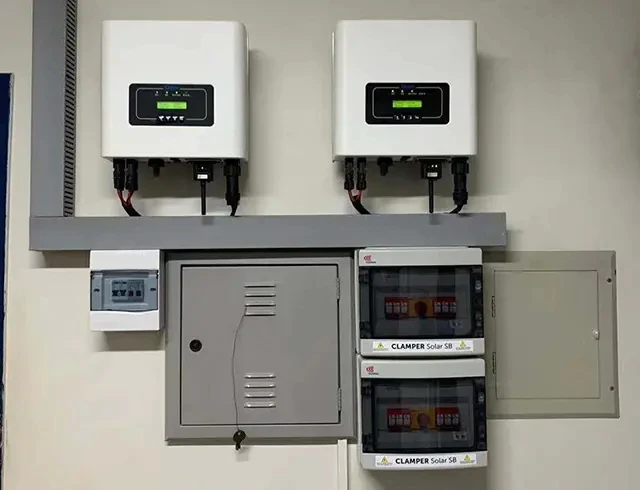

Customer Photos
