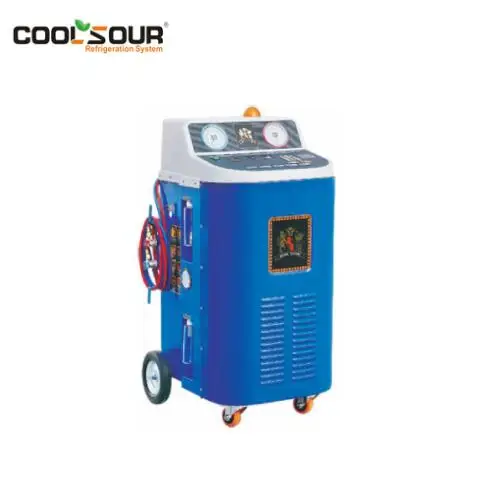

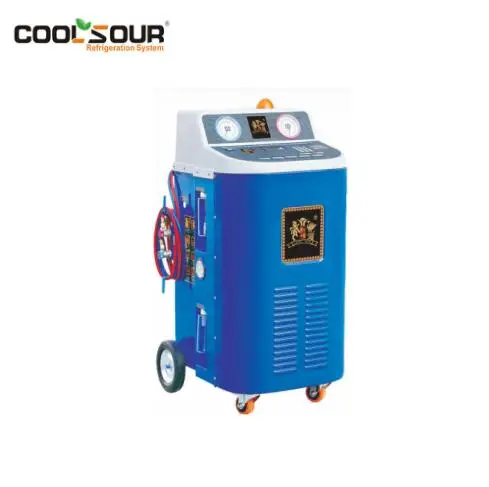

COOLSOUR Automatic Flush Function Auto Refrigerant Recovery

Product Overview

Description

Coolsour Refrigerant Recovery Machine , Recovery Machine  , Refrigeration part

Feature:

MH-779

1.MH-779 has special function of free dismantle pipeline cleaning without any chemicals.
2.It could realize replacement to deterioration frozen oil inside and cleaning internal dirty inside pipeline
by original refrigerant to reach the re-use standard through high purification system.
3.MH-779 also provide recovery, recycle, vacuum, recharging toAutoA/C system, in which navigation design makes 3 options of all functions, FullAutomatic,Half-Automatic, Manual operations.
4.Inflatable Function replaces the stupid and heavy nitrogen cylinder.

MH-443

MH-443 is specially designed for bus A/C R134A
1) Recovery: Recovery works simultaneously through high/low-pressure pipeline. The refrigerant can reach to re-use standard through
purification system inside.
2) Vacuum: To adopt the bipolar high-power vacuum is to be faster and clean thoroughly.
3) Recharging, Filling volume( both refrigerant and frozen oil) can be set freely, MH-443 could works automatically according to the figures.
4) Purify: To adopt the professional and efficient purification system is to water-oil separate to recovery refrigerant and remove metal debris
and other particles.
5)Automatic:All operations can be done by 1 button.
6)Alarming Device. To install a alarm light is to realize to remote monitor the operation.

MH-343

MH-343 is specially designed for auto carA/C R134A. It is used widely in service station and automobile production line.
1) Recovery: Recovery works simultaneously through high/low-pressure pipeline. The refrigerant can reach to re-use standard through
purification system inside.
2) Vacuum: To adopt the bipolar high-power vacuum is to be faster and clean thoroughly.
3) Recharging, Filling volume( both refrigerant and frozen oil) can be set freely, MH-343 could works automatically according to the figures.
4) Purify: To adopt the professional and efficient purification system is to water-oil separate to recovery refrigerant and remove metal debris
and other particles.
5)Automatic:All operations can be done by 1 button.
6)Alarming Device. To install a alarm light is to realize to remote monitor the operation.

Configuration:

Model		MH-779		MH-443		MH-343
Compressor		1/2HP		3/4HP		1/2HP
Vacuum		2.5L double stage		2.5L double stage		2.5L double stage
Electronic Scale		50kgs		50kgs		50kgs
Condenser		Double		Double		Double
Filter-Drier		C-162		C-162		C-162
Purification System		Patent		Patent		Patent
Cylinder Volume		22kg		35kg		12kg

Technical Parameter:

Model			MH-779			MH-443			MH-343
Power Supply			220V/110V—50/60HZ			220V—50/60HZ			220V—50/60HZ
Refrigerant			R134A			R134A			R134A
Max Recovery Volume			16kgs			28kgs			10kgs
Recovery Rate			350g/min(gas)  500g/min(liquid)			450g/min(gas)  800g/min(liquid)			350g/min(gas)  500g/min(liquid)
Recharging Range			0-15kgs			0-26kgs			0-7kgs
Recharging Rate			1500g/min			1500g/min			1500g/min
Vacuuming Rate			170L/m			170L/m			170L/m
Precision of Electronic Scale			±2g			±2g			±2g
