PRL 630A single sided self adhesive labeling machine
- Category: Labeling Machines >>>
- Supplier: Jiangyin Parris Packaging Machinery Co. Ltd.
Share on (60700795851):
Product Overview
Description

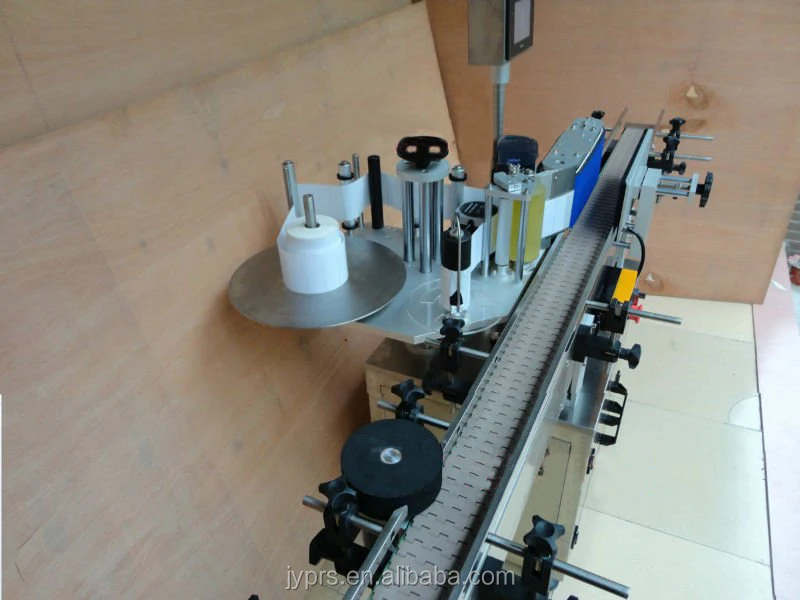

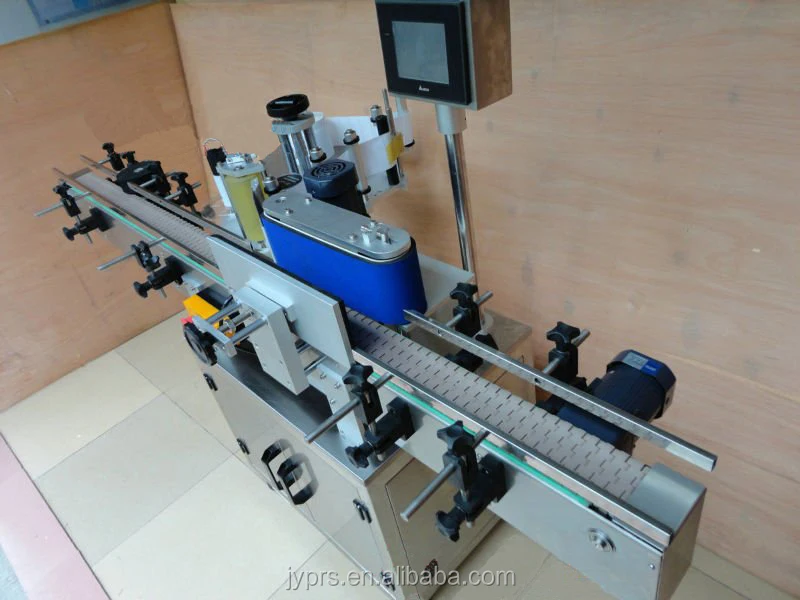

PRL-630A single-sided self-adhesive labeling machine
Product Description
This automatic labeling machine, applicable to the pharmaceutical, food, cosmetic and other industries round bottle labeling, Can paste full circular labeling and half-circular labeling. Labeling affect is perfect, no creases, no bubble, high speed with high performance to increase product Competitiveness
Main Parameters:
Model | PRL-630A |
Driving Mode | Servo motor |
Production (bottle/min) | 40-200 (bottle/min) |
Labeling Speed (m/min) | ≤40 |
Labeling Accuracy | ±1.0 mm (subject to the roughness of the plane) |
Operating direction | Left or Right |
The application of bottle | Outer diameter 40-100mm; Height 35-180mm |
The application of label | Height 20-140mm; Length 23-280mm |
The inner diameter of label plate | 76mm |
The outer diameter of label plate | 350mm (max) |
The power of motor (w) | 550W |
Size appearance (mm) | 1800 (L) 700 (W) 1270 (H) mm |
Weight(kg) | 180 kg |
Voltage (In China) | AC220V 50/60HZ Single phase (Can customized as buyer need) |
Advantages:
1.Imported electric elements, stable performance and low failure rate;
2.Adopting photoelectric detection, PLC control, software operation, conveyor belt, labeling accurately and high precision;
3.Can be operated alone or contract with the production line;
4.No bottle not labeling, automatic alarm when achieve leakage label.
5.The whole machine use the material of S304 stainless steel and anodized senior aluminum alloy.

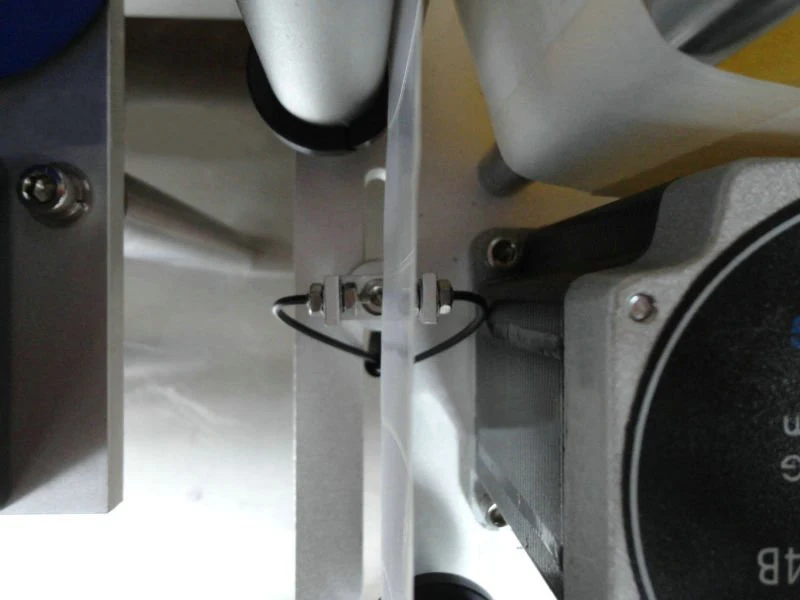

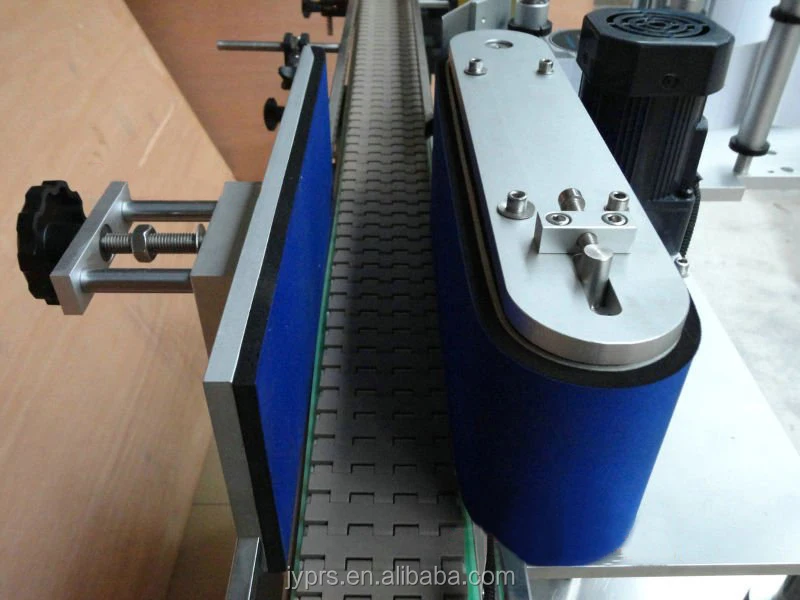

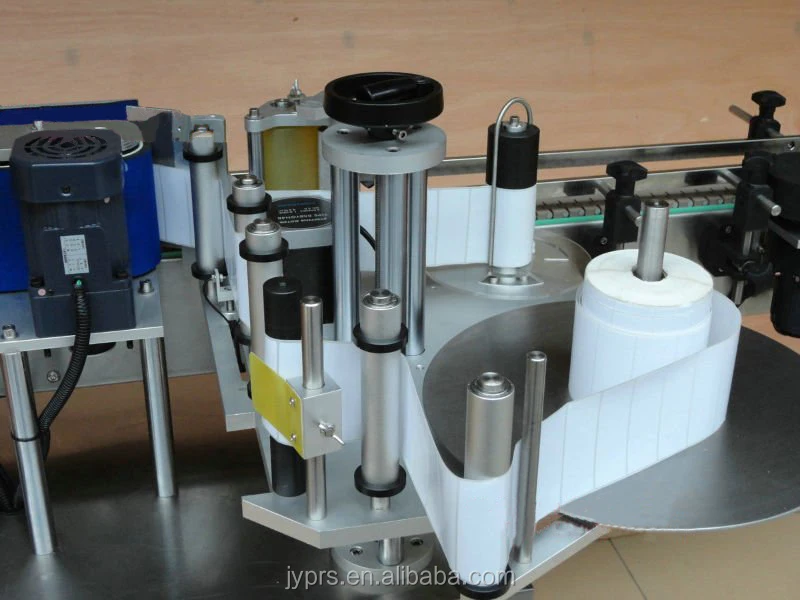

Detailed Parts:
Suitable for these containers:
