15KW outrunner bldc motor for 40kg UAV Drone with 22s 380A esc
- Category: >>>
- Supplier: Dongguan Freerchobby Model Co. Ltd.
Share on (60700806409):
Product Overview
Description

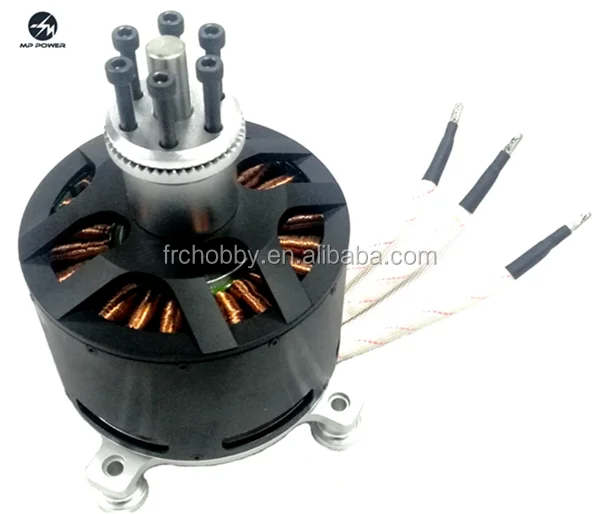

MP12090 KV130 Brushless Outrunner (150cc equiv)
Designed as a 150cc gas engine replacement, this motor is a great alternative for 3D and sport planes up to 35lbs!
The motor is very well built with strong mounts, end bell and a concentric double bearings at the rear to support large propellers and rotating can, especially during hard 3D flight.
This motor is very well engineered and of the highest quality.
The factory can produce only a limited number of these motors per month due to the increased time in balancing and machining such a large object.
Specifications
The spec as following:
MOTOR: 12090
KV: 130
MAX POWER: 15W
MAX AMP: 250A
ESC: 250 / 300A
MAX VOLT: 70v
NO LOAD CURRENT: (15V) 6A
SIZE: 120 x 90( without shaft )
Stator: 40mm
WEIGHT (kg): 2.835
SHAFT: 12mm Accessory pack: Yes\\
Accessories:
Inside hall sensored PCB BOARD
Internal PCB with 120 degree hall effect sensors
Our company introduction:
Dongguan Freerchobby Co., was established in 2011. We are an RC model manufacturer specializing in designing&producingRC car
model, brushless motor, rc tools and accessories.
About our brushless motor department, our main technician, with 12
years’ motor design experiece, design various size motors for rc hobby
plane, multicopter, such as 28, 35, 42, 50, 63 series. And for other industrial,
such as electric skateboard, electric bike, electric paramotor, electric car&ship,
our sensored motor, watercooling system motors will be what you request,
such as our motor 8085, 80100, 12090, 120100, 154120 ect.
Welcome to visit the updates for our website.

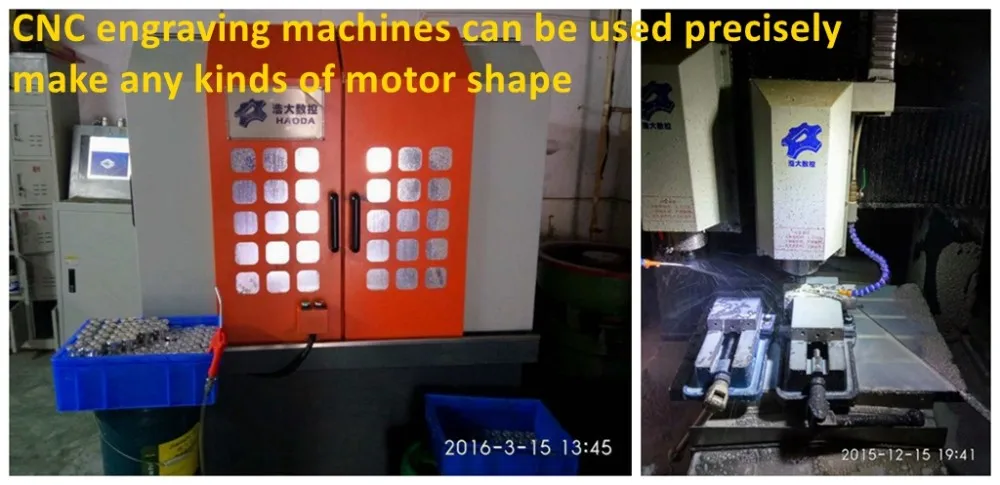

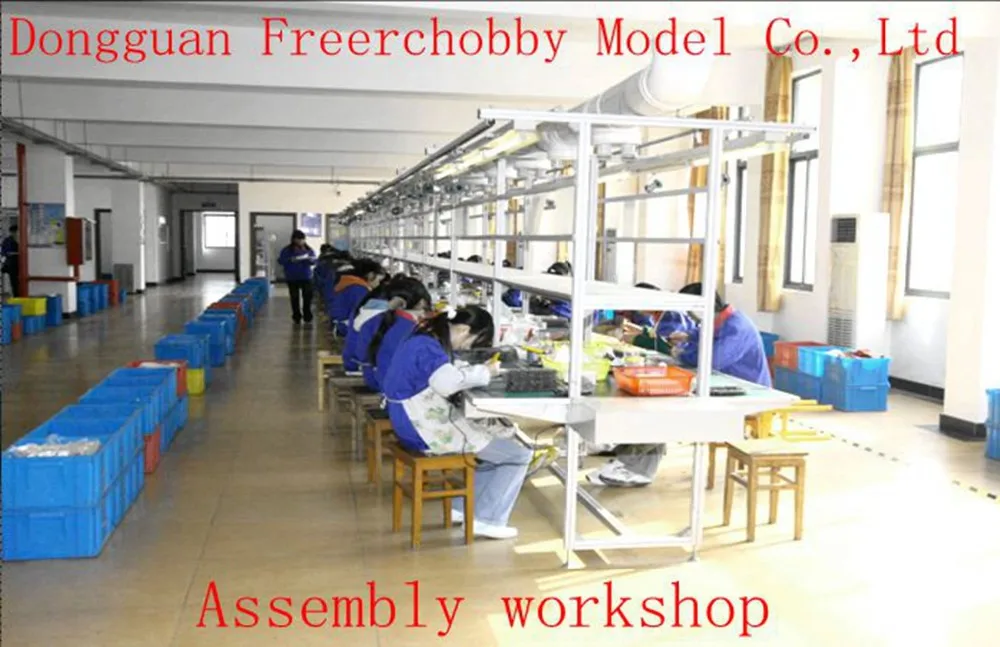

Factory photos:
Certificates:
We can provide OEM, ODM serivice for any potential client and projects. Wish to hear from you.
