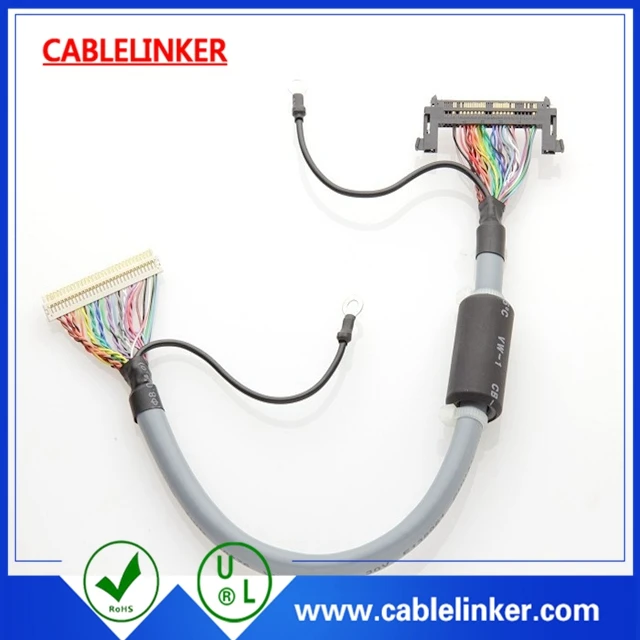

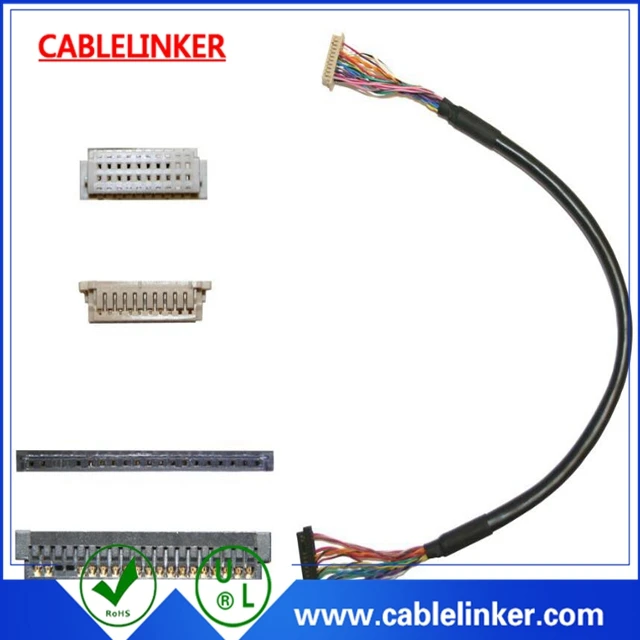

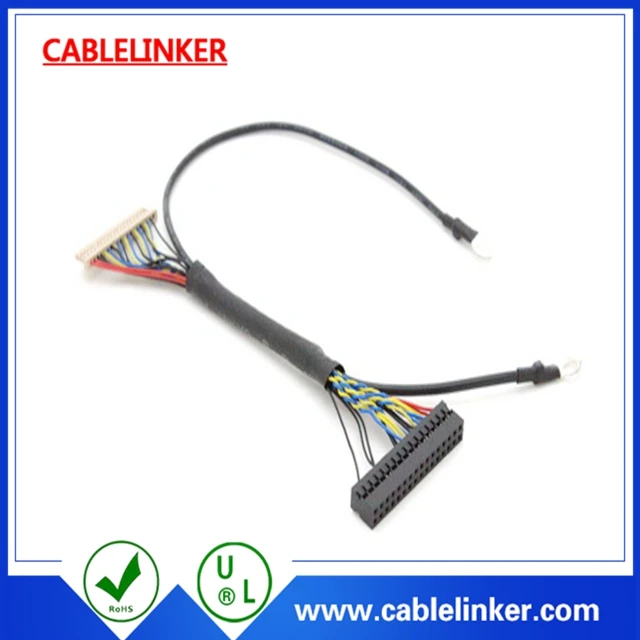

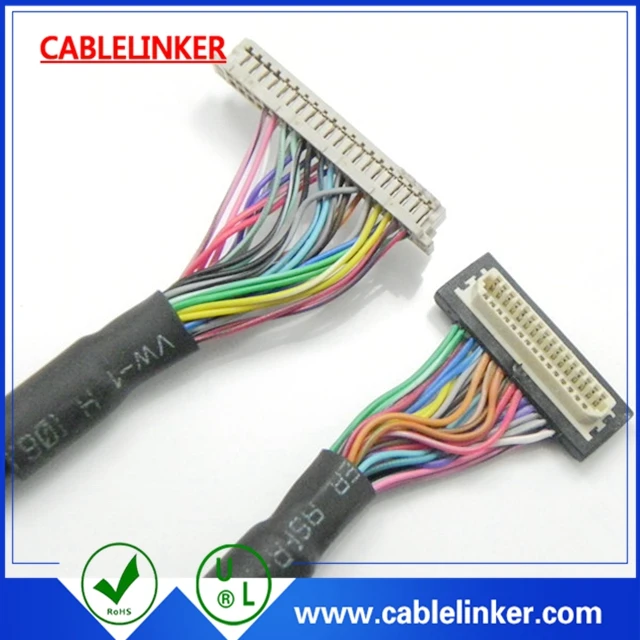

50pin LVDS Cable with JAE Housings and Terminals

50pin LVDS Cable with JAE Housings and Terminals

Our working process :

Talk with us for your cable demands - You (or our engineer) provide drawing - Confirm drawing - Provide quotation - Discuss samples needs -Payment for your order - Mass product AFTER sample approved - Testing before send out - Delivery

We can produce LVDS cables in various formats and to customer specifications. We use a number of leading connector products from Hirose, JAE and Molex for these cables. We offer the option of screened 3M twisted pair cable or tinned copper braid sleeving for overall screening, over single wires. Screening and cable length generally reflects the reliability of the signal data to the display. The option for connectors on single board computers, graphic cards and driver cards is endless and we try to accommodate most of them. We have tooling to produce assemblies with 2.54mm, 2mm and 1mm pitch connectors. Talk to us about your requirements.

Connector types

This is just a small list of the common types of connectors used for LVDS cables: Hirose DF19G series, DF14 series JAE FI-S series FI-X series and FI-RE series Molex 51146 series The size of the display generally determines which connector type is used, contact us if you are unsure about your display connector.

LVDS cable is widely used in

Shenzhen Cablelinker Electronics Co;Limited is one high-tech company which engaged in FFC cable ,FPC cable ,LVDS cable ,Ribbon cable and Cable assembly business .With several years we have engineering team is able to provide solution for your all cable demands .So far we have established business realtionship with customers from US ,Brazil ,Japan, Russia and many other European countries ,Middle East and Southeast countries .

1 What we do ?

We provide a non-stop service on cables which including Cable Desgining ,Drawing ,Prototyping ,Sampling and Manufacturing etc .

2 When can I get the quotation ?

We will quote you within 24 hours after we received your inquiry .If this is an urgent matter ,let us know and we will regard it as priority .

3 How can I get sample ?

Kindly let us know your sample requirements and we will arrange samples for your testing .Sample cost will be charged if necessary and will revert to your official order .

4 When can I except to receive sample ?

Our time frame for sample is around 2-7 days ,depends on your cable specification .

5 If I need customized cable ,how will it work ?

Please send us the drawing if you have ,or talk to our engineer and they will help out .

6 What is the warranty ?

All products from Cablelinker is granteed for one year

7 In an unlikely event you get the faulty products , what is the solution ?

Contact us for the details and we will arrange a second shipment for free replacement after we figured out problems
