Product Overview
Description
RWUVLED Description
LED UV Curing Lamp Used For Epson Printer details
As an optoelectronic equipment manufacturer, we also developed UV detector and feedback system to monitor our producing and ensure UV LED Curing System working perfect with your equipment.
COB technology (Chip On Board)
395nm UVLED system using multi-chips assembly instead of one chip lamp, the uvled curing lamp get more efficient and high intensity in this way.
Quartz packaging
395nm UVLED system use quartz for encapsulation chips. It is anti-radiation, high temperature resistance, easy maintenance , lower cost.
450mm length 395nm Water cooling UV LED curing system for wooden coating
The water cooling 395nm UV LED curing system is ideal for wood coating that can scale to cover any conveyor width and the consistent UV LED output enables end users to run their production lines at maximum speeds
395nm UV LED Curing Steps:
1. liquids appliced, inks, coatings, adhesives,
2. UVLED exposure causes chemical reaction
3.liquids harden, final product is UV cured
1. liquids appliced, inks, coatings, adhesives,
2. UVLED exposure causes chemical reaction
3.liquids harden, final product is UV cured
LED UV Curing Lamp Used For Epson Printer
RWUVLED enabling end users to print high quality material at maximum speeds.
higher productivity,
lower enrgy usage,
reduced heat load for thinner substrates,
smaller footprints
clear environmental benefits
Water cooled UV LED
The reason to choose LED UV Curing Lamp Used For Epson Printer
1. RW has established good reputation and high quality position and it supplies high quality UV lights.
2. Our 395nm water cooling UV LED reduce environmental load and will be widely applied to UV curing and related industry.
UV LED curing system's specification | ||
Controller size | 350*300*230mm | |
LED size | 48.5*22.5*31mm | |
UV Emitting window sizes | 35mm*14mm | |
LED QTY | 2 pcs | |
Wavelength | 365-405 nm | |
Intensity | above 8w/cm2 | |
LED Voltage | 24V | |
Cooled method | Water cooled | |
LED UV curing machine's specification | ||
Controller size | 350*300*230mm | |
LED size | 48.5*22.5*31mm | |
UV Emitting window sizes | 35mm*14mm | |
LED QTY | 1 pcs | |
Wavelength | 365-405 nm | |
Intensity | above 8w/cm2 | |
LED Voltage | 24V | |
Cooled method | Water cooled | |
Water & Air cooling
Water Cooled UV LED lamp's advantange
Small form factor
High peak irradiance
Custom sizes available for longer curing lengths
Ideal for narrow & wide web curing
All water-cooled systems are designed to be rugged and reliable to succeed in the toughest customer environments.
Air cooled UV LED lamp's advantage
Simple integration
No external cooling required
Low operating cost
Scalability
All air-cooled systems are designed to be versatile and can be used for high performance curing, pinning, and small area curing.

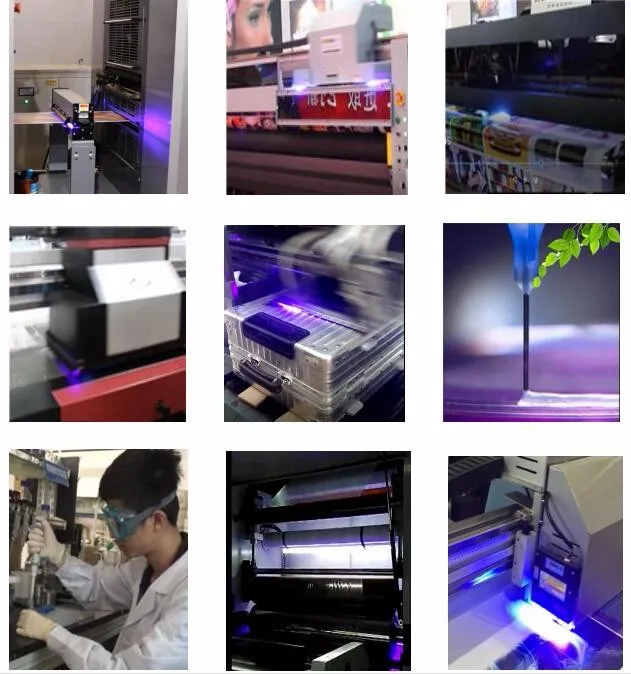

UV LED Applications
LED UV Curing Lamp Used For Epson Printer application field
UV LED for Adhesive
Electronics ( TOuch Panel, Mobile Phone, Micro Speakers, Disk Drives etc)
Medical
Industrial
UV Coating LED curing machine
Wood products( Edge coating and Roller coating)
Automotive
Industrial
UV ink LED curing system for Printing
Digital printing( Labels,bottle, 3D, Coding,Poster and etc)
Screen printing
Flexo and Narrow web printing
Advantages of LED UV Curing Lamp Used For Epson Printer
• Uniform radiation of the 395nm water cooling UV LED lamps across the entire working width.
• Clearly reduced exposure to noise of the line operators since no exhaust system is necessary.
• Stepless adjustment of the specific lamp power from 20 - 100 %.
• Instant on/off without waiting times.
• No waste disposal of old UV lamps containing heavy metal (GA, Hg).
• No exposure to ozone of the line operators.
• Excellent penetration of the UV radiation allowing for good adhesion, also with pigmented lacquers.
• Less danger of uncured photo initiators.
• Reduced risk of fire on UV lines, possibly reduced insurance premium.
Certifications1
LED UV Curing Lamp Used For Epson Printer Patent & Quality certificate
8 patents and 4CE certificates,well-equipped facilities ,100/% products inspecting throughout all stages of production gained total customer satisfaction which won us global sales network, North America, North East, Asia , European.

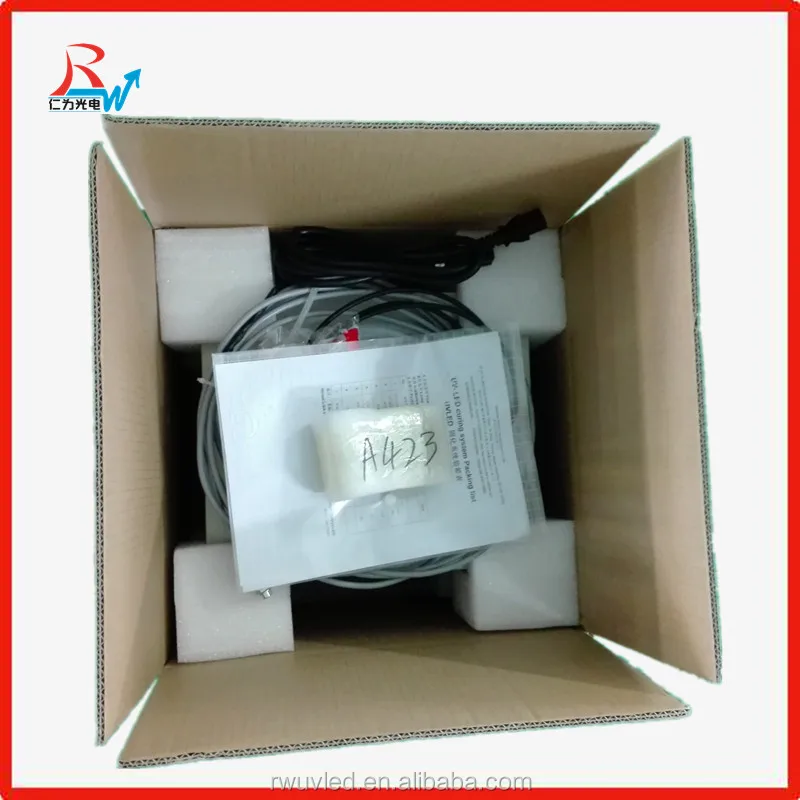

Produce and package
LED UV Curing Lamp Used For Epson Printer workshop.
LED UV Curing Lamp Used For Epson Printer in exihibition
FAQ
LED UV Curing Lamp Used For Epson Printer FAQ:
Q1. Why choosing RENWEI LED UV Curing Lamp ?
A: RenWei focus on high power UV curing technology for 5 years and got seven national patents. RenWei has 2 COB lines with K&S equipment, 1 assembling workshop and high quality accessories.
Q2. Why and how do I replace a LED UV Curing Lamp ?
A:UV LED's working time is more than 20,000 hours, 10 times longer than the traditional lamp, Besides, UV LED curing is effective, energy saving and environment friendly.
Q3. Will current coatings/inks work with LED UV Curing Lamp ?
A: No, The coatings/inks must be specifically to take advantage of the narrow Wavelength, Ask for your supplier for the best wavelength, we can customized the UVLED's Wavelength.
Q4. Will the coating have the same performance as before?
A: Yes, The coatings/inks suppliers have solved this problem to ensure the same performance.
Q5. How to proceed an order for LED UV Curing Lamp ?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Do the LED UV Curing Lamp units need to cool down or warm up?
A: No. UV LED System can be turned on/off instantly.
LED UV Curing Lamp Used For Epson Printer Services
If you have any further questions, please feel free to contact us anytime. We're more than happy to help.
Thank you for contacting us and have a great day!
We are constantly striving to provide excellent service. We'd love to get your feedback regarding our customer service by leaving us a rating. Thank you!
