Price:$22,500.00

Quantity:


Product Overview

Description


Product Description

Product Application

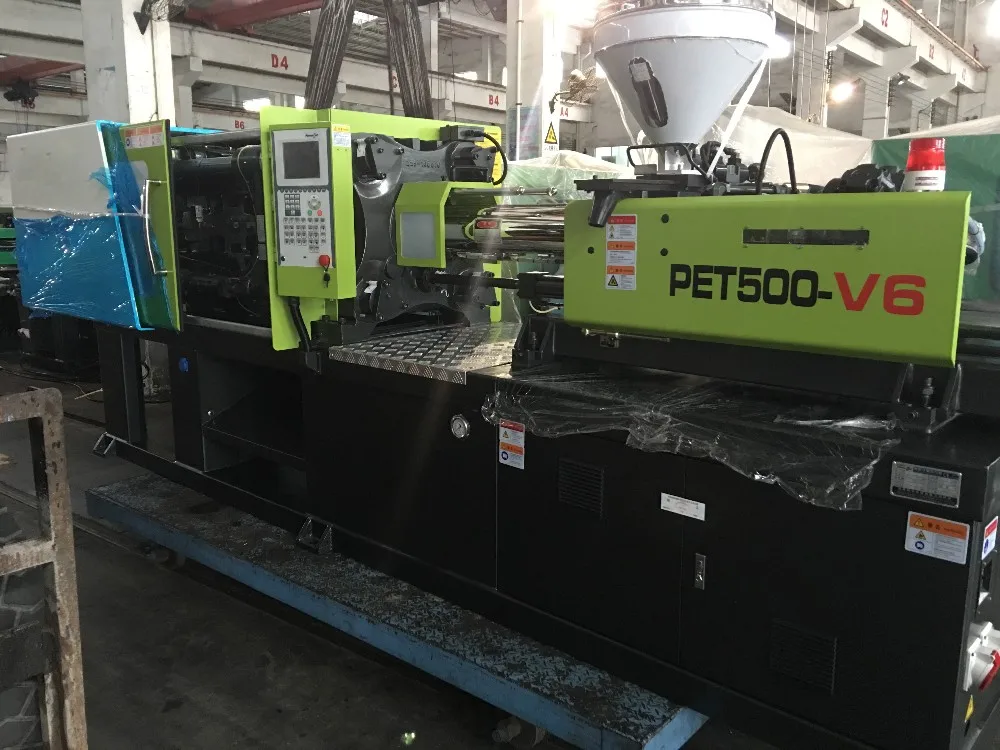

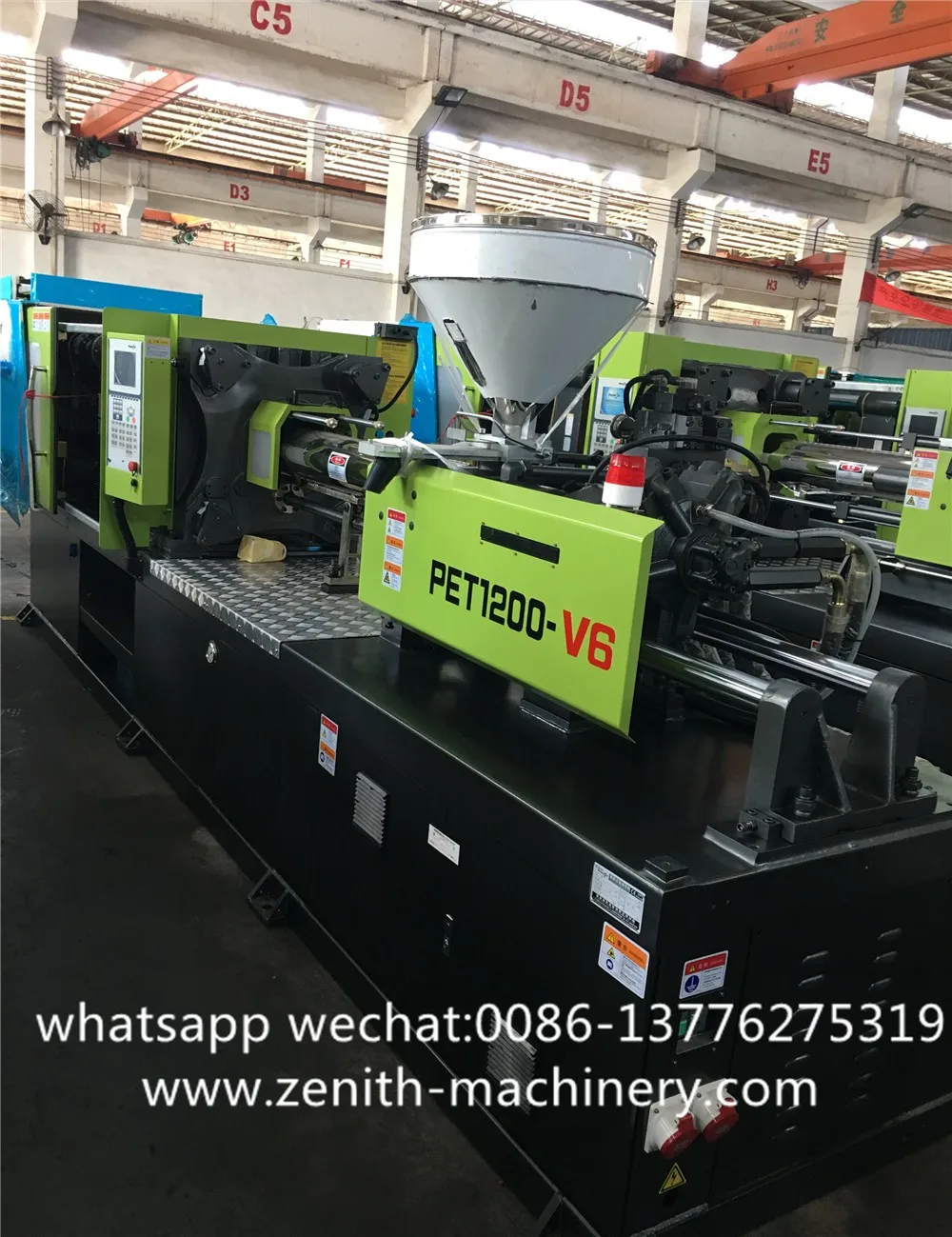

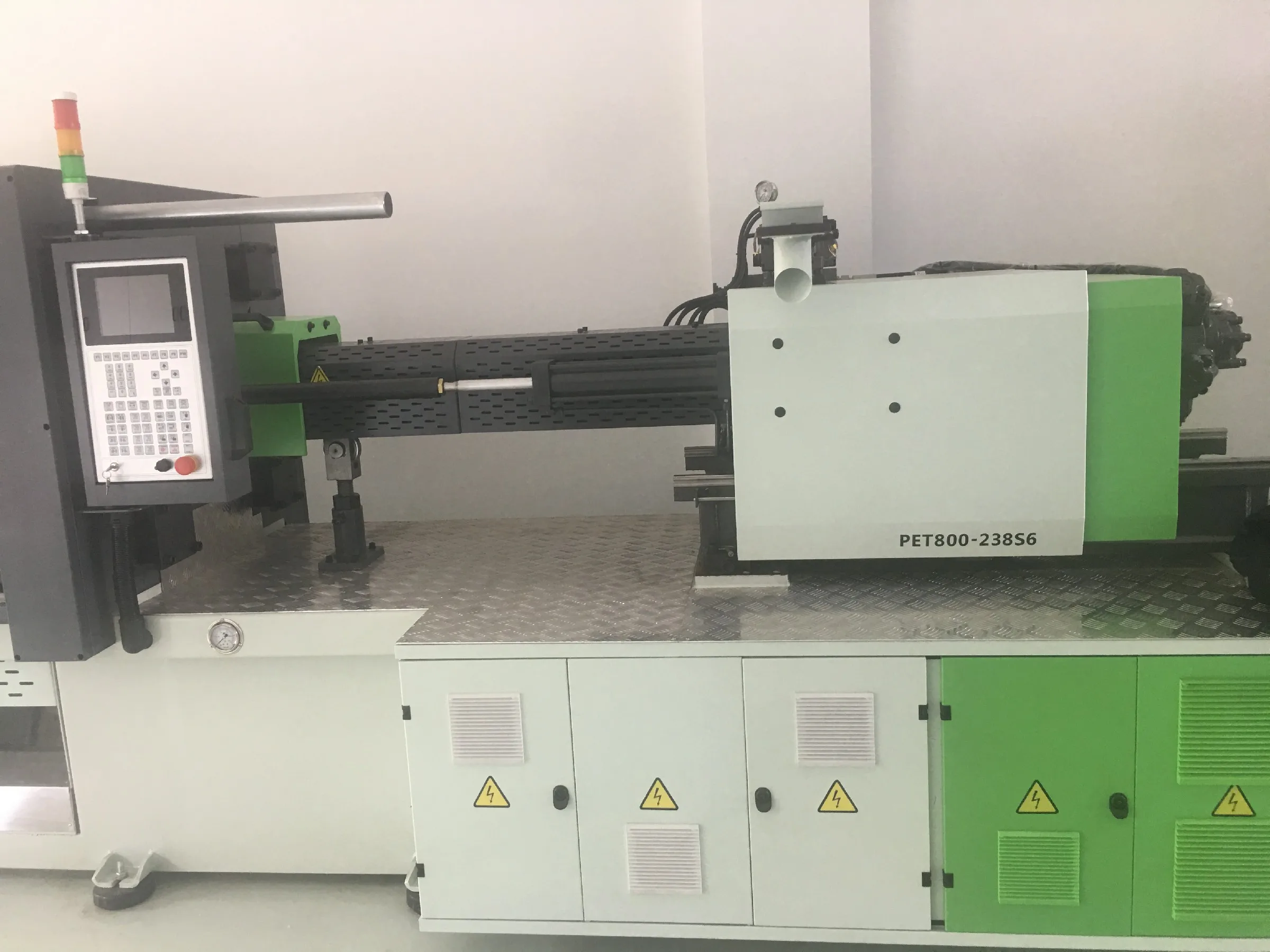

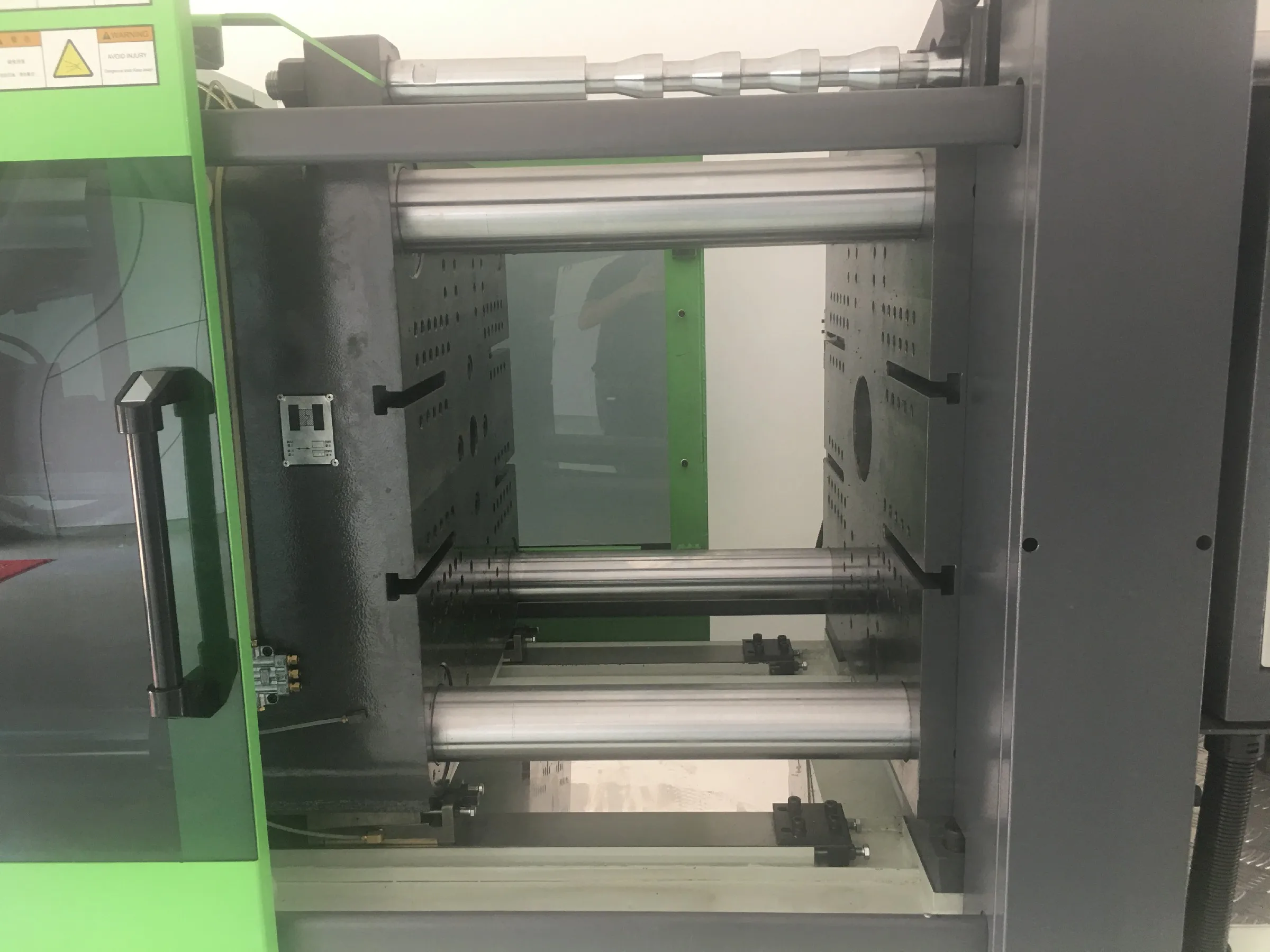

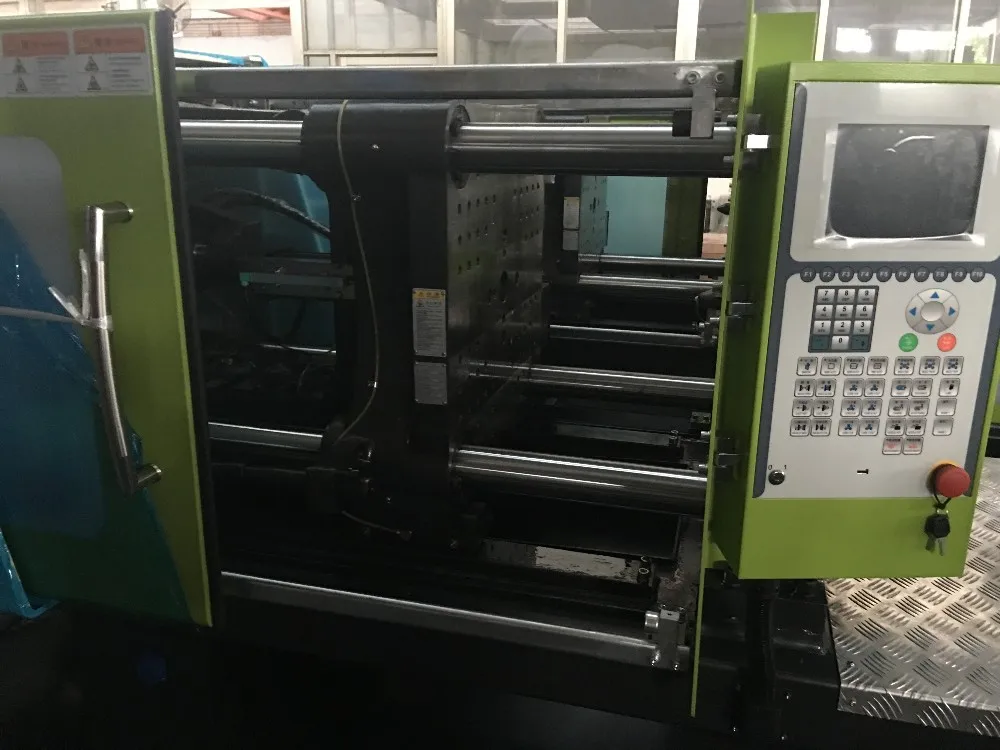

PET preform injection molding machine
Specially made PET screw highly increases the plasticizing speed and shot weight, lowers the plasticizing temperature and AA value, also lowers the shearing of perform, while achieves better transparency.
The variable pump control system can save energy by 20﹪-30﹪,while the servo motor control system can save energy by 30﹪-50﹪,

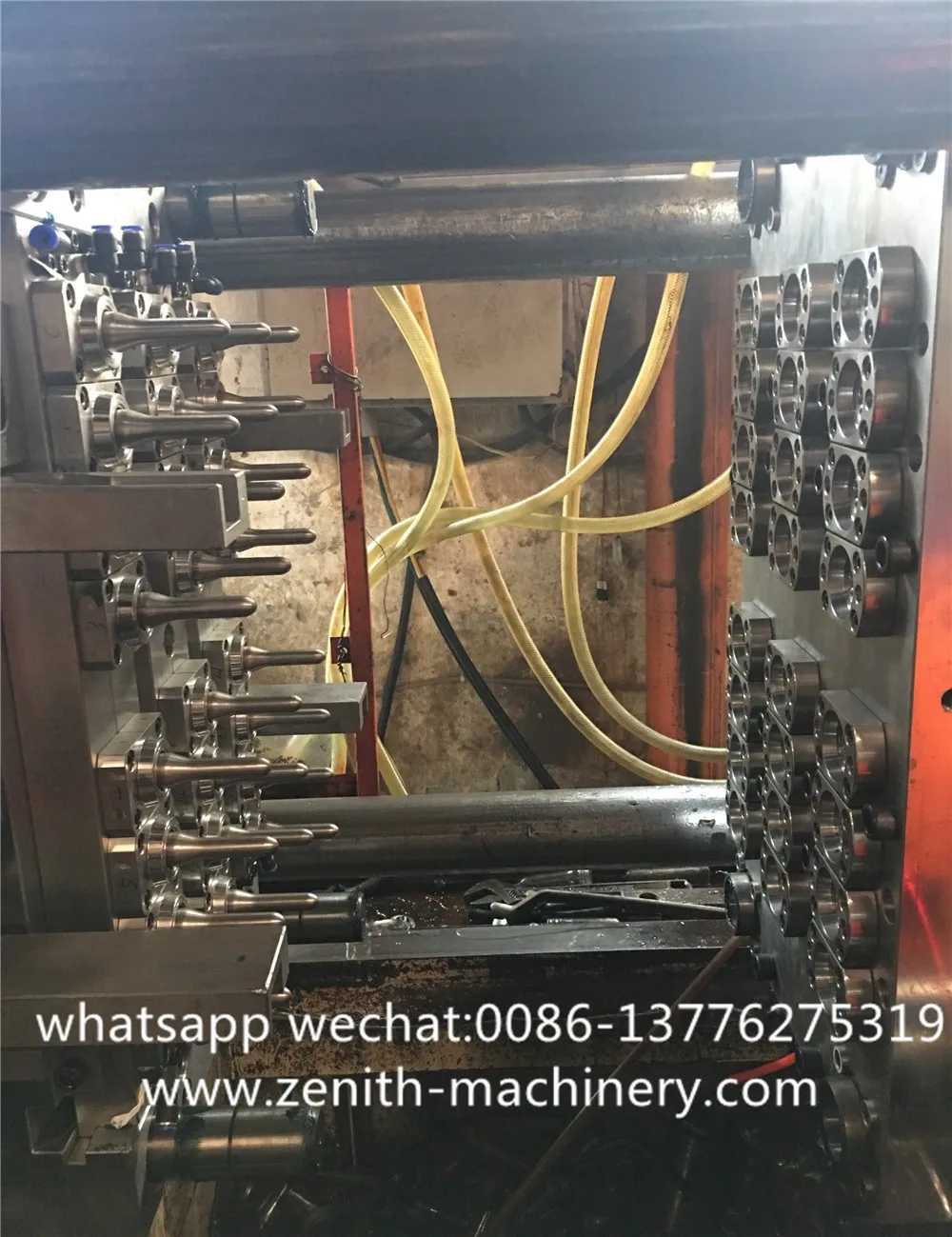

preform mould for 5 gallon bottle
Different models are available for the choice of customers.
Increasing eject force ejector stroke, adapts PET perform molding.
Whole closed safe door meets the requirement of sanitary and thermo-control.

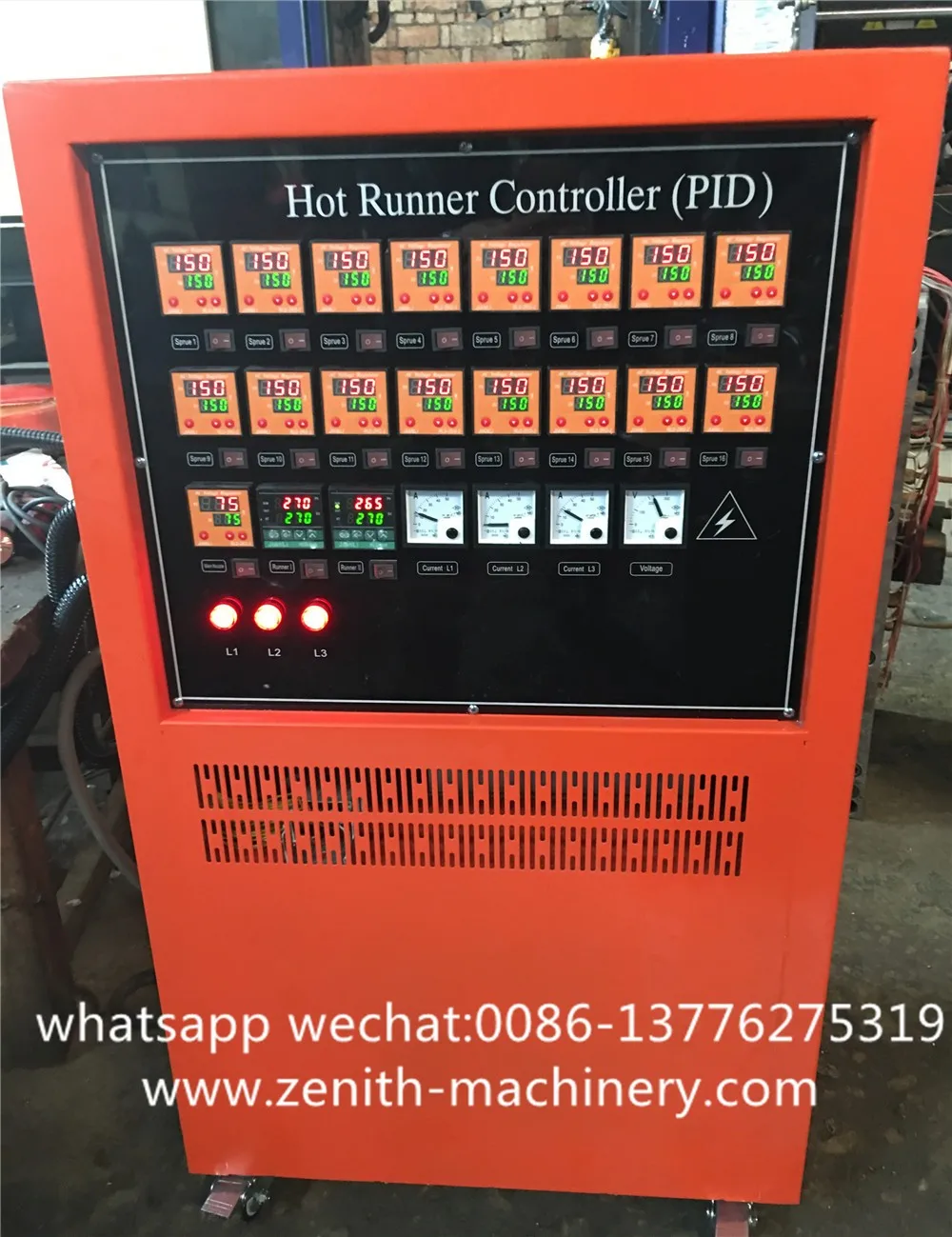

Hot runner system interface is included.
Optional with pressure holding and charge at the same time, which can increase the output by 15﹪-25﹪

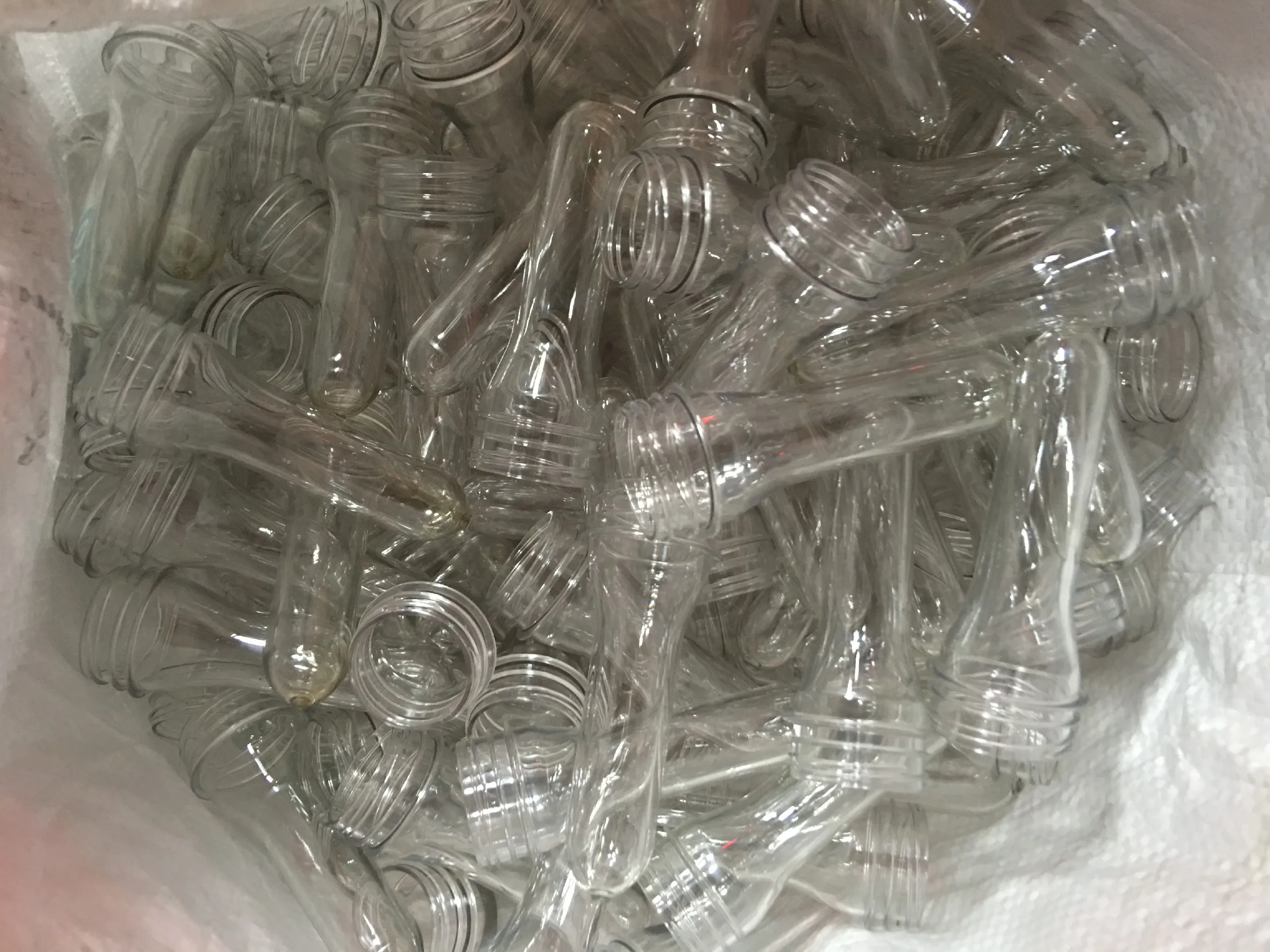

pet preform for 5 gallon bottle.

Detailed Images
Main Specification
\t
DESCRIPTION
\t
Unit
\t

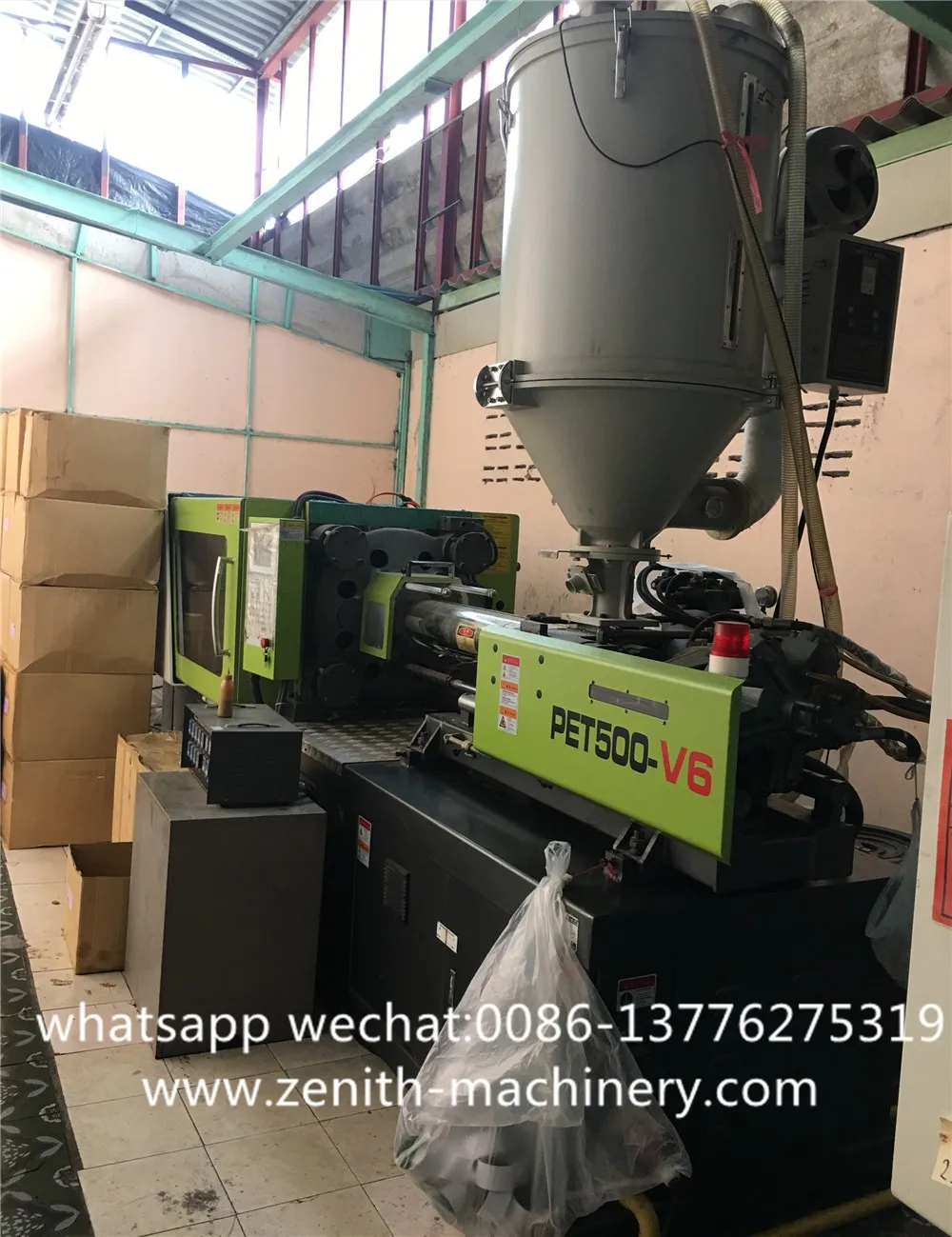

PET-500V6
\t
International size rating
\t
1600-616
\t
INJECTION UNIT
\t
Screw diameter
\t
mm
\t
52
\t
Screw L/D Ratio
\t
\t
22
\t
Shot volume
\t
Cm3
\t
435
\t
Shot weight (PS) (@PS1.05)
\t
g
\t
409
\t
Shot weight (PET) (@PET1.3)
\t
g
\t
507
\t
Shot weight (PP) (@PP0.9)
\t
g
\t
351
\t
Screw stroke
\t
mm
\t
205
\t
Max.screw rotary speed
\t
Rpm
\t
180
\t
 CLAMPING UNIT
\t
Clamping force
\t
KN
\t
1600
\t
Opening stroke
\t
mm
\t
440
\t
Max.daylight
\t
mm
\t
940
\t
Space between bars(H*V)
\t
mm*mm
\t
460*460
\t
Movable platen size(H*V)
\t
mm*mm
\t
705*705
\t
Max.mold height
\t
mm
\t
500
\t
Min.mold height
\t
mm
\t
160
\t
Ejector stroke
\t
mm
\t
145
\t
Ejector force
\t
KN
\t
75
\t
Ejector force
\t
KN
\t
55
\t
Number of ejector pins
\t
\t
4+1
\t
POWER UNIT
\t
Hydraulic system pressure
\t
Mpa
\t
17.5
\t
Pump motor power
\t
KW
\t
15
\t
Heater power
\t
KW
\t
12.5
\t
Total current
\t
A
\t
86.8
\t
GENERAL
\t
Oil tank capacity
\t
L
\t
280
\t
Machine weight
\t
Ton
\t
4.5
\t
Machine dimensions(L*W*H)
\t
m*m*m
\t
5.3*1.3*1.8
Components List
\t
TYPE
\t
Component
\t
Brand
\t
Hydraulic system
\t
Proportional variable pump
\t
YUKEN,JAPAN
\t
Direction valve
\t
YUKEN,JAPAN
\t
Oil seal
\t
NOK,JAPAN
\t

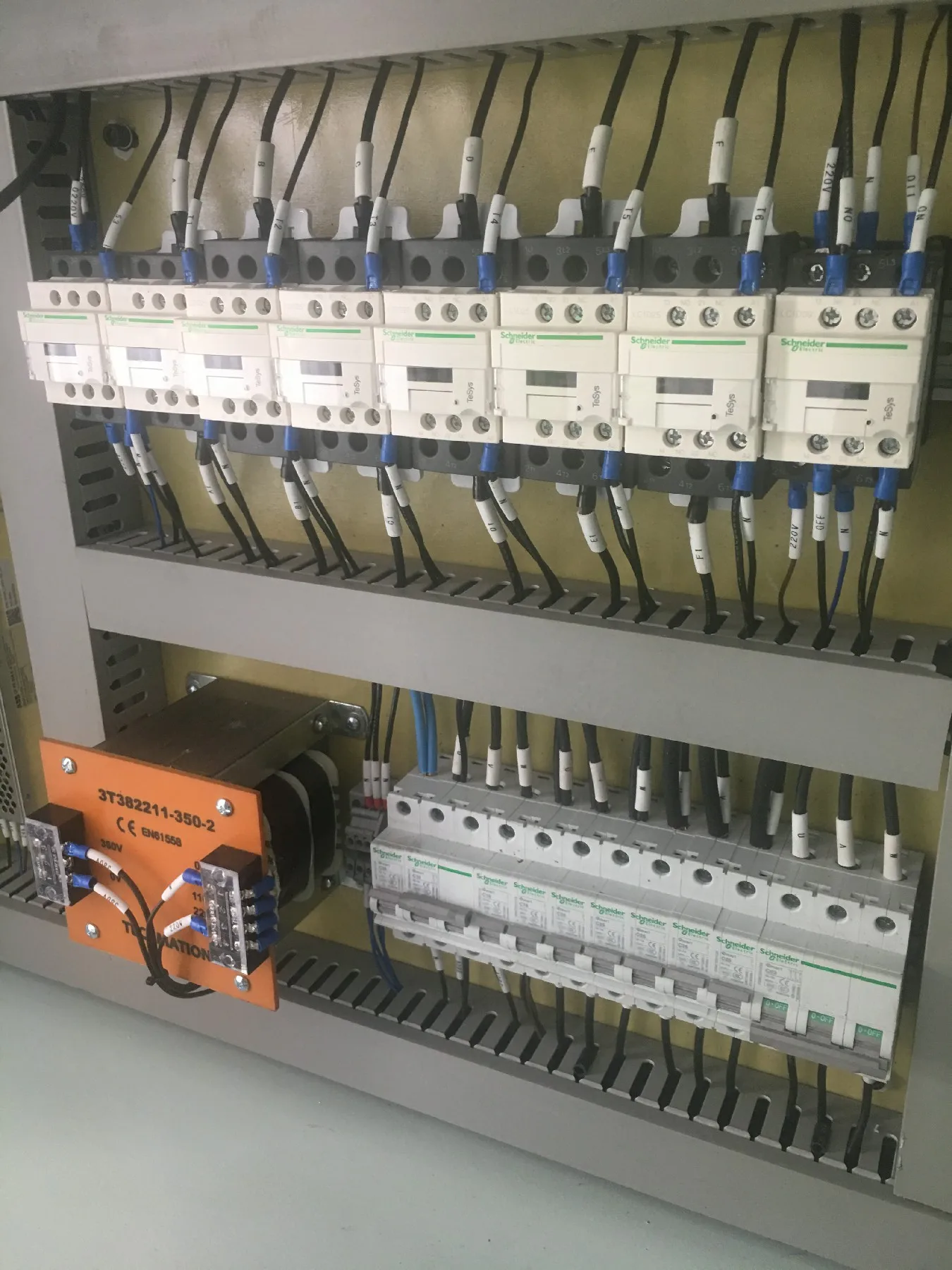

 Electric system
\t

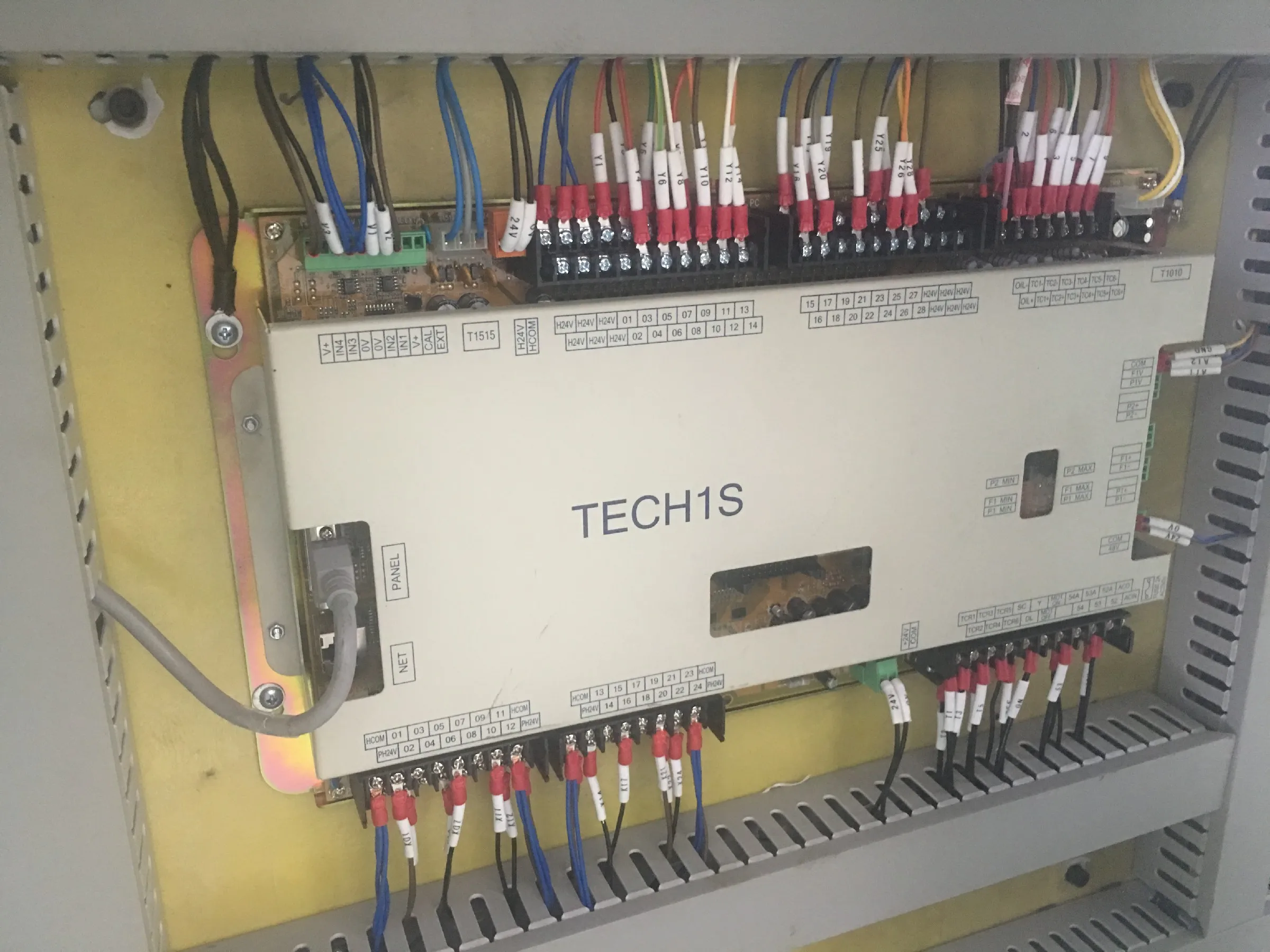

Computer
\t
TECHMATION,TAIWAN
\t
Electric switch
\t
MERLIN GERIN,FRANCE
\t
AC contactor
\t
SCHNEIDER,FRANCE
\t
 Injection System
\t
Lubrication hydraulic pump
\t
HERG,JAPAN
\t
Mould adjusting hydraulic motor
\t
ETON/WHITE,ITALY
\t
Plasticizing motor
\t
INTERMOT,ITALY
\t
Screw barrel
\t
HUAYE,CHINA
