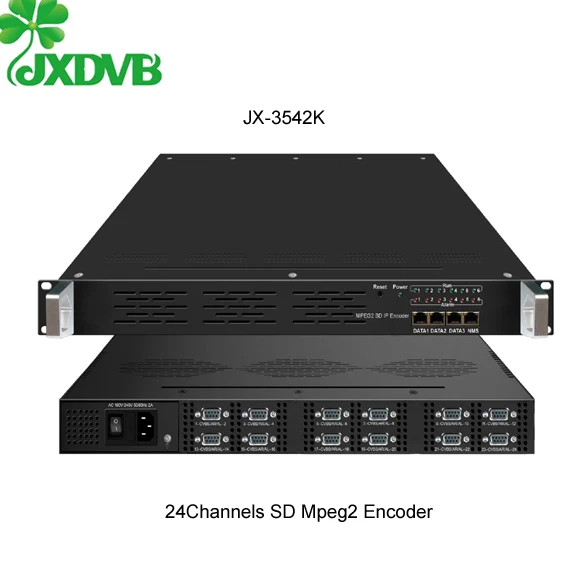

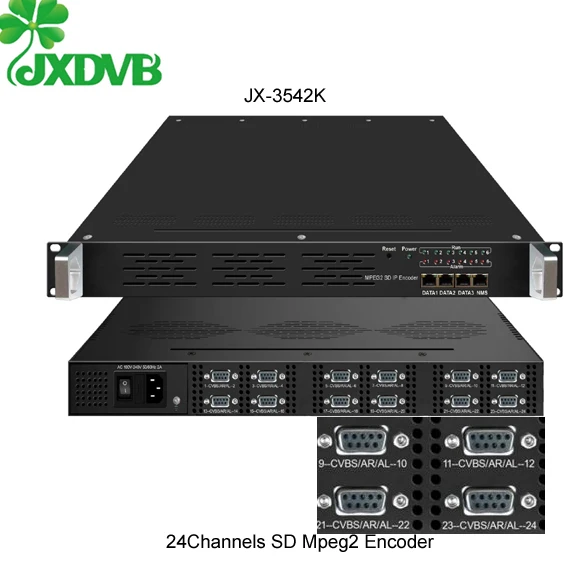

Jiexiang 24Channels SD Mpeg2 Hardware Encoder IPTV

8 CVBS inputs , RCA interface

Input

12 CVBS inputs , RCA interface

24 CVBS inputs , RCA interface

720×480_60i, 544×480_60i, 352×480_60i

Resolution

352×240_60i,320×240_60i,176×240_60i, 176×120_60i

720×576_50i, 704×576_50i, 640×576_50i, 352×288_50i,

320×288_50i, 176×288_50i, 176×144_50i

Video

Encoding

MPEG-2

Bit-rate

0.5Mbps~8Mbps each channel

Rate Control

CBR

GOP Structure

IBBP

Advanced

De-interlacing, noise reduction

Pretreatment

Encoding

MPEG-1 Layer 2, AC3(2.0)

Sampling rate

48KHz

Audio

Resolution

24-bit

Bit-rate

64Kbps,128Kbps,192kbps,256kbps,320kbps,384kbps each

channel

PID remapping (automatically or manually)

Multiplexing

Function

Accurate PCR adjusting

Generate PSI/ SI table automatically

Stream output

1 ASI as copy of MPTS ( 8/12 CVBS and 24 CVBS input with MPTS output)

IP (MPTS/SPTS) output over UDP/RTP/RTSP

Network management (WEB)

System function

Chinese and English language

Ethernet software upgrade
