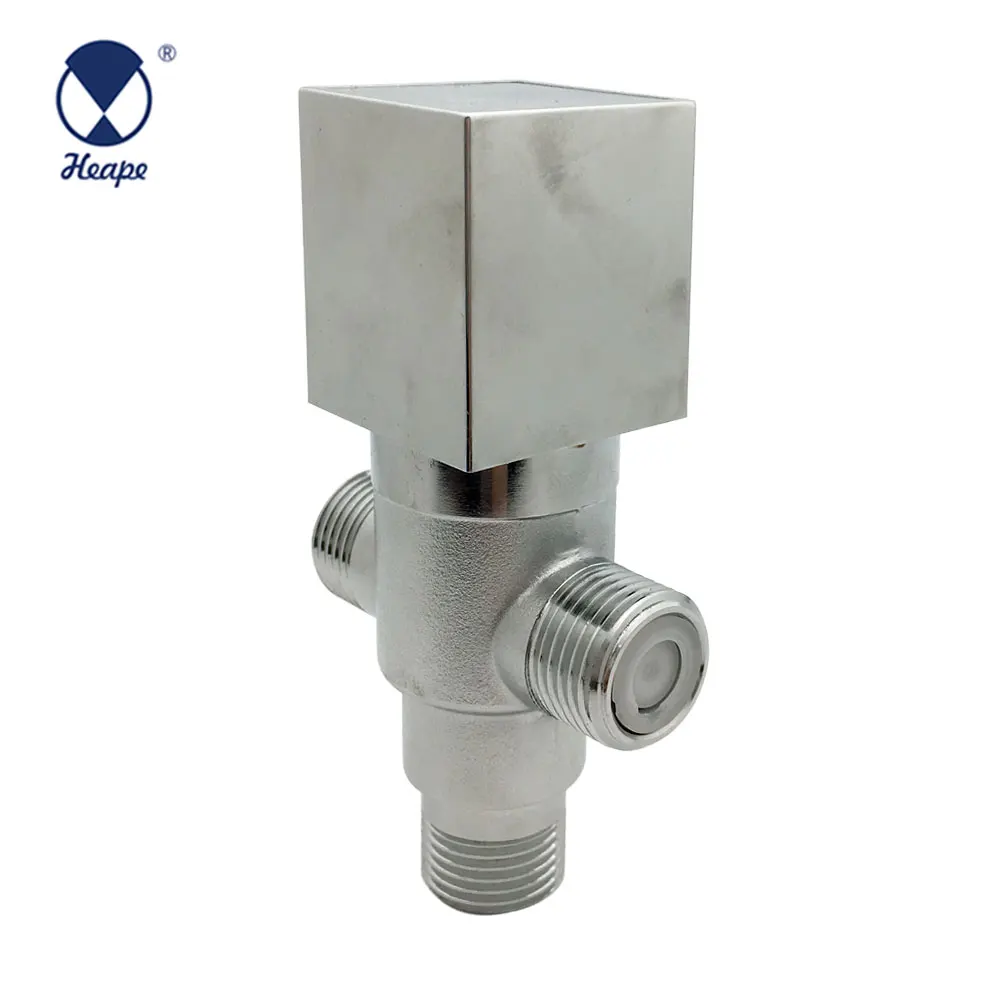

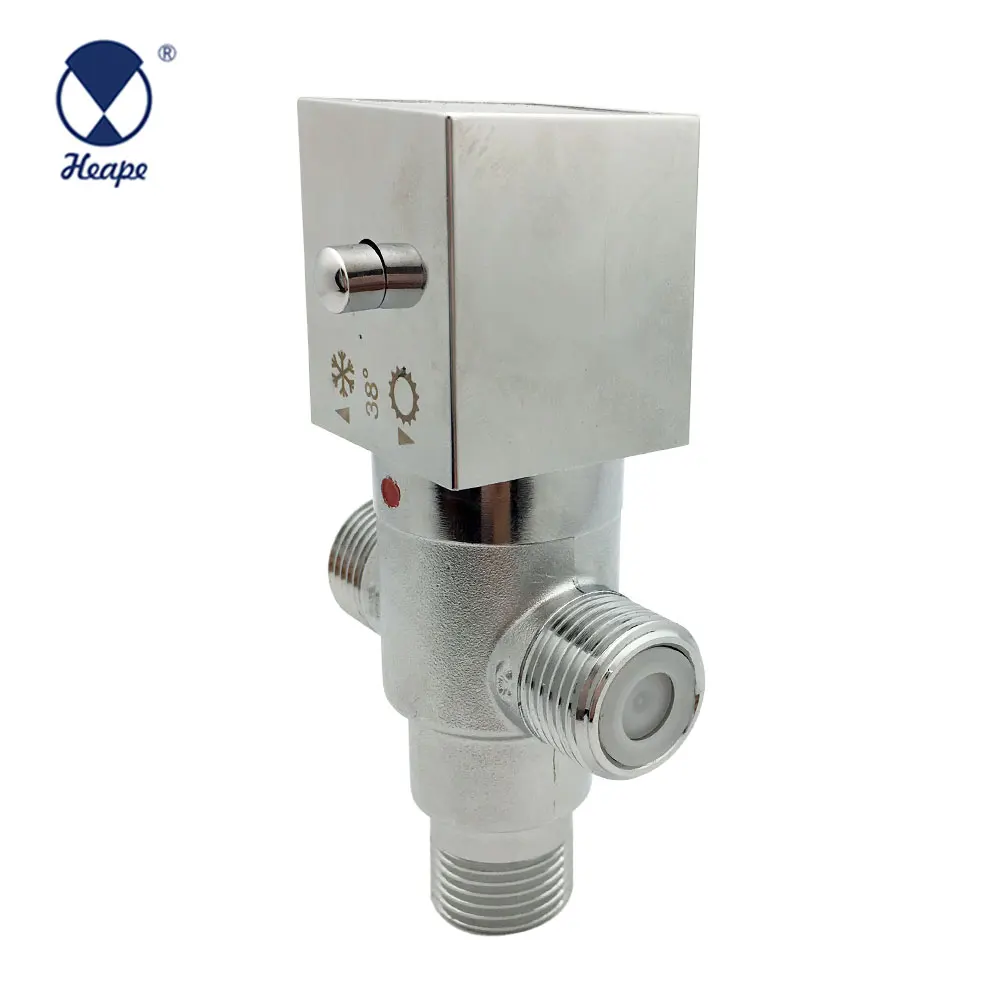

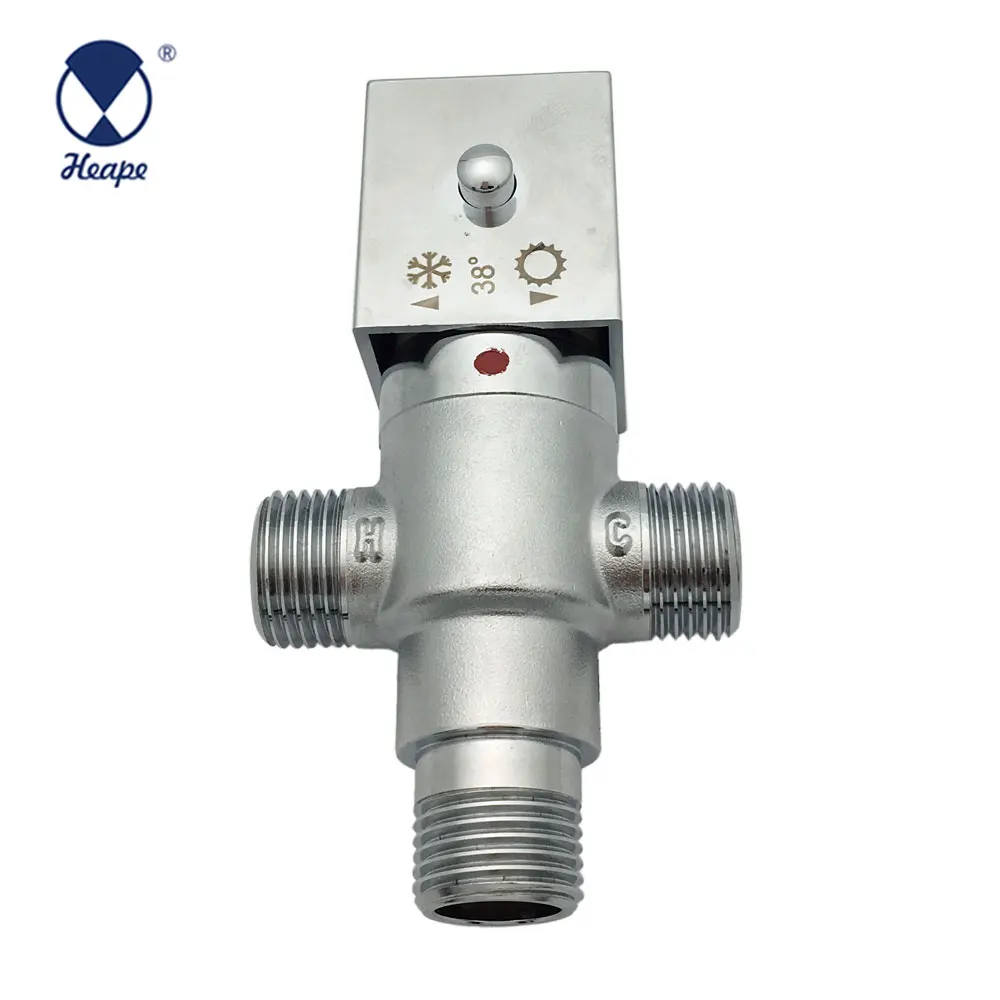

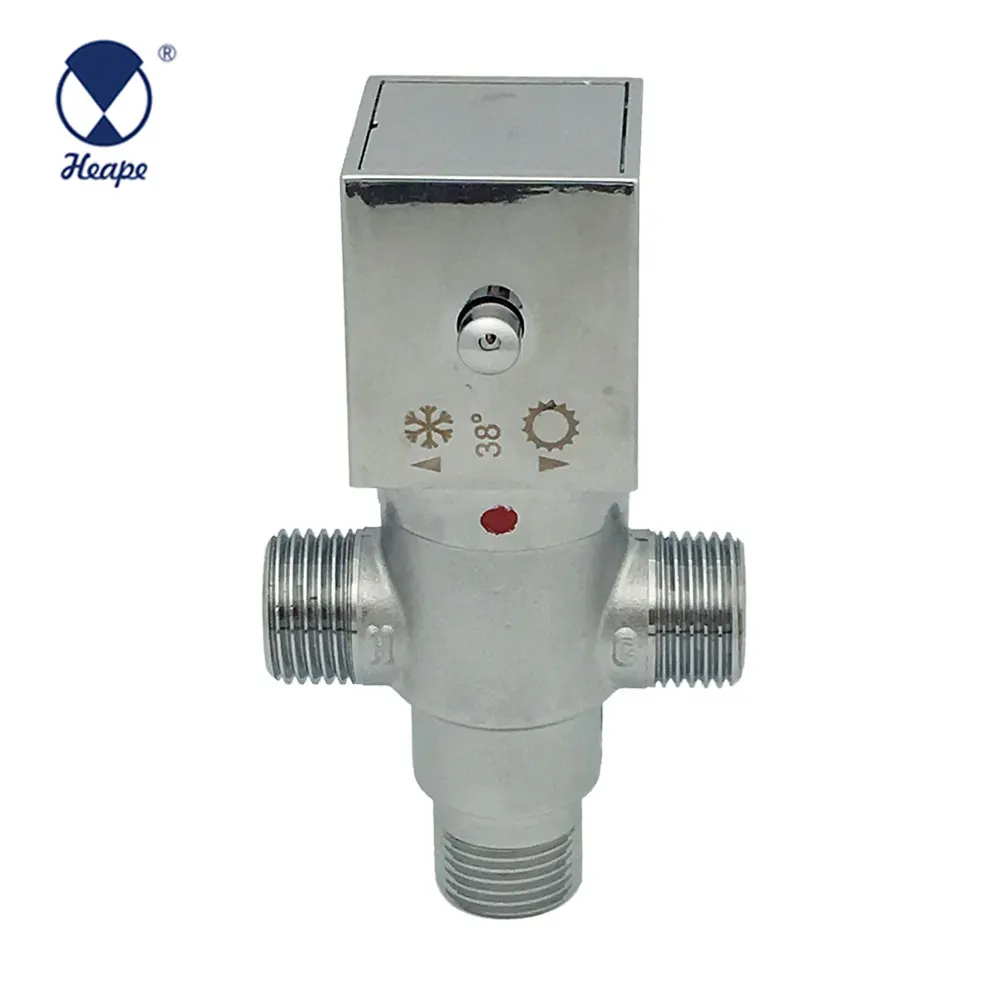

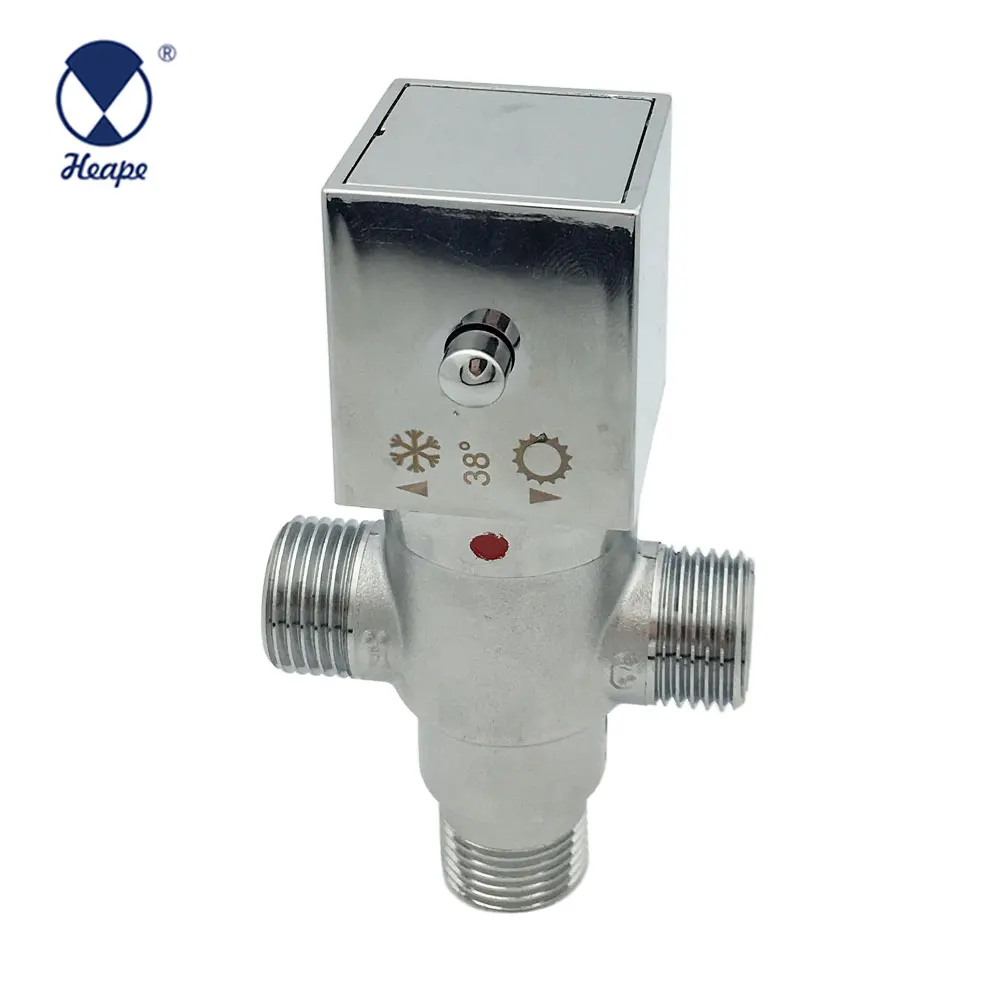

HEAPE Thermostatic Hot Cold Water Mixer Valve

Product Overview

Description

Technical specifications	Material	H59-1 Brass
	Body	Chrome Plate
	Obturator	PSU
	Spring	Stainless Steel
	Seal Components	EPDM
	Control Knob	ABS
Performance	Adjustment range	34–46℃
	Accuracy	±2℃
	Max. working pressure (static)	10 Bar
	Max. working pressure (dynamic)	5 Bar
	Max. inlet temperature	100℃
	Max. inlet pressure ratio (H/C or C/H)	2:1
	Min. flow rate for stable operation	3.7 l/min
	Performance to standards	EN1111,EN 1287
	Connections	1/2” M
	Minimumtemperature difference between the inlet hot water and the outlet mixed water to ensure anti-scald performance	10°C
