Product Overview

Description

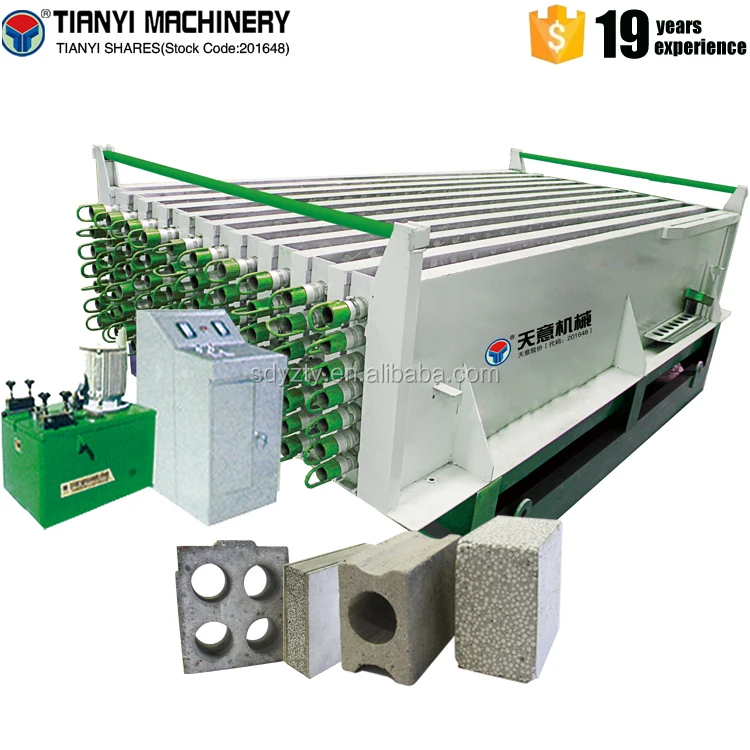

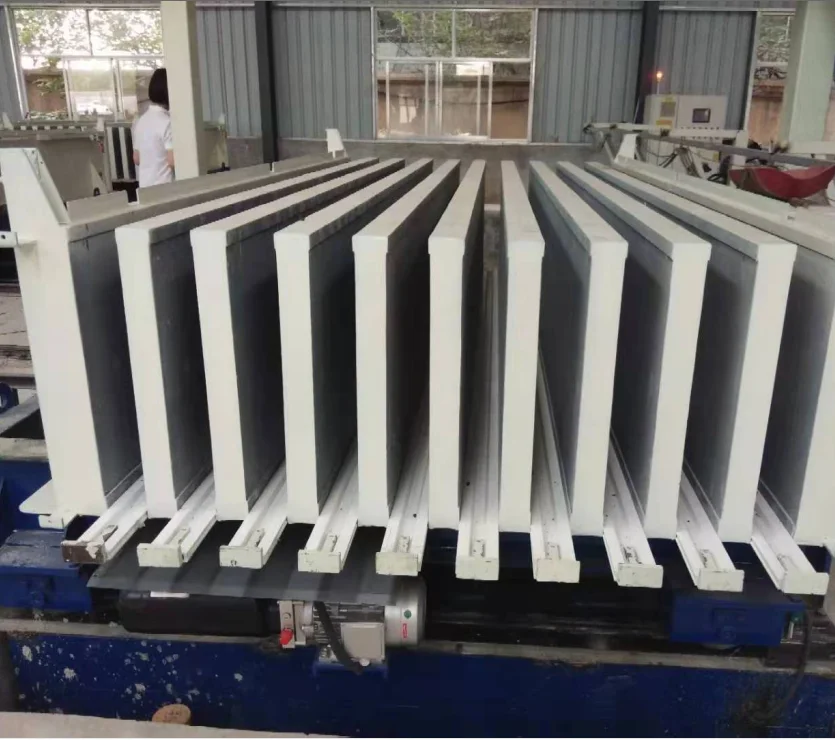

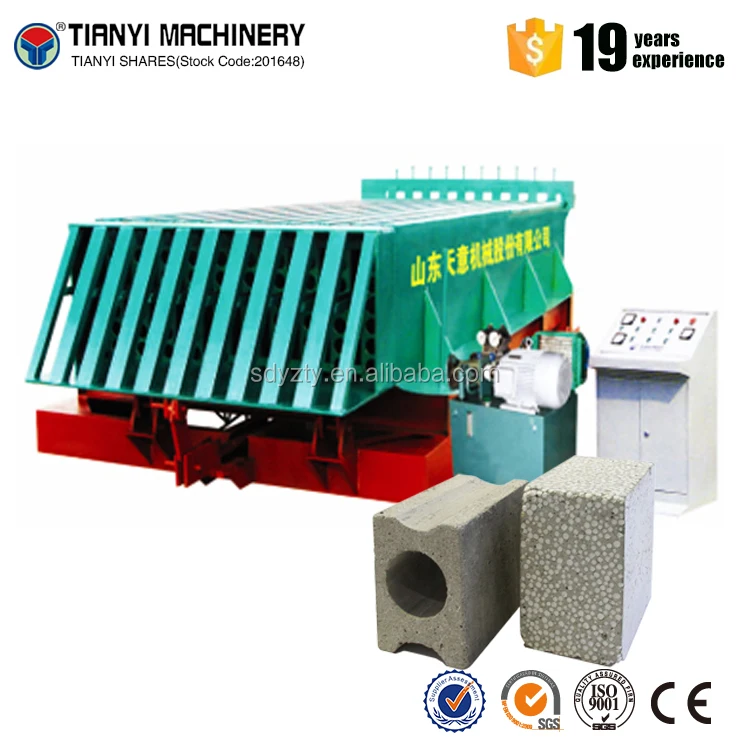

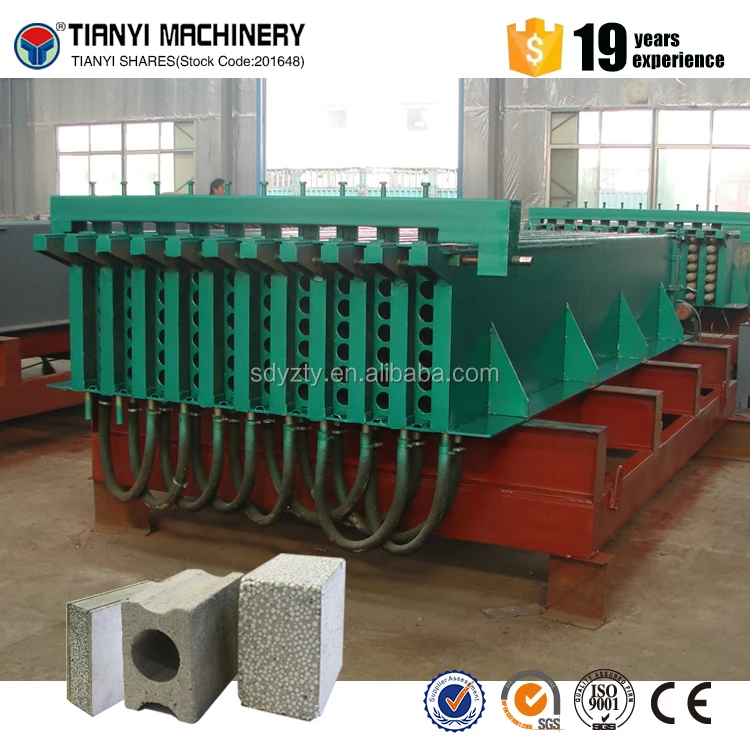

Supply Building material machinery lightweight precast concrete hollow core wall panel making machine



Wall Panel Making Machine Detail description:
1.automatically control the temperature (electricity, water, steam can heat it), hydraulic pressure for moulds, equipped with secondary net setting, accurate positioning;
2.whole machine vibration, hydraulic whole baffle, mating surface groove forming at one time, with high degree of mechanization;
3.This machine can produce panels for outside wall panel and inside internal wall panel (foaming panels, composite panels and hollow panels);
The performance of these panels have already reached the advanced level in these field in China.





Equipment Technical Paramaters



Overall dimension(LXWXH)mm	3030x1190x2500
Total power(kw)	23.75
Power of heating system (kw)	20
Power of vibration system(kw)	0.75
Power of hydraulic system(kw)	3
Hydraulic working pressure(Mpa)	8
Capacity of hydraulic tank(L)	70
Wall panel size	90mm type	10Pcs
	120mm type	10Pcs
	150mm type	7Pcs
Diameter and number of core tube(for hollow panel)	90mm type	Φ59.5mm      70tubes
	120mmtype	Φ74mm         60tubes

Raw materials

Cement, fly ash, river sand, tailing slags, perlite, ceramsite and other industry waste, fiber glass mesh, auxilliary chemicals, foaming agent etc..

Production process

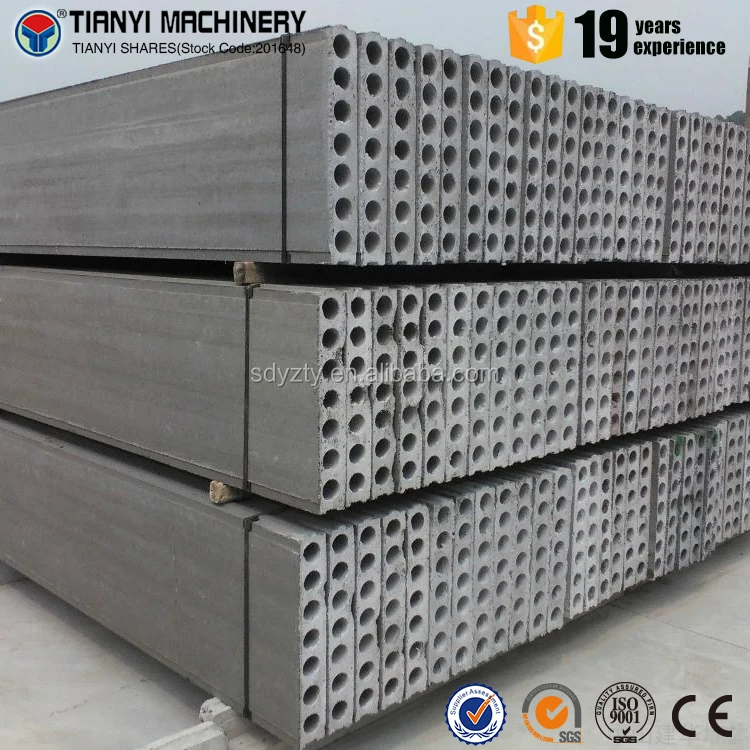

Finished wall panel

Wall panel Features



The specification of the wall panel: 500-3000mm*600mm*60/75//90/120/150/180mm



1. Light weight
2. Fire proofness
3. Water-proofness & Damp-proofness
4. Sound Insulation

5. Thermal Insulation
6. Better earthquake resistance and overall stability

7. Easy installation





Wall Panel Technical Parameters



No.	Test Items	China standard	Product test
1	Compressive strength	≥3.5Mpa	≥5Mpa
2	Drying shrinkage value	≤0.6mm/m	≤0.37mm/m
3	Hanging force	≥1000N without 0.5mm crack in 24hours	≥1000N without 0.5mm crack in 24hours
4	Shock resistance	No damaged that Impacting of 30Kg sandbag five times	No damaged that Impacting of 30Kg sandbag five times
5	Bending resistance	≥1.5times of wallborad	≥1.5times of wallborad
6	Radioactivity	Inner radiation index Ira≤1.0 Outer radiation index IY≤1.3	Inner radiation index Ira≤1.0 Outer radiation index IY≤1.3
7	Areal density	≤90Kg/m2	≤43Kg/m2
8	Sound insulation	≥35dB	≥43dB
9	Fire resistance limit	≥1h	≥1h
10	Combustion performance	A1 or A2	A1

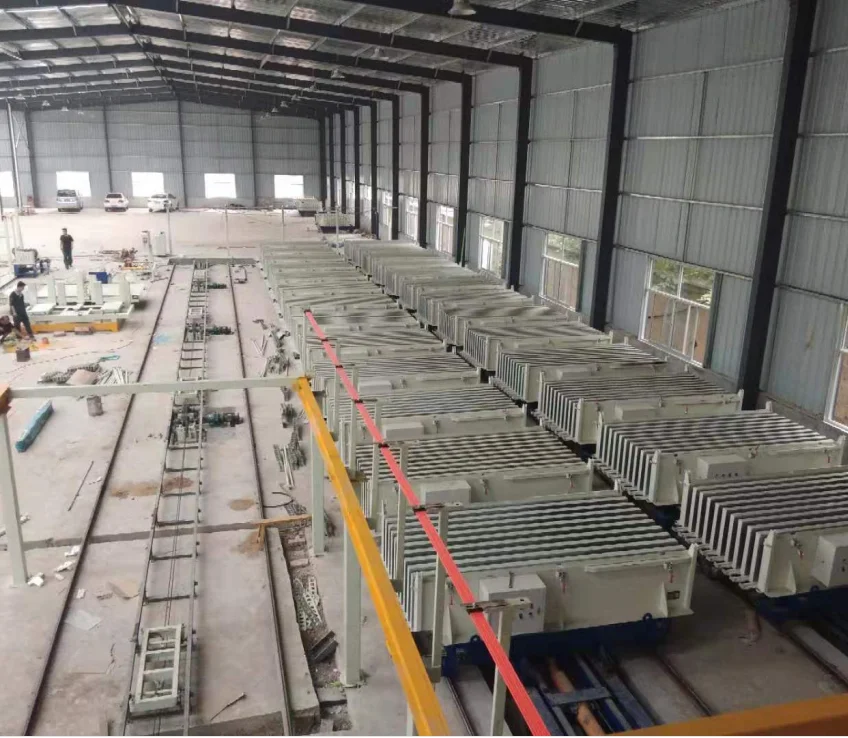

Project site



Construction process





Our Services



Company concept:

1. We guarantee the board machine is brand new.

2. Based on the natural materials through high technology research and development.

3. We strive to offer best after-sales services, also professional technical support, trying our best to satisfy your requirement.

4. Sustainable green building system is our slogan.
