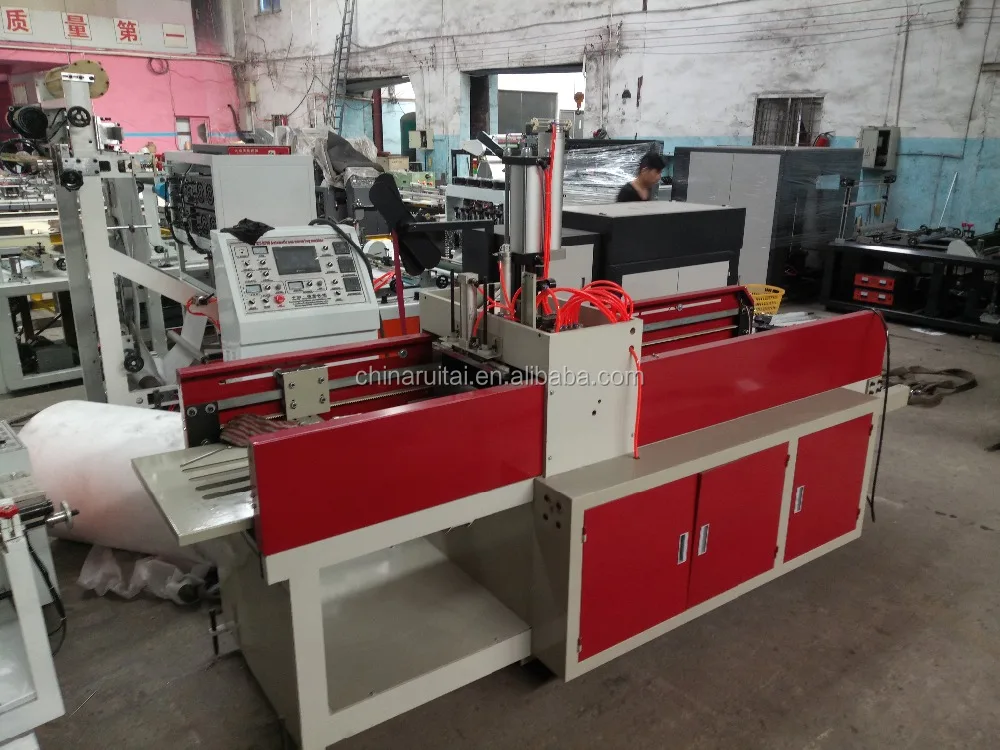

Automatic Vest T shirt Bag Making Machine/ W cut U cut Non Woven Bag Machine

Share on (60701047742):


Price:RUB 1,174,368.18 - RUB 1,181,800.89

Quantity:


Product Overview

Description

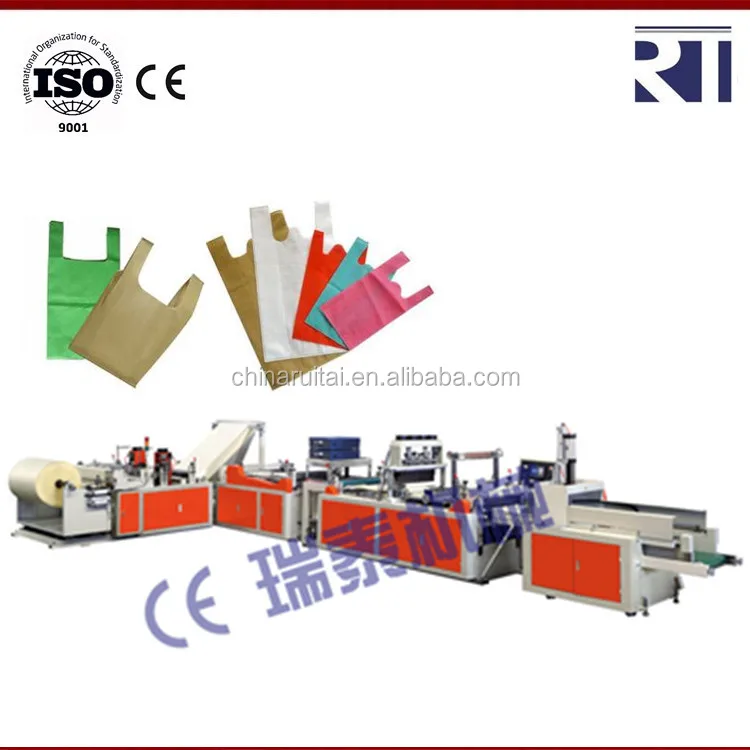

Automatic Vest T-shirt Bag Making Machine/ W cut U cut Non Woven Bag MachineBag making Machine.jpg



Product Introduction

This machine adopts mechanical,electrical,optical and pneumatic integration technology,suitable for non-woven fabric,different specs of flat bag,D-cut bag,bottom/side gusset bag,vest bag and drawstring bags etc(used for shopping bag,gift bag,cloths bag,shoes bag)can be made by this machine.

Features

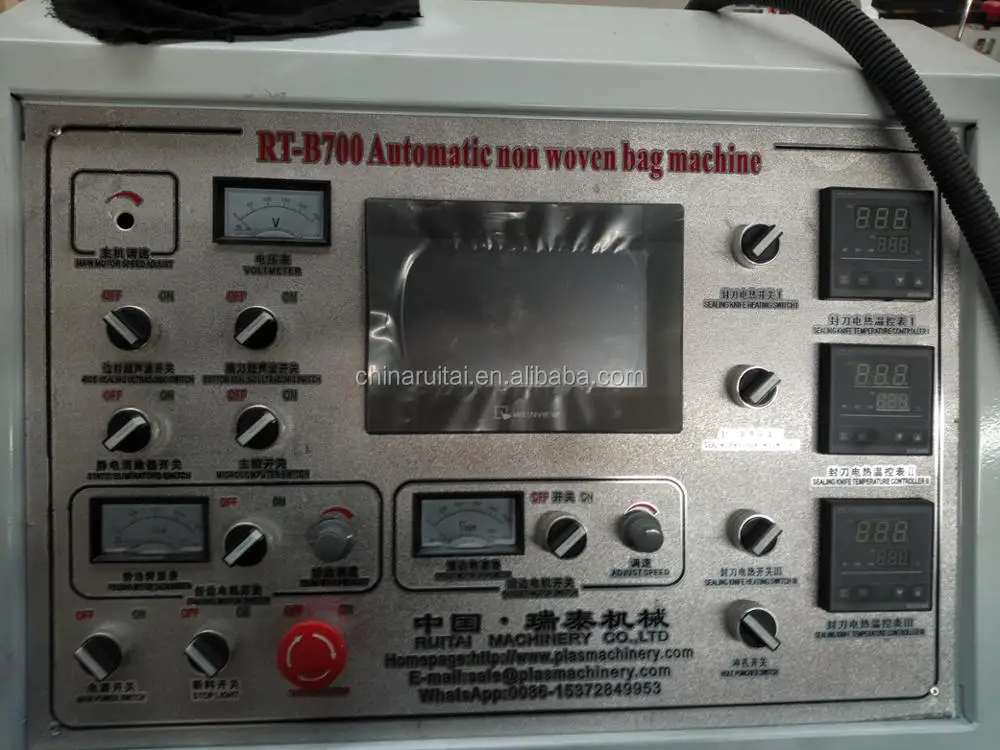

1.This machine adopts Taiwan PLC touch screen,which can be edited.
2.Auto counting and stopping when setting numbers freely.
3.High voltage static processing and auto constant temperature heating controller.
4.Equipped with stepping motor(computer fixed length),manual unwinding magnetic powder tension controller and auto rectifying deviation,photoelectric tracking,printing color mark track orientation,auto counting and alarming,auto punching etc.,which make it accurate and stable.
5.All aspect of the bags adopts thermal bonding by ultrasonic welding,such as bag edge folding,side sealing etc.which makes the machine fast and easy to operate,the products firm sealing,beautiful and decent.

Main Technical Variables

Type
RT-A700
Production Speed
20-120pcs/min
Bag Width
100-800mm
Bag Height
200-600mm
Material Basis Weight
30-120g/m2
Power Supply
380V/220V
Total Power
12kw
Overall Dimension
7600x1900x2100mm
Weight
2000KG

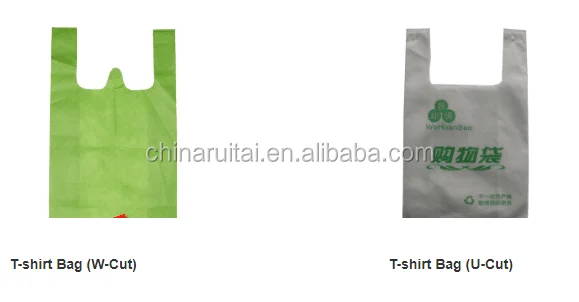

 Sample bag made by above machine:

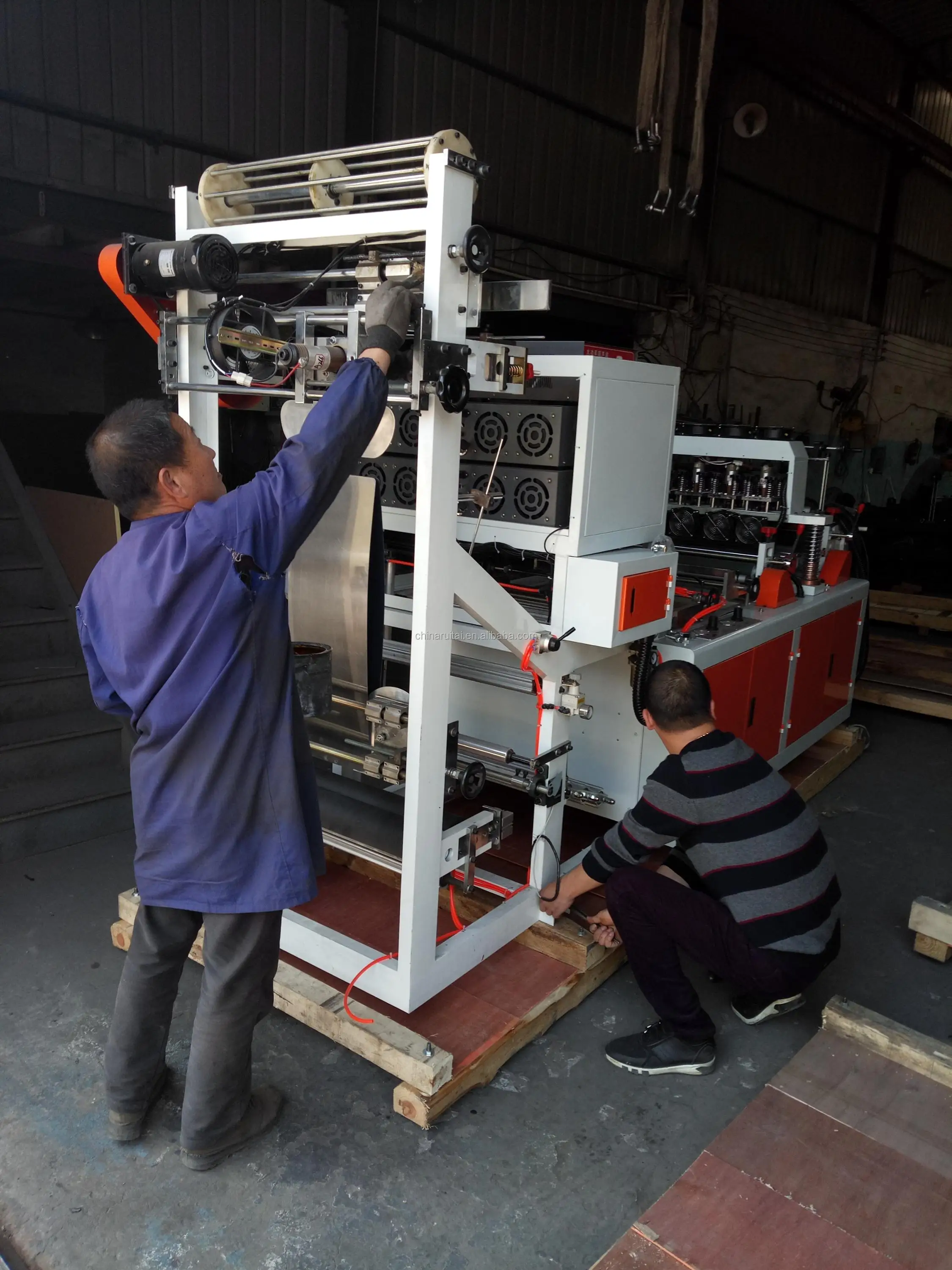

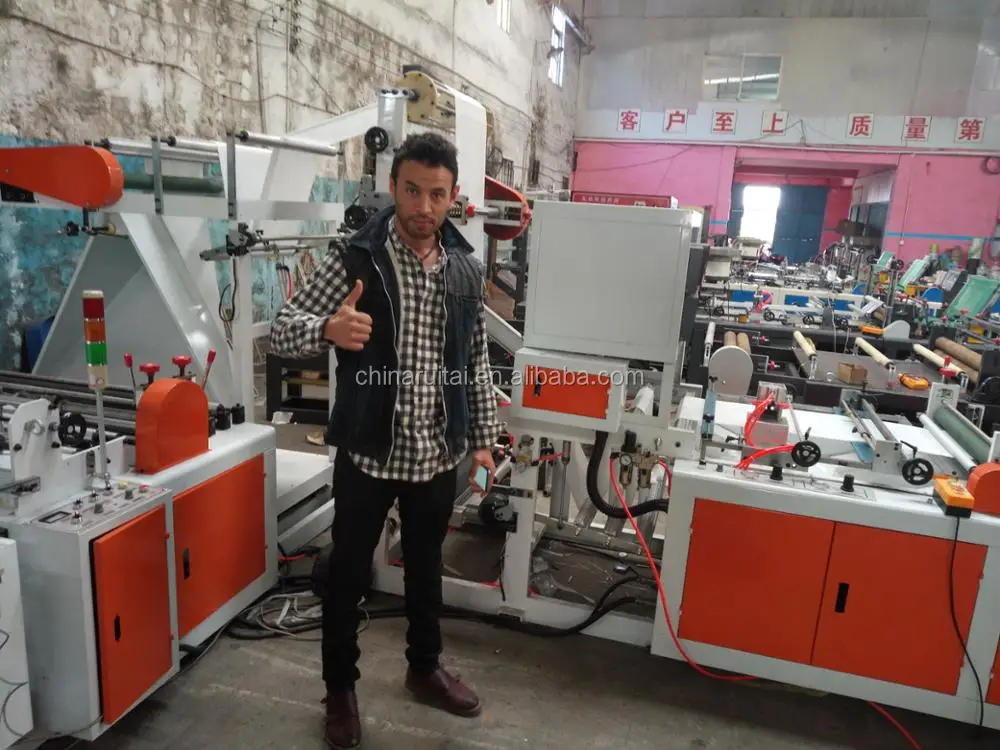

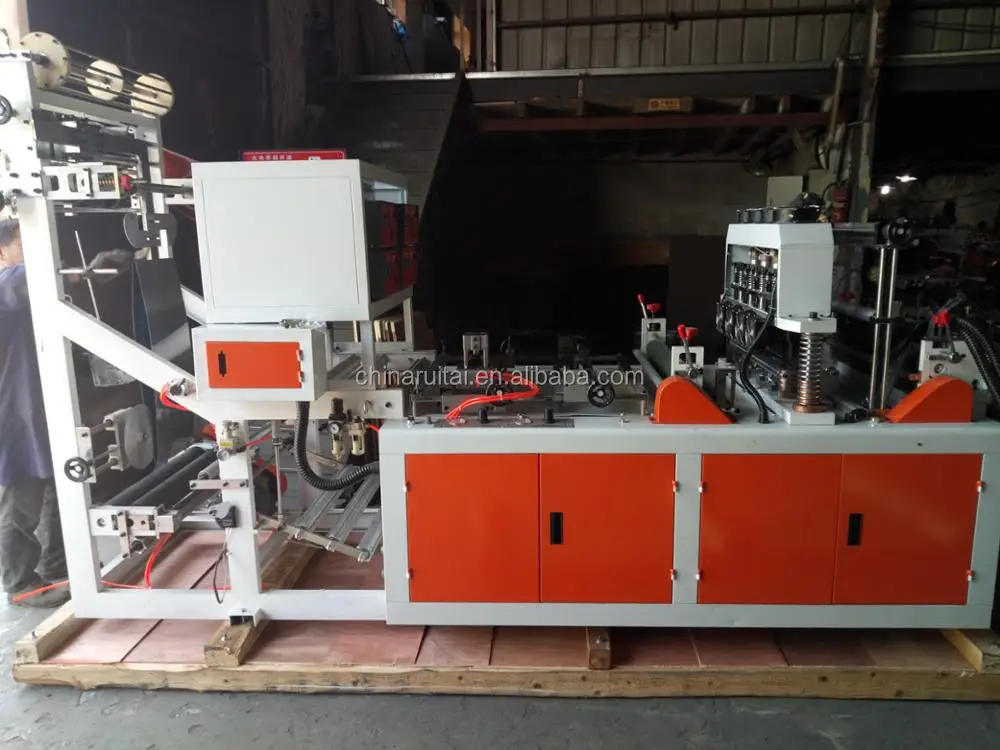

 IMG_20170327_100414.jpgIMG_20170327_100431.jpgIMG_20170327_141400.jpgIMG_20170327_141801.jpgIMG_20170309_144620.jpg
