JVRD 380 3 phase over under voltage relays device phase failure device

Product Overview

Description

JVRD-380 3 phase over under voltage relays device phase failure device

JVRD-380/JVRD-440/JVRD-460





♦ Features

  -- Compact modular size

  -- Three-phase monitoring of phase sequence, phase loss, over- and undervoltage and phase unbalance

  -- Powered by the measuring circuit

  -- 2 C/O contacts

  -- 5 LEDs for status indication



♦ Protective Functions

  -- Phase sequence

  -- Phase loss

  -- Overvoltage

  -- Undervoltage

  -- Phase unbalance



♦ Typical Applications

    • Pumps     • Fans

    • Blowers    • Motors

    • Compressors



♦ Approvals

    • CE

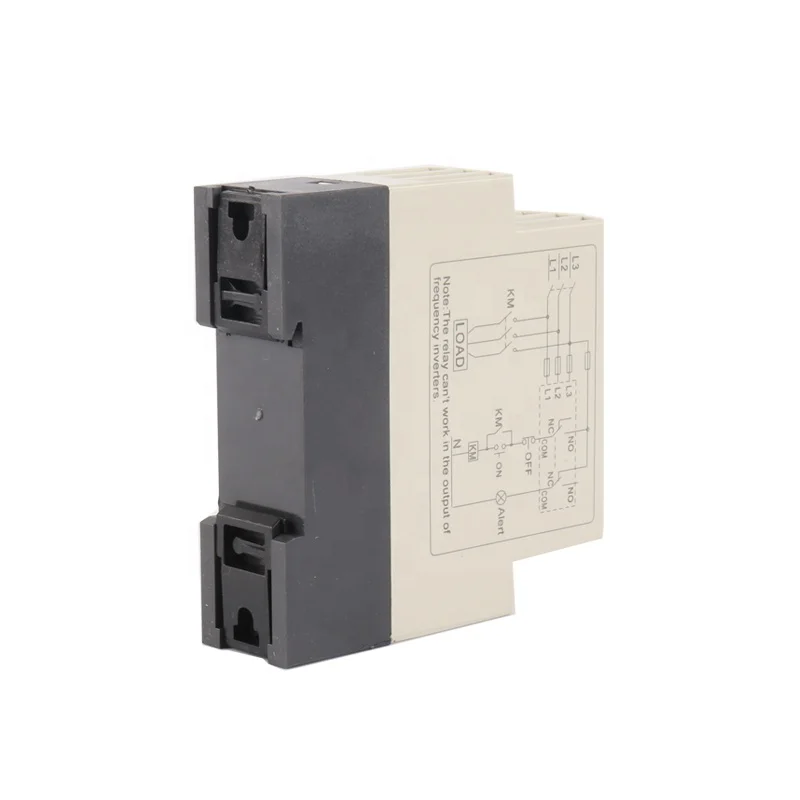

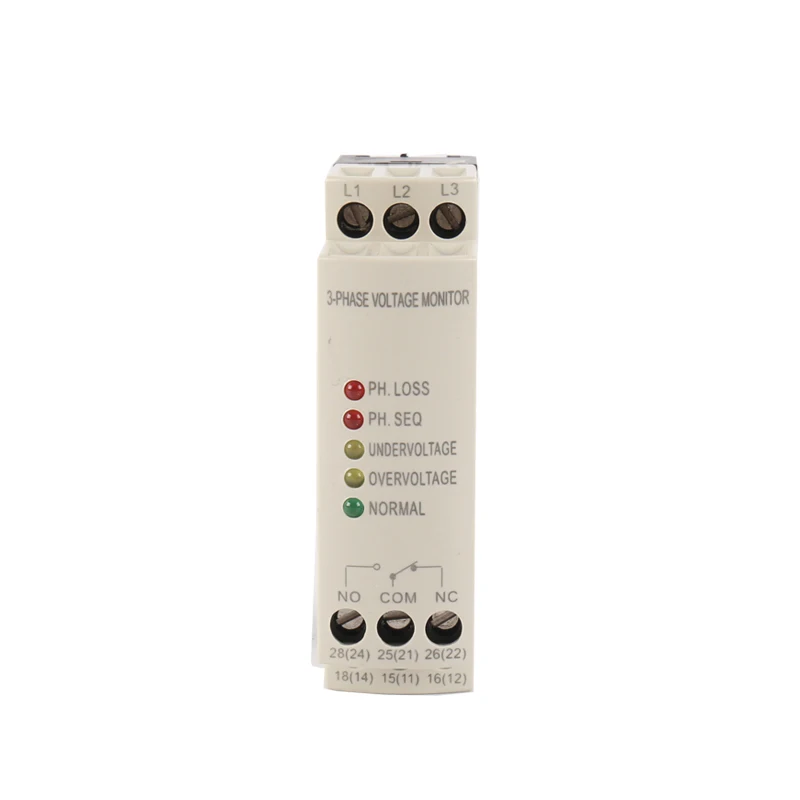

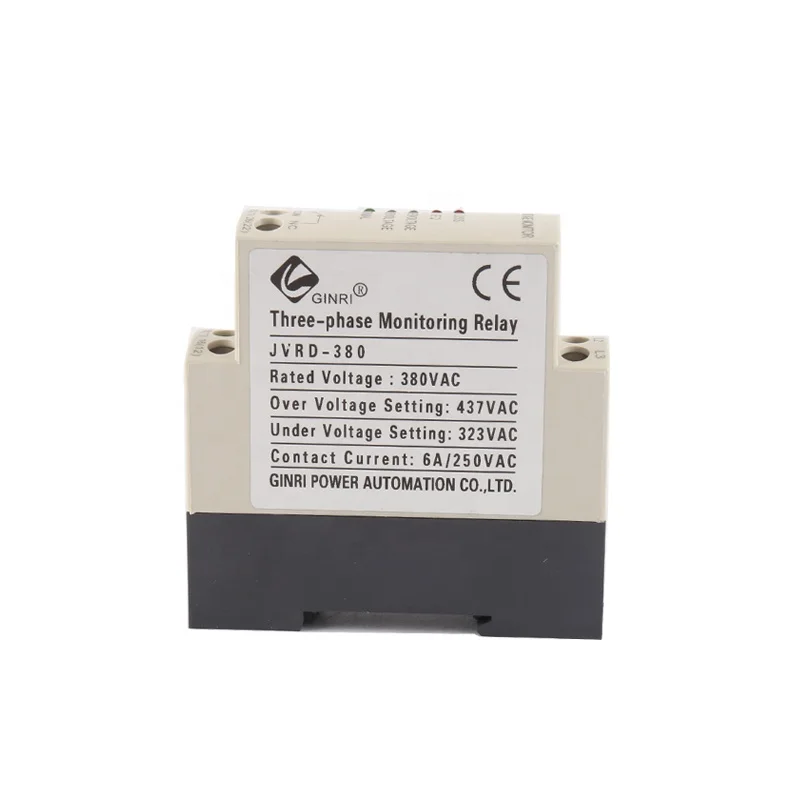

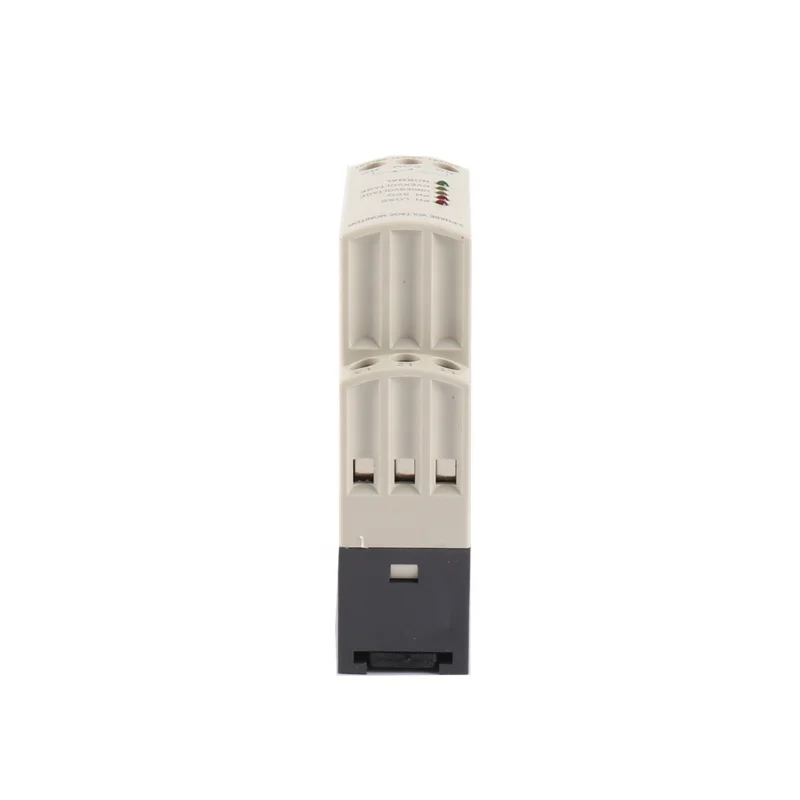

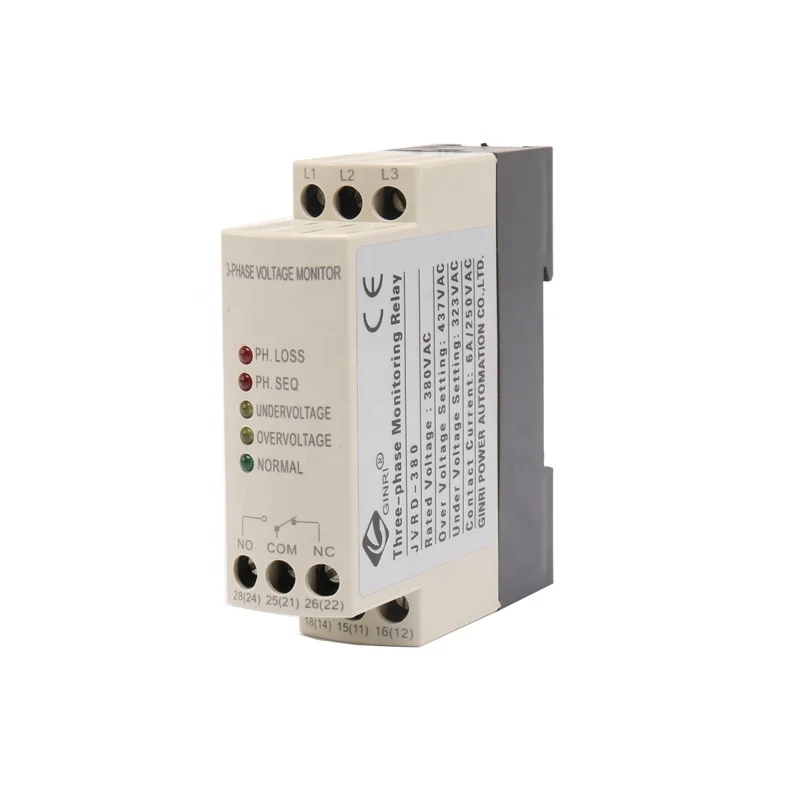

♦ Product Photo







♦ Technical data

Type	JVRD-380
Measuring circuit	L1,L2,L3
Rated voltage	220VAC,380VAC,440VAC 460VAC,480VAC,50/60Hz
Monitoring functions	phase sequence,phase loss,overvoltage, undervoltage,phase unbalance
Voltage setting range	Type suffix Overvoltage Undervoltage blank +15% -15% A +10% -10% B +12.5% -10% C +15% -12.5% T Customized
Indicators	phase sequence,phase loss,overvoltage, undervoltage and normal
Output contacts	2 C/O
Contact capacity	6A,250VAC
Dimensions(H*W*D)	79*23*79mm
Mounting	DIN Rail







♦ Wiring Diagram







♦ GINRI Selection Guide







♦ GINRI Packing







♦ GINRI Relay Family Photo
