solar panel 300w solar cells solar panel bangladesh solar panel price 300 watt solar panel in china
solar panel cells
bangladesh solar panel price
solar panels for home
company infomation
1. Factory advantage Our battery factory established in Foshan city with 27,000 m2 in 1999, registered capital of 500 million RMB.
2. Focus on R & D A. Have been cooperating with the famous institutes and universities in China to research and develop new batteries. B. More than US$1,000,000 are invested every year in R&D. C. We have more than 50 experienced R&D stuff, most of them have more than 10 years experience in lead acid battery industry. 3. Never stop pursuiting high quality Our advanced equipment,quality raw material, precise process management methods and professional technical team generate our high quality products.
Product Uses
Product SPEC
MECHANICAL PARAMETERS
WORKING CONDITIONS
Dimensions(LxWxH)
990*1640*45mm
Operating Temp
-45°C+80°C
Cable Length(mm)
900
Junction Box
IP65/IP67 Reted
Cable cross section size(mm²)
4
Static Loading
≤5400Pa
No.of cells and connections
72(12x6)
Maximum Serise Fuse(A)
15A
Frame
Anodized aluminum alloy
NOCT
47±2°C
Packing configuration
25/21pcs/carton
Application Class
Class A
ELECTRICAL PARAMETERS
Rated Maximum Power at STC(W)
300W
Maximum Power Voltage(Vmp/P)
36V
Maximum Power Current(Imp/A)
6.94A
Open Circuit Voltage(Voc/v)
45V
Short Circuit current(Isc/a)
7.5A
Power Tolerance
0 to +3%
Current Temperature Coefficient(Isc)
0.04%/°C
Voltage Temperature Coefficient(Voc)
-0.30%/°C
Power Temperature Coefficient(Pmp)
-0.39%/°C
GUARANTEE
5-year limited product warranty
Limited performance warranty:10 years at 90% of minimal rated power output,
25 years at 80% of the minimal rated power output
Product Overviews
CERTIFICATS

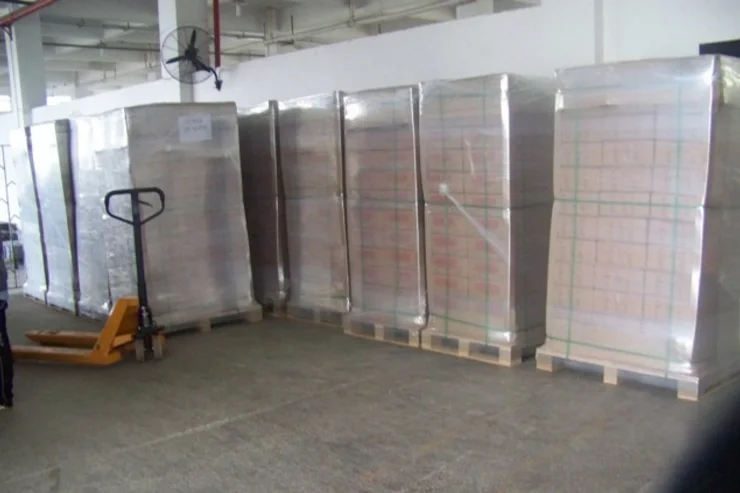

packaging & shipping
1.independent package for each solar panel;
2.inner package with foam board to protect the solar panel from damaging;
3.outer carton box on the pallets with plastic wrap.
Q1. Can I have a sample order for solar panel? A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable. Q2. What about the lead time? A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than Q3. Do you have any MOQ limit for solar panel? A: Low MOQ, 1pc for sample checking is available Q4. How do you ship the goods and how long does it take to arrive? A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional. Q5. How to proceed an order for solar panels? A: Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions. Thirdly customer confirms the samples and places deposit for formal order. Fourthly We arrange the production. Q6. Is it OK to print my logo on solar panels product? A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample. Q7: Do you offer guarantee for the products? A: Yes, we offer 25 years warranty to our products.
