Price:$1,900.00

Quantity:


Product Overview

Description


Product Description

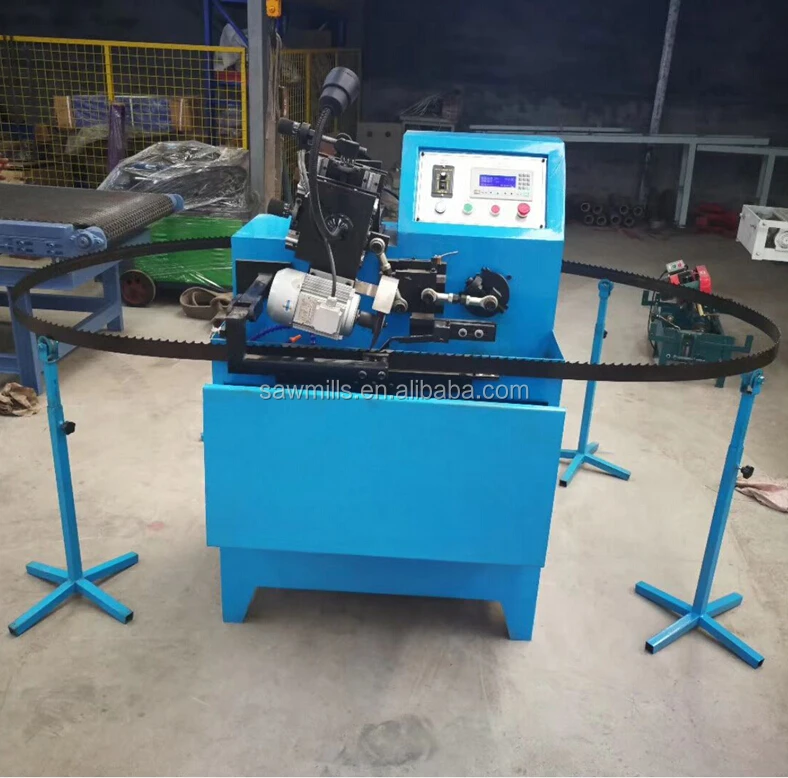

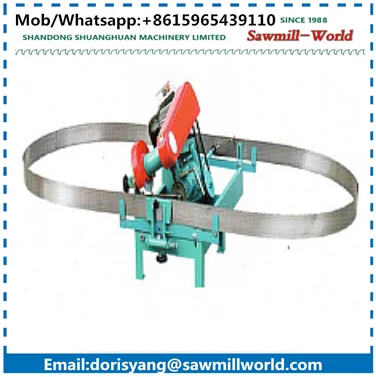

1. Band Saw Blade Sharpening Machine



\t
Main Technical Data
\t
MR1111
\t
MR1115
\t
MR1118
\t
Grind Width MM
\t
30-80
\t
30-125
\t
60-150
\t
Sand Wheel Diameter MM
\t
150
\t
250
\t
250
\t
Band Saw Blade Pitch MM
\t
8-20
\t
10-30
\t
10-40
\t
Working Frequency Tooth/Min
\t
50
\t
50
\t
50
\t
Weight (kg)
\t
52
\t
100
\t
200
\t
Overall Size MM
\t
830*560*530
\t
950*650*600
\t
900*750*700

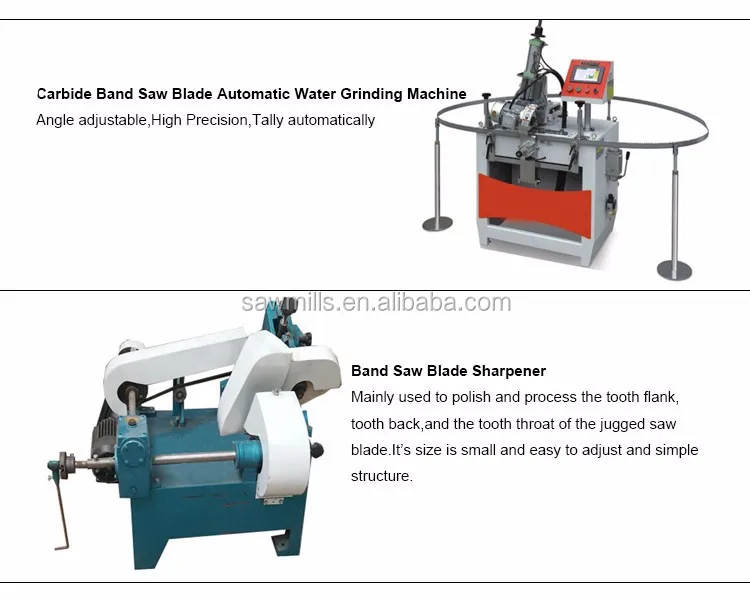

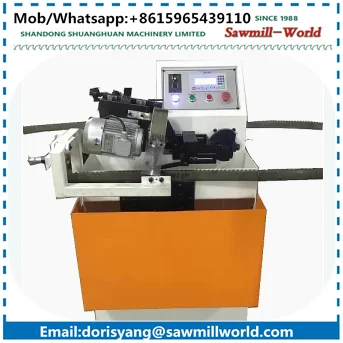

2. Automatic Carbide Band Saw Blade Sharpener



\t
Overall Size
\t
1150×8500×7500mm
\t
Weight
\t
230kg
\t
Voltage
\t
380V
\t
Grinding Head Motor
\t
0.37kw
\t
Feeding Motor
\t
0.37kw
\t
Feeding Speed
\t
0—120Teeth/min (Adjustable)
\t
Grinding Teeth Pitch Range
\t
6—40mm
\t
Blade Width
\t
15—150mm
\t
Blade Length
\t
2800—11000mm
\t
Angle adjustable,High Precision,Tally automatically

3. Carbide Circular Saw Blade Sharpener



\t
Specification
\t
MR126
\t
Grinding Saw Blade Diameter
\t
80-600mm
\t
Grinding Head Adjustable Angle
\t
±30°
\t
Motor Power
\t
250w 220v
\t
Overall Size
\t
710*391*337
\t
Grinding Saw Blade Rake Angle
\t
0-30°

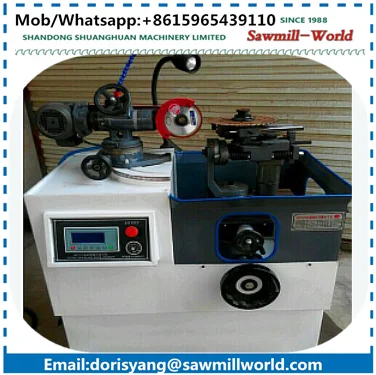

4. Automatic Circular Saw Blade Sharpener



\t
Saw Blade Diameter
\t
125-500MM
\t
Saw Blade Bore Diameter
\t
16,20,22,30,40,50,80MM
\t
Saw Blade Thickness
\t
8MM
\t
Grinding Wheel Diameter
\t
125,150MM
\t
Grinding Wheel Bore Diameter
\t
20,32MM
\t
Max poke Teeth Angle
\t
30°
\t
Grinding Wheel Speed
\t
5800R/Min
\t
Grinding Wheel Motor Power
\t
550W
\t
Feeding Motor Power
\t
60W
\t
Grinding Speed
\t
0-24Teeth/Min
\t
Belt
\t
6PJ-1080MM
\t
Overall Size
\t
1100*850*1380MM

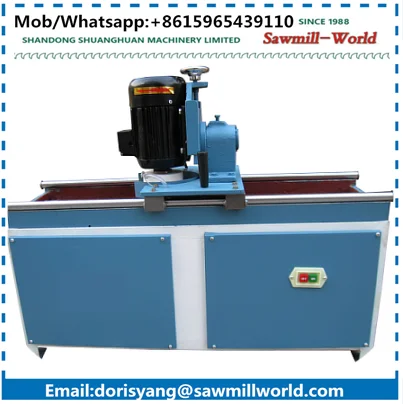

5. Wood Shaving Blade Sharpener



\t
Max Processing Blade Length
\t
710mm
\t
Grinding Wheel Speed
\t
2800R/Min
\t
Grinding Wheel Motor
\t
550W
\t
Water Pump Motor
\t
15W
\t
Overall Size
\t
900*300*780mm
\t
Weight
\t
70kg
Detailed Image

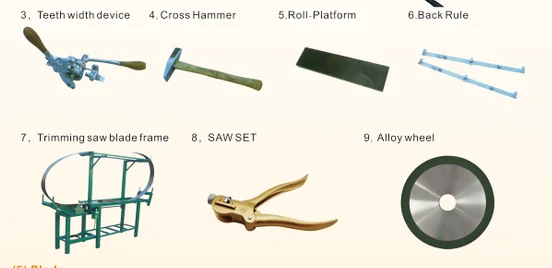

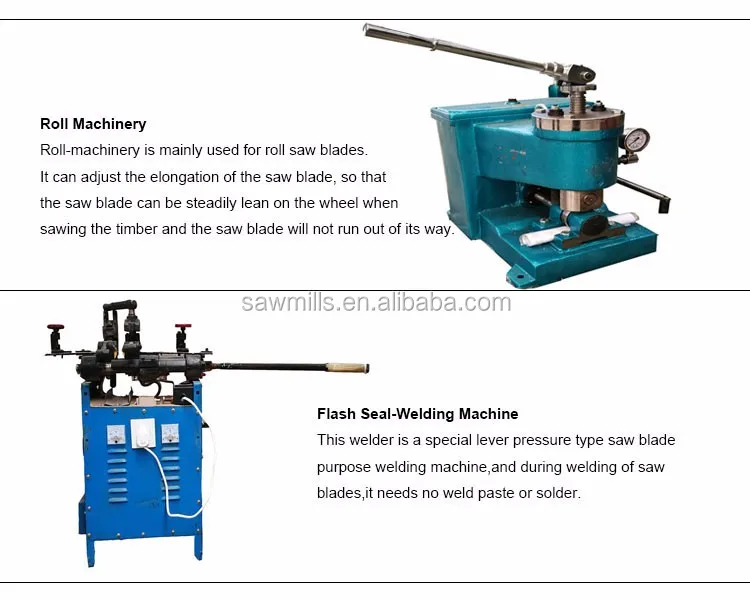

More Tools

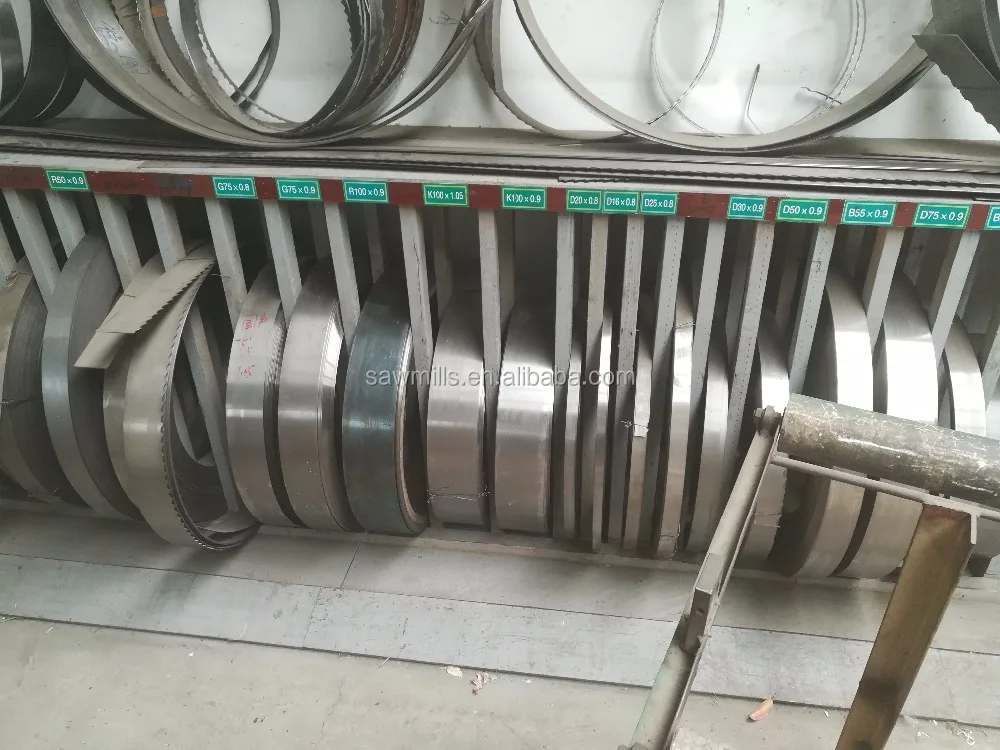

Production line

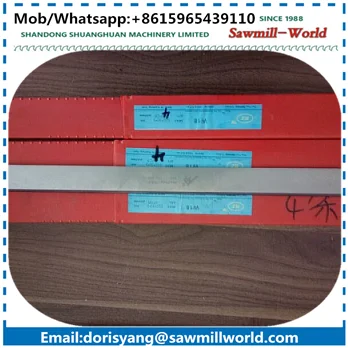

Production Line Carbide Teeth Band Saw Blade

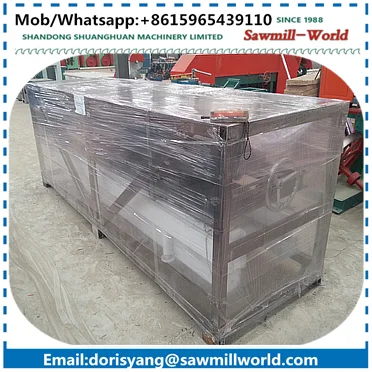

Packing & Delivery
Customers
Certifications
