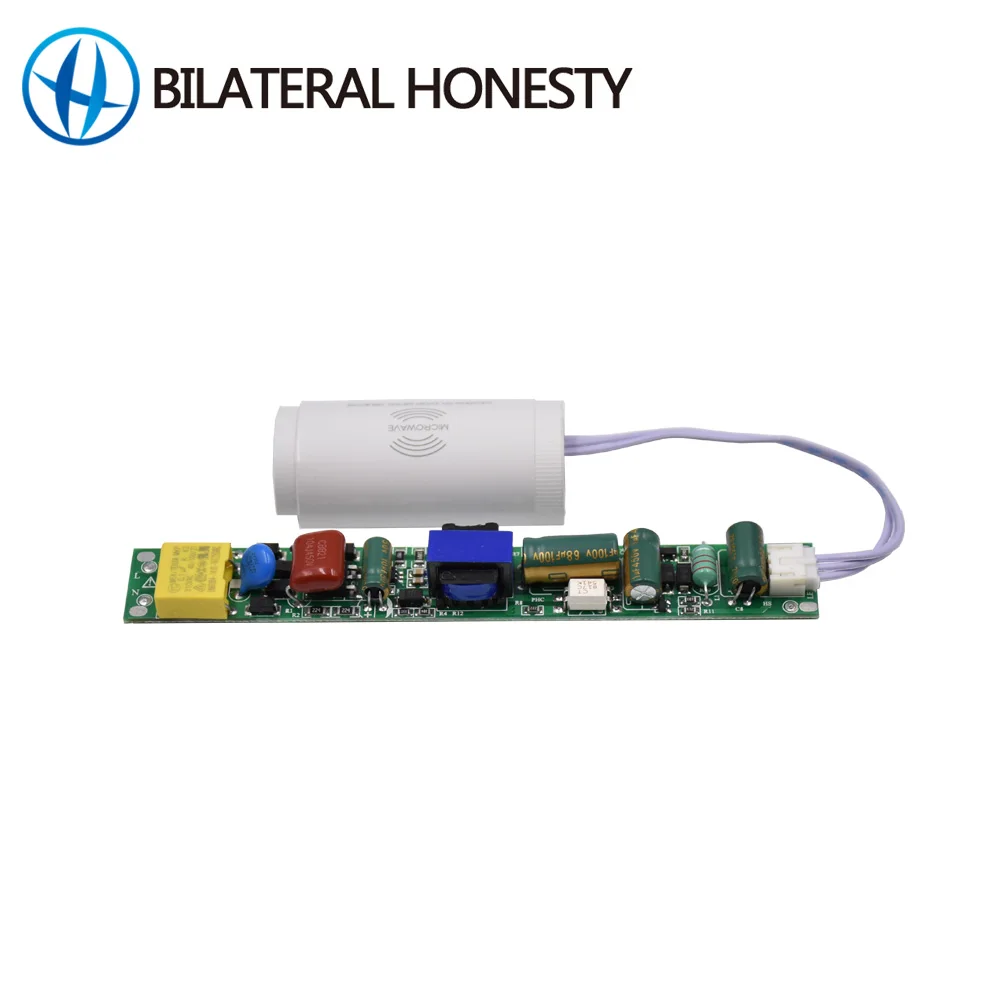

Wide Voltage PF0.9 Best Sell Radar Sensor Non isolated Led Driver Angle 180 Degree for Tube Light T8 Single
- Category: >>>
- Supplier: Shenzhen Bilateral Honesty Technology Co. Ltd.
Share on (60701154913):
Product Overview
Description
Product Description
XS-114LD | ||
Output Power: | 6~25W | |
Voltage Input: | 85~264V | |
Output Voltage: | 30~80V | |
Output Current: | 80~300mA(adjustable) | |
Efficiency: | 88% | |
PFC: | PF≥0.9 | |
THD: | ≤20% | |
Size(L*W*H): | 114*15*10mm | |
Warranty | 3Years | |
Induction mode | ON-OFF / ON-DIM | |
P/N | Typical Power | Input Voltage | Output Voltage | Output Current | Conversion Efficiency | Power Factor | THD |
XS-114LD | 9W | 85~264V | 30~80V | 80~300mA | 88% | >0.9 | ≤20% |
XS-114LD | 15W | 85~264V | 30~80V | 80~300mA | 88% | >0.9 | ≤20% |
XS-114LD | 18W | 85~264V | 30~80V | 80~300mA | 88% | >0.9 | ≤20% |
XS-114LD | 24W | 85~264V | 30~80V | 80~300mA | 88% | >0.9 | ≤20% |
Certificates
XS-114LD is a high efficiency, conversion efficiency of more than 90 wide voltage stable and reliable LED drive power, the use of Taiwan Lvda program, microwave induction fluorescent power is the source of energy-saving technology for underground car park lighting (LED fluorescent tube) and Developed a new type of radar drive power. The use of Doppler principle of high-frequency microwave signal transmission, the signal amplification and single-chip program intelligent identification process, the signal and fluorescent power together to form a high-quality microwave radar induction fluorescent lamp power LED fluorescent tube control. (20%) or off off, automatically adjusted to full light (100%); when the sensor to the vehicle or the body to leave the sensor area, LED (LED), the LED light tube will be sensed to the vehicle or the body into its sensing range, The lamp is automatically adjusted from the full light (100%) to the low-light state (20%) or off, so as to achieve the energy saving effect.
Features:
● Enter the full voltage range: 90 ~ 277Vac.
● constant current output 240MA (current adjustable) output voltage DC33-80V.
● A variety of protection functions: overcurrent, short circuit, over temperature, no load.
High efficiency, high reliability, low ripple.

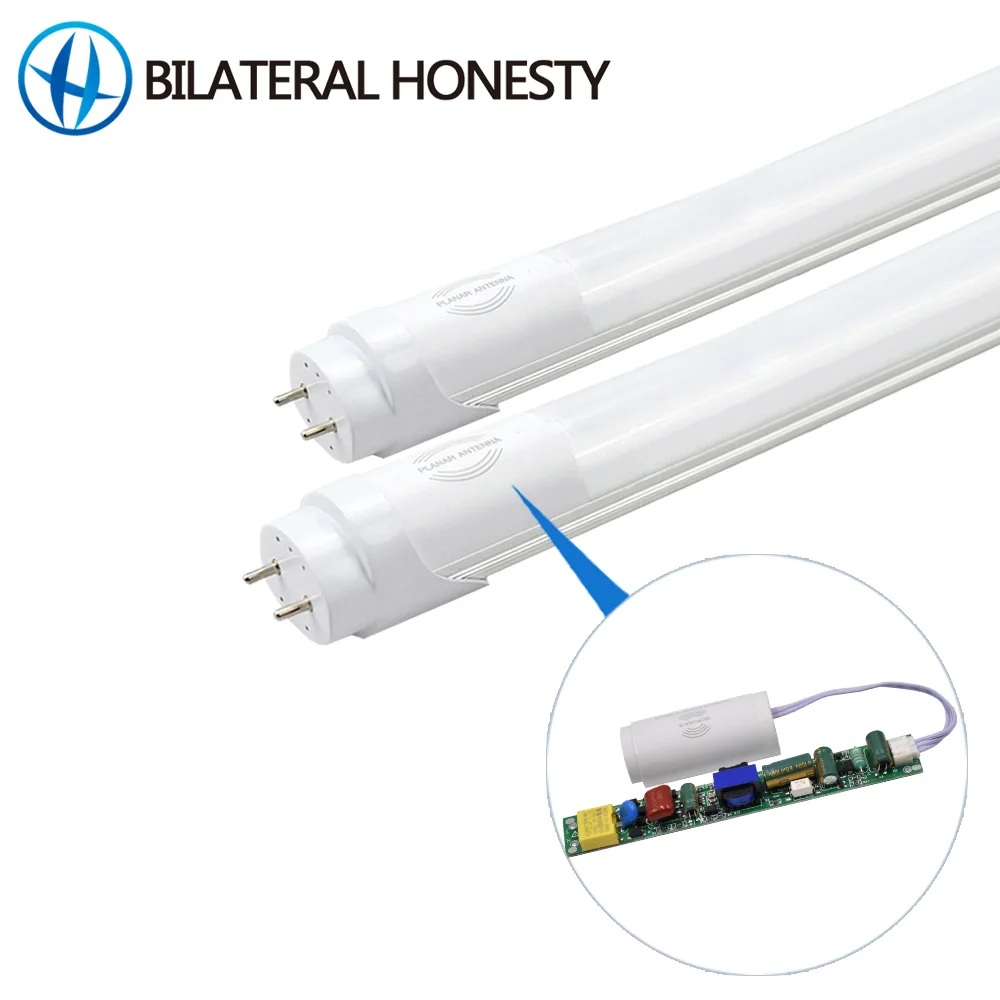

● small size, can be directly installed in the T8 lamp.
● highly sensitive microwave radar sensor, sensing distance of 6-10 meters.
● 100% bright people, from the standby lighting (30-60 seconds adjustable) micro-bright state (20%).
● people to 100% bright, from the standby lighting (30-60 seconds adjustable) off state.
● In the basement parking lot and other long-term use of light compared with the traditional lights can save more than 90%.
● easy to install: microwave radar sensor and infrared sensor can share the same shell, with a aluminum plate, save time and effort!
Features:
● Enter the full voltage range: 90 ~ 277Vac.
● constant current output 240MA (current adjustable) output voltage DC33-80V.
● A variety of protection functions: overcurrent, short circuit, over temperature, no load.
High efficiency, high reliability, low ripple.
● small size, can be directly installed in the T8 lamp.
● highly sensitive microwave radar sensor, sensing distance of 6-10 meters.
● 100% bright people, from the standby lighting (30-60 seconds adjustable) micro-bright state (20%).
● people to 100% bright, from the standby lighting (30-60 seconds adjustable) off state.
● In the basement parking lot and other long-term use of light compared with the traditional lights can save more than 90%.
● easy to install: microwave radar sensor and infrared sensor can share the same shell, with a aluminum plate, save time and effort!
Business Team
Installation Process
Packaging
Buying guide
FAQ
Q1. Can I have a sample order for led light?
A: Yes, it's available for sample order to test. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production needs 1-2 weeks .
Q3. Do you have MOQ for led light order?
A: Low MOQ, 1pc for sample checking is available
Q4. What about the shipment and how long does it take?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. Is it OK to print my logo on led light product?
A: Yes. Please inform us before our production and confirm the design based on our sample.
Q6: How long of the warranty?
A: 2-5 years .
Q7: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
