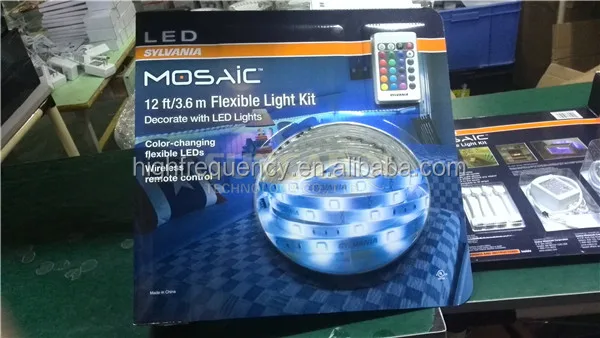

Cell phone shell case blister packaging machine
Product Description

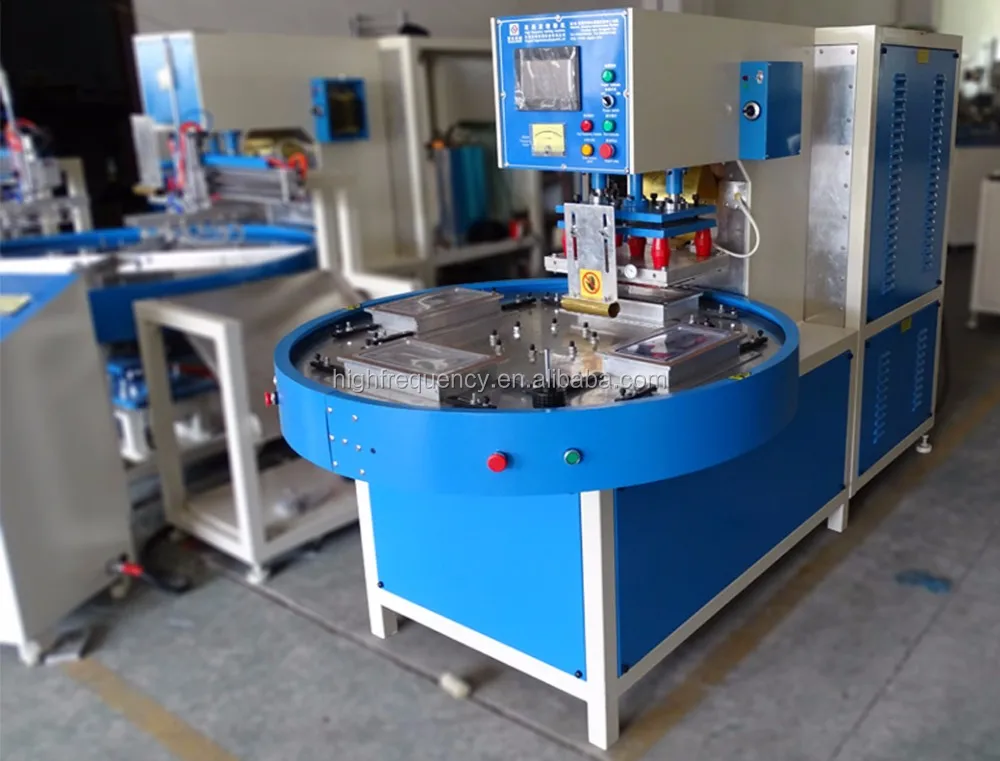

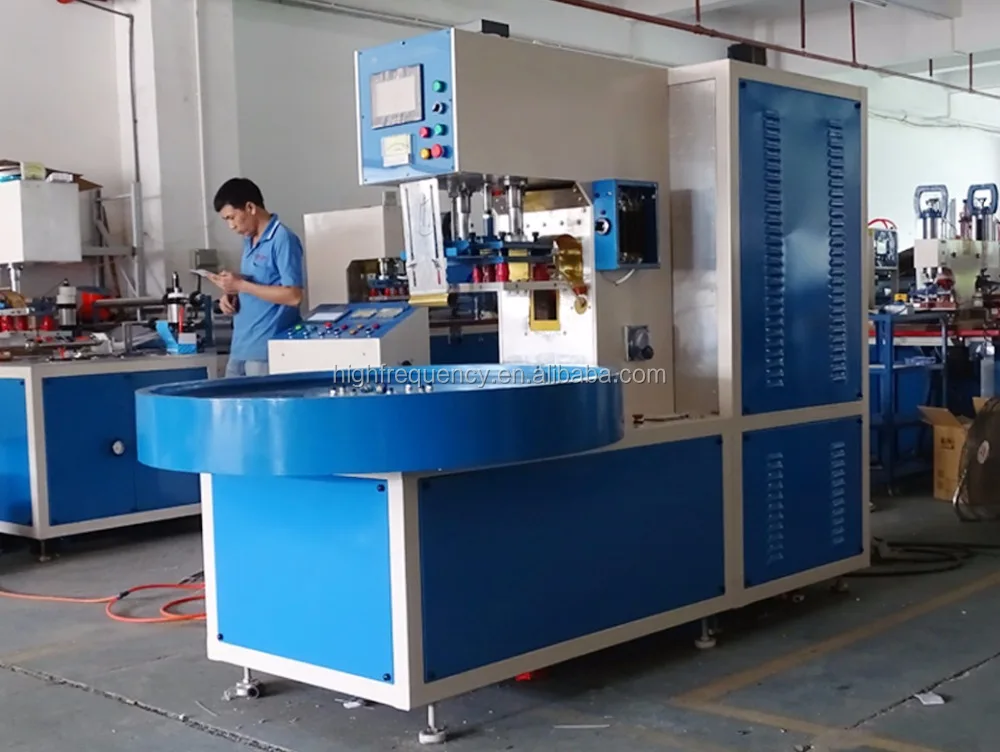

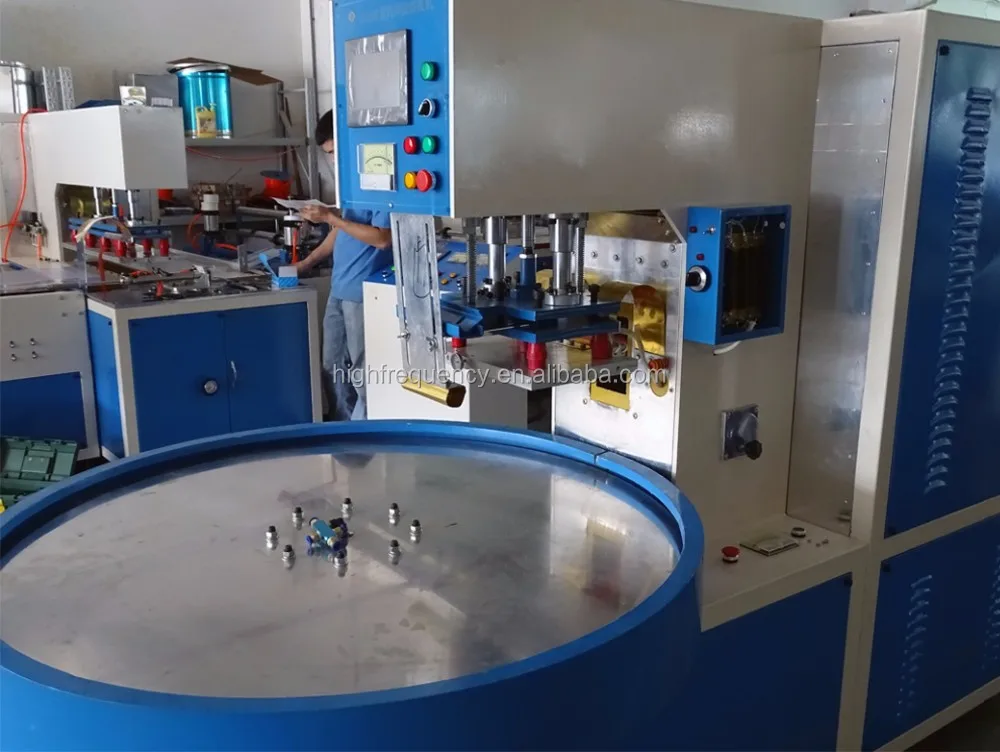

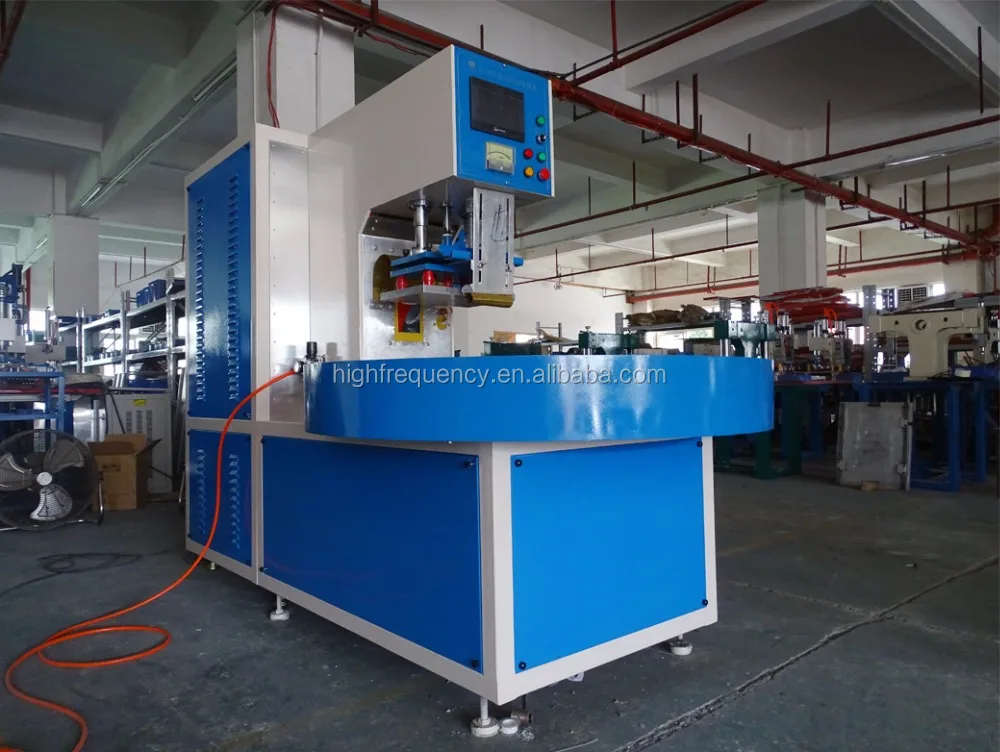

Cell phone shell case blister packaging machine
is a high frequency device, whose self-exited oscillator of the electron tube can produce high frequency electromagnetic field. And the plastic to be processed is in the high frequency electromagnetic field between the upper and low electrode. When its interior molecules are polarized and produce heat automatically by mutual movement and friction, it will be welded with the pressure of the die.

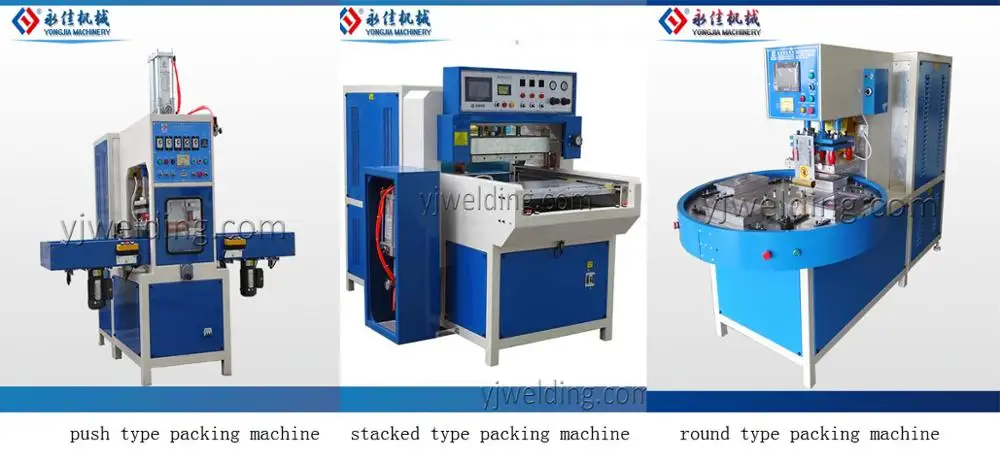

Cell phone shell case blister packaging machine Related blister packing machine
Cell phone shell case blister packaging machine technical parameter
Model | YJ-DJ-5000A | YJ-DJ-8000A |
High frequency power | 5KW | 8KW |
Supply power | 380V 50/60Hz | 380V 50/60Hz |
Frequency | 27.12MHz | 27.12MHz |
Input power | 8KVA | 15KVA |
Rectifier | diode | diode |
Oscillator | 7T85RB | 7T69RB |
Max pressure | 400kg | 500kg |
Electrode spacing | 200MM | 200MM |
Activity size | 175MM | 175MM |
Above electrode size | 200*350mm | 400*600mm |
Button electrode size | 400*600mm | 500*700mm |
Welding time | 0-10S adjustable |
adjustable |
Deck plate size | 600*300mm | 700*350mm |
Outface dimension | 660*1000*1700mm | 1100*700*1830mm |
Net weight | 200kg | 250kg |
Feature
Features:
1. Anti-spark electric system
When the spark occurring, the high sensitiveness spark electric system will cut the high frequency power immediately to protect the mould and material.
2. Jamming Prevention Device
Equipped with high frequency stabilizer and magnetic leakage suppressor, this device can prevent the leakage of electromagnetic radiation to avoid other electrical instruments jamming such as televisions and radios, etc.
3. Safety Device
When the current over its limit, the overload relay works automatically to protect the oscillation tubes and rectifier. The frequency deviation caused by mistake is avoided.
4.The Special Mechanical Structure
With a excellent design and structure, the machine can works precisely and intensively.
5.Easy Tuning And Special Protection Circuit
The selectable output power can ensure the stable quality of the product. While the welding process, it could largely reduce the heating time.
6.Pneumatic Pressure Device
It is provided pneumatic pressurizing device, which can adjust the pressure in the practical situation, greatly decrease the operation difficulty and impaction equipments, changing the controlling method may modify the high-frequency process technology.

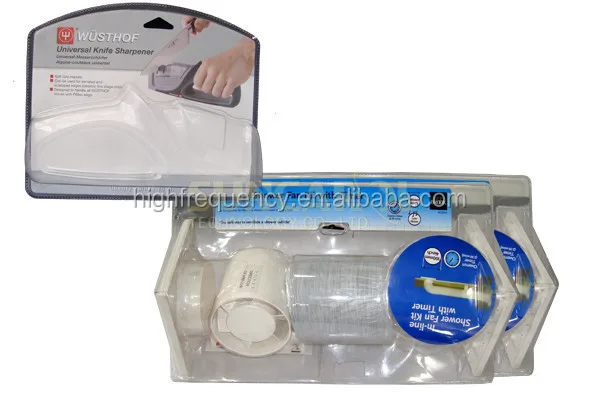

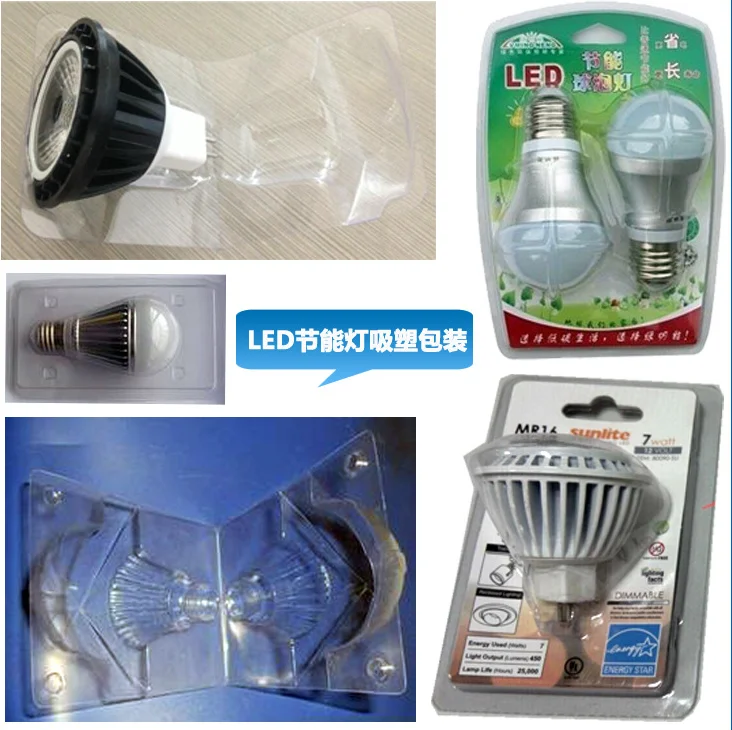

Application

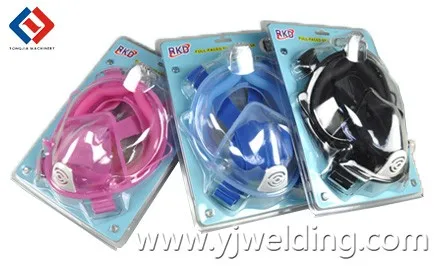

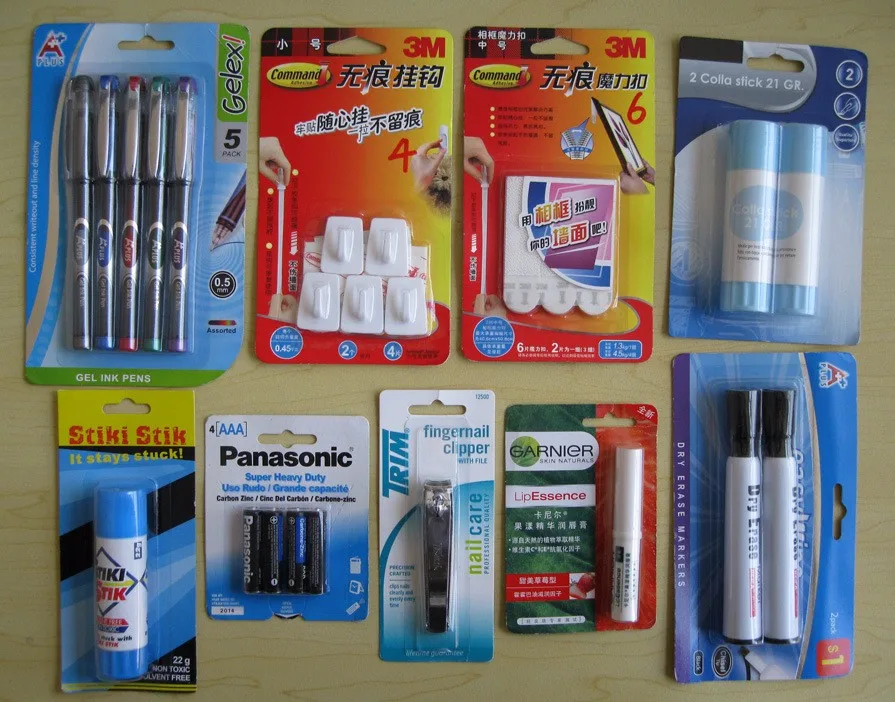

high frequency lip balm/lipstick blister packaging machine Final products done with HF welding .
P.V.C dual-sided suction sealing, welding of P.V.C soft or hard plastic with P.V.C content
of 10% or above,genuine leather, fabric embossing, etc.Such as:air blowing toys,
raincoat,umbrella,stationery label,mobile,plastics heath, shoe trademark, leather
bags,handbags, toothbrush package, carpet embossing, plastic bubble packing
Operation
(1) production operation: single-head ,operator only need to put in the products,rotary or push plate trigger the micro switch, then the mold will automatically down,heating ,up ,the whole process is convenient and safe.
(2) Adjustment of output force: use low loss coaxial oscillator, can adjust strong and weak of the output force according to the size of mold and thickness of sizing material,avoid interference telecommunication when operating; adjustment of output force also can cooperate time,the largest output,welding at the shortest time,improve production.
(3) Protective device:current-limiting protection:when the output power adjustment is too large,it will cut off output power to protect the electronic tube from damage due to excessive current. Sparks protection: if mold produces fire when operating,protector will cut output,the mold also will automatically rise,departure the product and avoid mold to damage caused by fire.
Emergency system: when working we can stop the high frequency output at any time then the mold go back to normal position .
(4) Heat temperature: This machine except high frequency heating,also have 1000W hot line and thermostat make mold preheating to speed up the welding time and eliminate the phenomenon of fire.
(5) Rise distance: this machine is with a time system,can set-up a pump rise distance, in order to reduce the pump required for launch and recovery time,improve production speed.
Certifications
Packaging & Shipping
