Product Overview

Description

LED UVC Sterilizer Air for Air Conditioner Air Purifiers

UVC LED Air r Air Purifiers Disinfection Lamp









Parameter
Item		Unit		Min	Type	Max
Power Consumption (OPTIONAL)		Watt		0.5	1	31.2
Output Power(OPTIONAL)		mW		8mW	12mW	15mW
Input Voltage (OPTIONAL)		V		DC12V or DC24V
Viewing Angle  2Θ 1/2		degree			60
Spectrum Half Width		nm		8	10	14
IP grade				IP54
Operating Temperature		ºC		-30		50
Storage Temperature [2]		ºC		-40		80
Size		mm			D38XH11mm



Installation Instructions:

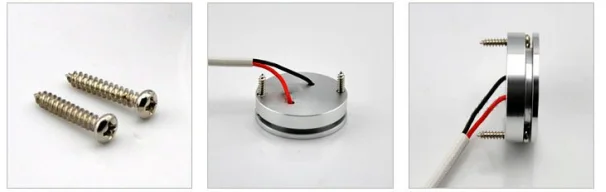

This part is designed as a small module with a maximum exterior size of 38mm, which is easy to fit inside air conditioner and purifier type of appliances. The main part of the module has a spare screw hole available for bolting the module inside the appliances.
This sterilization module focuses ultraviolet light (the view angle is about 60° as shown in Fig.3, and UV radiation outside the 60° view angle is <5%). It is best installed in the narrow interior spaces of air purifiers as light will not be easily blocked or absorbed by the appliance, boosting up UV utilization rate.
After the module position is fixed, connect the power terminal to a 12V/24V voltage power source according to the correct polarity (red positive black negative). It is recommended to add a control switch in the control system for timed and cyclic operation, extending the life of the module.



We suggest customers with air purifying applications to install the module as below:
1.Air conditioner, fresh air ventilation systems etc:                                2.Air Purifiers etc:





Our factry

















Why you choose Greenergy

1,Partners in the Workplace,A list of outstanding organizations we have teamed with to help building a successful quality controlling program.

2,Our LED Sterilizer are sold to reseller professionals in over 50 countries worldwide for years.
3,All of our LED Sterilizermade fresh within one month of your order, and has a two year warranty.
4, LED Sterilizerin the China in accordance to strict industry regulations.
5,All of LED Sterilizer are subject to continuous laboratory quality testing.

6,We offer top quality light fixtures for prices well below the market standard.



Quality Control:
In order to continuously enhance the quality of management and meet customers’ needs, we have passed through the ISO9001 quality management system certification
 fixtures modern are produced through standard procedures conducted by trained staffs.
100% of the led light fixtures will be tested and keep lighting for 24 hours to test its quality reliability , and we will also test its temperature after 24 hours lighting.
Then after it is cool we again test 100% of the lamps to see if it still work well . Each led Cabinet light should pass all these QC procedures before the packing.



Trade Terms:
1. Payment term: T/T, L/C ,Western Union,Paypal
2. Lead time : normally in 5~10 days after confirmation .
3. Sample policy : Samples are always availble for each model,though it will be charged.
4. Shipping port: Changsha , China

Delivery detail:
Carrier is available by express,or sea shippiung or ordinary air cargo,



Our services:
1. we will reply you in detail within 24 hours
2. We own well-tranied and passional sales & after- sale services who can speak fluent Engligh language
3. We offer OEM services. Can print your own logo on product , can customize the retail box packing and other things.
4. We have very experienced R&D engineers and we have strong ability to do ODM projects.
Quality is guaranteed by professional team of R&D and QC.



About Us

The Leader of UV LED and UV Sterilizer, Greenergy Lighting in LED  for yeears, covers around 1000 square meters in Changsha China. We focus on providing environment-friendly but energy saving LED solutions to our people.

Our products range from UV Didoe to UV Sterlizer
