Product Overview

Description

Assembly line self adhering molding device,self adhesive waterproof membrane production line

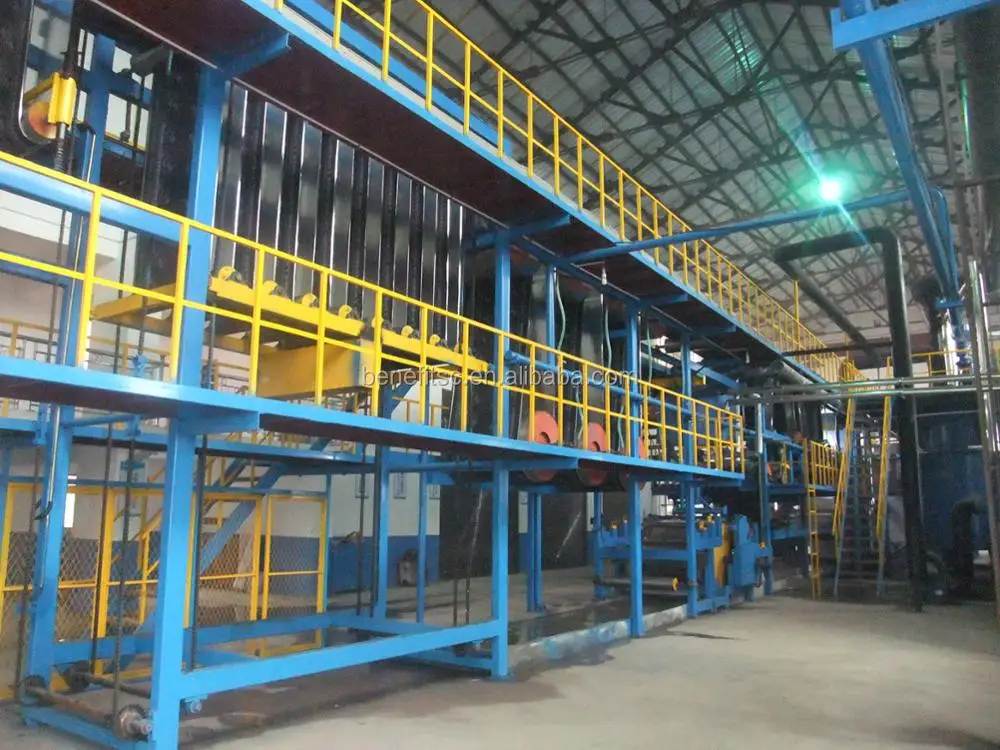

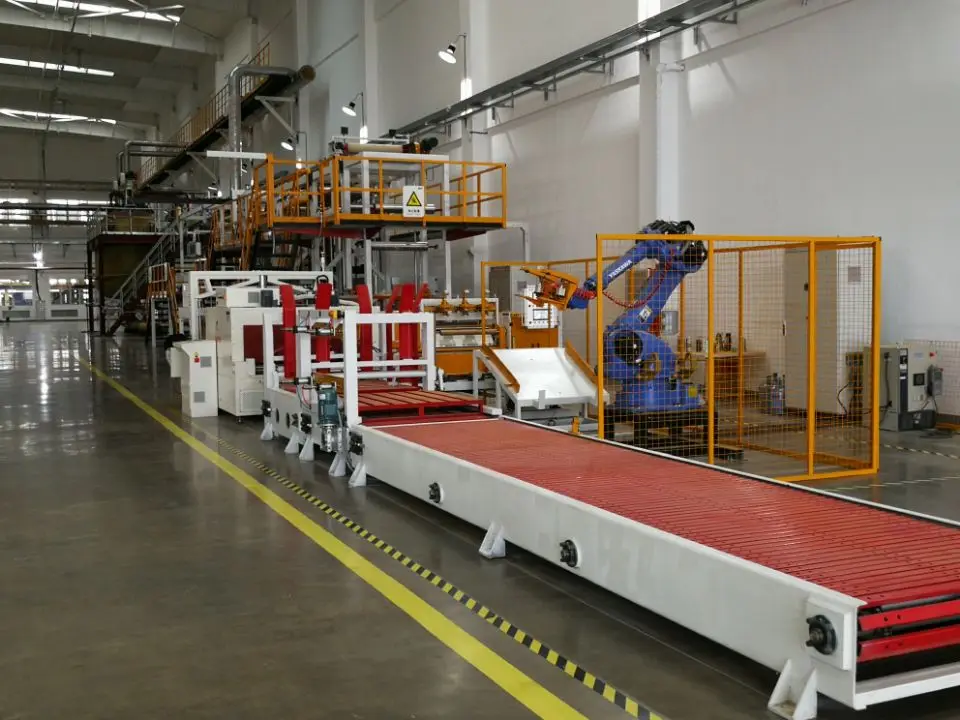

The whole parts of the modified bitumen waterproof membrane line
1.Reinforcement unwinding device
2.Reinforcement splicting device

3.Reinforcement storing and drying device

4.Central aligner

5.Recoating and tension control device

6.Asphalt coating device

7.Sand-scattering device

8.Filming and thickness-measuring device

9.Sand-pressing with uspending cooling device

10.Cooling and embossing device

11.Reinforcement storing and drying device

12.Drawing-spring device

13.Auto winding machine

14.Mixing-weighing system

15.Storage tank

16.Powder-conveying system

17.Fume treatment system

18.Heating with boiler system



Technical Data



ITEM		APP/SBS Modified Bitumen Membrane Production Line
Capacity ,m2/year		For 3mm-thick products ,the annual output of various modified bitumen waterproofing membrane  can be 10 millions sqm per year , with 250 annual manufacturing days per year , 2 working shifts per day and 8 hour working time per shift
Width		1000mm
Reinforcement		Polyester mat ,fiberglass, compound
Modified materials		SBS,APP,Rubber powder
Facing materials		Self-adhesive ,Silver sand ,Slate flakes ,PE film ,Aluminum foil ,etc
Linear speed		5-60m/min(adjustable)







 Flow Chart





Process:

Modified bitumen membrane production line is that making asphalt ,rubber powder ,machine oil ,stone  powder together to be the mixed material, then to make the material glue with base materials after heating and extruding ,next step is that composited PE film or rock particles on the double side of formed membrane ,the device is automatically formed ,cooled and adjusted by tension control ,automatic rolled into winder membrane which control by traction device,finally made up bitumen waterproof  membrane ,it has good production structure ,and good properties of peel strength ,tensile strength tear ,elongation ,low temperature,aging and other comprehensive performance is very good ,it can be used directly by self adhesive and paste roasted ,and it also can be boned directly on the concrete base ,adhesive strength ,difficult to falling ,construction is extremely simple and convenient.



Working principle



The whole working principle can be divided into 3 steps.



1.To mix the bitumen,rubber powder , talcum powder , engine oil and some other raw materials via mixing tanks(the mixing tank should be kept warm by conduction oil).The finished mixtures can be called bituminous mixtures .

2.The bituminous mixtures will be deliveryed into coating pools.Then the base material(reinforcement)will be coated with the bituminous mixtures.At last ,the coated reinforcement will be covered by PE film or sand or other materials.At that time ,the bitumen membrane preliminary forming.

3.The finished products will be cooled by water and air,then be rolled by auto-winder.



The scope of application



Self-adhesive rubber asphalt waterproofing membrane can be applied to the general industrial and civil construction and other waterproof performance has a higher requirements of the waterproofing works.It can be used for all parts of underground buildings (including basement floor, elevator shaft, basement exterior wall, basement roof, etc.) and roof, podium, balcony (terrace), bathroom waterproof and moisture.
