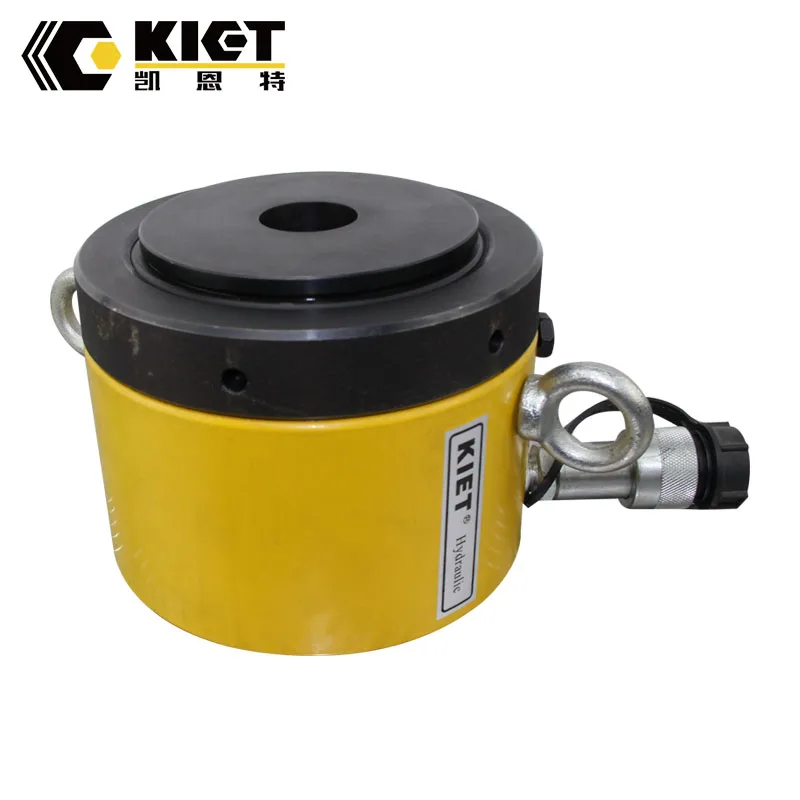

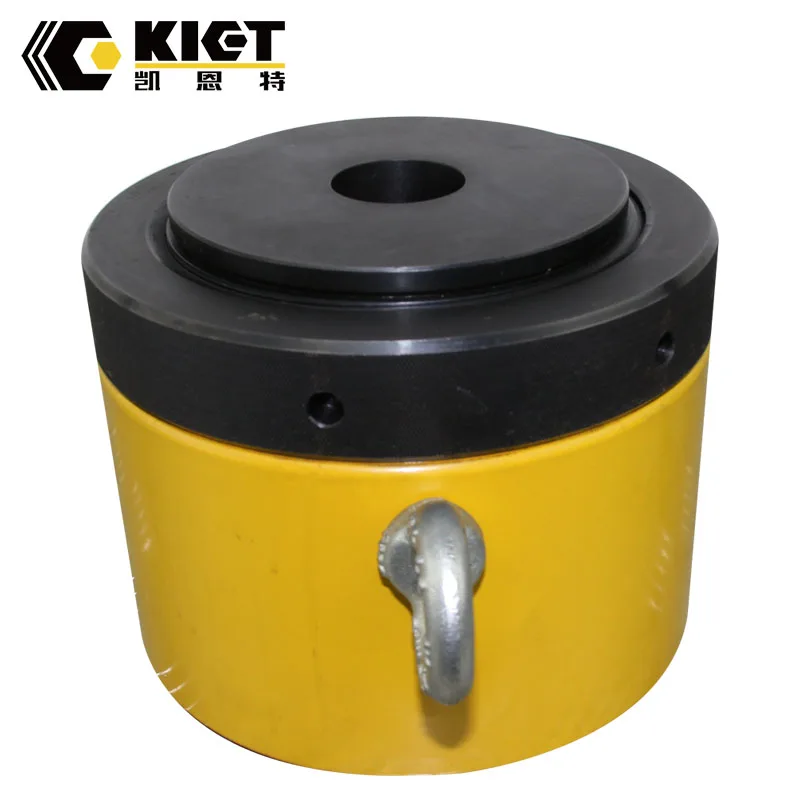

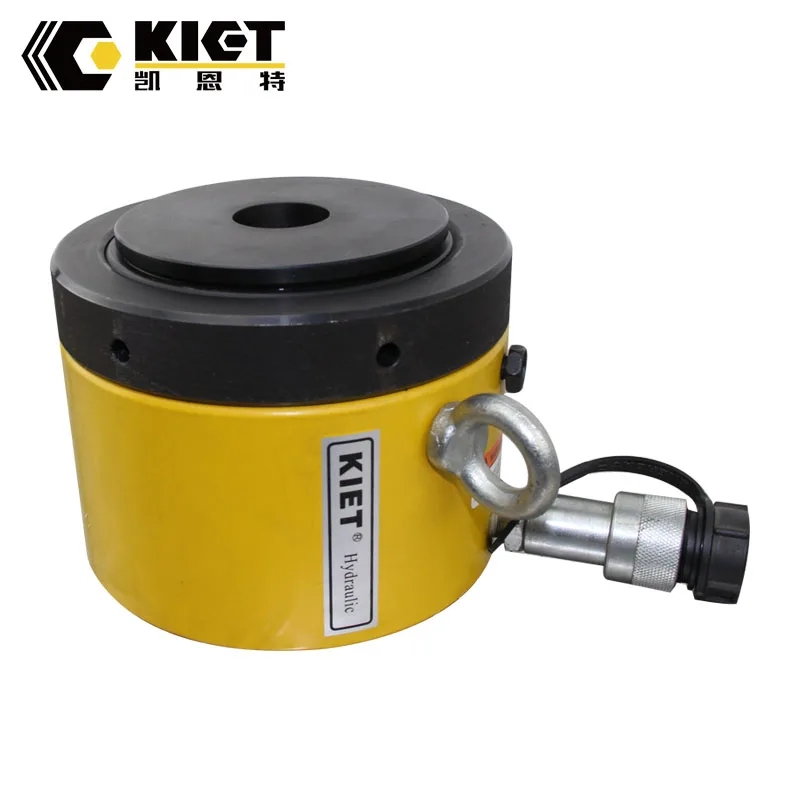

Гидравлический масляный домкрат блокировочная гайка 60 тонн гидравлический цилиндр

Share on (60701278194):


Price:

Quantity:


Product Overview

Description


Cylinder





Hydraulic Oil Cylinder for 60 ton Hydraulic Cylinder





Jiangsu Canete Machinery Manufacturing Co.,Ltd





Product Description:









  • § KIET pancake lock nut cylinders have a flat design for use in confined areas

  • § Safety lock nut for mechanical load holding

  • § Single-acting load return

  • § Special bearing design resists sideload forces

  • § Overflow port functions as a stroke limiter

  • § CR-400 coupler and dust cap included on all models














































































































Model
Number






Cylinder


Capacity



Stroke



Cylinder
Effective Area



Oil
Capacity



Collapsed
Height(A)



Extended
Height(B)



Outside
Diameter(D)



Weight



ton (kN)



mm



cm2



cm3



mm



mm



mm



kg



KET-CLP-602



60 (606)



50



86,6



432



125



175



140



15



KET-CLP-1002



100 (1027)



50



146,8



734



137



187



175



26



KET-CLP-1602



160 (1619)



45



231,3



1040



148



193



220



44



KET-CLP-2002



200 (1999)



45



285,6



1285



155



200



245



57



KET-CLP-2502



260 (2567)



45



366,8



1650



159



204



275



74



KET-CLP-4002



400 (3916)



45



559,5



2517



178



223



350



134



KET-CLP-5002



520 (5114)



45



730,6



3287



192



237



400



189

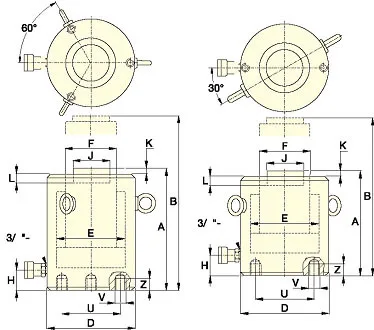

Drawings and parameters:





CLS series.jpg

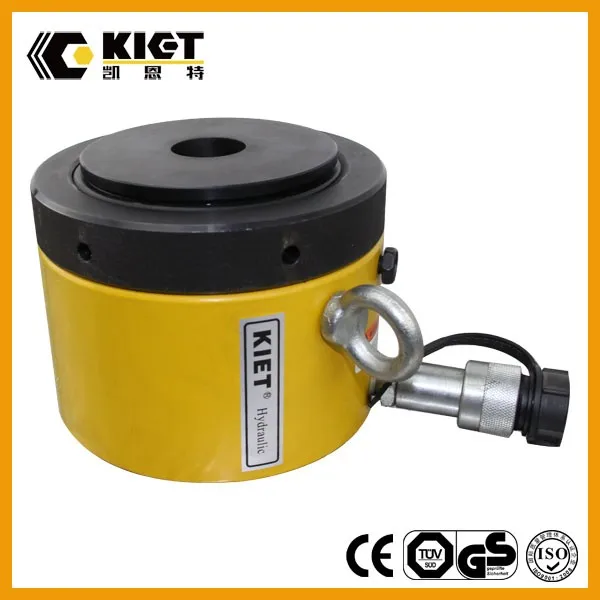

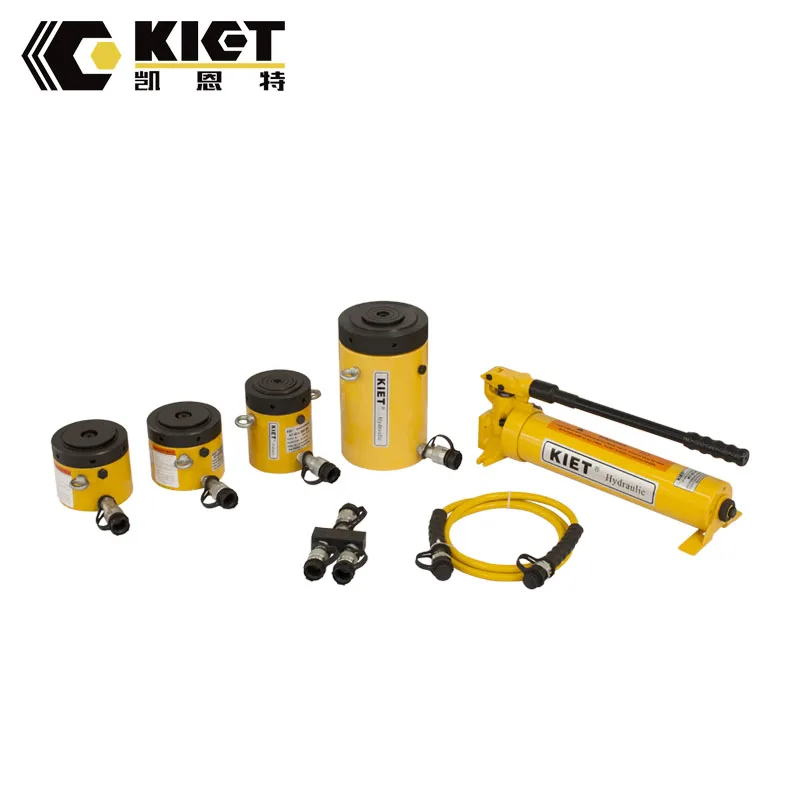

Products Photos:




 IMG_0563 (1).jpg





Packaging & Shipping:



We provide wooden packing for each hydraulic cylinder, which can perfectly protect , the shipping canb













express

Our Service:




KIET provide one year guarantee  for all the hydraulic cylinders. We promise if there is any dysfunction of the hydraulic cylinder during the quality warranty not by outside force, we will replace a new cylinder for free. Any quality defects reported by customers will be responded in 24 hours.





FAQ:


Q1: How can contact sales?


A1: Please call: 0523-81569666 for pre-sales or click the contact find our website and email address.


Q2: How can I buy Kiet products in my country?


A2: Please send us an inquiry or email, we will reply to your if there is distributor in your country.


Q3:  How long does it take to get the product If I place an order?


 A3: If products stock available, after confirmation of your payment or advance payment, we will pack


 and deliver in 3-7 days. If you select international parcel service, it can be arrived in 3-7 days. If it is by sea


shipment, it will take 15-45 days depending on different locations.


Q4: How to make payment?


A4: First send us an inquiry, and we will reply you quotation, if our price suits you, we will prepare proforma


invoice with our banking details.


Q5: Manufacturing time?


 A5Please send us an inquiry for stock condition, if we don't have stock, and it is our standard products  (refer to our model), it can be produced in 10-0 days. If it is customized, not our standard products, it will take 20-45 days to produce.

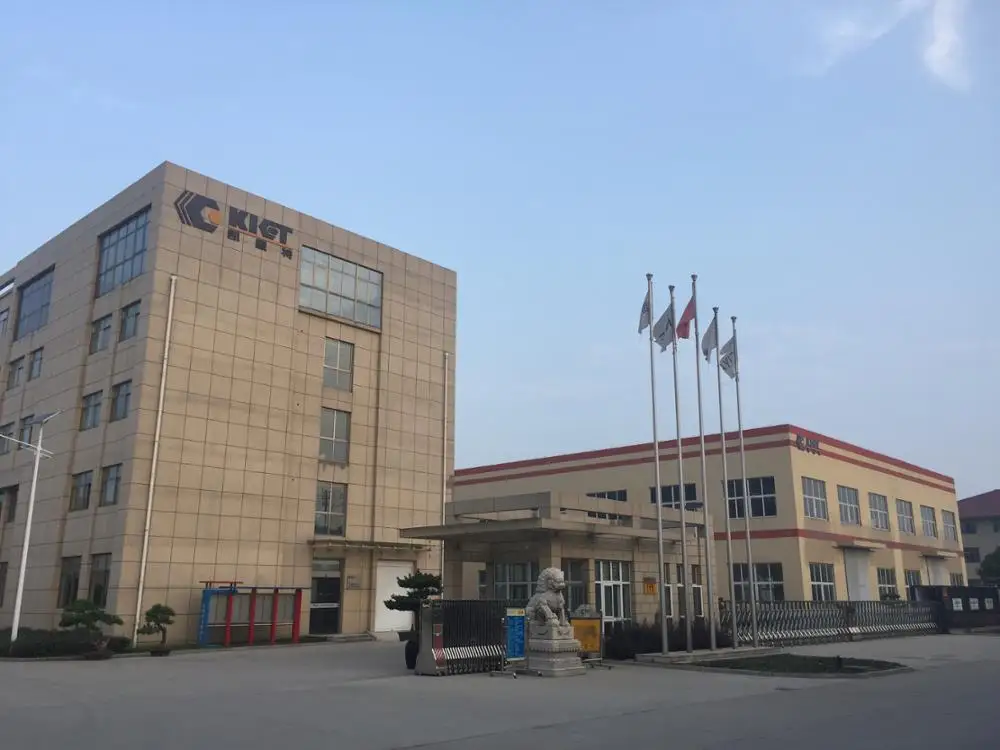

Company Information










Jiangsu Canete Machinery Manufacturing Co.,Ltd. is a manufacturer engaged in design and manufacturing hydraulic cylinders (capacity covers from 10- 1000 tons), synchronous PLC hydraulic system, hydraulic pumps, hydraulic torque wrenches, and electric torque wrenches, and hydraulic components.


We successfully transformed from OEM manufacturer for Enerpac, Titan, to create our own brand KIET, and our factory has been approved by CE, ISO9001:2008 consecutively.


Our customers includes many big Chinese industrial companies, such as China Petroleum, Baosteel, Sinopec, China State Grid, Jiangnan Shipyards, Sany Group, China Railway Construction Corporation. Our synchronous PLC hydraulic system had played a great role in the China high-speed railway constructions. In 2011, our sales revenue reached 30 million USD, making us one of the leaders in the Chinese hydraulic cylinders market especially in the extra-high hydraulic cylinders for industrial area and construction field.


  IMG_6633








We are a manufacturer in tools, such as:


• Hydraulic cylinders, jacks (5-1000ton), single acting and double acting, hollow plunger;


• Hydraulic/ electric /pneumatic torque wrench (100-72000Nm);


• Hydraulic bolt tensioner (100-11486NM); Hydraulic pullers (5-100 ton)


• Hydraulic pumps, manual and electric type (max up to 3000bar);


• Integrated hydraulic lifting system solutions ( 4-72 points lifting system for house translation or leveling, bridge supporting and tank welding supporting)


• Hydraulic nut and couplings. (M50-Tr1000)


Our products have been widely used in industrial field such as steel plant, cement industry, chemical and refinery, bridge, railway construction and maintenance.


 Hydraulic Cylinder





Hydraulic Tools





Hydraulic Torque Wrench

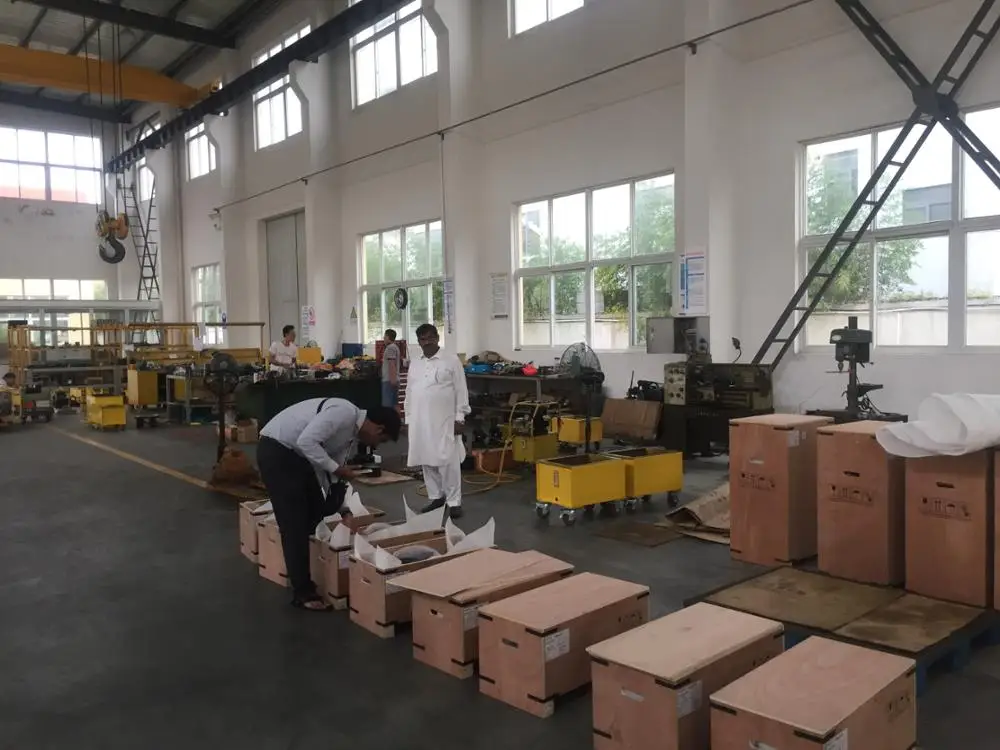

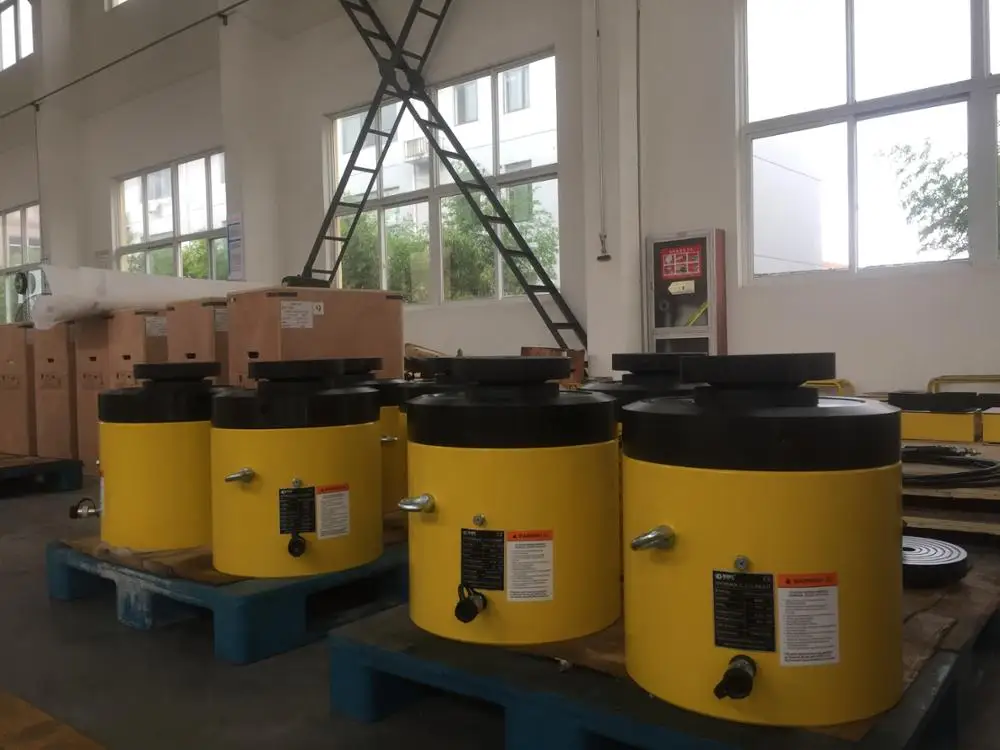

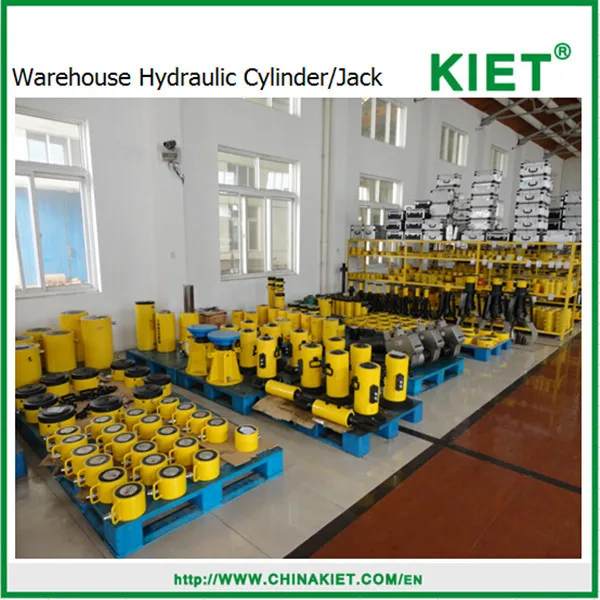

Warehouse

















Certificates:





CE, ISO9001:2008
