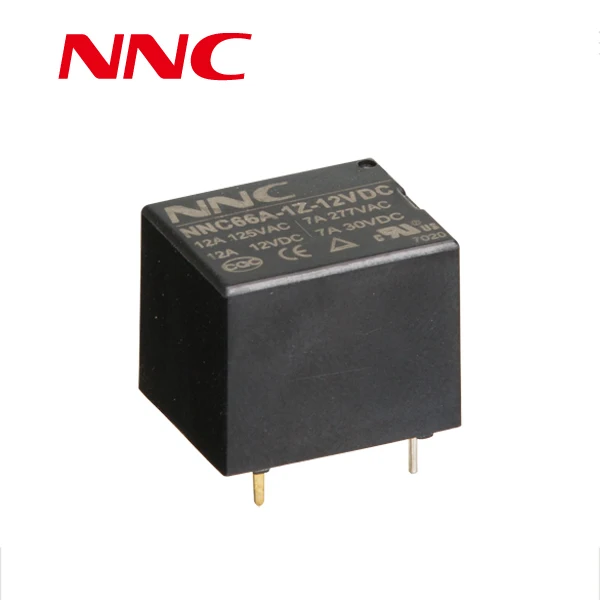

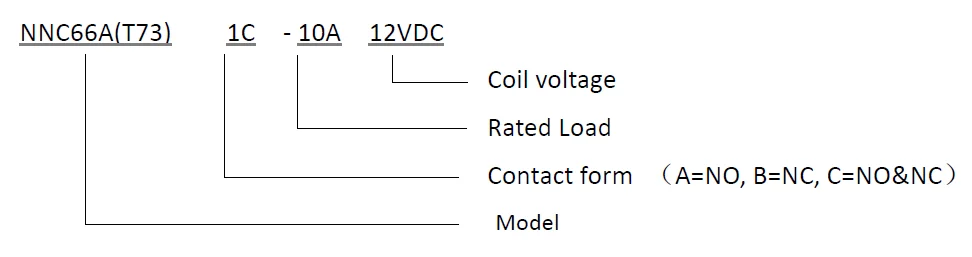

Part NO.			NNC66A(T73)
Dimension			19*15.5*16
Contact Feature	Form		1A,1B,1C
	Rated load		5A/277VAC 30VDC	7A/277VAC 30VDC	10A/277VAC  30VDC
	Contact resistance		≤100mΩ
	Material		Silver Alloy
	Electrical life		≥1*105
	Mechanical life		≥1*107
Operate voltage (23℃)			DC:≤75%*Rated voltage
			/
Release voltage (23℃)			DC:≥10%*Rated voltage
			/
Maximum voltage (23℃)			110%*Rated voltage
Normal coil voltage		DC	3-48V
		AC	/
Normal coil power		DC	0.36W(0.45W,0.54W)
		AC	/
Pick-up time			≤10ms
Release time			≤5ms
Dielectric strength	Between Same-pole contacts		750VAC/1min(leakage current 1mA)
	Between Opposite-pole contacts
	Between contacts and coil		1500VAC/1min(leakage current 1mA)
Insulation resistance			≥100mΩ(500VDC)
Ambient temperature			-55℃ ~70℃
Ambient humidity			35%-80%RH
Atmospheric pressure			86-106KPa
Shock resistance			10G (sinusoidal half-wave pulse: 11ms)
Vibration resistance			10-55Hz (double amplitude: 1.5mm)
Installation			PCB
Packing	Inner box		Plastic pipe	25PCS
			Foam box	100PCS
	Outer box		Plastic pipe	2000PCS
			Foam box	1000PCS
	Dimension of the carton		2000PCS CTN	420*235*230MM
			1000PCS CTN	295*205*300MM
	Weight		1PC	Approximate 10g
			2000PCS CTN	G.W:21KG N.W:20KG
			1000PCS CTN	G.W:10.5KG N.W:10KG
