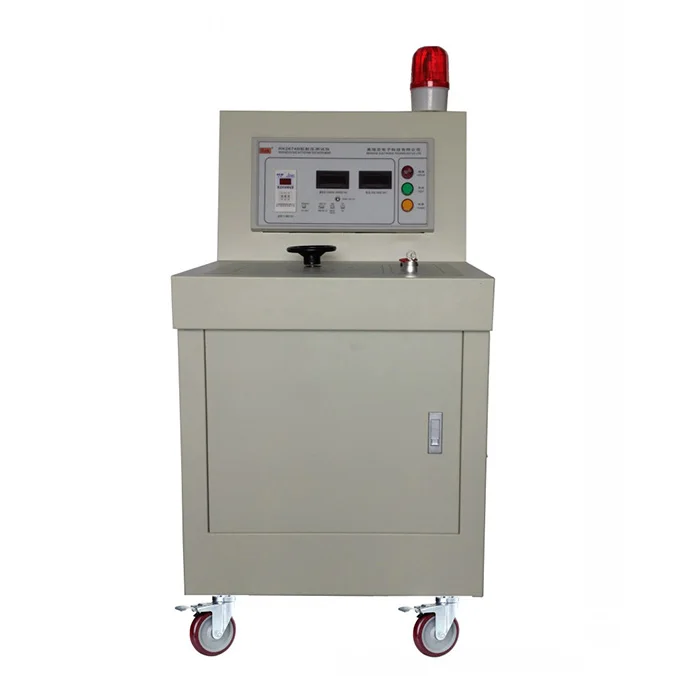

Insulation Digital High Voltage Test Equipment

Share on (60701376627):


Price:

Quantity:


Product Overview

Description


Technical Parameter



Parameters

Rated Capacity:

50kVA

Input Voltage:

0-400V

Output Voltage:

5kV

20kV

Output Current:

10.0A

2.5A

Distortion:

<8.0%

Operation:

continuous 30min, 1 day 8 times

Dimensions

650mm(L)×560mm(W)×780mm(H)

Length with bushing is 980mm

Weight:

590 kg

Cooling:

ONAN























































Product show





Characteristics

 The testing voltage, current, withstand voltage time are pre-settable. It can be operated automatically and manually.
 The voltage can be regulated continuously; the wave form isn’t distortion and abnormality.
 With zero position function, voltage upper limit, low limit, over-current, over voltage breakdown protective function.
 The Alarm has sound and light.
 When the test is over, it can return to zero automatically.
 After withstand high voltage test, it can be discharged apace.
 It can be connected with internet, and transmit all the data to one computer.





Procedure



Related Roducts



Company Information





FAQ



1.Q:What's the payment terms?
A:T/T,30% deposit and 70% balance before delivery.
2.Q:How to order?
A:You can send me an inquiry,then we could comfirm the details through emails or telephone.
3. Why your machine similar with other supplier?
We are manufacturer and had been in this industry for more than 10 years. We design machines by ourselves with advanced technology and import high quality material. Appearance just a part of machine, Service and quality is more important than it.
4. What kind of machines can you supply to customer?
We could offer various kinds of machines and whole production line
5, How long the gurantee: one year and charge for repair the whole life.
6, what is kinds of package?
normal will be the wooden box and pallet and will be prepared based on your requirment.
