Печь для карбонизации древесины большой емкости на продажу

1) The carbonization furnace tank and cage adopts 304 stainless steel. The price will be negotiated additionally.
2) The unit price does not include lifting frame and electric hoist, denominated separately.
3) Carbonization capacity,temperature and time is decided by the material moisture content, density, particle size and carbonized depth(volatile and reserve amount).While adjust the carbonization process parameters or change the raw material, the equipment daily output will be changes.
4) Dingli company is responsible for the client's site planning, process design, equipment installation guidance and training etc.

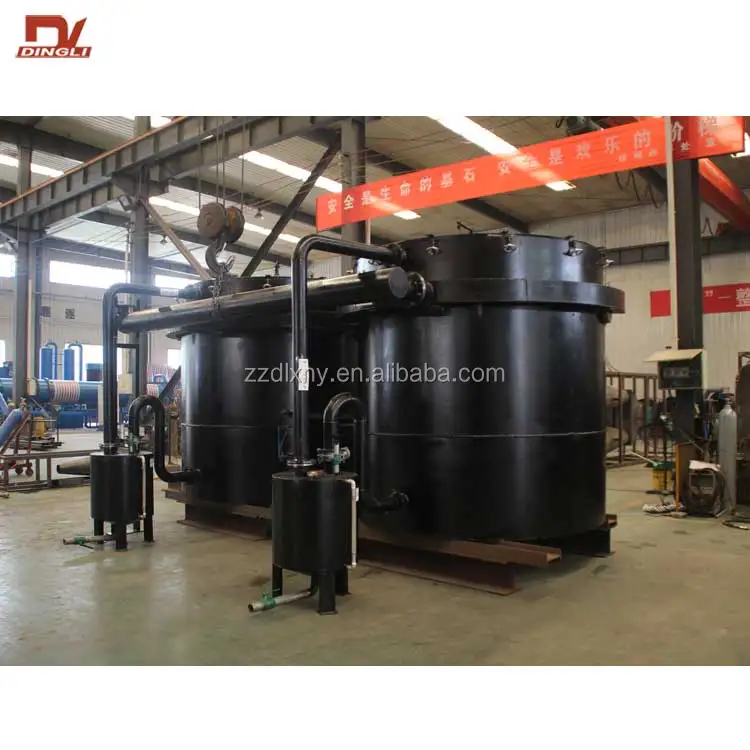

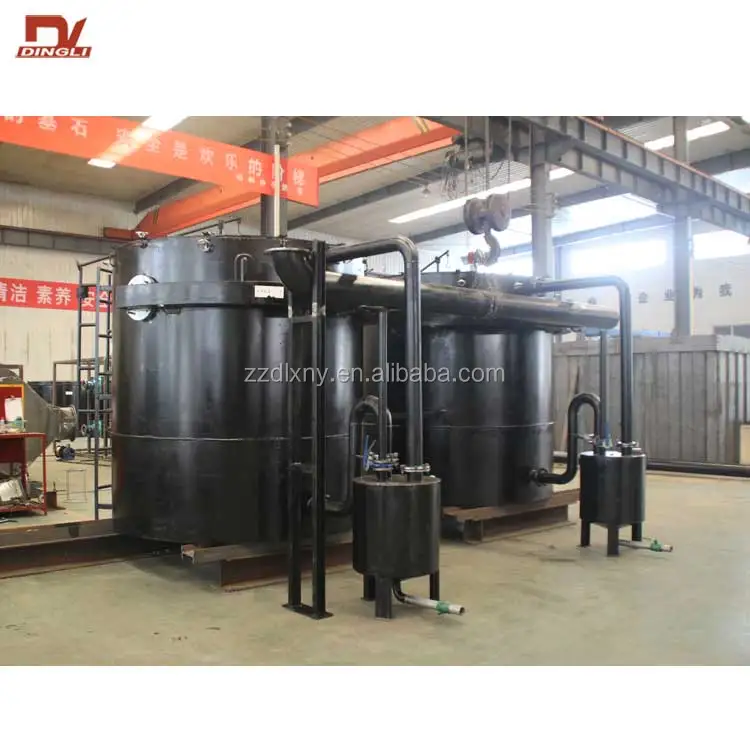

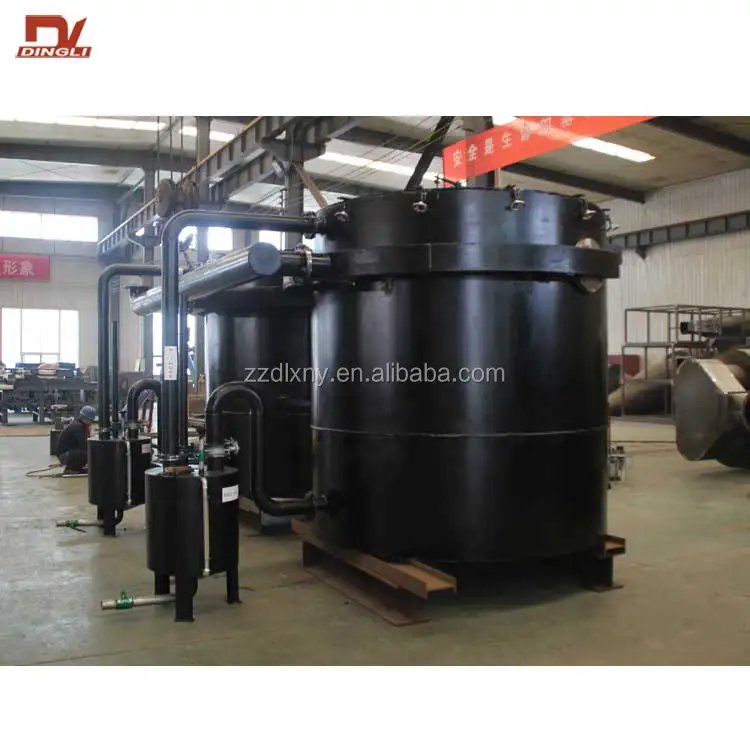

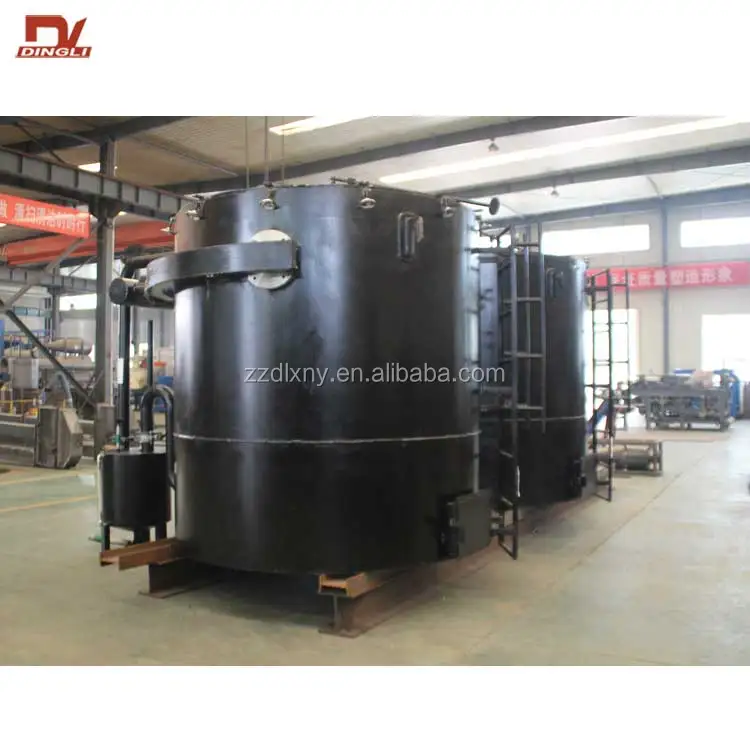

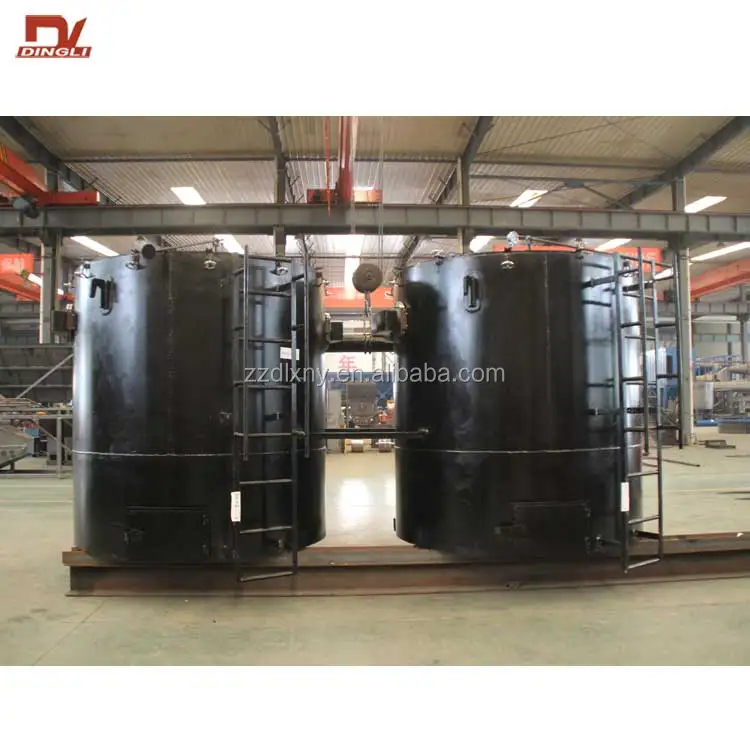

Dingli biomass dry distillation carbonization furnace is composed by carbonization furnace body, furnace cover, inner tank, material cage, combustible gas return pipe, exhaust pipe, flue gas dust removal device, tank lifting device and thermometer.
The furnace adopts the principle of anaerobic dry distillation to remove the volatile substances in the biomass, and achieve the purpose of biomass carbonization.
Carbonization process have four steps: charging sealing furnace - preheat drying - anaerobic carbonization - cooling carbon.

Charging sealing furnace is putting the biomass core rods, shells and other materials into cage. The cage is divided into two or three layers. in turn into the inner tank, cover, lock the buckle, lifting the charging tank into the furnace. Preheat drying in the furnace with wood and other fuel heating, slowly heated from room temperature to 220-250 ℃, the process time 1.2-2.0 hours (according to the material moisture content, density, particle size determines the specific heating time), and discharge the material moisture and the air in the tank.

Anaerobic carbonization is the furnace temperature to the beginning of weak yellow smoke in the smoke pipe (hydrogen and other volatile substances) discharge, that is the beginning of carbonization, recovery of combustible gas into the furnace ignition, adjust intake air, maintain the tank temperature 300-450 ℃ for 2.0-3.5 hours (according to the carbonized material density, particle size, and carbonization depth requirements determine the specific temperature and carbonization time).

When the furnace is natural flameout, namely for the end of carbonization. Cooling out the carbon is hanging out of the tank from furnace, into the cooling area of natural cooling or spray water cooling, until the inner tank temperature dropped to below 50 ℃, then open the cover out of charcoal. The total furnace temperature and carbonization time is 3.5-5.5 hours. It can complete 3-6 furnace time in 24 hours.

Exhaust gas through dust collector treatment to reach discharge standards. 3 sets of carbonization furnace in parallel use, peak shifting carbonization, which can be completely used volatile gas heating carbonization furnace, without using additional fuel.

We can help optimize the drying process according to the property of different materials, production scale, application requirements, cost control, automation level and site condition.

Your device will be packed well in container and suit for long ocean shipping.

Pre-sale
1. According to your needs, select right model for you.
2. According to your special requirements, design customized solution and manufacture customized products for you.
3. Welcome your visit.
Sale
1. Sign contract, pay deposit, we arrange production.
2. Product acceptance.
3. Help you formulate construction scheme.
After-sale
1. Assign engineer service for you on-site freely.
2. Install and adjust device, train how to operate.
3. After installation, leaving 1-2 technical staff to help you on-site production, until achieve customer satisfaction.

Biomass Rotary Dryer

Sawdust Dryer

Chicken Manure Dryer

Beer Yeast Drum Dryer

Brewer Spent Grain Dryer

Biomass Wood Pellet Production Line

Coconut Fiber Dryer

Coal Slime Dryer

Belt Dewatering Machine

1. Over 200 employees, 98% professional technical personnel;
2. Factory size over 15,000 square meters;
3. 480 Inventions & Patents
4. Exported over 80 countries,300 global partners;
5. Rank 3rd in China Drying Industry;
6. Customize Drying Production Line.

Below are Dingli Dryer Factory & Sales Team & Production Workshop Pictures:

Below are Dingli Group Honors & Certificates & Patents:

Dingli Dryer Production Line has exported to over 80 countries with 300 foreign partners, such as Germany, Britain, United States, Italy, Israel, Chile, Thailand, Russia, Vietnam, India, Cambodia, Indonesia, Malaysia, Thailand etc.

After reach deals, Dingli Engineer will fly to your address, install and adjust machine for you freely.
Also train you operation skills, until you are satisfied.

A:We are a 15 years factory, all our machinery are manufactured by ourselves, factory direct sales, product quality and after-sales service can be guarantee.

A: Yes. Many domestic and international customers visit our factory every year. Our company is located in Zhengzhou Henan province, China, you can come here by air or train.
The nearest airport is Zhengzhou Xinzheng International Airport, and the Airport Code is CGO.
We will pick you up at airport. Welcome to visit our factory.

A: Dingli Group products come with best quality, and our products passed CE certification, exported to lots countries around the word, such as Australia, Malaysia, India, Italy ,Indonesia, Vietnam, Philippines, Korea, Brazil, Argentina, Russia, South Africa, etc. You can rest assured with the quality absolutely.

A: 1.What is the raw material for the production line?
2. What is the capacity per hour you required?
3. What is the maximum input size of the raw material?
4. What is the output size and application for the final product?
You can send inquiries from this page.Once we get your answers,we can provide you the best quotation immediately.
Remarks: The price will depend on different models.
