Product Overview
Description
SURELINK outdoor single mode G652D armoured fiber optical cable
4core 8core 12core 24core fibra optic cable GYXTW
PRODUCT SPECIFICATIONS

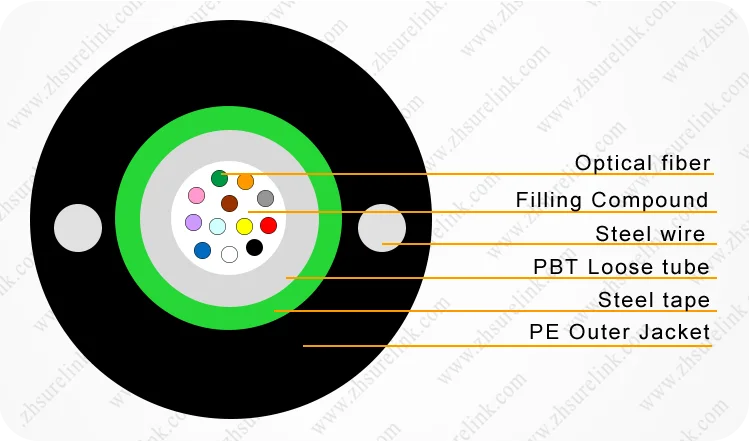

1.Product Structure
2.Technical specification
Cable structure and parameter
Fiber count | Tube diameter | Steel wire diameter | Sheath thickness (nominal*) | Overall diameter (nominal**) | Weight (approx.) |
mm | mm | mm | mm | kg/km | |
6 | 2.5 | 1.0 | 2.3 | 8.4 | 73 |
12 | 3.0 | 1.0 | 2.3 | 8.9 | 81 |
* The nominal sheath thickness may have a tolerance with 0.2mm.
* * The nominal overall diameter may have a tolerance with 0.2mm.
* * The nominal overall diameter may have a tolerance with 0.2mm.
Performance of Cabled Optical Fiber
The performance of cabled optical fiber (ITU-T Rec. G.652D)
Item | Specification |
Fiber type | Single mode |
Fiber material | Doped silica |
Attenuation coefficient @ 1310 nm @ 1383 nm @ 1550 nm @ 1625 nm | ≤ 0.36 dB/km ≤0.35 dB/km ≤0.22 dB/km ≤0.25 dB/km |
Point discontinuity | ≤ 0.05 dB |
Cable cut-off wavelength | ≤ 1260 nm |
Zero-dispersion wavelength | 1300 ~ 1324 nm |
Zero-dispersion slope | ≤0.092 ps/(nm².km) |
Chromatic dispersion @ 1288 ~ 1339 nm @ 1271 ~ 1360 nm @ 1550 nm @ 1625 nm | ≤3.5 ps/(nm. km) ≤5.3 ps/(nm. km) ≤18 ps/(nm. km) ≤22 ps/(nm. km) |
PMD | ≤0.2 ps/km½ |
Mode field diameter @ 1310 nm | (8.6~9.5)±0.6 um |
Core / Clad concentricity error | ≤0.6 um |
Cladding diameter | 125.0 ± 1 um |
Cladding non-circularity | ≤1.0% |
Primary coating diameter | 245 ± 10 um |
Proof test level | 100 kpsi (=0.69 Gpa), 1% |
Temperature dependence 0℃~ +70℃ @ 1310 & 1550nm | ≤ 0.1 dB/km |
Cable bending radius: 10 x cable diameter (static)
20 x cable diameter (dynamic)
20 x cable diameter (dynamic)
Application temperature range
Operating temperature range | -40℃ to +60℃ |
Storage / Transport temperature range | -40℃ to +60℃ |
Installation temperature range | -20℃ to +50℃ |

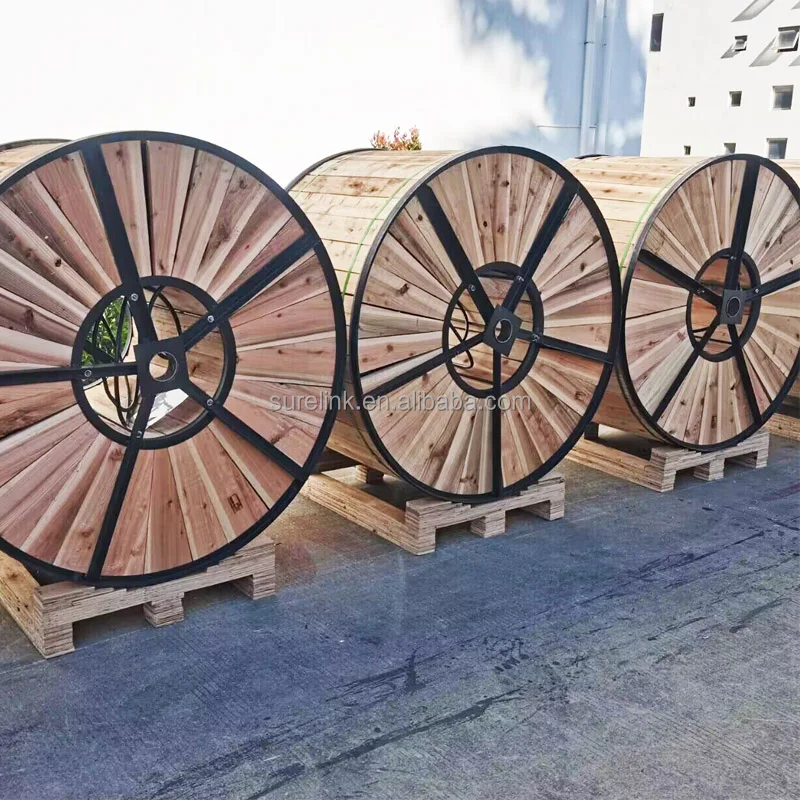

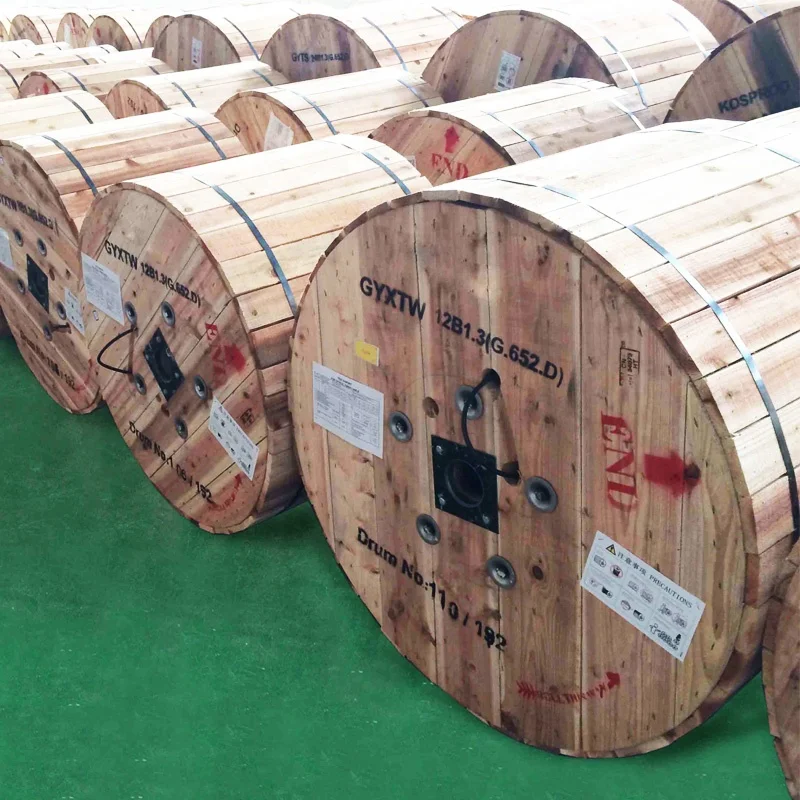

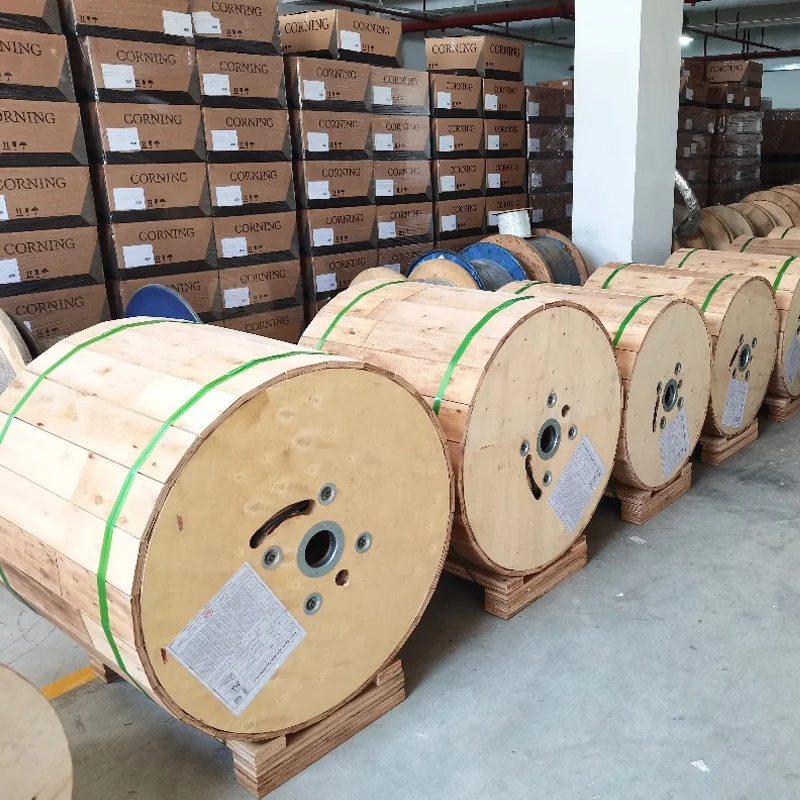

Packing

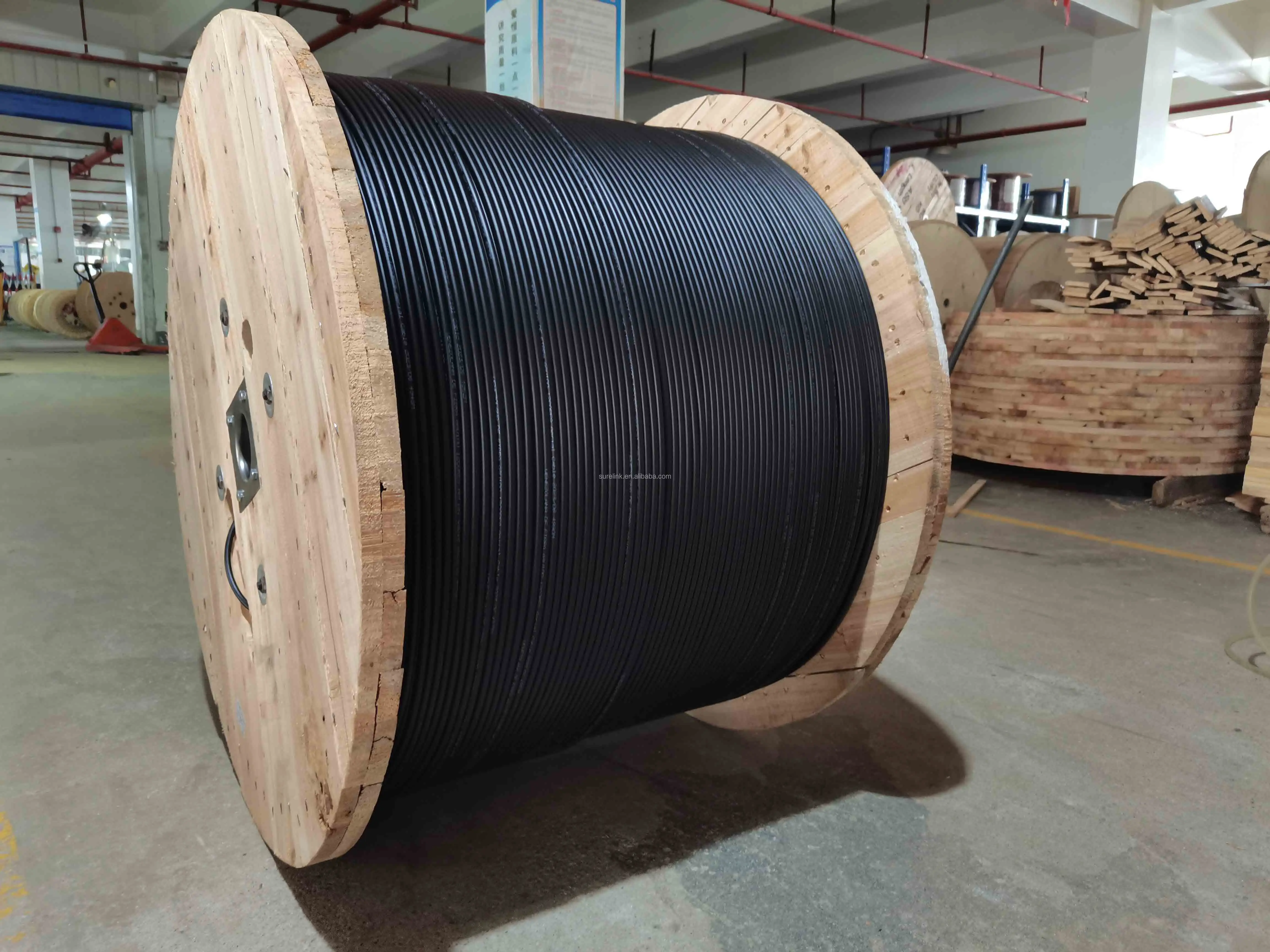

Each single cable length been wound on an iron stand-wooden composite or pure wooden drum.
Standard drum length is 2000m ±2%, or it can be delivered as customer requirement but not longer than
6000m with a tolerance.
Covered by plastic buffer sheet.
Sealed by strong wooden battens.
At least 1m of cable inner end should be reserved for testing.
Standard drum length is 2000m ±2%, or it can be delivered as customer requirement but not longer than
6000m with a tolerance.
Covered by plastic buffer sheet.
Sealed by strong wooden battens.
At least 1m of cable inner end should be reserved for testing.
SIMILAR PRODUCTS
COMPANY PROFILE
Zhuhai Surelink Communication Cable Co.,Ltd is one of the leading manufacturer in the cables and telecom accessories. We have more than 20 years experience in this line.Our factory has over twenty production lines and 300 employees.
Our productions comply with ISO9001.Professional team,powerful factory and strict quality control give best service to our clients and the quality guarantee in every order.
Our products have been widely installed in Telecom companies and many distributors around the world.
We export to more than 70 countries and our annual revenue is more than hundreds of million USD.
We have established a close relationship with many companies around the world and we sincerely look forward to woking with all clients from all over the world.
Our productions comply with ISO9001.Professional team,powerful factory and strict quality control give best service to our clients and the quality guarantee in every order.
Our products have been widely installed in Telecom companies and many distributors around the world.
We export to more than 70 countries and our annual revenue is more than hundreds of million USD.
We have established a close relationship with many companies around the world and we sincerely look forward to woking with all clients from all over the world.

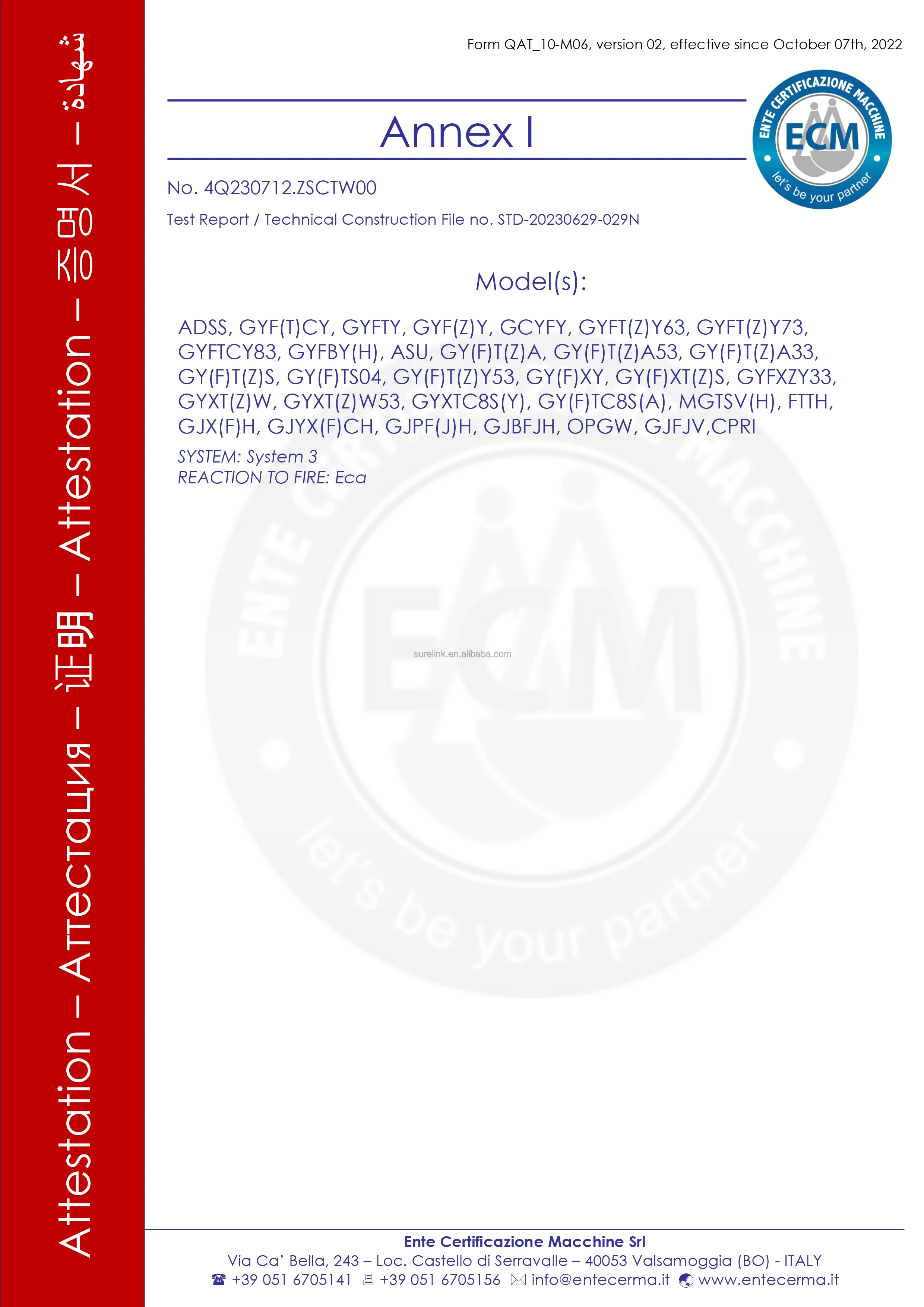

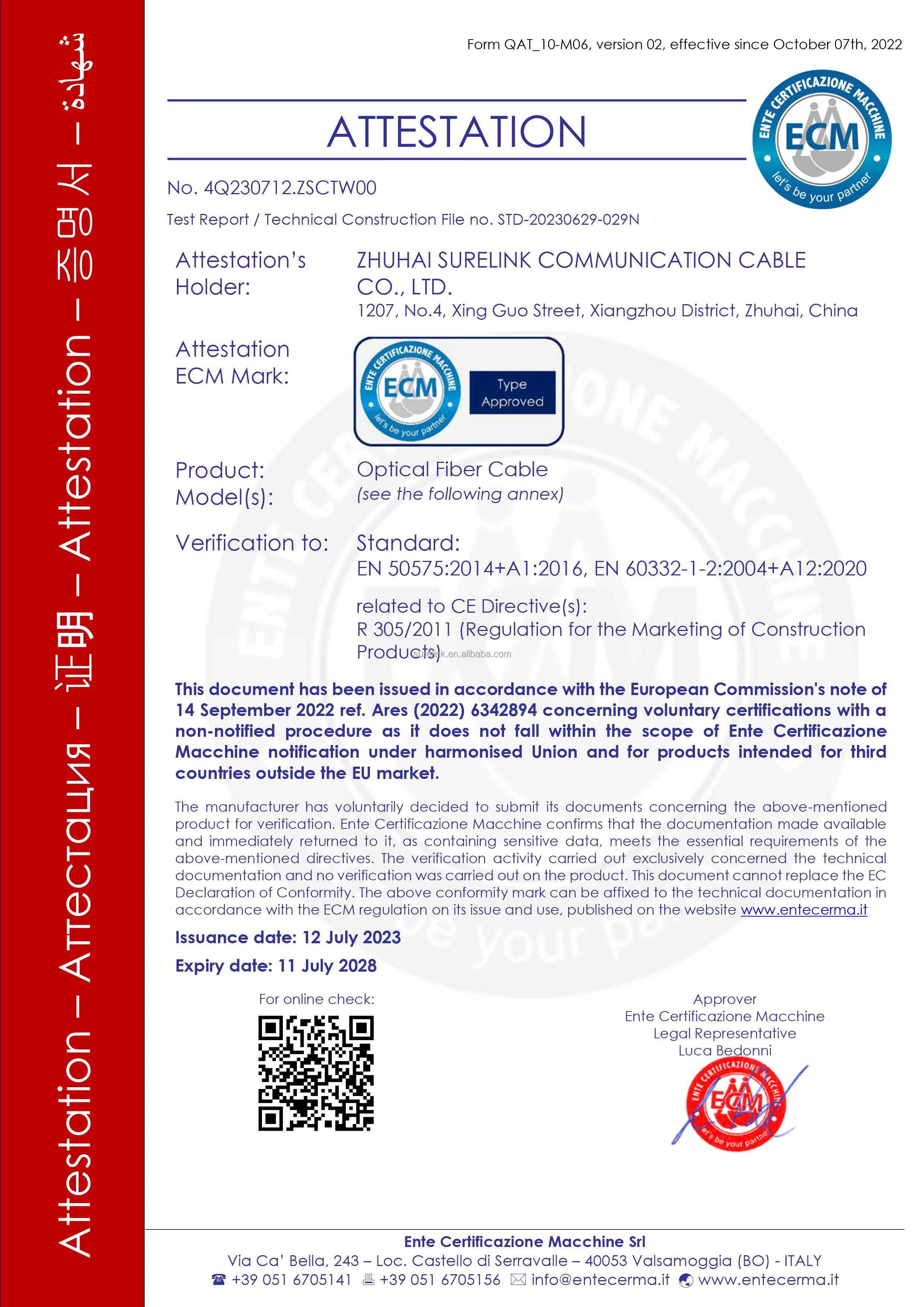

CERTIFICATE
