Dongfeng 4 куб. М асфальтовый распылитель spredear 4000 литровый нагреваемый битумный распылитель распределительный резервуар
- Category: Other Trucks >>>
- Supplier: Hubei Veldlion Machinery Co. Ltd.
Share on (60701517782):
Product Overview
Description
Specifications:
1. Volume of tank: 4000-6000L
2. Spreading width: 4500-6000mm
3. We accept OEM&ODM and CNCA+CCC+ quality warranty
I. PARAMETERS DATASHEET OF Bitumen Spray Truck/Asphalt Spreader Truck
| Overall Dimension(L*W*H) | 5995x2000x2650 mm | Total Mass | 7300kg | |
| Kerb Weight | 3745Kg | Rated Payload | 3425 Kg | |
| The parameters of chassis | ||||
| Chassis Model | VLD1070 | Driving type | 4x2 | |
| Engine | Model | CY4102-C3F | ||
| Rated Power | 70kw/95hp | |||
| Displacement | 3856ml | |||
| Max. torque /rotate speed | 220N.m/1300-1500RPM | |||
| Maximum power | 95(km/h) | |||
| Fuel type | Diesel oil | |||
| Emission standard | Euro3 | |||
| Front suspension | 1032mm | Rear suspension | 2058mm | |
| Front track | 1506mm | Rear track | 1466mm | |
| Wheel base | 3300mm | Leaf spring number | 8/9+5 | |
| Tyre | 7.00-16 | Tyre number | 6+1(spare tyre) | |
| The parameters of tank | ||||
| Volume of tank | 4000L | Spreading width | 4500-6000mm | |
| Heat conduction oil | with | Spraying medium | heated asphalt,Thermal modified asphalt, cut-back asphalt, emulsified asphalt | |
| No.of spray nozzle | 46 | Control method | computer control,1 control 1 | |
| spreading volume | 0.2-3L/m2 | Control system | siemens brand DLQ-39-01 | |
| Max.spraybar width | 6m | Asphalt pump | QGB680 high viscosity asphalt pump | |
| Gasoline engine generator | 6kw | Logo printing | according to customer's request | |

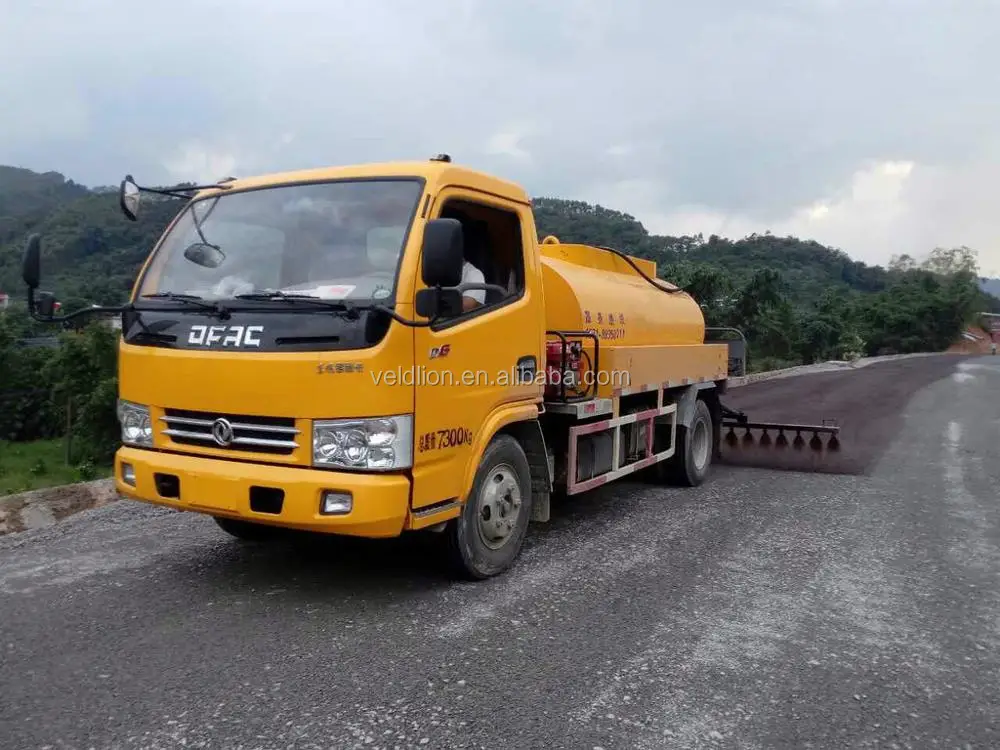

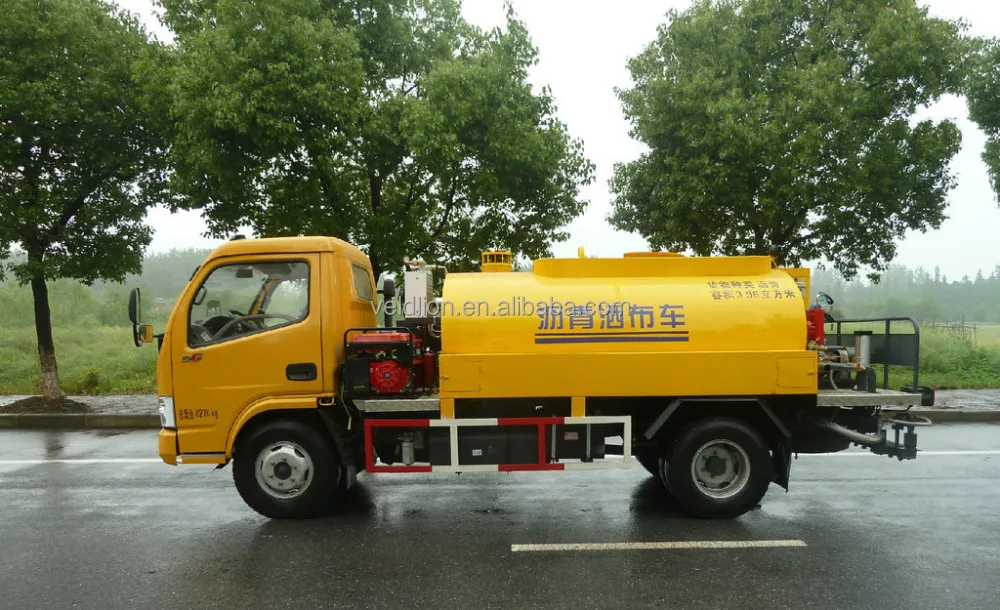

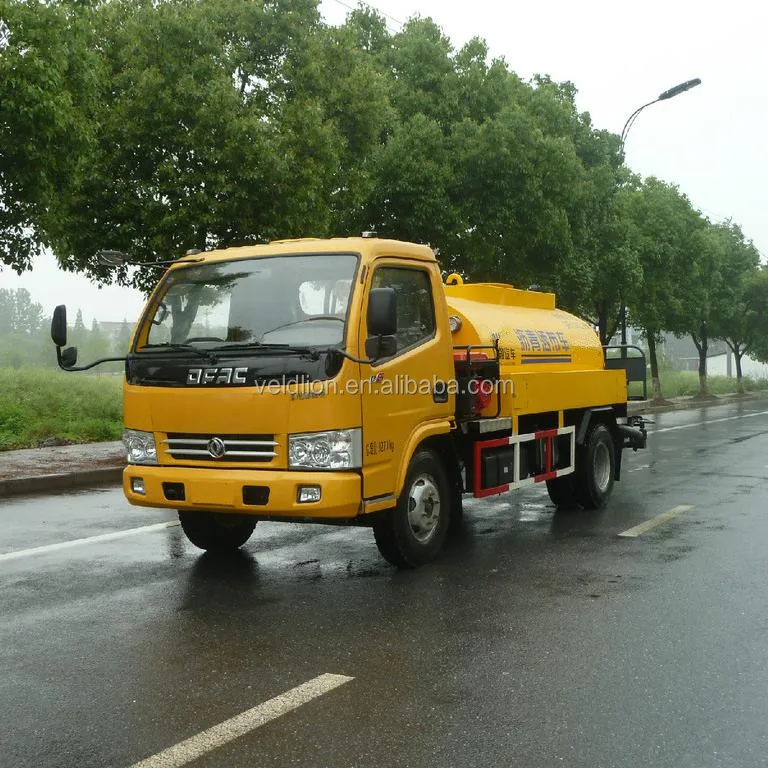

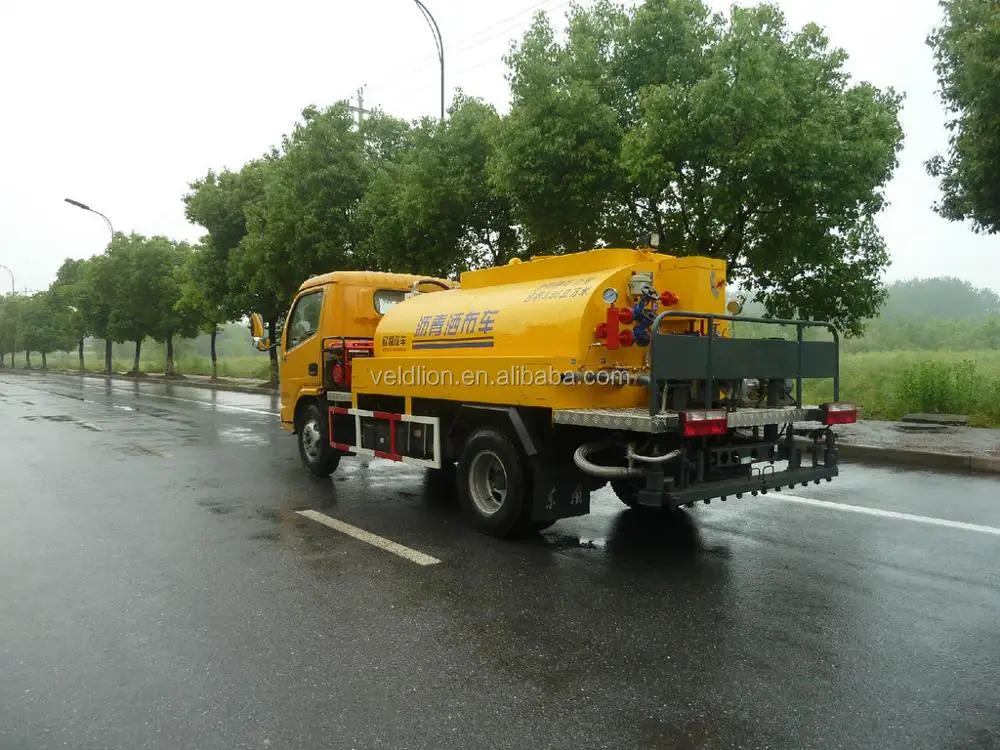

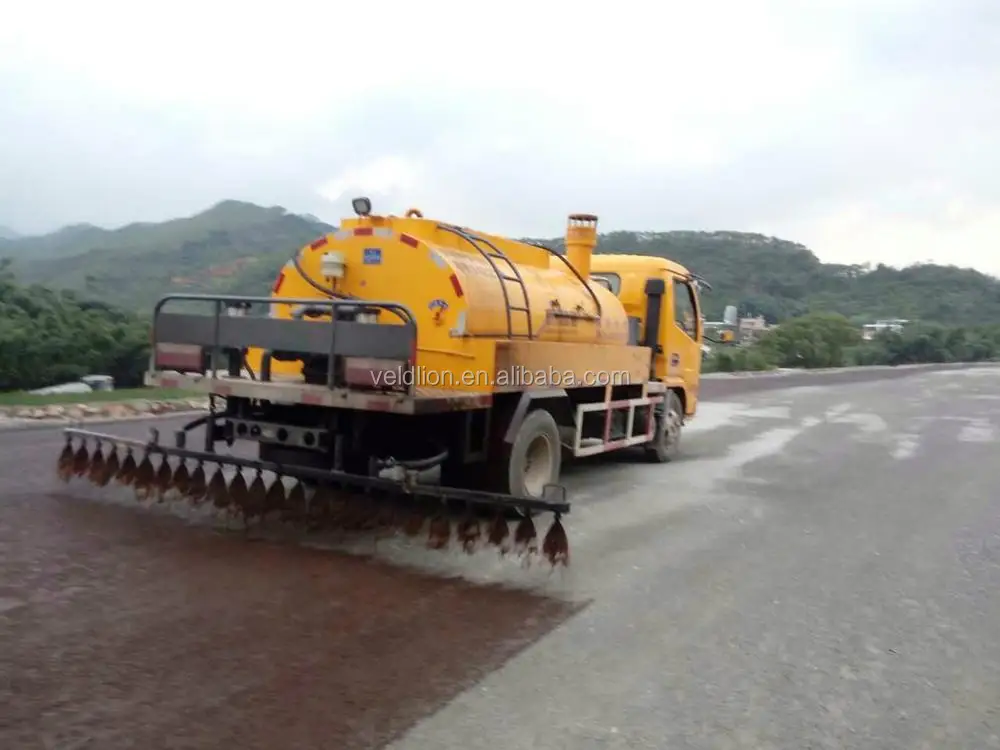

Truck Images

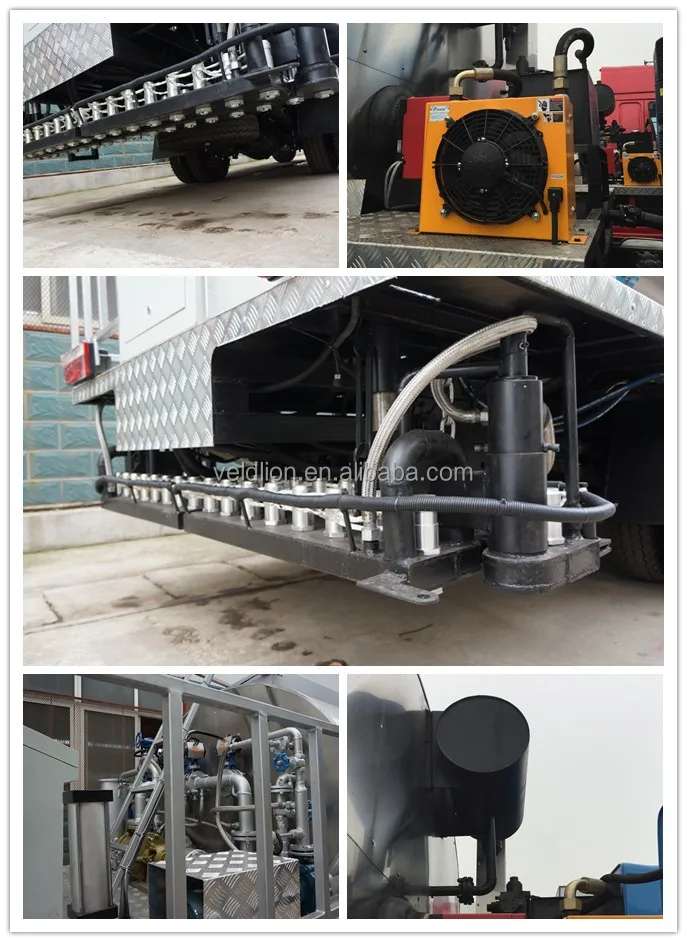

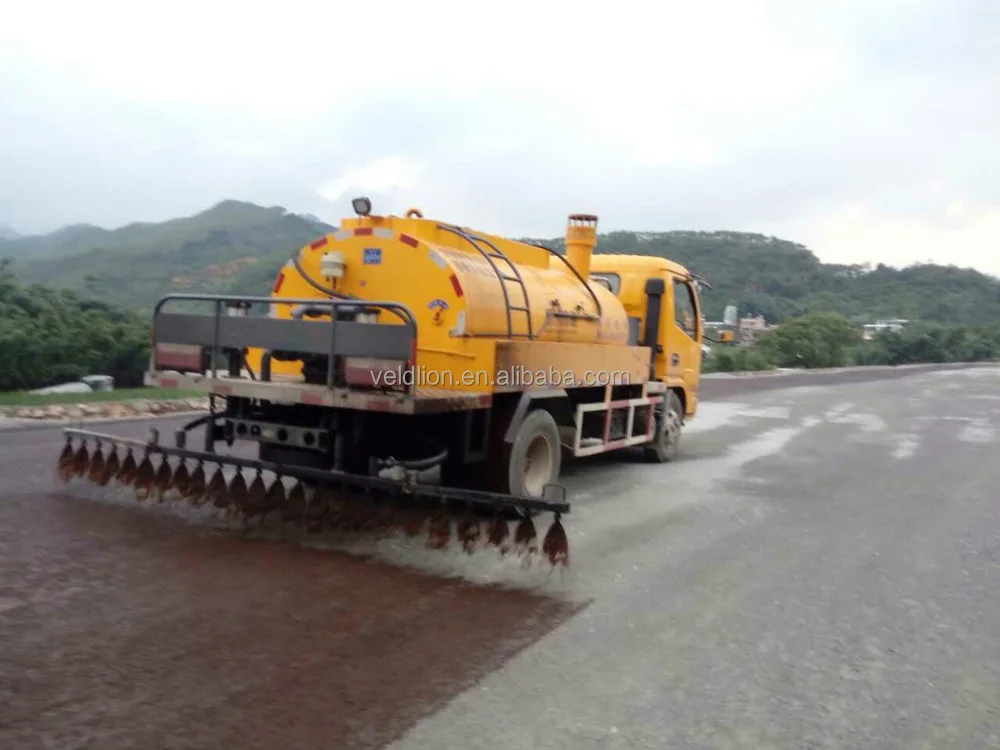

II. PRODUCT PICTURES of Bitumen Spray Truck/ Asphalt Spreader Truck
Company Information
III. COMPANY INTRODUCE
HUBEI VELDLION MACHINERY Co., Ltd is an authorized special truck manufacturer. We are specialized in the production of a variety of special-purpose vehicles.
Creating value for our customers is our company's concept. Welcome to enquiry from us, Let's our sales team make you more great in this field.
Our main products:
1. Chemical liquid tank truck (LPG TANKER)
2. Fire engine truck
3. Truck mounted with crane
4. Heavy duty truck, dump truck
5. Water truck,
6. Fuel tanker,
7. Van truck, insulated truck, refrigeration truck
8. Fecal suction truck, sewage suction truck,
9. Concrete mixer truck,
10. High-altitude operation truck,
11. Self-loading garbage truck, garbage compactor truck, sealed garbage truck,
12.Bitumen spray truck
Packaging & Shipping

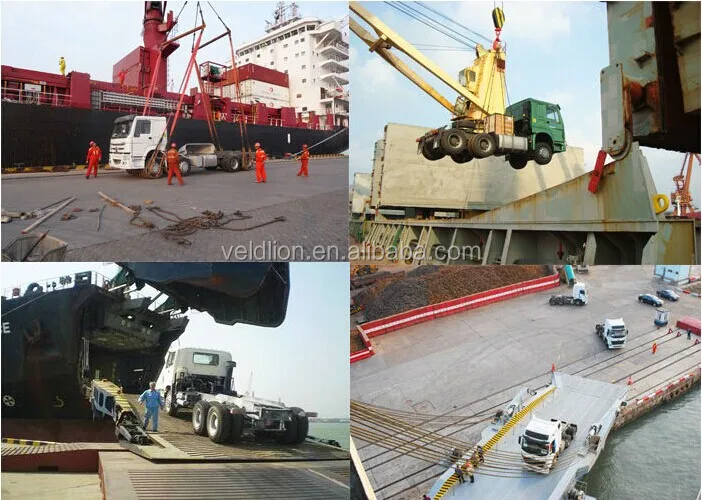

IV. Packaging and shipping of trucks:
Our Services

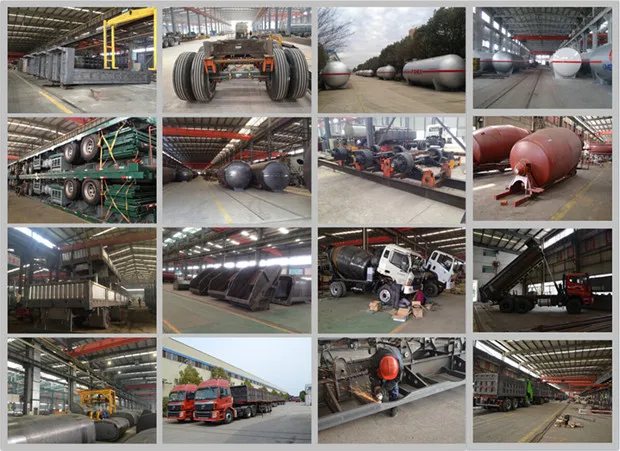

V. OUR FACTORY Strong advantage:
1. More than 300 workers, large and advanced production;
2. Have professional engineer, can offer the best and cheapest design;
3. Build strict QC team to guarantee the quality;
4. Own profesional sales team, can offer follow-up service;
5. High quality with resonable price;
6. Euro II, III, IV, V emission standard are optional.
FAQ
1.Q:How about the warranty?
A:One year
2.Q:Do you have ISO certificate ?
A:Yes , we have,pls contact us to get our certifications.
3.Q:How about the delivery time?
A: It depends on the style of truck ,normally around 30 working days
4. Q:How about shipping ?
A:Big size trucks always shipping by RORO or Bulk ship or flat bed container or open top container , small type can shipping by container ,Pls contact us to get a shipping quotation .
5. Q: How do you control the quality of product?
A:our workers are well trained. Our very product under goes a scrutinizing inspection process.
6. Q: How about your product After-sales service system?
A:Our main export country have accepted after-sales service,some of country used the third department service.
7.Q: Do you accept Custom orders? What’s is your MOQ order?
A:Yes, we do, our MOQ is 1 set.
8.Q: What’s the payment terms?
A:By T/T or L/C at sight.
