36 inch gate valve

Product Overview

Description

                              36 inch gate valve





We supply Big Gate valve, 28''-48'' are all available.



General Specification

Standard	AWWA C509/C515, DIN3352, BS5163/5150,Gost
Pressure	PN10/16/25, Class125/150/250
Face to face	DIN3202 F4/F5, ANSI B16.1,BS EN558-1
Stem	Rising and Non rising both available
Sealing	Metal and Resilient both available

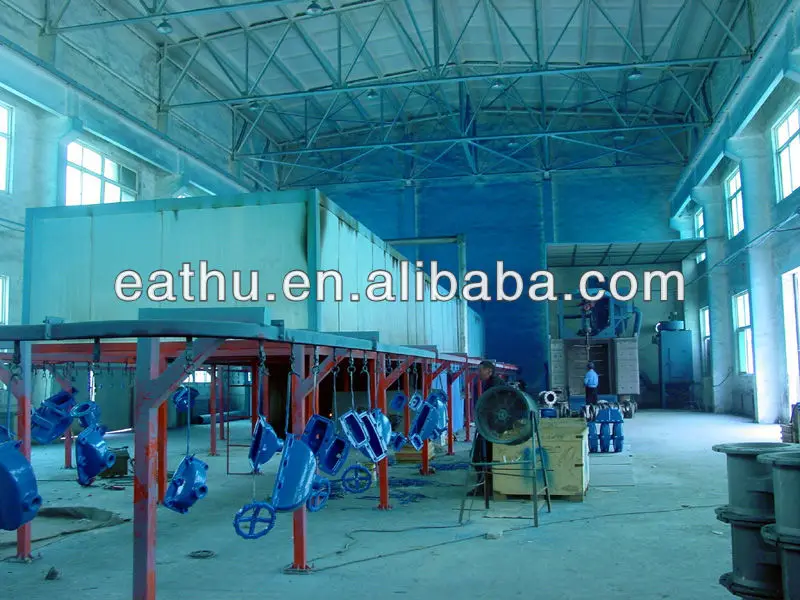

Surface	Fusion-bonded epoxy

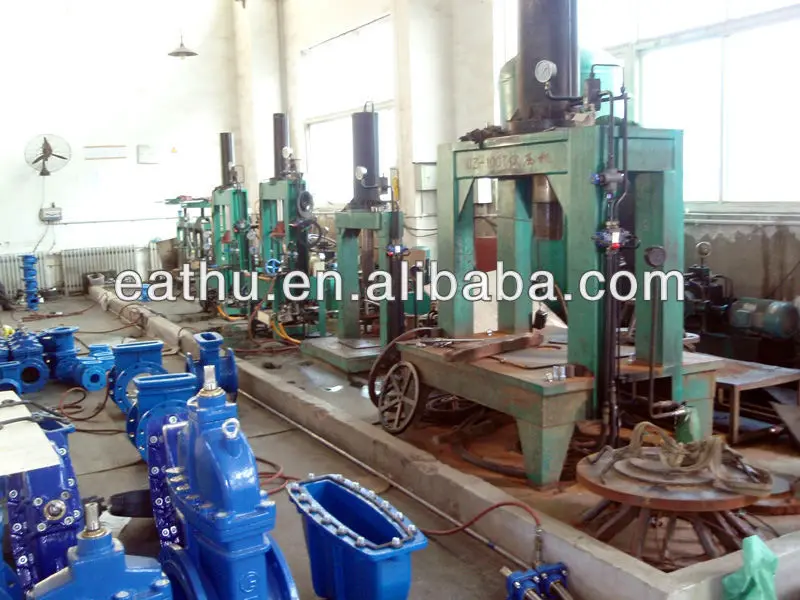

Hydraulic test	EN12266/ISO5208



Material

Body	GGG40/GGG50,ASTM A126 B, ASTM A216 WCB
Wedge	NBR/EPDM, DI/CI
Stem	ss304/ss316
flange gasket	NBR/EPDM
screw	Steel with zinc
gasket	Teflon
O RING	NBR/EPDM
Bonnet	Ductile Iron or Cast iron
Stuffing box	Cast brass
Washer	Steel
handwheel	Ductile Iron or Cast iron



Features

1. Both Rising Stem and Non rising stem are available.

2. Both metal seat and Resilient seat are available.

3. Flange end,Socket end and Screw end are all available.

4. Operator: Handwheel, Nut, Extension Stem, Gear operator are all available.

5. Materail: Cast Iron, Cast steel, Ductile iron are all available.

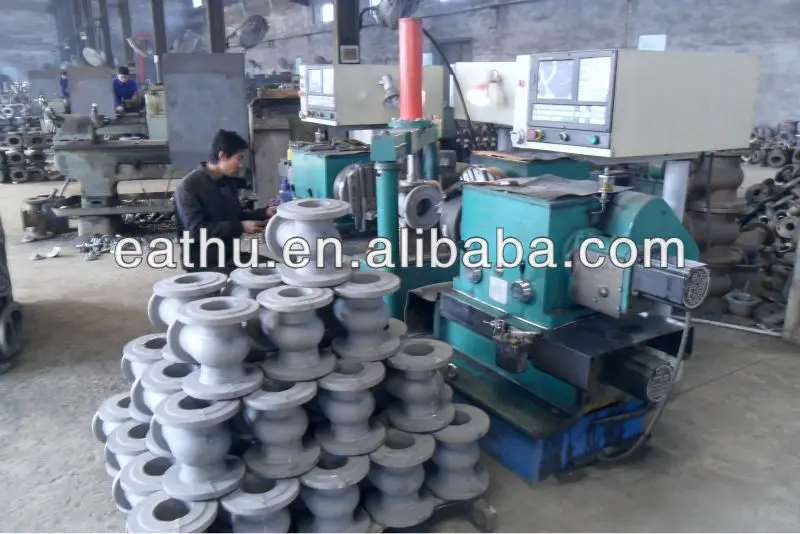

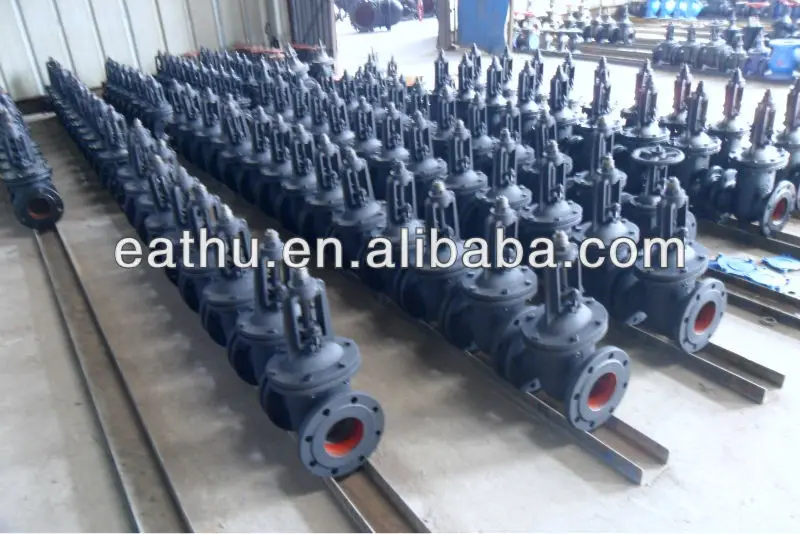

Workshop



 Select us is select Trust. From raw material to finished goods, we do strict control and inspection, and can ensure every piece Good Quality before shipment.



Welcome your enquiry or any questions, check our information www.eathu.com
