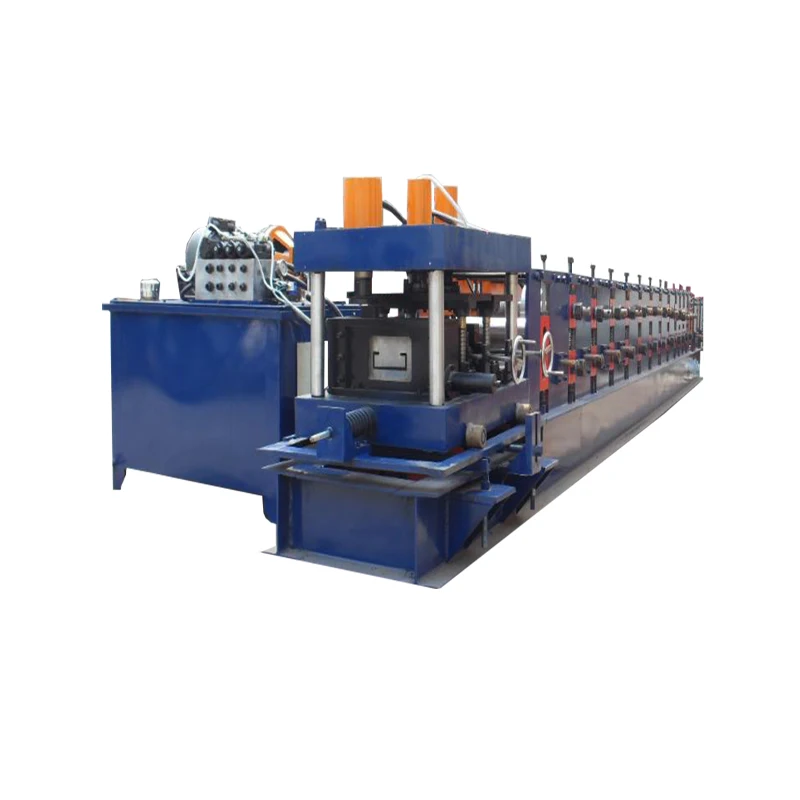

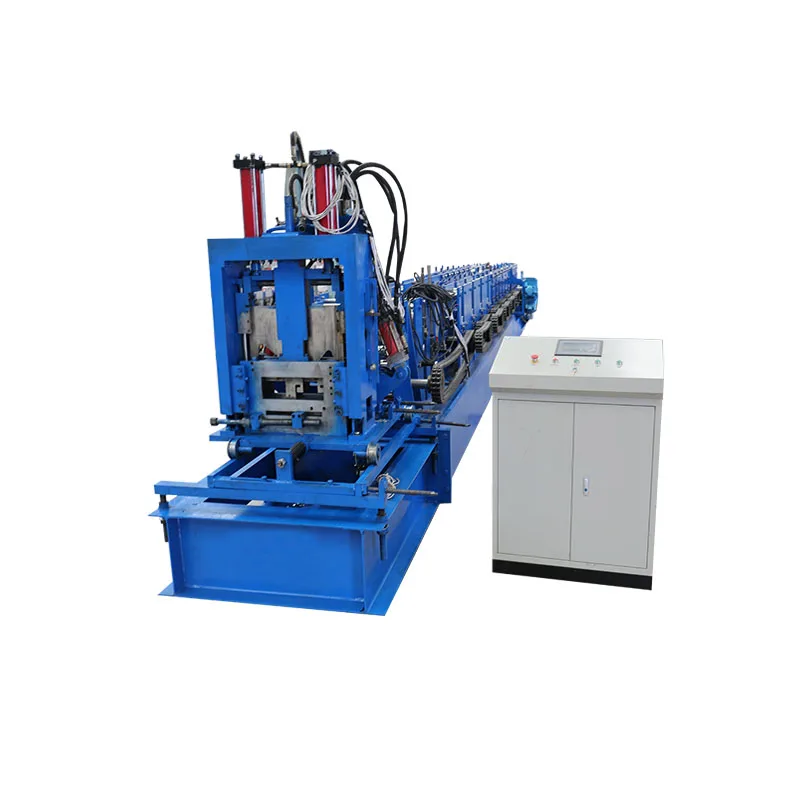

Metal C Cold Steel Angle Purlin Iron Sheet Making Machine Roofing Roll Forming Machine
specification
Totallength of equipment
10.5m
width
1.5m
height
1.5m
Transfer
method
1.5 inch chain, sprocket drive
Production
speed
8 to 10 m / min
Equipment
weight
5.5T 350 I-beam large
frame in the board 20mm thick
Shaft diameter material
Shaft ¢ 80 material 45 #
steel quenched and tempered
Number
of rollers
12 rows of shafts
Material and treatment
Pressure wheel for the G chromium 15 bearing steel, after processing vacuumhardening treatment, the wheel hardness to ensure that 62-64 degrees (bearing steel material wheels, ordinary heat treatment after wear-resistant 5 times).
Part of
the feed
Divided into four wheel positioning,
can not control the maximum deviation
Forming
part
Divided into Seiko wheel rotation molding, forming effect is good, reduce the friction between the wheels and C steel raw materials, easy debugging, fast.
monitor
rate
8 # 11KW planetary cycloid reducer 380V
Control
System
CNC system PLC panel, KEL-320
monitor length on the computer custom
power
11KW
Cut off
the way
Flying saws and twists
are divided into two types
Random attachments
Instructions for use
Pressure plate thickness
1.5 ~3.2mm
warranty
period
12 months
The accuracy
of the plate
suppress. Punching
accuracy within 0.2mm

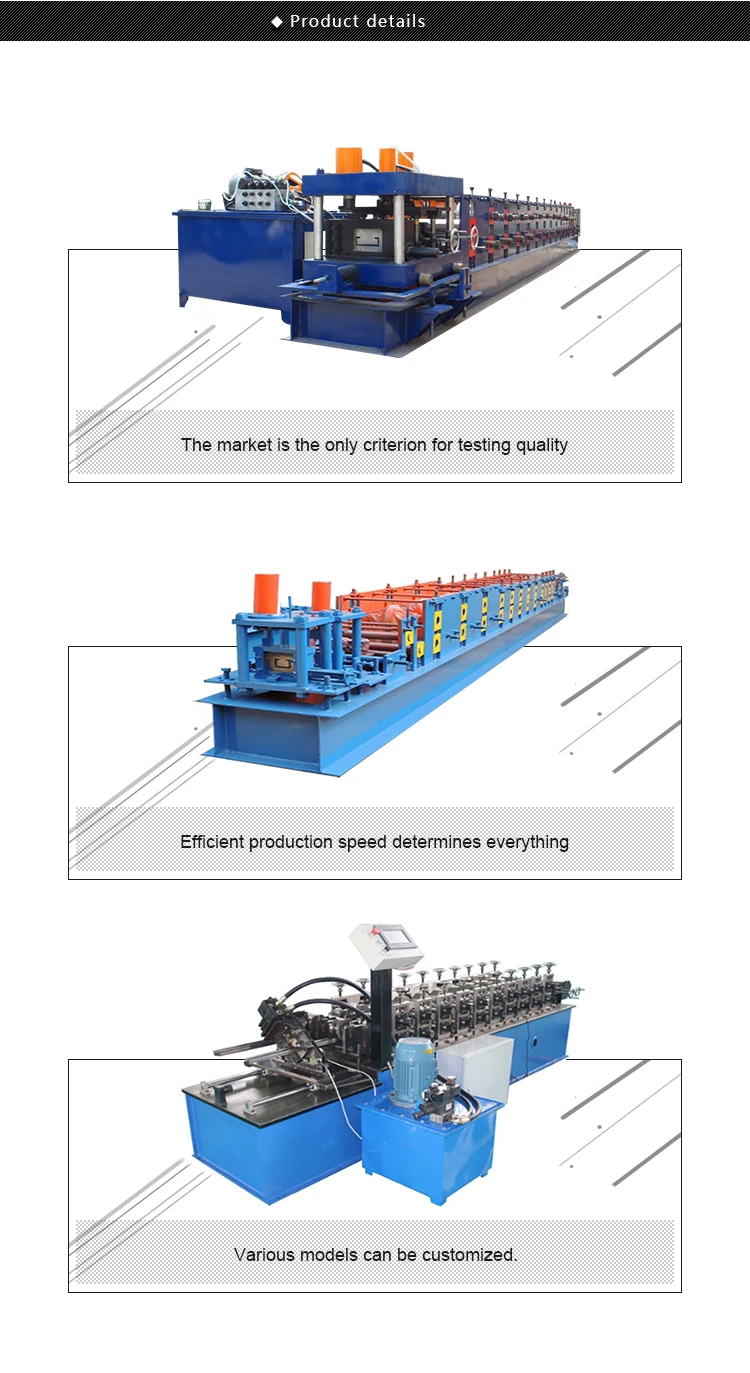

Product details
Our advantage

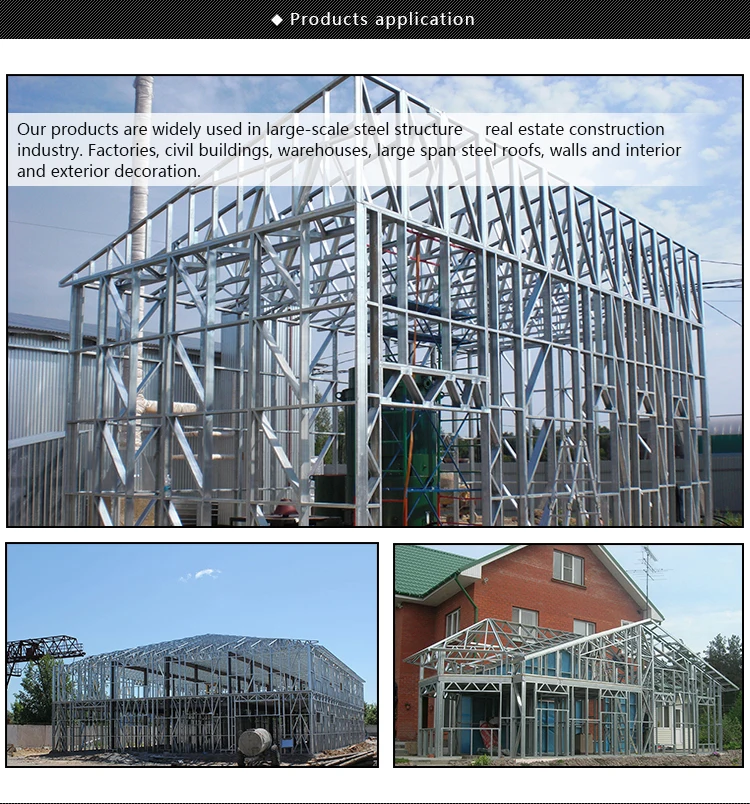

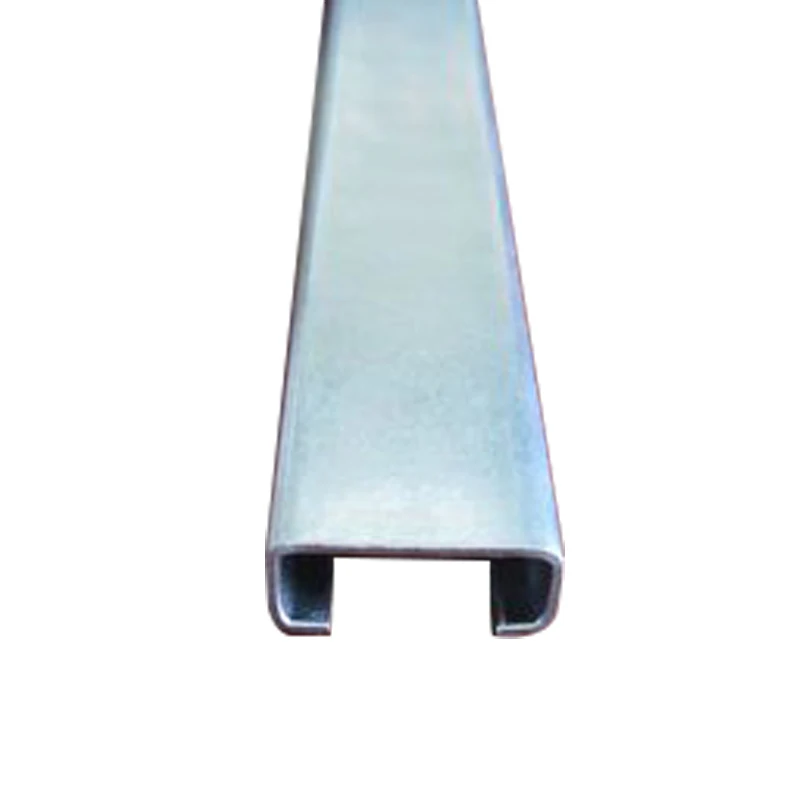

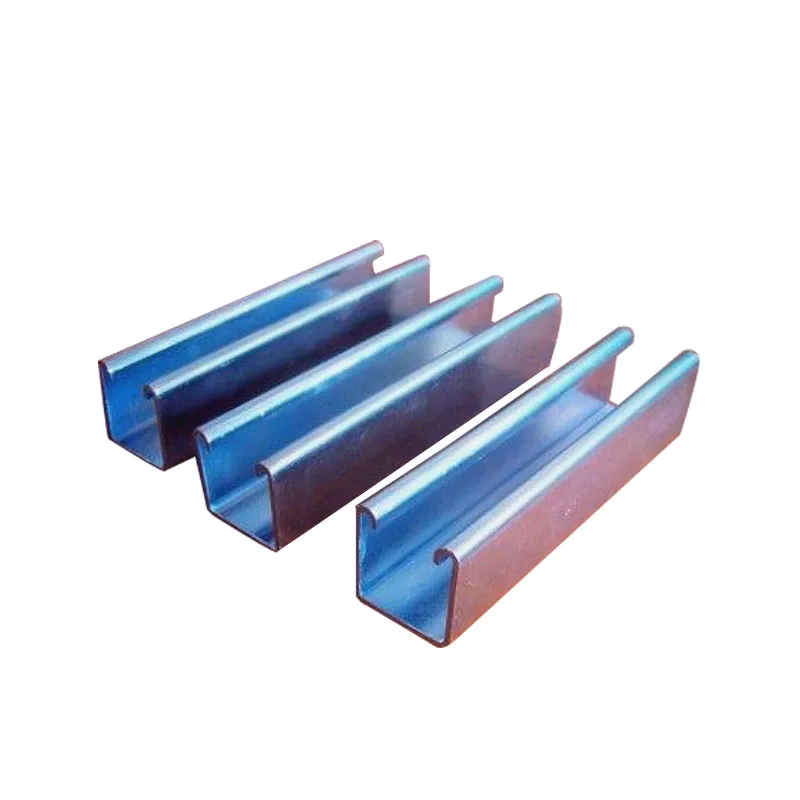

Products application
Packaging & Shipping

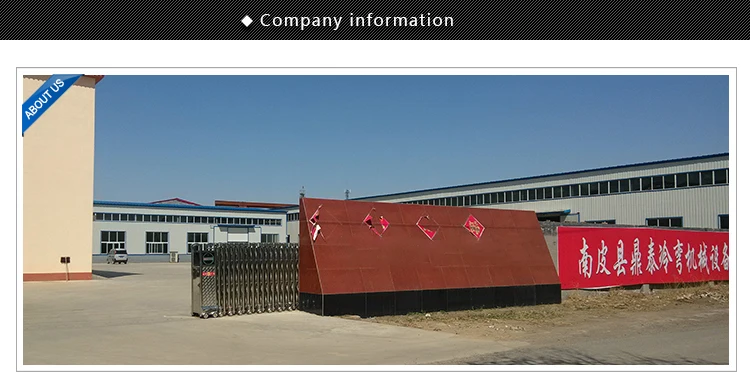

Company information
Nanpi Dingtai cold bending machinery equipment Co., Ltd.has been engaged in steel structure roofing and wall pressure tile machine equipment production, at the same time committed to various related new product development and development for more than 10 years.
Dingtai has advanced production equipment and excellent development and design personnel, products with high efficiency, high precision, low processing and consumption characteristics, ranking high level in the same industry.
Our products vary from the ordinary roof and wall panel pressure tile machine to ten series steel production line equipment and equipment, all kinds of pipe bending guardrail cold bending equipment, which can fully meet the needs of steel structure building and the rail industry.
Dingtai has strong technical force, advanced and complete production line and processing equipment, and perfect testing process.
We have first-class mechanical processing equipment, physics laboratory equipment, nondestructive testing equipment and chemical analysis room. The most advanced full digital computer test method is used to produce quality grid and light steel structures and equipment.Our various equipment products have been exported to Canada, South Korea, Suriname, Sri Lanka, Mongolia and other countries.
Dingtai owns a perfect customer service service team, to provide full support to your customer service, help you get the most satisfactory equipment, ensure that you promptly solve all the problems encountered in the process of equipment usage, and our service.
Your interests and concerns are always our priority which inspires us to improve efficiency, reduce costs, enhance competitiveness to service you.
Listen carefully to your requirements and requirements, design and manufacture fully in accordance with your requirements and needs, and help you get the most reasonable equipment.
We sincerely hope to cooperate with you, mutual benefit and win-win situation.
FAQ
1.How to maintain the machine?
Answer: add mechanical lubrication equipment to chain, bearing and cutting slide every month. Add mechanical lubrication to the case every half a year.
2. Do you sell only standard machines?
A: No, most of our machines are built according to customers specifications, using top brand name components.
3.How many workers to operate the machine?
A:Only 1-2 workers.
4. How to visit your company?
a.Fly to Beijing airport: By high speed train From Beijing Nan Station to Cangzhou West Station(1 hour), then we can pick youup .
b.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou West station(4.5 hours), then we can pick youup.
5. What can you do if the machine broken?
Our machine's warranty period is 12months,if the broken parts can't be repaired,we can send the new parts to replace the broken parts for free,but you need pay the express cost yourself.if over warranty period,we can for to solve the problems via negotiation,and we supply the technical support for the whole life of the equipment.
