5050 smd 10 watt 10w white high power led chip
- Category: >>>
- Supplier: SUPER BRITE LTD.
Share on (60701736653):
Product Overview
Description
Specification
5050 10W White LED
AT5050H-10LEXX-RX
Product Description
Features
•Low Voltage DC operated
•Good color uniformity•RoHS compliant
•Industry best moisture sensitivity level - JEDEC Level 1
•Lead free reflow soldering
•More energy efficient than incandescent and most halogen lamps
•Instant light (less than 100ns)
•No UV
Typical Applications
•Entertainment Lighting
•Commercial Lighting•Indoor Lighting
•Outdoor Lighting

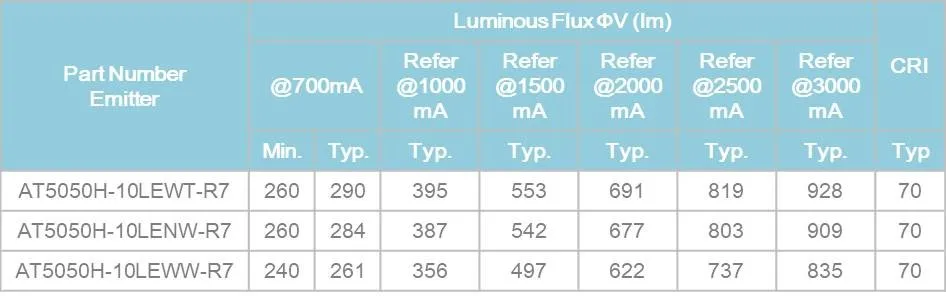

Flux Characteristics, TJ= 25°C

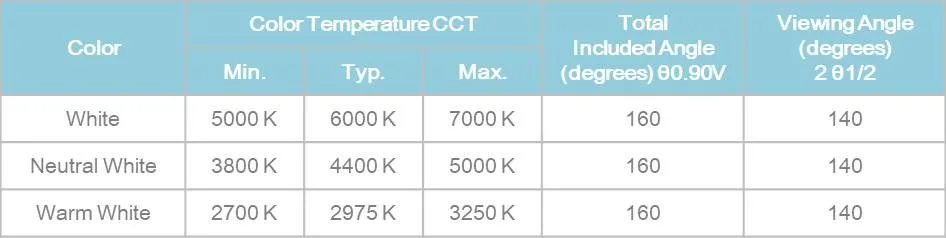

Optical Characteristics at 700mA, TJ= 25°C

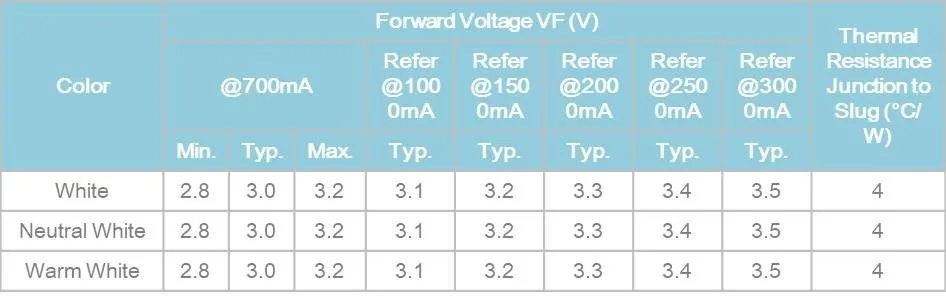

Electrical Characteristics, TJ= 25°C

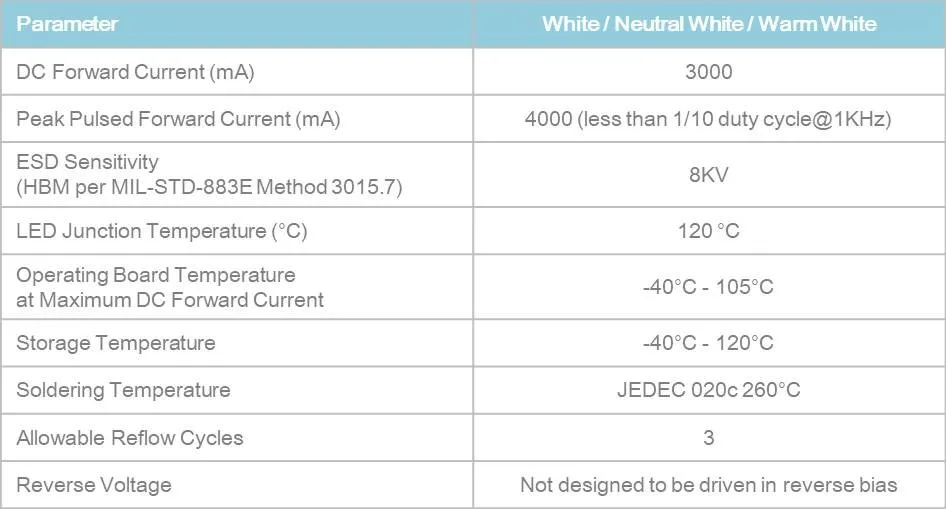

Absolute Maximum Ratings (Ta=25℃)

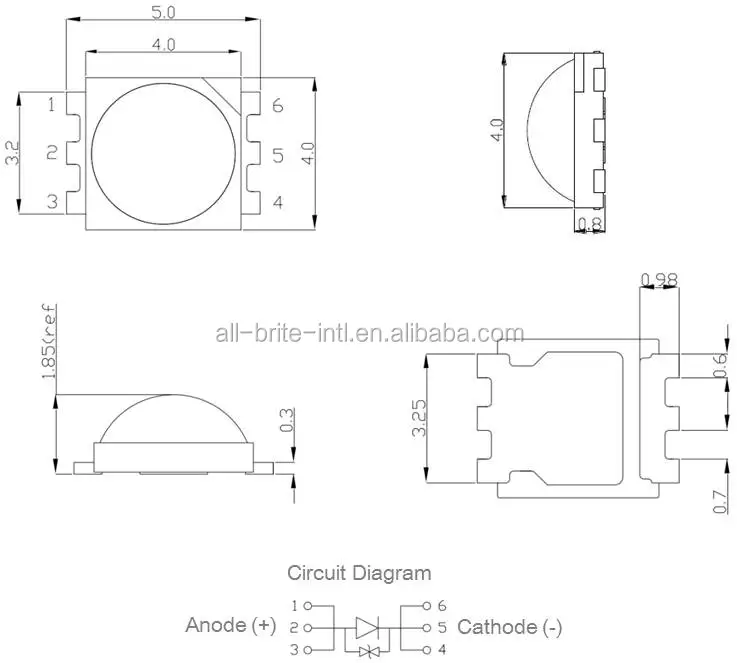

Mechanical Dimension

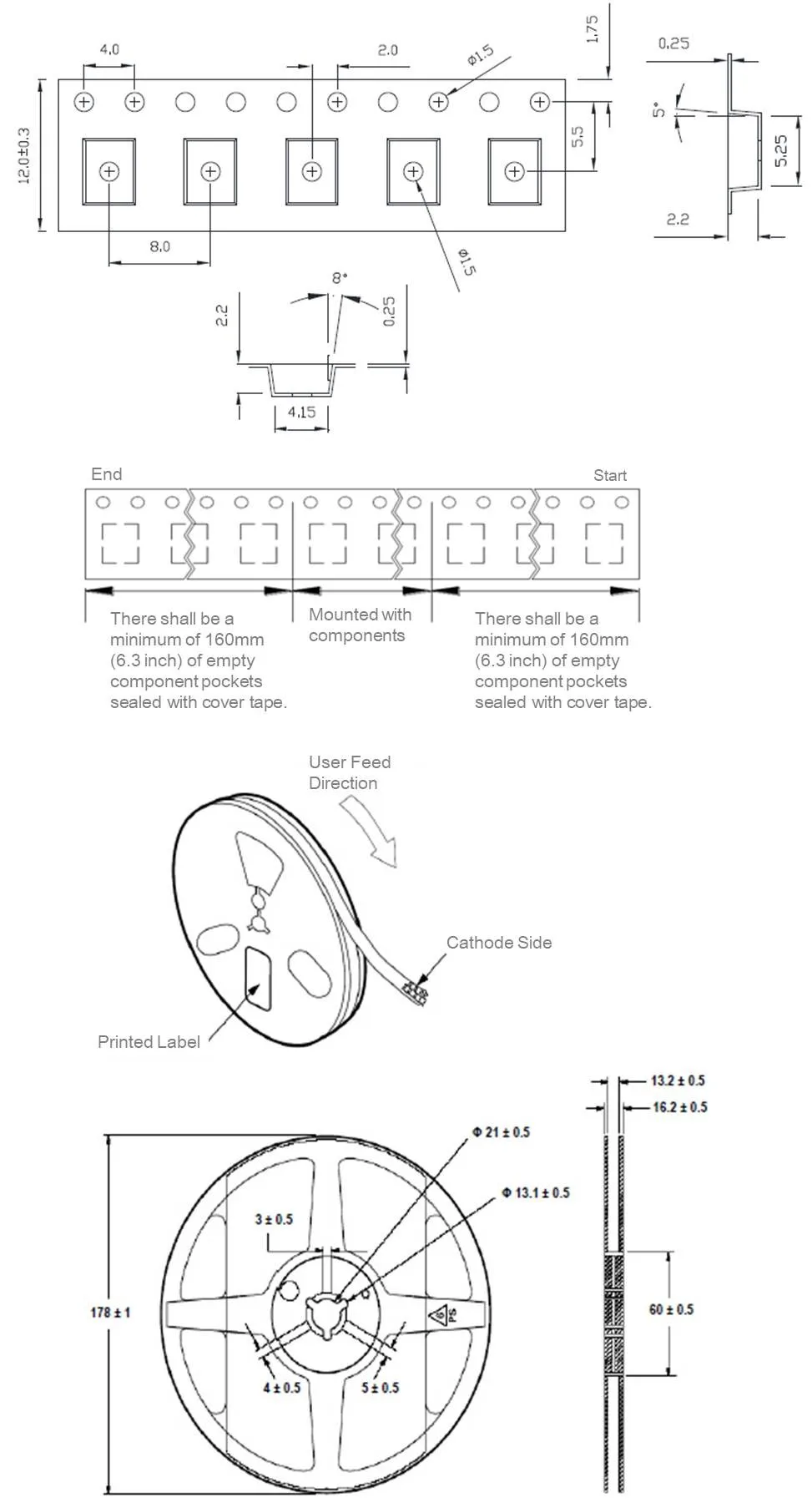

Emitter Reel Packaging
Recommended Products
Company Information
Certifications
Payment Terms
We accept official Bank Wire transfer and for sample amount payment customer can use
Paypal, Western Union, Alipay and Ecrow …etc.
Shipping Delivery
We can ship by Courier Service such as Fedex, DHL, TNT, UPS EMS …etc.
Also, Air Freight and Sea Freight depends on clients needs.
FAQ
Q1. Sample order?
A: Yes, we welcome sample order to test and check quality.
Q2. Lead time?
A:1-2 weeks depends on different items
Q3. Do you have any MOQ limit?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive.
Q5. How to process an order?
A: please kindly contact us for more detail
