Ultraviolet 1 watt 1w 3045 390nm 400nm 410nm smd uv led
- Category: >>>
- Supplier: SUPER BRITE LTD.SUPER LTD.
Share on (60701829281):
Product Overview
Description
Specification
3045 1W UV LED
AT3045L-1LEV3941
3045 UV LED, with the smallest high power LED footprint available by All Brite,
has offered extended solid-state lighting design possibilities.
3045 UV LED is designed with All Brite own Patents and using copper leadframe,
the best thermal material of the world.
3045 UV LED qualifies as the JEDEC Level 1 MSL sensitivity level
and suitable for SMD process, Pb free reflow soldering capability, and full compliance
with EU education of Hazardous Substances (RoHS) legislation.
Product Description
Features
•100% foot print compatible with Cree XQ-E
•Best thermal material solution of the world•Best Moisture Sensitivity: JEDEC Level 1
•Lead free reflow soldering
•RoHS compliant
Typical Applications
•UV gluing, UV curing, UV marking
•UV drying of printing inks and lacquers•Currency inspection
•Forensic analysis -urine, protein stains
•Leak detection using fluorescent dyes
•Detects fluorescing minerals and gems
•Indoor Lighting
•Outdoor Lighting

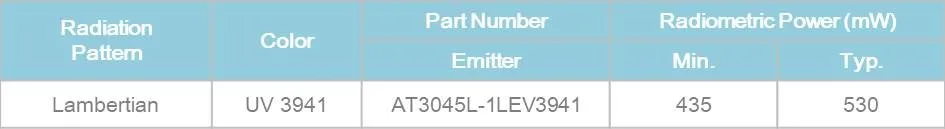

Flux Characteristics at 350mA, TJ= 25°C

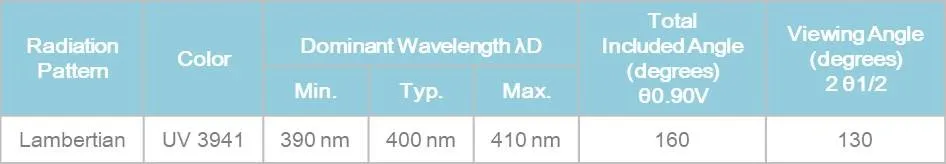

Optical Characteristics at 350mA, TJ= 25°C

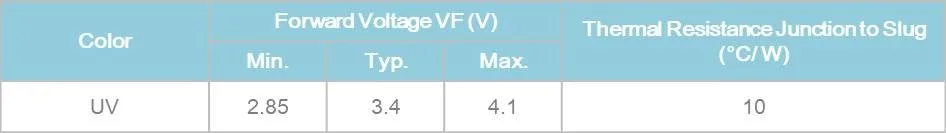

Electrical Characteristics at 350mA, TJ= 25°C

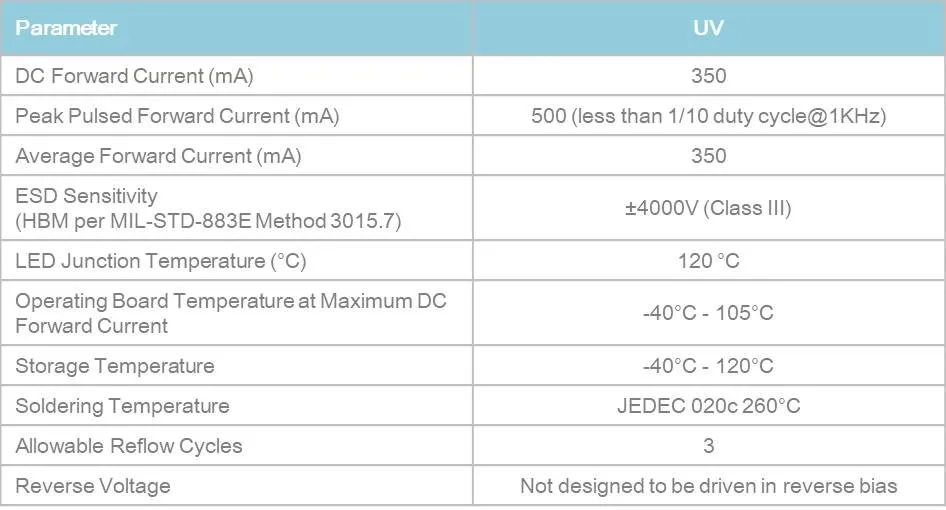

Absolute Maximum Ratings (Ta=25℃)

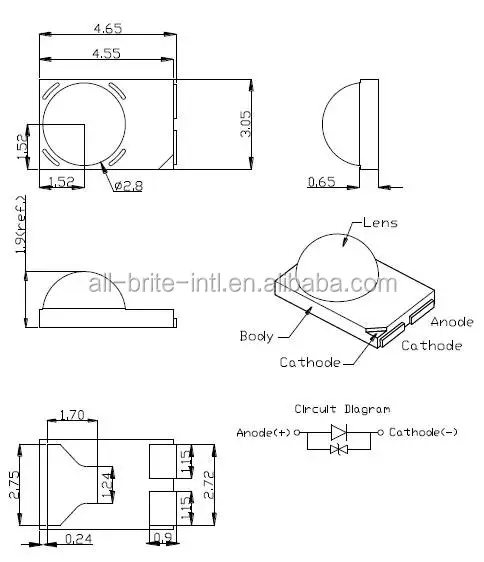

Mechanical Dimension
Emitter Reel Packaging
Recommended Products
Company Information
Certifications
Payment Terms
We accept official Bank Wire transfer and for sample amount payment customer can use
Paypal, Western Union, Alipay and Ecrow …etc.
Shipping Delivery
We can ship by Courier Service such as Fedex, DHL, TNT, UPS EMS …etc.
Also, Air Freight and Sea Freight depends on clients needs.
FAQ
Q1. Sample order?
A: Yes, we welcome sample order to test and check quality.
Q2. Lead time?
A:1-2 weeks depends on different items
Q3. Do you have any MOQ limit?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive.
Q5. How to process an order?
A: please kindly contact us for more detail
