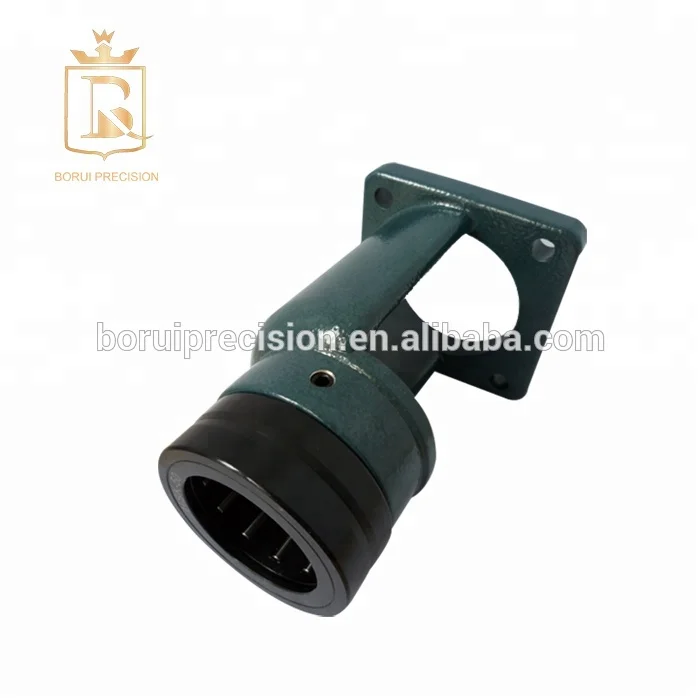

HSK 50 and ISO 30 tool tightening stand 50mm size

Amy Ma (Sale Manager)

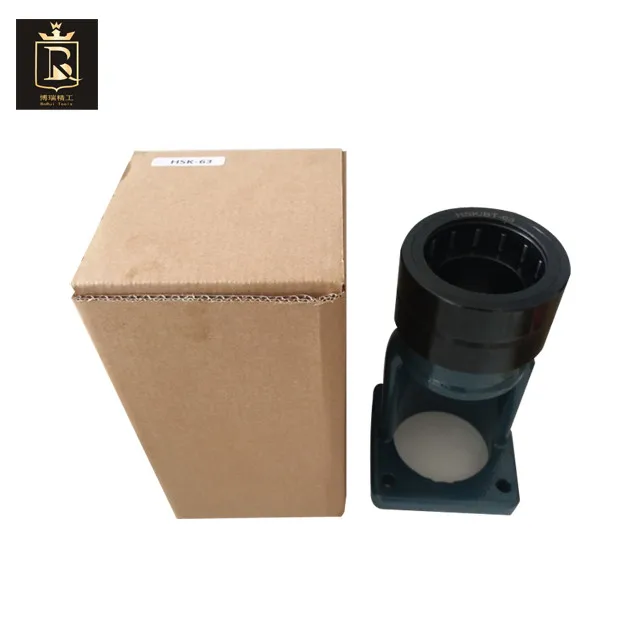

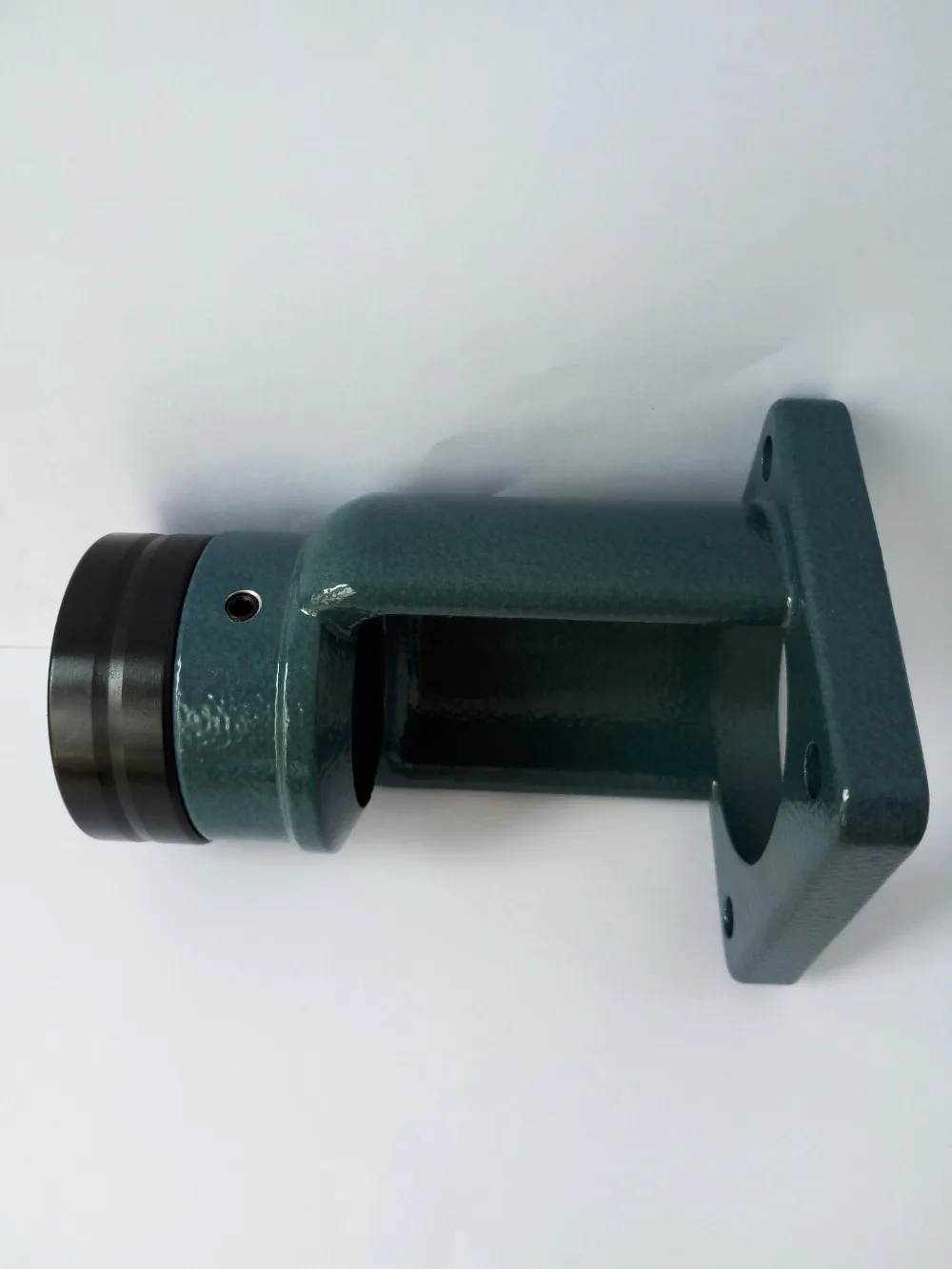

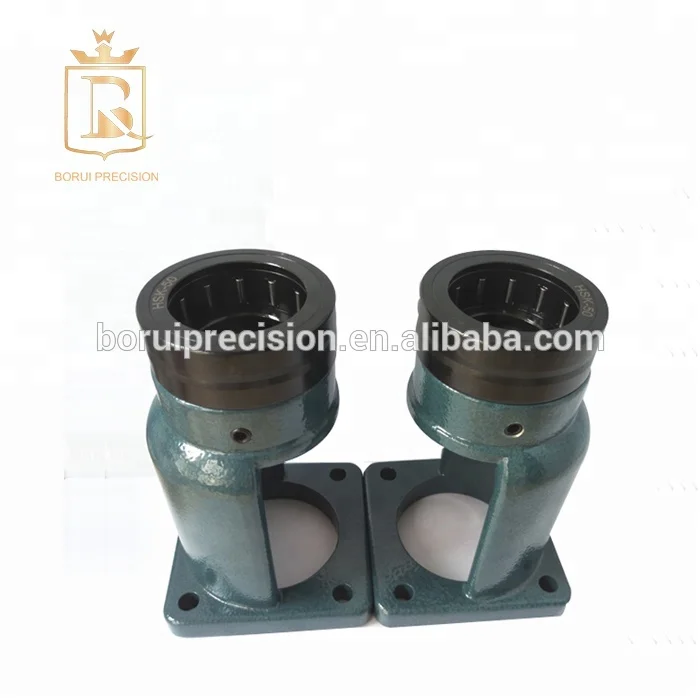

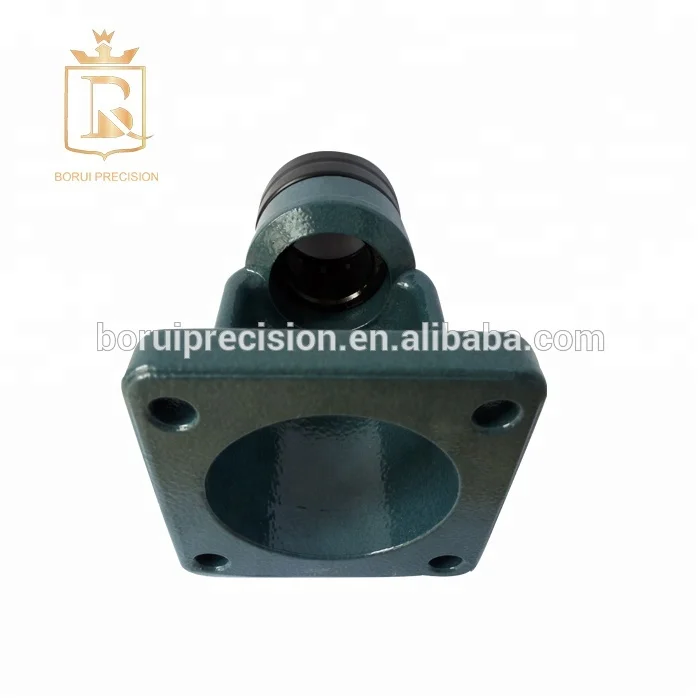

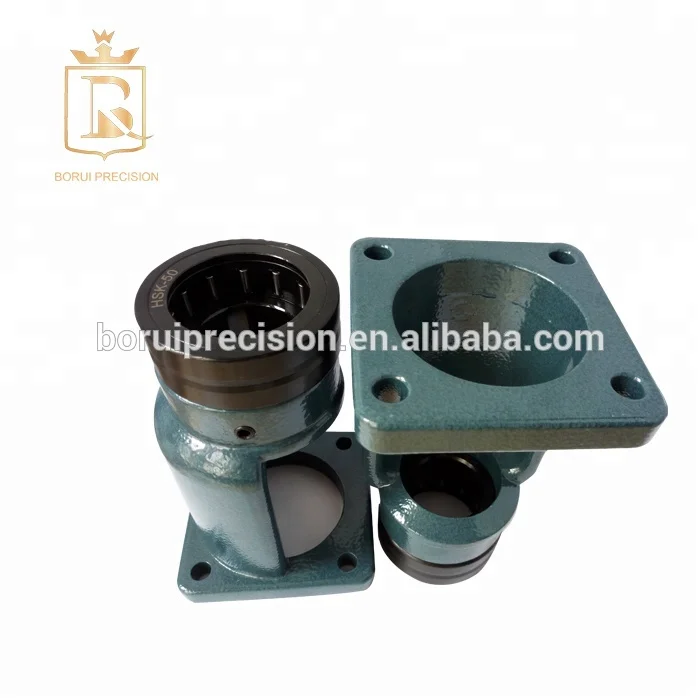

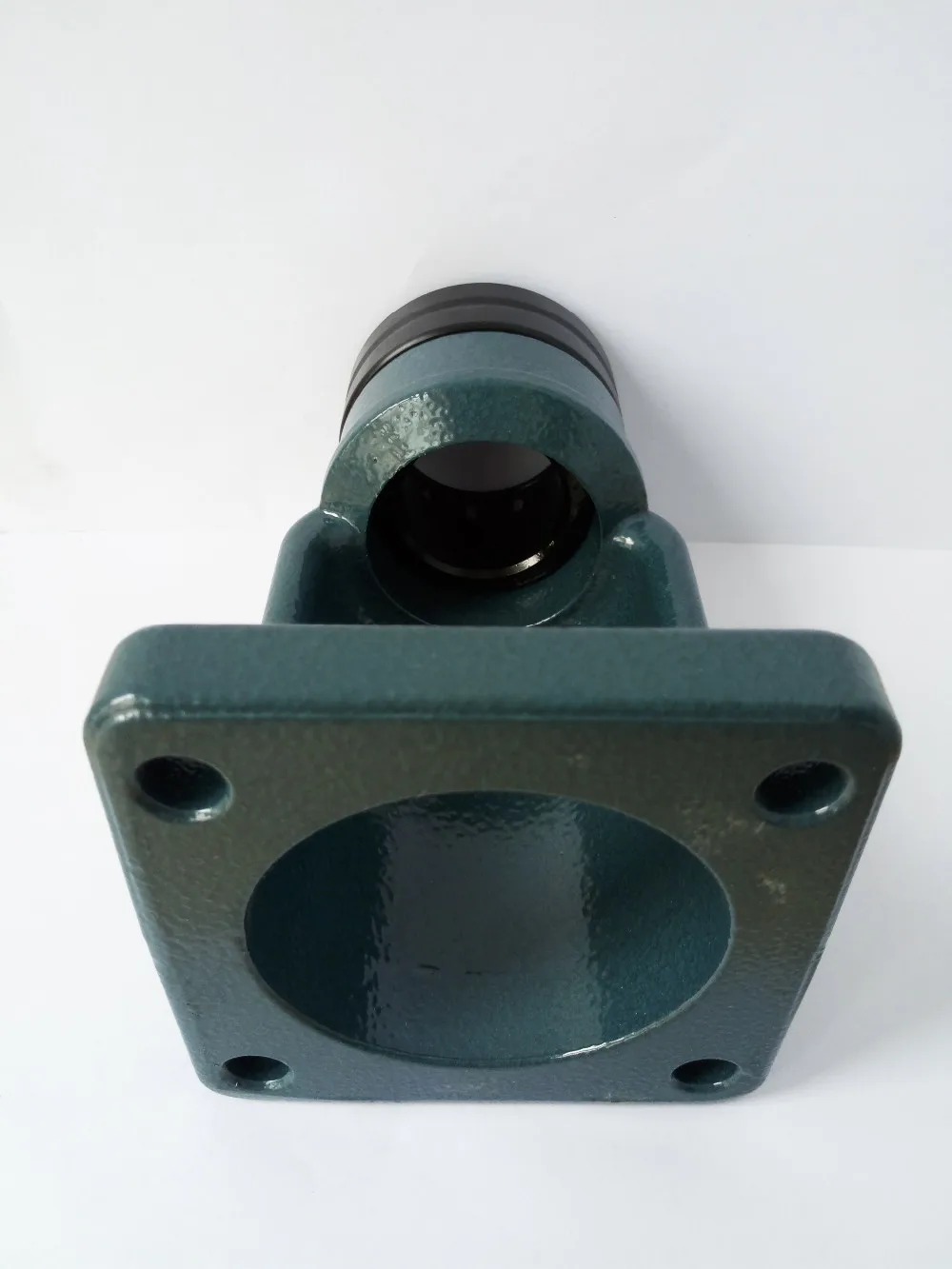

               HSK50 ISO30 Tool Holder Clamping Locking Fixture

Auto-locking and ball-bearing design

This tool holder clamp fixture is the new auto-locking stand. Ball-bearing design is great for non-keyway toolholder like ISO30, HSK50, to lock and unlock the cutter bits. Aluminum parts protect the toolholder shank, reduce bumps and wear.

HSK50 and ISO30  tool holder suit

*Tool Holder Locking Fixture Material: Aluminum & Steel
*D=50mm (locking diameter)
*Tool clamp fixture for HSK50, ISO30, DIN 69871 tool holders with 50mm flange

Fixture

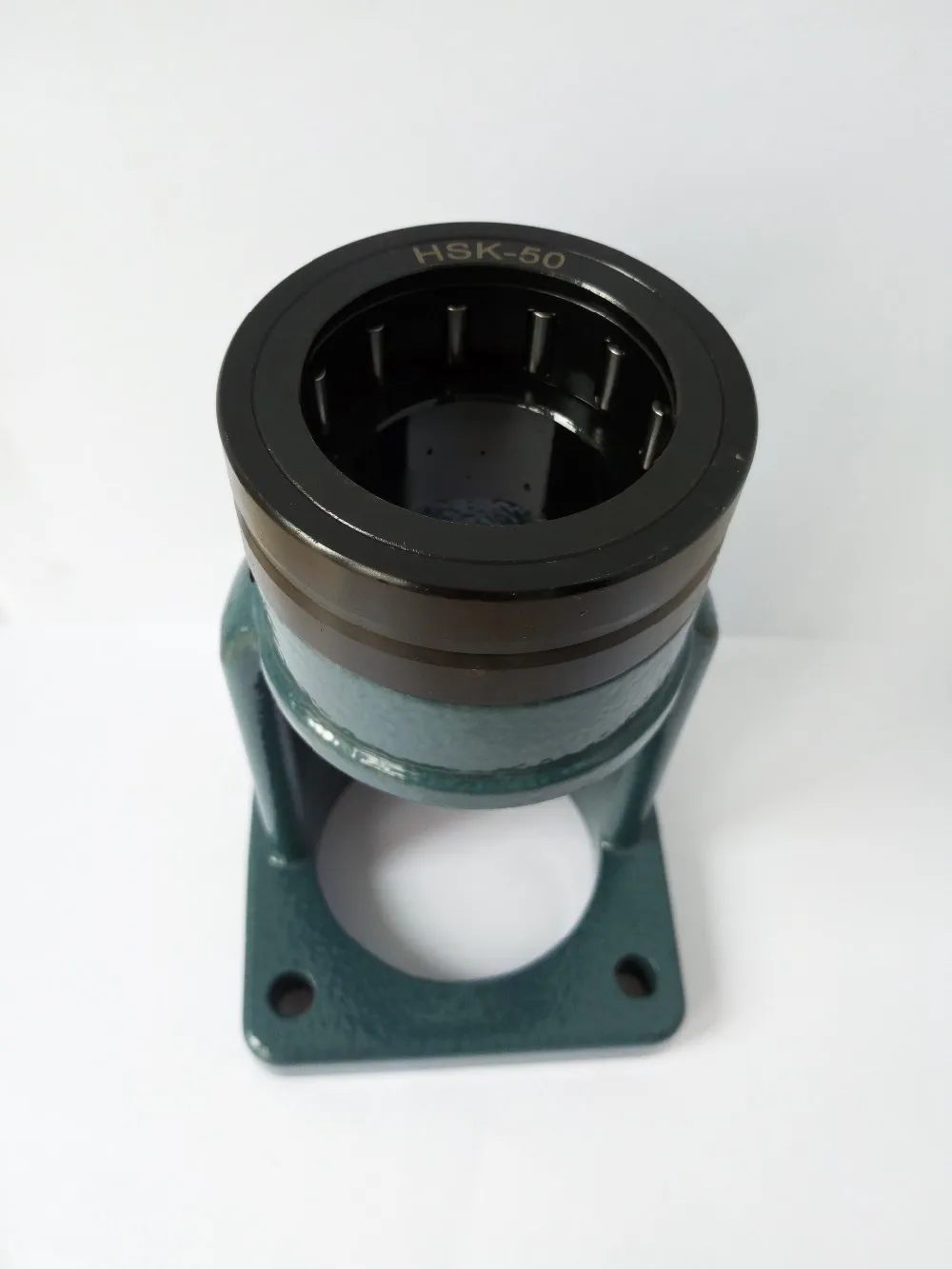

Toolholder clamping fixtures use roller bearing locking technology to provide a safe, secure and tight grip on the holder without fear of slipping. The roller bearings act as a cam lock and tighten as the holder is rotated in either direction. These vises are ideal for tightening or loosening various tooling, including nuts, pull studs and arbors.

How to Use

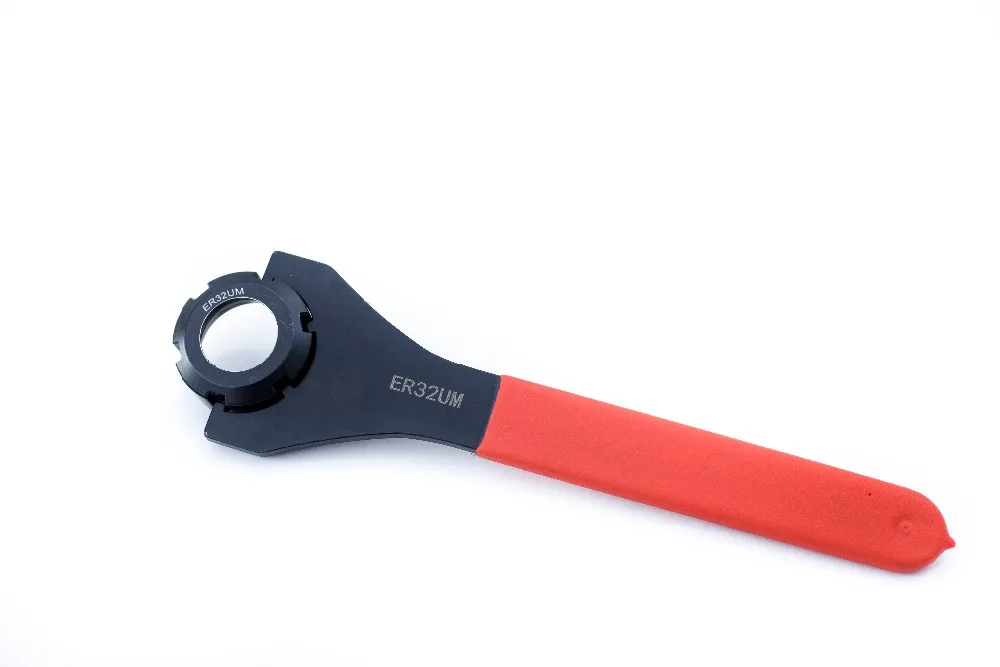

Fix the toolholder clamping fixture on the table by four M8 screws, put the toolholder into the inner hole, lock it and use the wrench to unlock and lock the collet nut.
