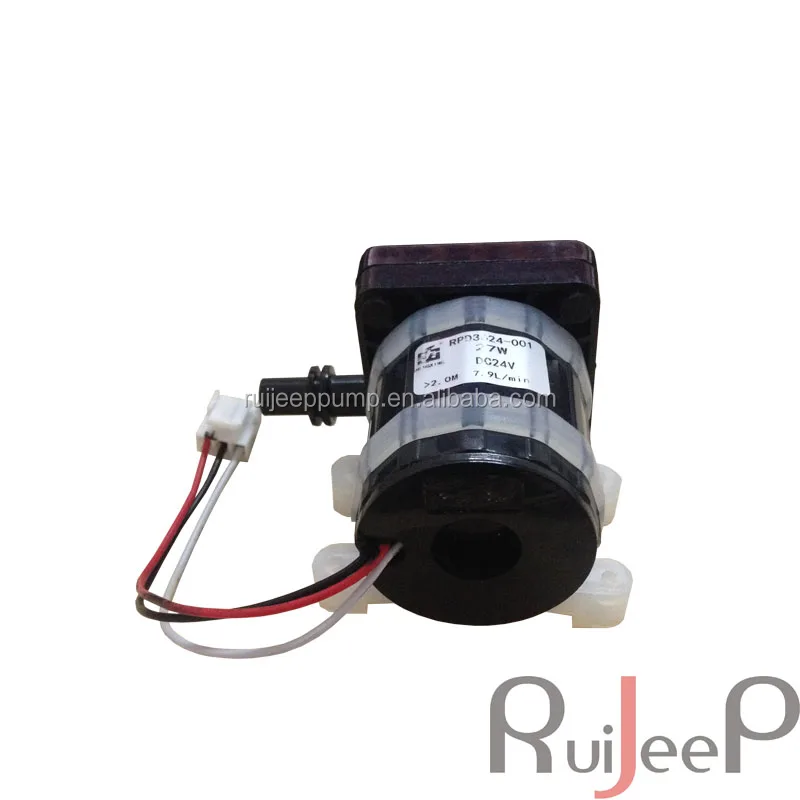

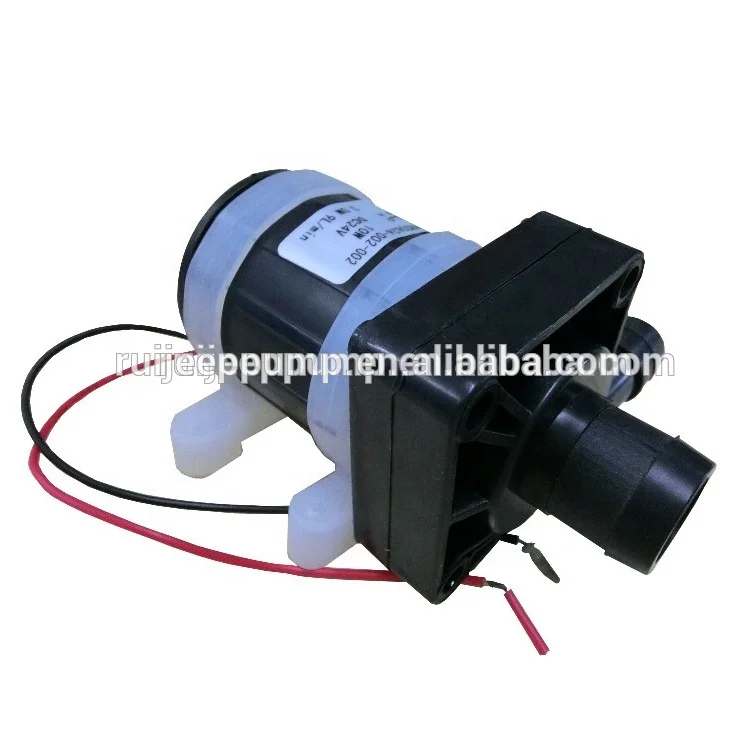

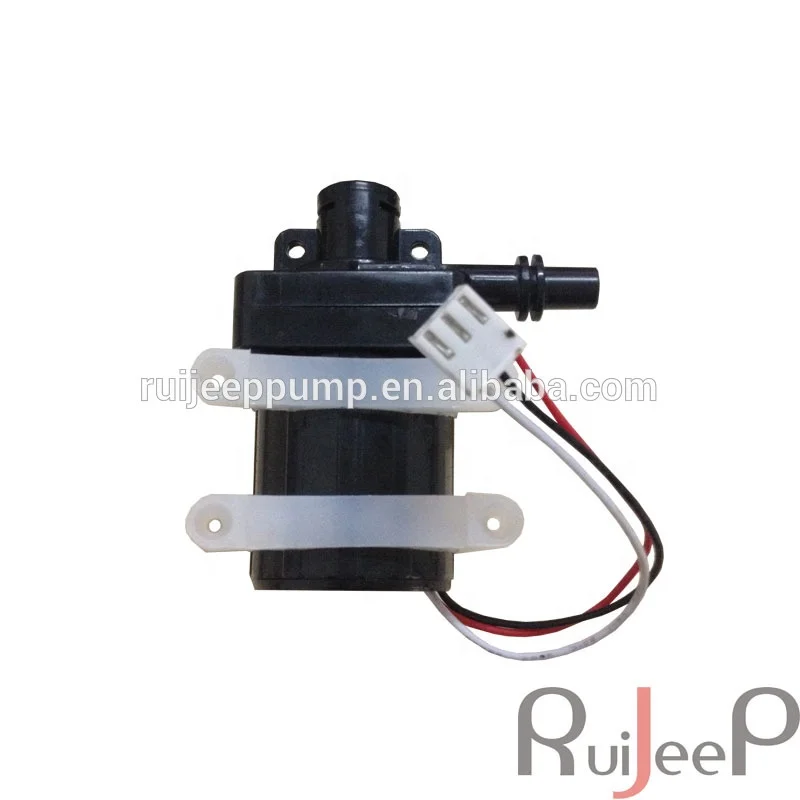

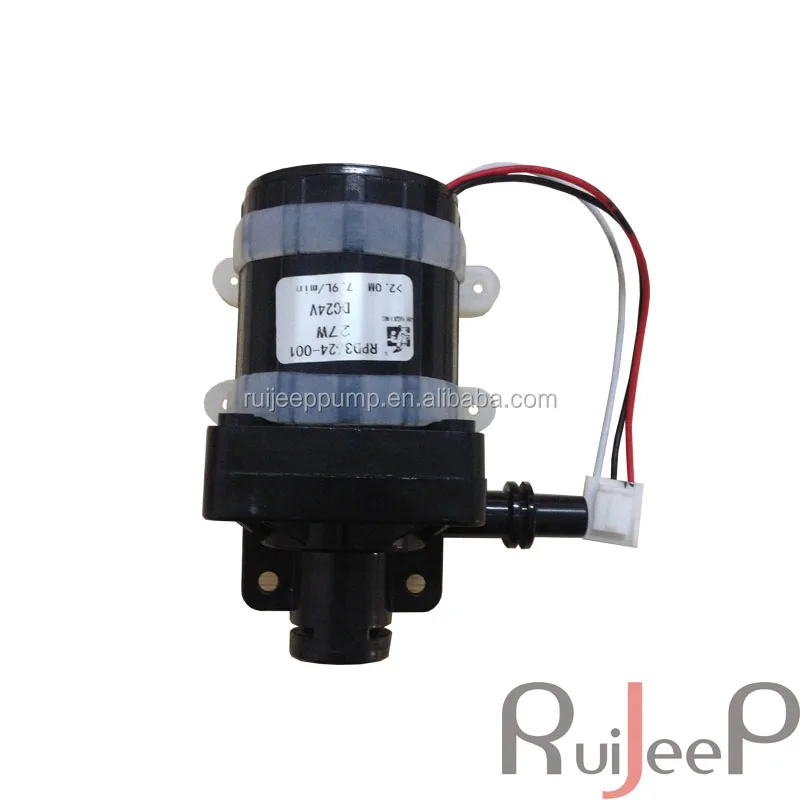

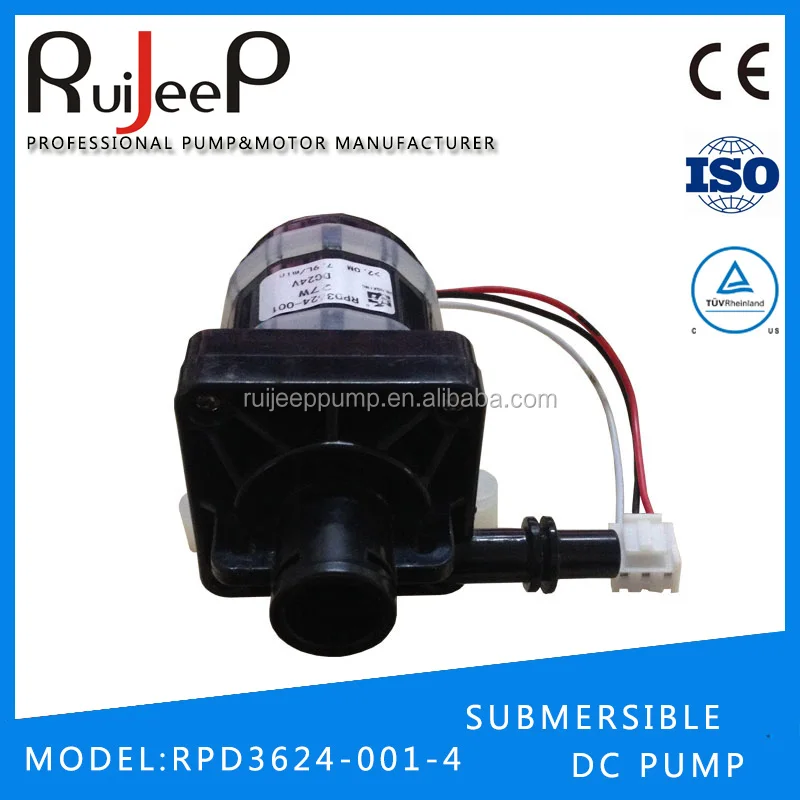

1. Air cooler pump commonly used in washing machine/air conditioner/  dishwasher and so on.

2. The Air cooler pump enjoy their high efficiency, low energy consumption,long life and low noise.

3.A variety of pump covers design for customer choice, can also be designed according to customer requirements.

4.Different thickness of the iron core is suitable for all kinds of customers' requirements.

5.The certification of TUV, UL, CCC

6.Good quality drain pump with low price. If you want Air cooler more details , pls don't hesitate to contact us.

    1.1Scope of application

     Ice air conditioning  cooling system

    1.2 Motor type

     Brushless motor

    1.3Motor wire instructions

     Red +  black -

2  Environment temperature:

    2.1 Operating temperature: 5℃ ~ + 65℃

    2.2 Storage Temperature: - 15℃ ~ + 70℃

3. Working parameters:

     3.1   Insulation class   B

    3.2  Temperature rise  50 k

4    Structure

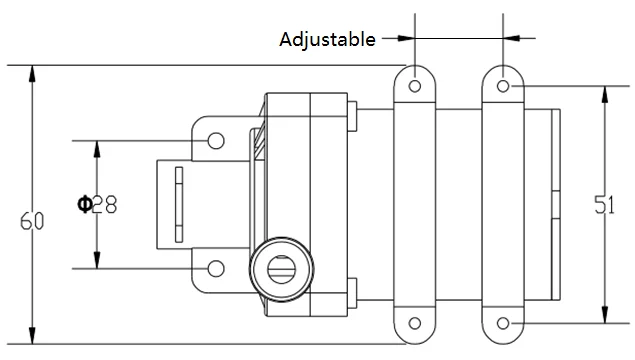

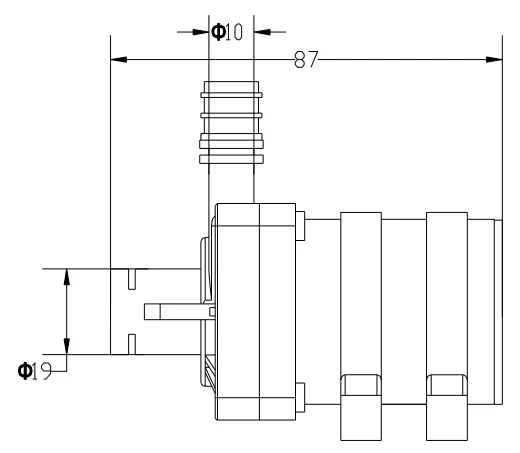

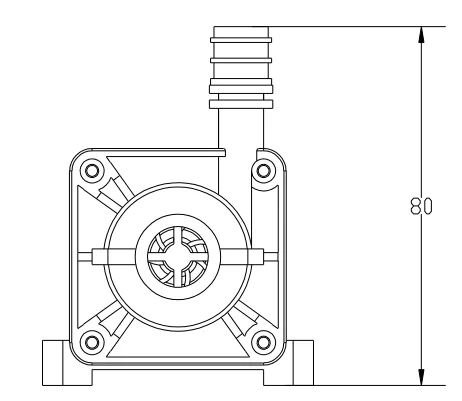

    4.1  Overall dimensions

     See chart

    4.2  Shaft material

     Stainless steel SUS420J2

    4.3  Direction of rotation

      CCW

    4.4  Waterproof processing

     Using epoxy resin adhesive seal processing.

5    Reliability

    5.1  Normal temperature load low voltage start voltage

     0.85 times the rated voltage can be started

    5.2  Constant temperature load voltage starting voltage

     1.15 times the rated voltage to work normally.

    5.3  Temperature rise test

     Applying the rated voltage of motor, and within a specified load measurement and electric coupling method is used to measuring temperature, the temperature rise should be under 50 k

    5.4  Insulation and pressure

    Conductive parts of the motor and the conductive part on 600 v, 50 hz 1 s of the dielectric strength test, the phenomenon such as no breakdown.

 6    Warning

    6.1  Wiring must be correct, the red + black line -.

    6.2  Voltage can not be more than 16 v, otherwise, the current is too large may burn out motor.

    6.3  The motor shall not be free for more than 10 minutes.

Zhongshan RUIJEEP electrical Co.,ltd is the professional home appliance pump and motor manufacturer, our main products are drain pumps for washing machine&dishwasher, DC pumps series for air cooler,waterfilter etc.We have the good experience in this area.

We have the strong self-development ability, advanced equipments and excellent technology. Our company is equipped with professional senior engineering technicians and the experienced workers.therefore,we can also design the products according to the requirements of the customers.

Our factory locates in China famous appliance city and the well-developed industrial environment and traffic network have provided an excellent business environment for our healthy development.

Our products series are exported to Europe,America,middle east and Africa countries etc. and we have the good reputation in our customers. Our products are widely used by many famous companies.

FAQ

1 Q: Are you a manufacturer or trading company?

    A:We are professional clean pump manufacturer for almost 10 years,  and we export our pumps by ourselves.

2. Q: What's your delivery time?

     A: 1. The stock samples can be sent to you within 3-5 days by international express after received.

          2. The batch order can be shipped to you in about 30-40 days after order confirmation( by air or by sea).

3 Q: Is it all right to make customer's own brand name?

    A:Yes, we accept OEM.

4 Q: What is your loading port?

    A:ZHONGSHAN port.

5 Q: What are your payment terms?

   A:T/T\\Western union

Any more question.Please contact us without any hesitation.
