3M 36Pin Buckle Latch type SCSI MDR (Mini D Ribbon) I/O connector 10136 3000PE
- Category: >>>
- Supplier: Cixi Lechuan Import And Export Co. Ltd.
Share on (60701870411):
Product Overview
Description
Product Description
Product Name | 36Pin Gold Pin Male Buckle type SCSI Mini D Ribbon (MDR) I/O connector |
Material | Housing: PBT,UL94V-0,Black |
Cable Clamp:Spcc,Tin plating over Nickel | |
Contact Plating:Phosphor Bronze,T=0.3,Gold plating over Nickel | |
Body:PBT,UL94V-0,Black | |
Metal Housing:Spcc, Nickle plating | |
Fastener:Glass Reinforced Polyester(PBT) | |
Ground Plate:Iron/Nickle | |
ELECTRICAL | Wire Accomadation:24,26,28&30AWG |
Contact Resistance:30MΩmax ,at DC 100mA | |
Insulator Resistance:500MΩmin ,at 500V DC | |
Withstanding Voltage: 500V AC/rm 50Hz for 1 minute | |
Current Rating: 1 Amp AC/DC | |
Operating Temperature:-55℃~+105℃ | |
Soldering Temperature:235℃max for 6sec.max |

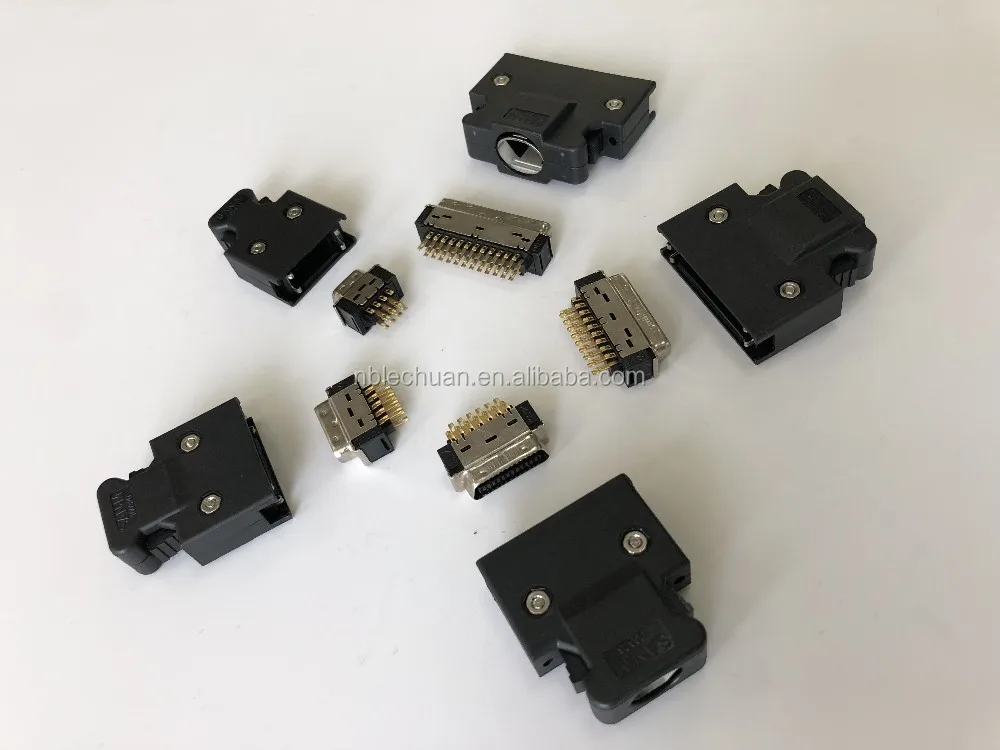

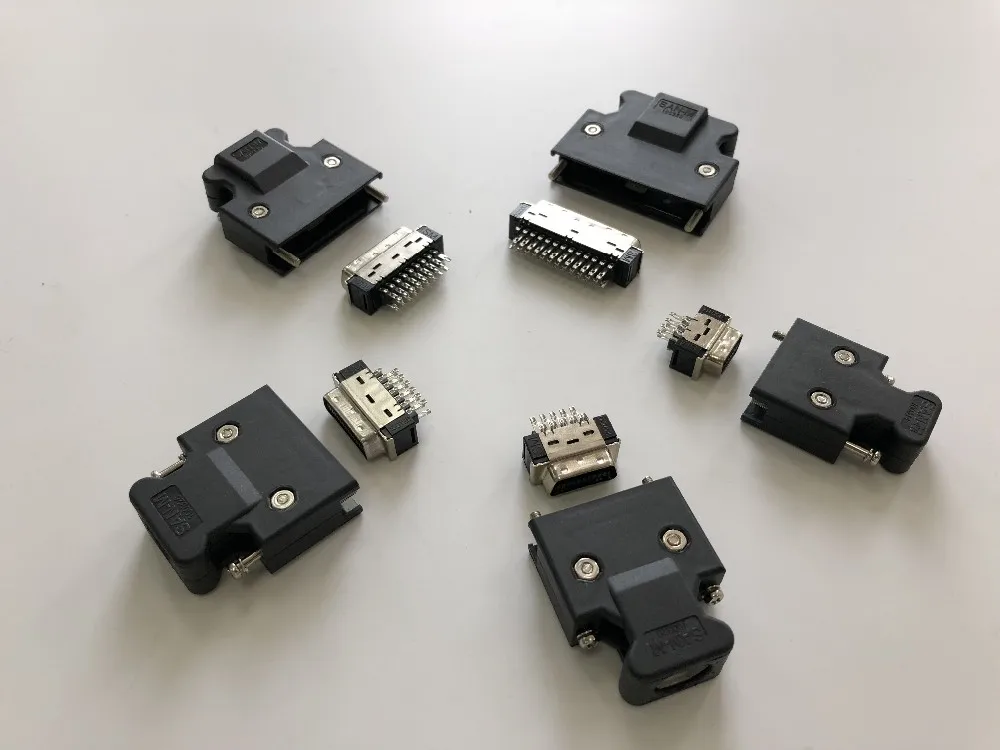

Products Show
Our Company
Workshop
Automation assembling line
Workshop
Automation assembling line
Packing & Delivery
Packing Details : Blister packing, With inner box, outside with master carton box
Delivery Details : 3-30 days after order of Solid bicycle tire tubes
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory and trading Company.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but freight cost will be collected.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below:
