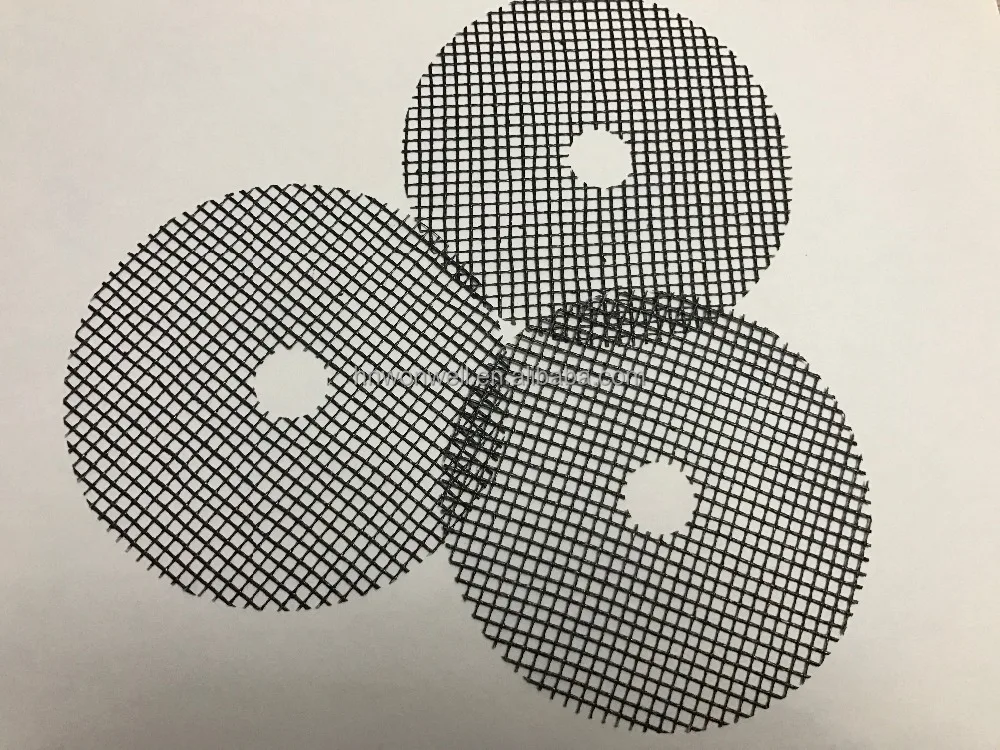

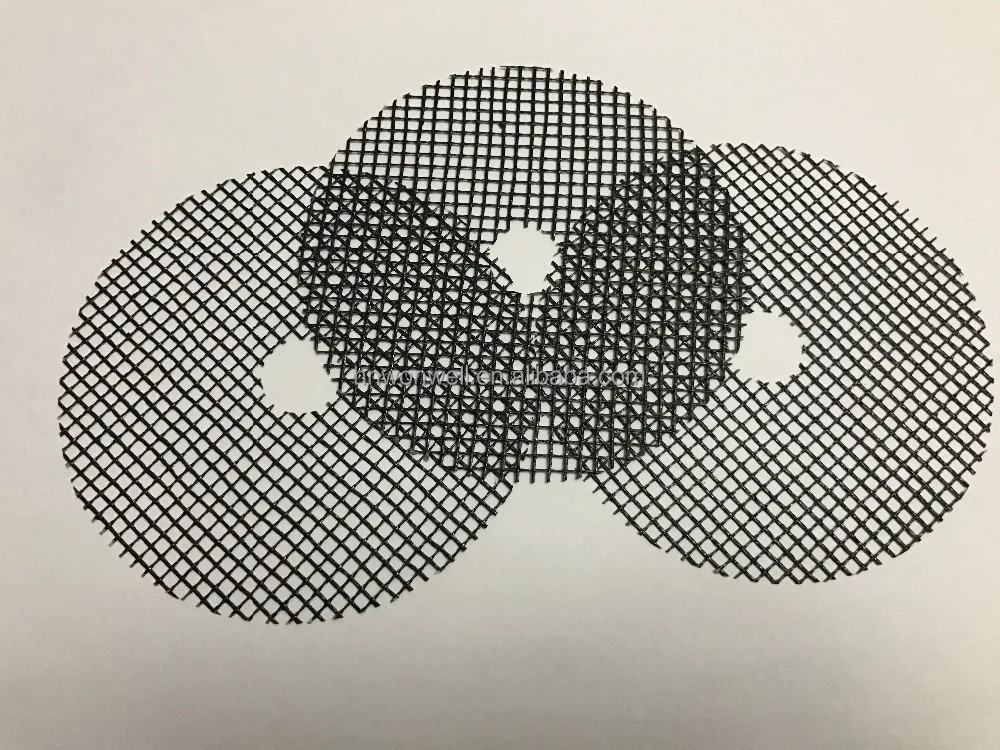

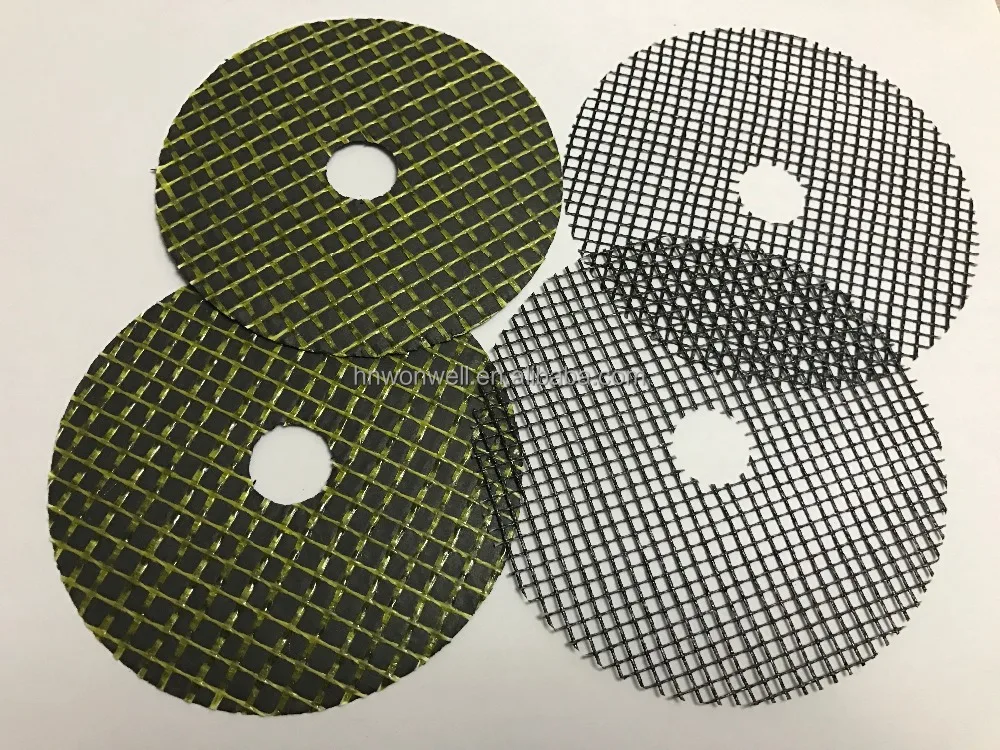

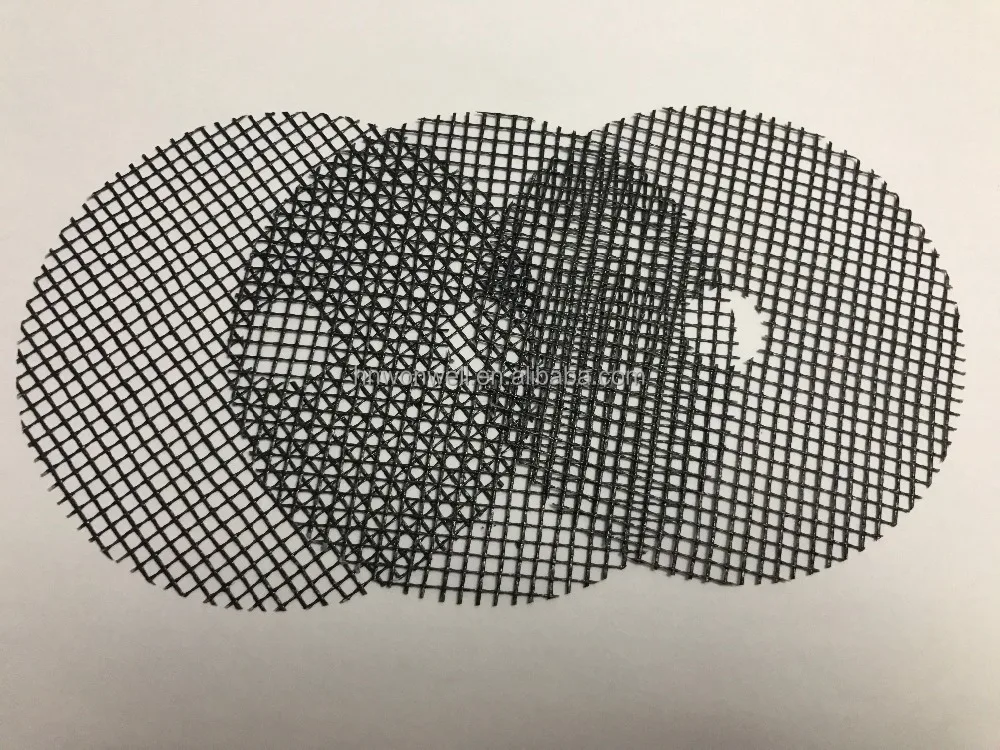

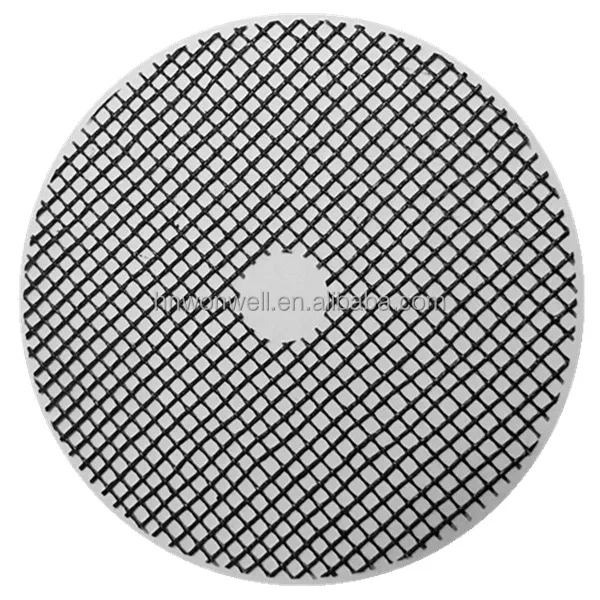

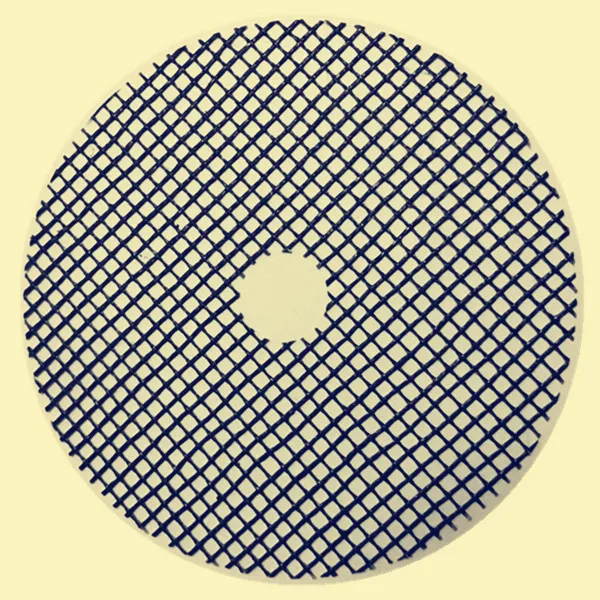

Fiberglass nets fiber mesh for making abrasive cutting disc cutting wheel
1.Product Description

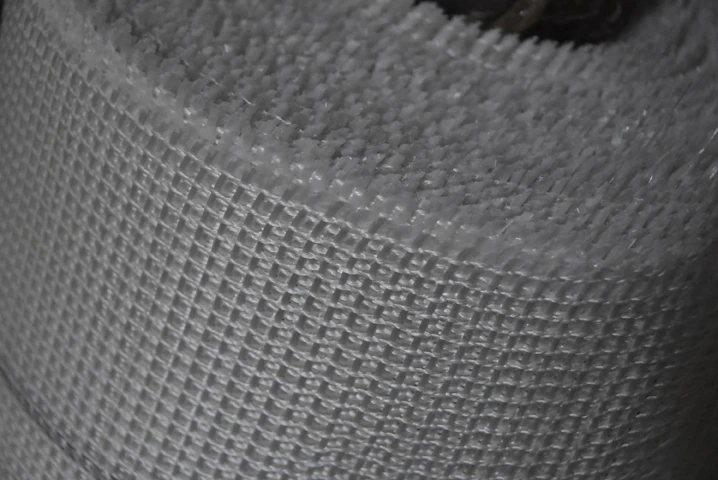

The fabric is woven by fiberglass yarn which is treated with silane coupling agent. There’re two structural weaves, plain and leno. With many unique characteristics like good bonding performance with resin, high strength, flatness of fabric surface and low elongation, it is used as an ideal base material for reinforced fiberglass discs of grinding wheels.
2. Expression of specification
composition -mesh - structure density of warp×density of weft-width/ weight
Taking CNG6×6-115/190 for example:
Composition of glass: C means C-glass, E means E-glass
Mesh: N means mesh
Structure: G means Leno, P means plain
Density of warp is 6 yarns/inch
Density of weft is 6 yarns/inch
Width: 115cm means width
Weight: 190g/ square meters
Specifications of Fiberglass Cloth for Grinding Wheels
Style |
(g/m2) Weight |
Tex | Openings/inch | Tensile Strength N/50mm |
Weave | |||
Warp |
Fill |
Warp |
Fill |
Warp |
Fill | |||
CNG105-5×5 | 105±5% | 132×2 | 300 | 5±0.5 | 5±0.5 | ≥1000 | ≥1000 | Leno |
CNG160-5×5 | 160±5% | 198×2 | 400 | 5±0.5 | 5±0.5 | ≥1300 | ≥1300 | Leno |
CNG210-5×5 | 210±5% | 330×2 | 550 | 5±0.5 | 5±0.5 | ≥1600 | ≥1700 | Leno |
ENG260-5×5 | 260±5% | 330×2 | 660 | 5±0.5 | 5±0.5 | ≥2200 | ≥2200 | Leno |
ENG320-5×5 | 320±5% | 330×2 | 1200 | 5±0.5 | 5±0.5 | ≥2600 | ≥2600 | Leno |
ENG330-5×5 | 330±5% | 396×2 | 900 | 5±0.5 | 5±0.5 | ≥2450 | ≥2550 | Leno |
CNG380-5×5 | 380±5% | 528×2 | 900 | 5±0.5 | 5±0.5 | ≥2700 | ≥2800 | Leno |
CNG90-6×6 | 90±5% | 99×2 | 198 | 6±0.5 | 6±0.5 | ≥800 | ≥900 | Leno |
ENG190-6×6 | 190±5% | 198×2 | 396 | 6±0.5 | 6±0.5 | ≥1500 | ≥1500 | Leno |
CNG230-6×6 | 230±5% | 264×2 | 450 | 6±0.5 | 6±0.5 | ≥1800 | ≥1600 | Leno |
Related Products
FAQ
Q: do you supply fiber glass mesh for making cutting wheel ?
yes, we supply all kinds of abrasive fiberglass mesh from 5#-11#, we also could do it according to client's request

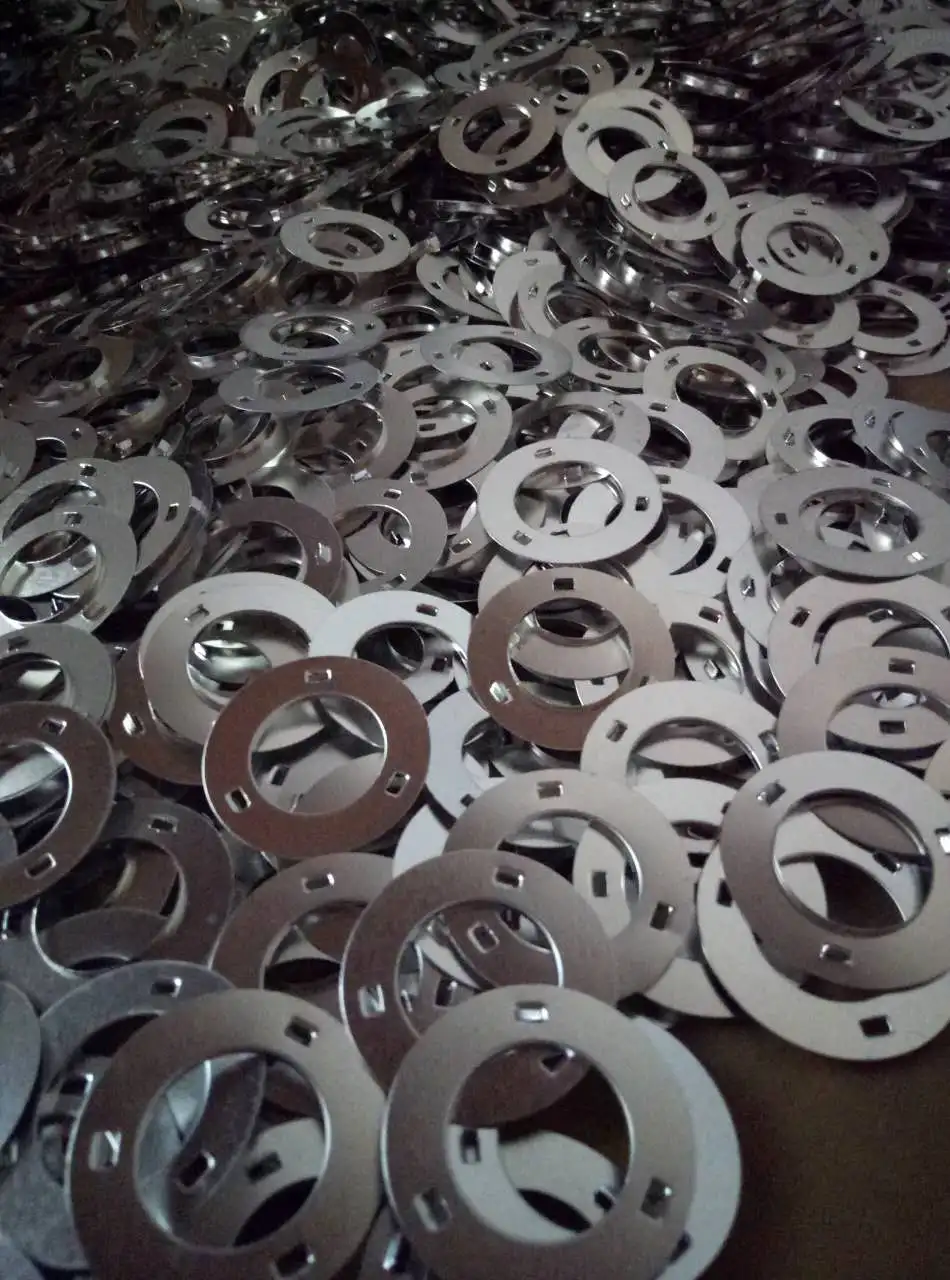

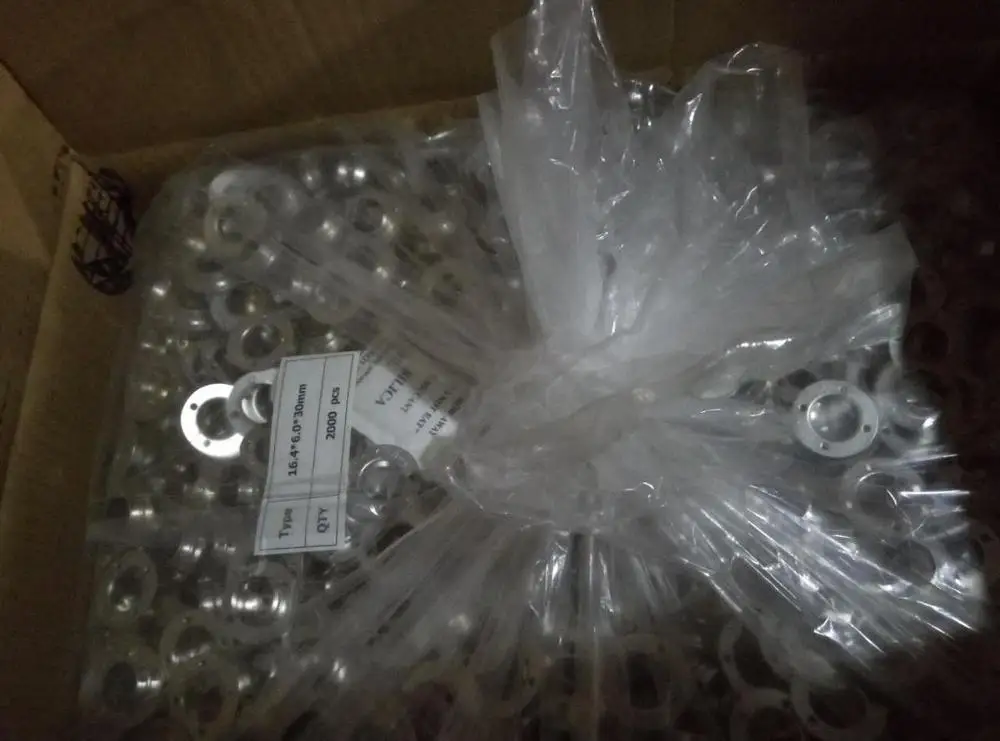

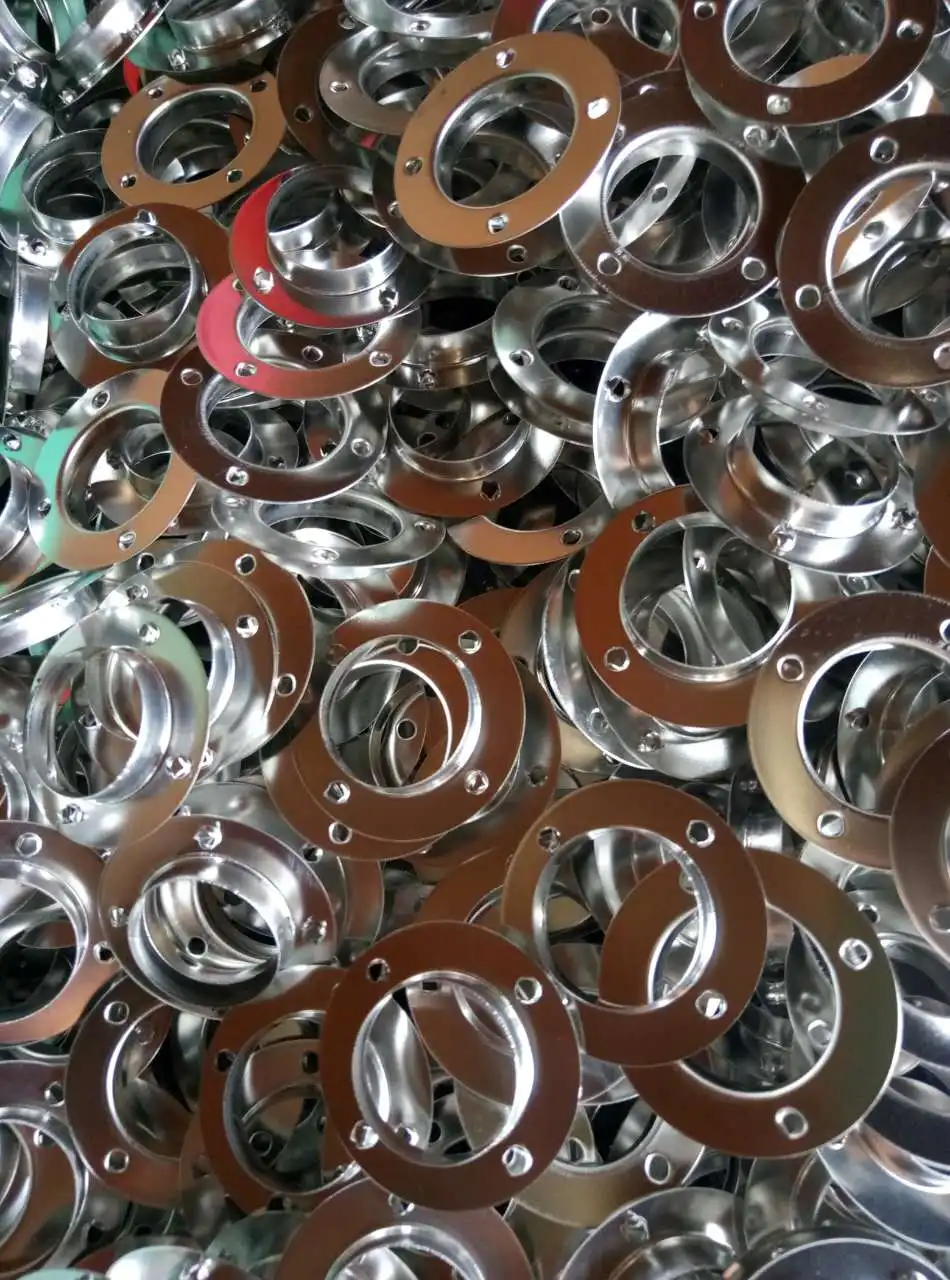

Q: do you supply metal ring for making abrasive cutting disc and grinding disc?
Yes, we supply all kinds of metal ring like 16mm, 15mm, 22.23mm, 20mm ,22.4mm, 22.45mm, 22.6mm .
size also could be made according to clients request.
