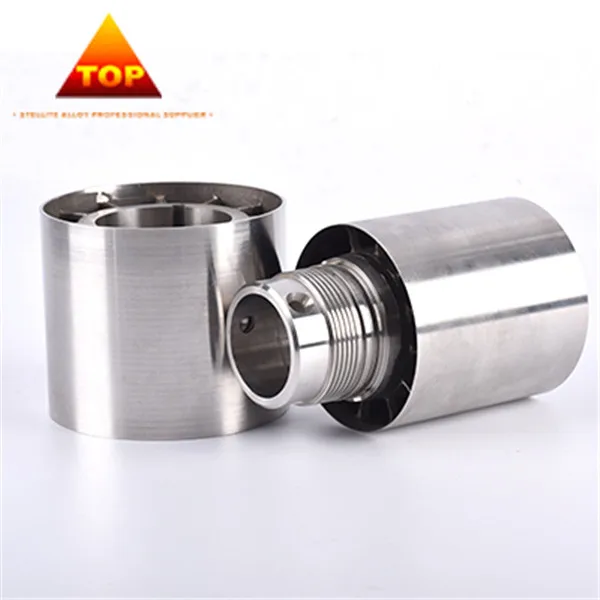

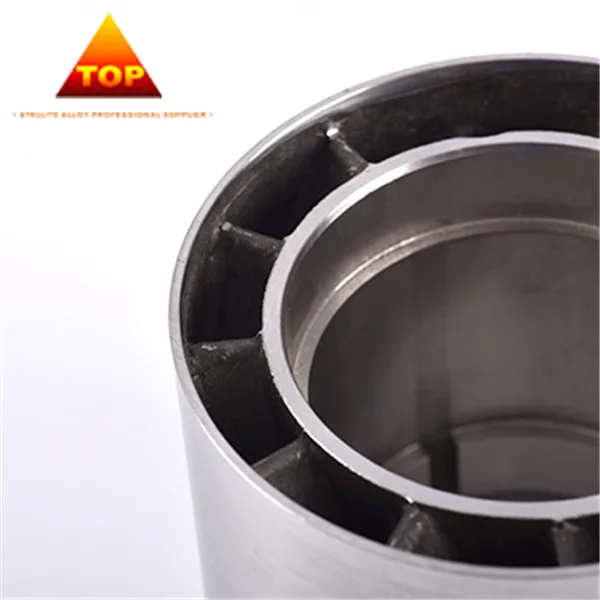

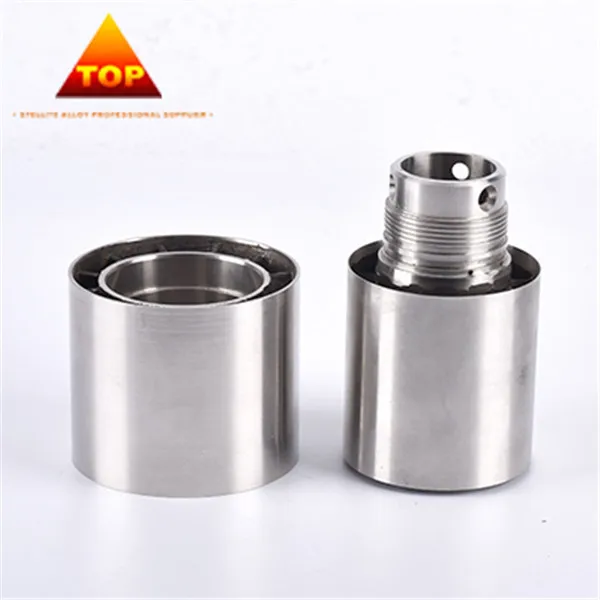

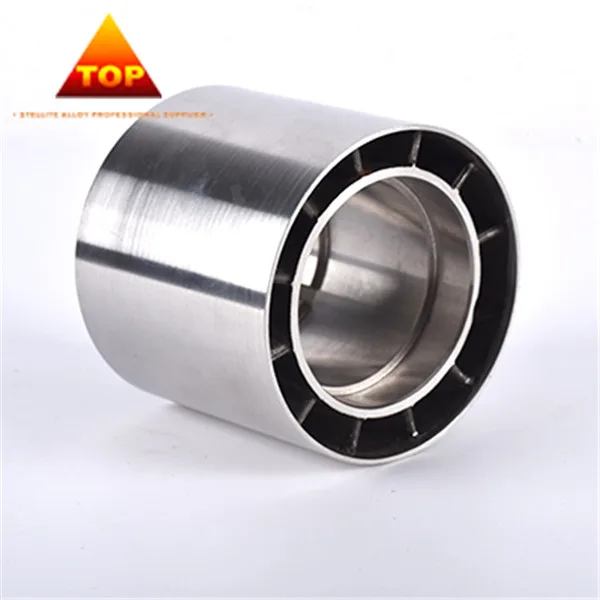

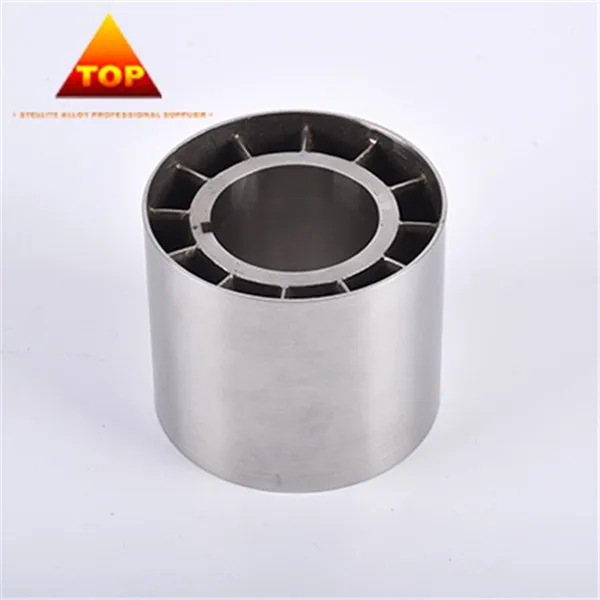

High quality investment casting bldc motor stator and rotor
- Category: Other Motor Parts >>>
- Supplier: Shenyang Top New Material Co. Ltd.
Share on (60701931244):
Product Overview
Description
Product Discription
High quality investment casting bldc motor stator and rotor
---Excellent wear and corrosion resistance even at high temperature up to 800℃
SYTOP cobalt base alloys is a range of cobalt-chromium-tungsten alloys with wear resistance, corrosion and high thermal resistance. It is widely used in oil & gas, machinery, wood cutting, automotive, paper and food processing industry etc.
Chemical compositions and properties (%)
Brand | C | Mn | Si | Cr | Ni | Mo | W | Co | Fe | P | S | Density (g/cm3) | Hardness (HRC) |
TOPS 3 | 2.0-2.7 | 1.0 | 1.0 | 29-33 | 3.0 |
| 11-14 | Bal. | 3.0 | ≤0.03 | ≤0.03 | 8.55 | 51-55 |
TOPS 6 | 0.9-1.4 | 1.0 | 1.5 | 27-31 | 3.0 | 1.5 | 3.5-5.5 | Bal. | 3.0 | ≤0.03 | ≤0.03 | 8.35 | 38-44 |
TOPS 12 | 1.1-1.7 | 1.0 | 1.0 | 28-32 | 3.0 |
| 7.0-9.5 | Bal. | 3.0 | ≤0.03 | ≤0.03 | 8.40 | 44-49 |
TOPS 20 | 2.2-3.0 |
| 2.0 | 30-34 | 3.0 | 1.0 | 14-18 | Bal. | 3.0 | ≤0.05 | ≤0.05 | 8.65 | 53-59 |
TTG 25 | 2.2-2.8 | 1-3 |
| 27-32 | 7 | Ta/Nb | 14-19 | Bal. | 2-5 |
|
| 8.84 | 57-60 |
TTG 35 | 3.3-3.8 | 1-3 |
| 27-32 | 7 | Ta/Nb | 14-19 | Bal. | 2-5 |
|
| 8.80 | 60-63 |
T400 | 0.04 |
| 2.5-2.7 | 8-10 |
| 27-29 |
| Bal. |
|
|
|
| 55 |
T800 | 0.04 |
| 3.2-3.6 | 16-18 |
| 27-29 |
| Bal. |
|
|
|
| 58 |

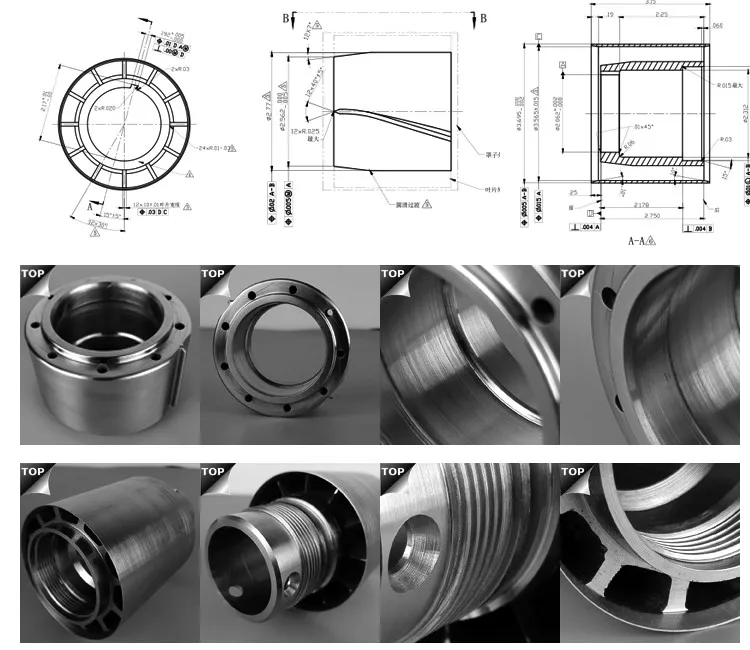

Drawing &Picture
We can manufacture the products according to your drawings and demands.The sizes ,length,wideness,thickness etc. are all on your decision.

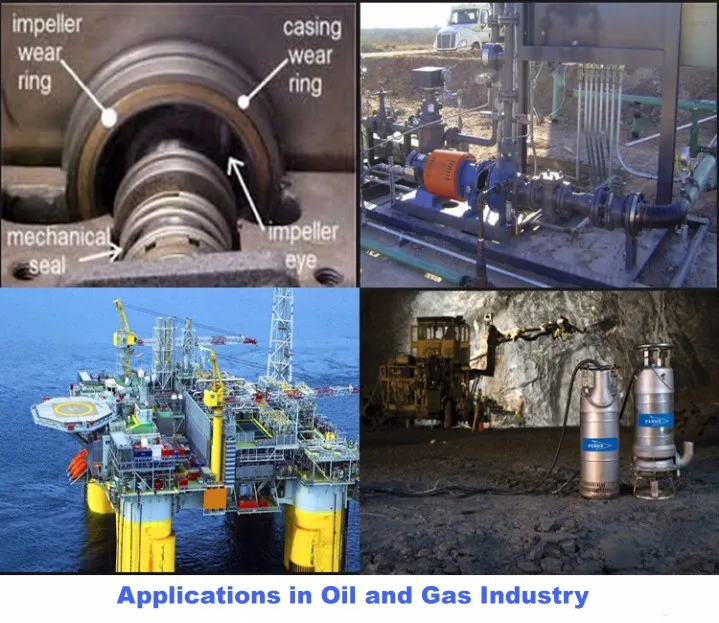

Applications
It is used for the oil well pump when it dig and detect the oil in the ocean and related environment.

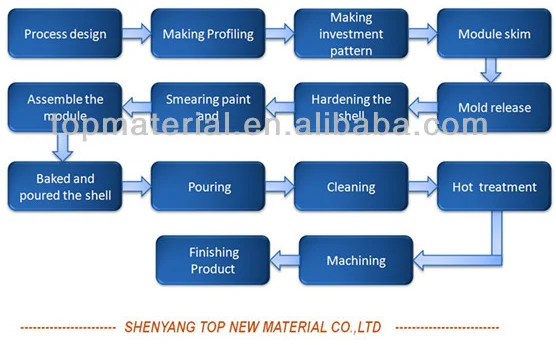

Process Introduction
Product features
1. Heat Resistance, wear resistance, corrosion resistance
2. Made as required dimensions and materials

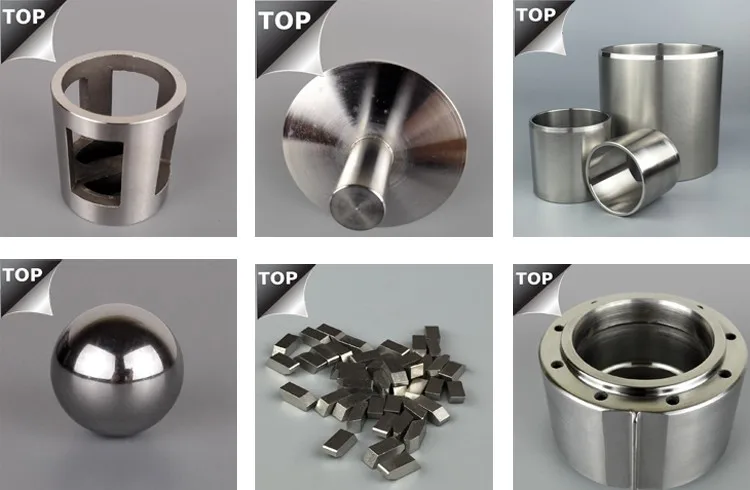

3. Main products: valve seat, pump parts, pistons, bushings, nozzles etc
FAQ
FAQ
Q1: What is the Warranty for our products ?
A1: We own high precision grading machine to control geometry dimensions and apply ultra fine grain size substrate coated with high performance coatings to guarantee the lifetime of our products, which can satisfy every working condition.If any quality problems on our side occurred in this period , we will take on the shipping cost and replacement.
Q2: Do you provide free samples?
A2: Yes, usually we provide free samples for testing under the condition of freight paid by customer.
Q3: What is your minimum order requirement?
A3: We will indicate the MOQ for each item in the quotation sheet. We accept the sample and trial order. If the quantity of single item can't reach the MOQ, the price should be sample price.
Q4: What is the delivery time of your products?
A4: It depends on the inventory availability.If items needed are in stock, the delivery time would be within 8 work days, but if not the delivery time would be around 20 work days.
Q5: Can you manufacture Special-shaped products?
A5: Yes, we can. We can produce both standard and special prosucts. We can make them according to your drawings and samples.
Q6: May I have my order working schedule ?
A6: Yes, we will send working schedule of your order each week. We will inspect and test all merchandise in case of damaging and missing parts before shipment. The detailed inspection pictures of the order will be sent to you for your confirmation before delivery.
