golden finger PI polyimide adhesive tape

Description:

Polyimide tape, also known as Kapton tape. PI tape, gold finger tape,etc. It is made of polyimide film as backing and coated with silicone pressure sensitive adhesive. It features excellent electrical insulation properties, high temperature resistance up to 260C(500F), low electrolysis and solvent resistance. It is widely used in high temperature masking and electrical insulation meeting Class H requirements.

Features:

Excellent electrical insulation properties
Wide range of temperature up to 260C(500F)
Good adhesive, easily peeling off and leaving no residue
Solvent and corrosion resistance

Application:

Mask for protection gold fingers or edge connectors of PCB during the process of wave solder, solder reflow or solder dip

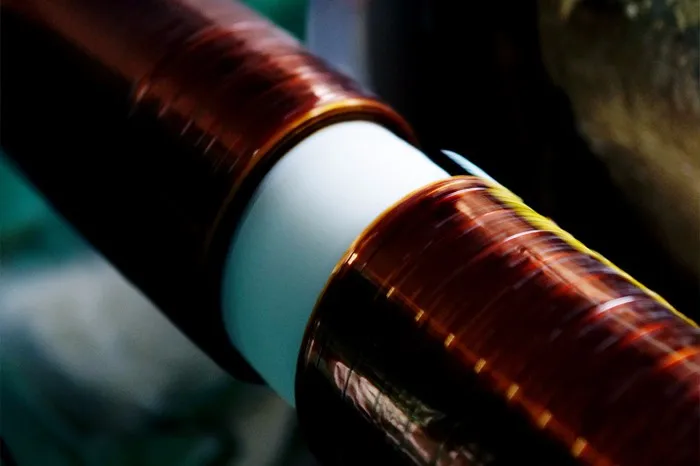

Fixing of electrical coils in motors,transformers,capacitors and other electrical components
Other high temperature shielding protection,such as 3D printing bed mask,high temperature powder spray coating, etc.
Other Class H electrical insulation application on various electronic or electrical components assembly

Packaging Details
1.\twidth:500mm,2-500mm can be customized slitting
2.\tlength:33m,66m,can be customized
3.\tplastic core internal diameter:76mm(3”),38mm(1.5”)
4.\tpacking:carton or pallet

Delivery:

15-30days upon confirmed order
