China manufacturer non woven fabric sealing and carry bag making machine
- Category: >>>
- Supplier: Zhejiang Zhengxin Machinery Co. Ltd.
Share on (60702002216):
Product Overview
Description
After-sale Service
Products Description
Model: ZXL-A700 Multifunctional Non Woven Vest Bag Making Machine
This machine adopts mechanical, electrical, optical and pneumatic integration technology, suitable for non-woven fabric, different specs of non woven bags can be made by this machine.
This machine adopts mechanical, electrical, optical and pneumatic integration technology, suitable for non-woven fabric, different specs of non woven bags can be made by this machine.
Material | Non-woven fabric Laminated non woven fabric | situation of the machine. | ||
Production speed | 20-120pcs/min | |||
Fabric thickness | 30-120gsm | |||
Bag width | 200-600mm | |||
Bag height | 100-800mm | |||
Power supplier | 220V/380V | |||
Power | 15kW | |||
Overall dimension (L*W*H) | 11000*1900*2100mm | |||
Weight | 2800kg | |||
Online D-cut punching Bottom gusset and side gusset making Drawstring feeding Online T-shirt bag auto punching Pressure requirements: 0.8-1.0 Mpa (recommended 7.5KW screw air compressor with refrigerate air dryer and 0.6 m3air tank) | ||||
Schematic Diagram
Auto loading material roll(lift by cylinders)
Inflatable shaft to fix the fabric roll when machine workingAuto stop when material run out of
Magnetic powder tension controller
Auto rectifying deviation system(EPC box and web guider)
Bag mouth folding and sealing by ultrasonic welding
Cylinders to lift and fix the sealing mold
Custom-made sealing mould is available
Manual web guider
- compressed air input here
The blower removes waste fabric
T-shirt bag sealing by ultrasonic welding
Bag Side Sealing, Cutting, Collection
Adjustable photoelectric sensor for printing color mark tracking( it can be turned on/off on the touch screen)
Online D-cut punching drawstring bag punchingbag side sealing by ultrasonic welding
Durable cold cutter
Sealing mould with heating device inside(temperature control by thermal indicator)
static eliminator device
Double stepping motor feeding system for bag length fix
Man machine interface:touch screen Motion control:PLC
- compressed air input here
Finished product conveyor with stepping motor(60w)
One set servo motor and cylinders for clamping the finished productPosition limit sensor
With 5pcs multi size mould
1 pc temperature control component
Brash with cylinder
Man machine interface:touch screen
Motion control:PLC

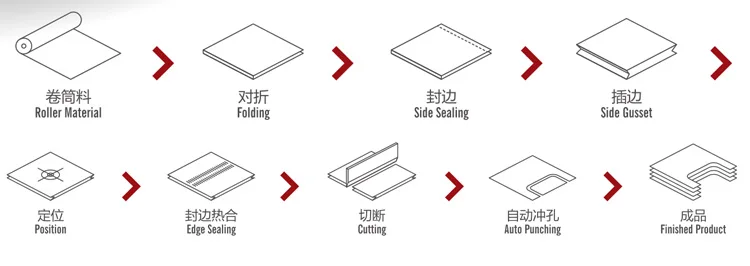

Production Process

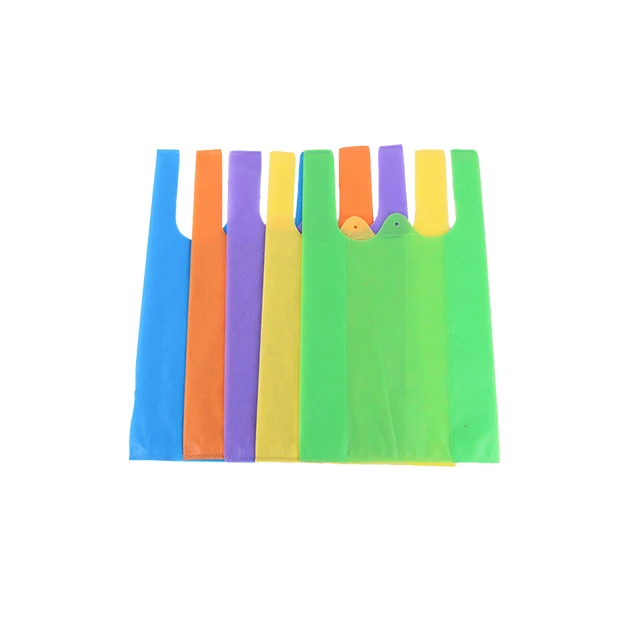

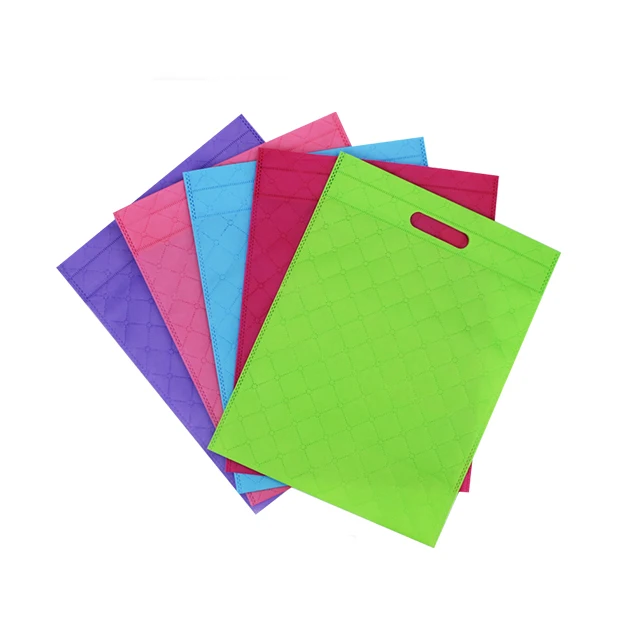

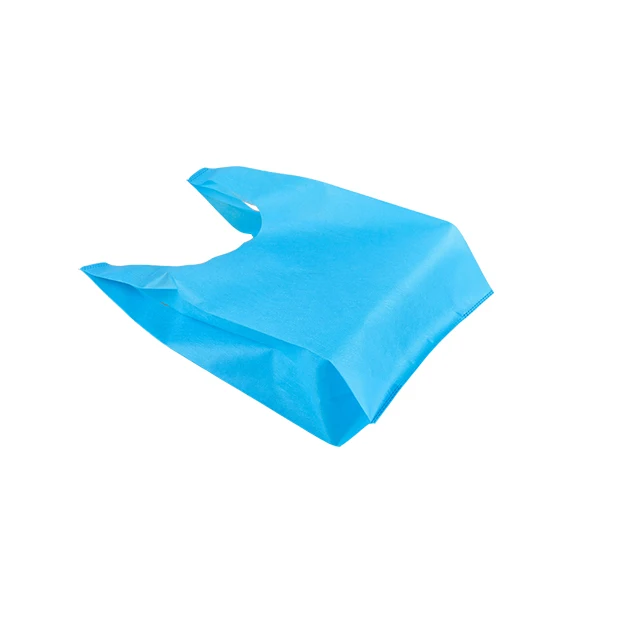

Main Products
Sales and Service Network
Packaging & Shipping
FAQ
Q: Are you trading company or manufacturer?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. Or it is 15-20 days if the goods are not in stock. It is according to quantity.
Q: What should we charge for your engineer?
A: You should charge for the cost of our engineer's visa , air tickets, hotel, food ,and also their salary 80USD one day per person.
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. Or it is 15-20 days if the goods are not in stock. It is according to quantity.
Q: What should we charge for your engineer?
A: You should charge for the cost of our engineer's visa , air tickets, hotel, food ,and also their salary 80USD one day per person.
